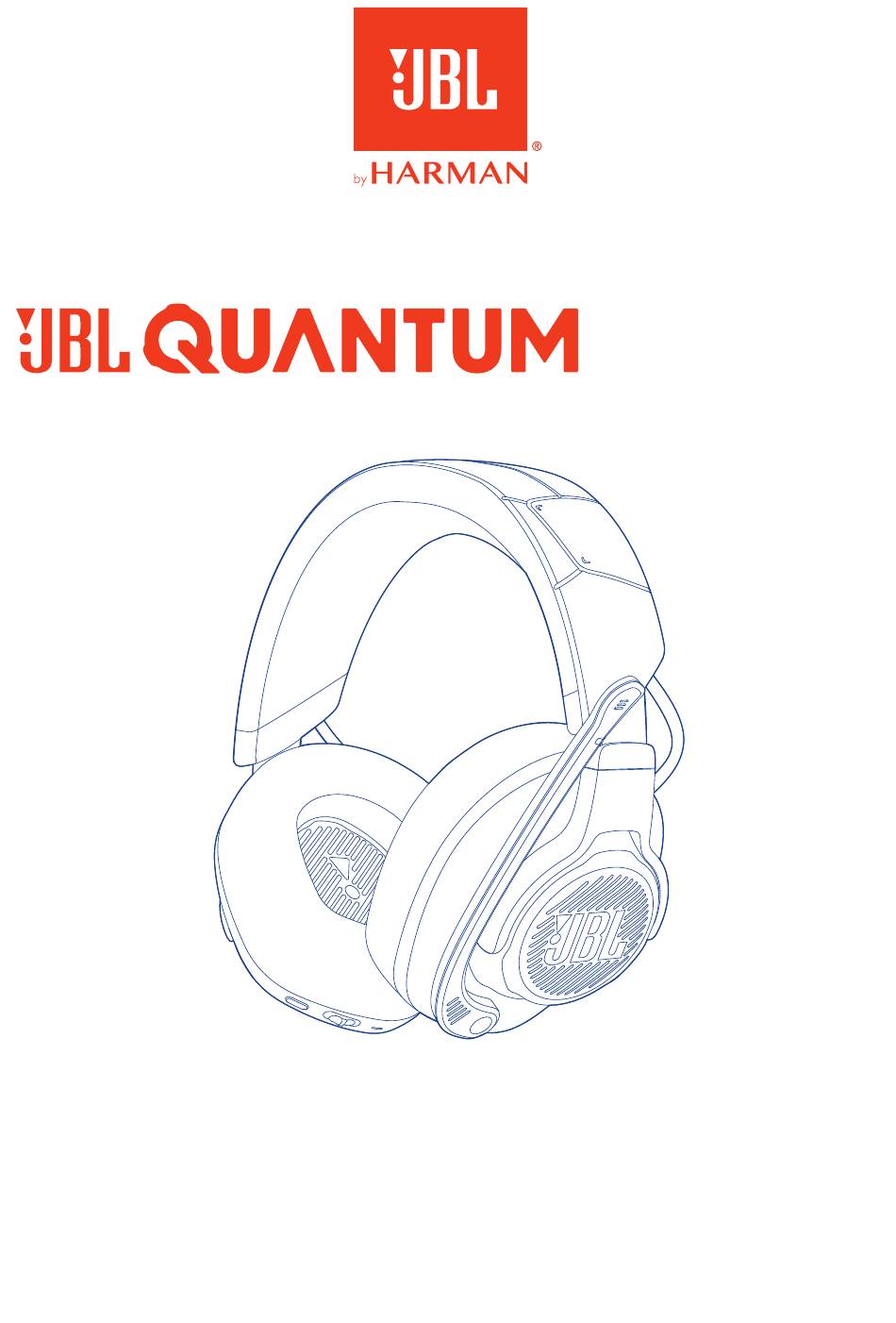

- Page 1 910P CONSOLE WIRELESS O W N E R ’ S M A N U A L...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ......................1 WHAT’S IN THE BOX ..................... 2 PRODUCT OVERVIEW ....................3 Controls on headset .............................3 Controls on 2.4GHz USB wireless dongle ..................5 Controls on 3.5 mm audio cable ......................5 GETTING STARTED....................... 6 Charging your headset ..........................6 Wearing your headset ..........................7 Power on ................................8 First-time setup (for PC only) ........................8... -
Page 3: Introduction
Introduction Congratulations on your purchase! This manual includes information on the JBL QUANTUM910P CONSOLE WIRELESS gaming headset. We encourage you to take a few minutes to read this manual, which describes the product and includes step-by- step instructions to help you to set up and get started. Read and understand all the safety instructions before using your product. -
Page 4: What's In The Box
What’s in the box JBL QUANTUM910P CONSOLE WIRELESS headset Calibration microphone USB charging cable (USB-A to USB-C) 3.5 mm audio cable 2.4GHz USB wireless dongle (USB-C) QSG, warranty card and safety sheet Windshield foam for boom microphone USB-C to USB-A converter - 2 -... -
Page 5: Product Overview
PRODUCT OVERVIEW Controls on headset ANC* / TalkThru** LED • Lights up when the ANC feature is enabled. • Flashes quickly when the TalkThru feature is enabled. button • Press briefly to turn ANC on or off. • Hold for 2 seconds to turn TalkThru on or off. dial •... - Page 6 Mic mute / unmute LED • Lights up when the microphone is muted. button • Press to mute or unmute the microphone. • Hold for 5 seconds to turn the RGB light on or off. Charging LED • Indicates the charging and battery status. 3.5 mm audio jack USB-C port Voice focus boom microphone...
-
Page 7: Controls On 2.4Ghz Usb Wireless Dongle
Controls on 2.4GHz USB wireless dongle CONNECT button • Hold for 5 seconds to enter 2.4GHz wireless pairing mode. • Indicates the status of 2.4GHz wireless connection. Controls on 3.5 mm audio cable Volume dial • Adjusts headset volume in 3.5 mm audio connection. slider •... -
Page 8: Getting Started
Getting started Charging your headset 3.5hr Before use, fully charge your headset through the supplied USB-A to USB-C charging cable. TIPS: • It takes approximately 3.5 hours to fully charge the headset. • You can also charge your headset through a USB-C to USB-C charging cable (not supplied). -
Page 9: Wearing Your Headset
Wearing your headset 1. Put the side marked L onto your left ear and the side marked R onto your right ear. 2. Adjust the earpads and headband for a comfortable fit. 3. Adjust the microphone as necessary. - 7 -... -
Page 10: Power On
Power on • Slide the power switch upwards to power on the headset. The status LED glows solid white upon powering on. • Slide downwards to power off. First-time setup (for PC only) Download from jblquantum.com/engine to gain full access to features on your JBL Quantum headset - from headset calibration to adjusting 3D audio to suit your hearing, from creating customized RGB lighting effects to determining how the boom microphone side-tone works. - Page 11 “Set Default” -> “Default Device”. 6. In your chat application select “JBL QUANTUM910P CONSOLE WIRELESS CHAT” as the default audio device. 7. Follow the onscreen instructions to personalize your sound settings. JBL Quantum 910P Console Wireless JBL Quantum 910P Console Wireless Game Chat...
-
Page 12: Using Your Headset
Using your headset With 3.5 mm audio connection 1. Connect the black connector to your headset. 2. Connect the orange connector to the 3.5 mm headphone jack on your PC, Mac, mobile or gaming console device. Basic operation Controls Operation Volume dial on 3.5 mm audio cable Adjust master volume. -
Page 13: With 2.4Ghz Wireless Connection
With 2.4GHz wireless connection 2.4G 1. Plug the 2.4GHz USB wireless dongle into a USB-C port on your PC, Mac, laptop, PS5 console, or Nintendo Switch™ controller. • With the supplied USB-C to USB-A converter, you can connect the dongle to a USB-A port on your PC, Mac, desktop, PS4/PS5 console, or Nintendo Switch™... - Page 14 Controls Operation Rotate towards to increase chat volume. Press to mute or unmute the microphone. button Hold for 5 seconds to turn on or off the RGB light. Press briefly to turn ANC on or off. button Hold for 2 seconds to turn TalkThru on or off. To pair manually >5S 1.
-
Page 15: With Bluetooth (Secondary Connection)
2. On the 2.4GHz USB wireless dongle, hold CONNECT for 5 seconds until the LED flashes white quickly. Both LEDs on the headset and dongle turn solid white after successful connection. TIPS: • The headset turns off automatically after 10 minutes of inactivity. •... - Page 16 2. Enable Bluetooth on your mobile phone and choose “JBL Quantum910P” from “Devices”. The status LED flashes slowly (connecting), and then turns solid blue (connected). NOTE: • Next time when you power on the headset, push the slider upwards to reconnect the headset to your mobile phone.
-
Page 17: Product Specifications
Product Specifications • Model: QUANTUM910P CONSOLE WIRELESS • Driver size: 50 mm Dynamic drivers • Frequency response (Passive): 20 Hz - 40 kHz • Frequency response (Active): 20 Hz - 20 kHz • Microphone frequency response: 100 Hz - 8 kHz •... - Page 18 • Talk time with only BT on and ANC+RGB lighting off: Up to 47 hrs • Microphone pickup pattern: Unidirectional • Weight: 420 g NOTE: • Technical specifications are subject to change without prior notice. - 16 -...
-
Page 19: Troubleshooting
Troubleshooting If you have problems using this product, check the following points before you request service. No power • The headset turns off automatically after 10 minutes of inactivity. Power on the headset again. • Recharge the headset (see “Charging your headset”). - Page 20 • Check that ANC is enabled while TalkThru is disabled. • You may experience obvious sound quality degradation when using the headset near a USB 3.0 enabled device. This is not a malfunction. Use an extension USB dock instead to keep the dongle as far from the USB 3.0 port as possible. In 2.4GHz wireless connection: •...
-
Page 21: License
License The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners. - Page 22 HP_JBL_Q910P_OM_SOP_V2_EN...
