For N109X and N109XXX models:
For N109XIM and N109XIMXX models:
The letter "X", in the model numbers above, stands for a letter or a numeral which means a
refrigerator option.
WARNING:
can cause personal injury or property damage. Refer to this manual.
For assistance or additional information, contact a qualified installer,
service agency, or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquid in
the vicinity of this or any other appliance.
FOR YOUR SAFETY
If you smell gas:
NORCOLD, Inc.
P.O. Box 4248
Sidney, OH 45365-4248
Improper installation, adjustment, alteration, service or maintenance
1. Open windows
2. Don't touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
English
Owner's Manual

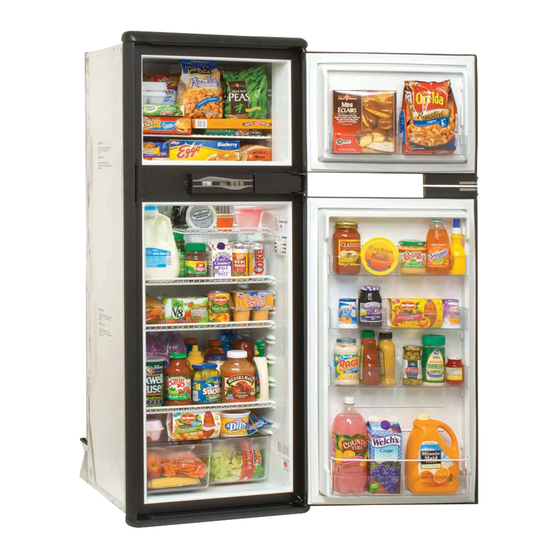

10 cu.ft., 2-way R.V. refrigerators.
10 cu.ft., 2-way R.V. refrigerators with ice maker.
French
Norcold Cutomer Service Dept.
Telephone: 800-543-1219
Fax: 937-497-3183
Web Site: www.norcold.com
Part No. 628934A (2-06)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N1095 and is the answer not in the manual?

Questions and answers

Summary of Contents for Norcold N1095

  • Page 1 For N109X and N109XXX models: For N109XIM and N109XIMXX models: The letter “X”, in the model numbers above, stands for a letter or a numeral which means a refrigerator option. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause personal injury or property damage. Refer to this manual.
  • Page 2: Table Of Contents

    4. In order to obtain the remedy of repair and replacement, the refrigerator must be brought to any Norcold Service Center for warranty service. The end consumer is responsible for all expenses resulting from any remote service call if the refrigerator cannot be brought into the Norcold service center.
  • Page 3: Gas Absorption Warranty Information

    What will the refrigerator owner do? To obtain warranty service, the refrigerator owner responsibilities are: - To use, service, and maintain the refrigerator as specified in the Installation/Owner’s Manuals. - To deliver the warranted product to an authorized Norcold Service Center for warranty repair.
  • Page 4: Safety Awareness

    Food compartment: Start up the refrigerator and let it cool for eight hours before loading with food. If the refrigerator does not start to cool down after eight hours, contact your dealer or a Norcold authorized...
  • Page 5: Freezer Compartment

    To decrease the amount of ice that collects on the cooling fins: - Cover all liquids and moist foods. - Let all hot foods cool before putting them in the refrigerator. - Do not open the door any longer than necessary.
  • Page 6: Interior Light

    Interior light: The interior light is at the top of the fresh food compartment. It comes on when the refrigerator is ON and the door is open. To replace the bulb: 1. Remove the DC power supply wires from the power board at the rear of the refrigerator.
  • Page 7: Operating The Refrigerator Controls

    - To turn on the refrigerator, push and release the ON / OFF button. - To turn off the refrigerator, push the ON / OFF button for one second and then release. The TEMP SET button [3] controls the temperature adjustment of the freezer and the fresh food compartment.
  • Page 8: Set The Controls To Automatic Mode Operation

    You can reset the controls and remove this fault code one time. To reset the controls, shut off and then start the refrigerator. - To turn off the refrigerator, push the ON / OFF button for one second and then release.
  • Page 9: Effects Of High Altitude On Propane Gas Operation

    The ice maker is assembled to the refrigerators at the factory as optional equipment. If the refrigerator does not have a factory installed ice maker, one can not be added to the refrigerator at a later time. The ice maker is fully automatic and will operate in ambient temperatures as low as 0°...
  • Page 10: Defrosting

    - with the amount of time that the door(s) are open. - with any air leakage into the refrigerator. Although the refrigerator is not frost -free, it is made to limit frost on the cooling fins. At regular intervals, the temperature control system automatically melts most of the frost from the cooling fins.
  • Page 11: Glass Shelf

    10.5 - 15.4 volts. - Make sure the thermocouple tip is clean and secure. - Make sure the area at the rear of the refrigerator is free of any combustible materials, gasoline, and other flammable vapors and liquids.
  • Page 12: Refrigerator Maintenance

    Remove and clean the burner orifice (See Art00956): - Close the valve at the propane gas tank(s). - Push the ON / OFF button to shut down the refrigerator. CAUTION: The burner box cover can be hot. Wear gloves to avoid burns.
  • Page 13: Remove The Refrigerator

    CAUTION: The rear of the refrigerator has sharp edges and corners. To prevent cuts or abrasions when working on the refrigerator, be careful and wear cut resistant gloves. 1. Close the valve at the propane gas tank(s). WARNING: To avoid possible propane gas leaks, always use two wrenches to loosen and tighten the gas supply line connections.
  • Page 14: Replacement Parts

    Replacement Parts You may purchase replacement parts through your local RV dealer or authorized Norcold Service Center. Wiring Diagram and Pictorial The parts in the wiring pictorial are (See Art01771): The parts in the wiring diagram are (See Art01772): A ... AC heater B ...
  • Page 15: Fault Codes

    Fault Codes t l u t l u a l i " " r " " " " " " " " a l i a t l " " " " " " " " t i n a l f "...
  • Page 16 Owner’s Manual 16...
  • Page 18 1-COLD COLDEST-9 MODE TEMP ON-OFF Art01018...
  • Page 19 30 AMP YL/JN DC_HTR 12VDC 12VDC + 12 VDC/VCD - 12 VDC/VCD YL/JN HTR_GND 5 AMP RD/RG 12VDC WH-BK/BC-NR WH/BC YL-GN-/JN-VE WH/BC BK-WH/NR-BC RD/RG BK/NR RD/RG RD-WH/RG-BC WH/BC LIMIT_OUT LIMIT_IN BK/NR AC_HT_HI2 AC_HT_HI BK/NR AC_HT_LO2 AC_HT_LO BU/BL WH-VT/BC-VT 120 VAC 120 VCA OVERLAY/REVÊTRMENT DISPLAY BOARD/...
  • Page 20 Art01016...
