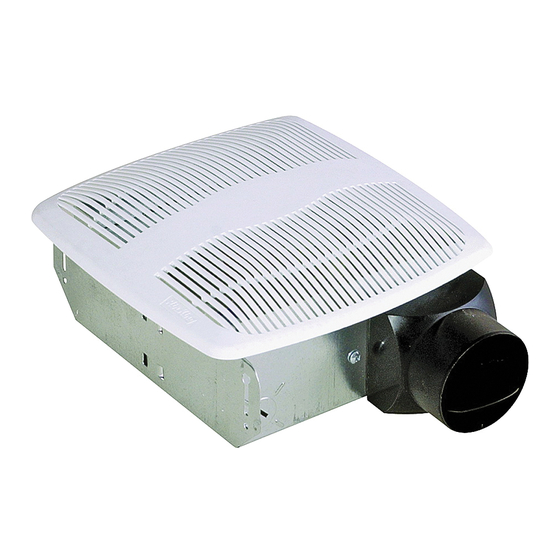

Air King EXHAUST FANS AS50 Specifications

• Grill
White, polymeric grill secured in place with torsion springs;
easily removed if necessary, dimensions - 10" x 9
• Blower Wheel
One piece polymeric wheel, 4
• Motor
Single coil plug-in, two pole motor, life time lubrication, thermally
protected. Rated 120 volts, 60 hz., 0.9 amps.
• Fan Housing
23 gauge galvanized metal housing, dimensions 7
3 3 / 4 ", double metal thickness mounting tabs.
• Duct Collar
Plastic collar for 3" duct connection, comes complete with built
in non-metallic back draft damper for quiet operation.
• Ventilating Area
For bathrooms up to 50 sq. ft. for other rooms up to 60 sq. ft.
• Unit Mounting
Rated for ceilings insulated to R-40. Designed to mount in
ceilings or walls with at least 4" of clearance. The housing will
mount through drywall thickness up to
opening of 7 1 / 2 " x 7 1 / 2 ".
• Single Pack Shipping Info
Box Dim: 10 3 / 4 " x 10 1 / 8
UPC: 0-8316225311-8
Shipping Weight: 4 1 / 2
Air Flow - CFM 55
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
CFM
NUMBER NUMBER
C US
Specifications subject to change without notice.
50 CFM/3.0 SONES @ 0.10" WG. -HVI CERTIFIED
120 Volts, 0.9 amps, 60 hz.
1 / 2 ".
1 / 2 " diameter, 1" wide, with 10 fins.
1 / 4
3 / 4 ", with a rough-in
" x 4 3 / 4 "
lbs.
Static Pressure (inches of w.g.)
0 0.05 0.1 0.125
53 50 49
IN
RPM WATTS
W.G.
3"
" x 7 1 / 4 " x
Acceptable for use over tub or shower when
installed in a GFCI protected branch circuit.
PERFORMANCE
0.15 0.2 0.25
47 44 39
ARCHITECT
ENGINEER
SUBMITTED BY
AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
AS50
EXHAUST FANS
7 1 / 4 "
7 1 / 4 "
9 1 / 2 "
10"
CUL/HVI
HVI Sones Fan Speed
@ .1 SP RPM
0.3
34 3.0 2125
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
3 3 / 4 "
Power
Watts
48
Updated 5-06
