Xblitz GX3 - Car Holder Manual

INTENDED USE

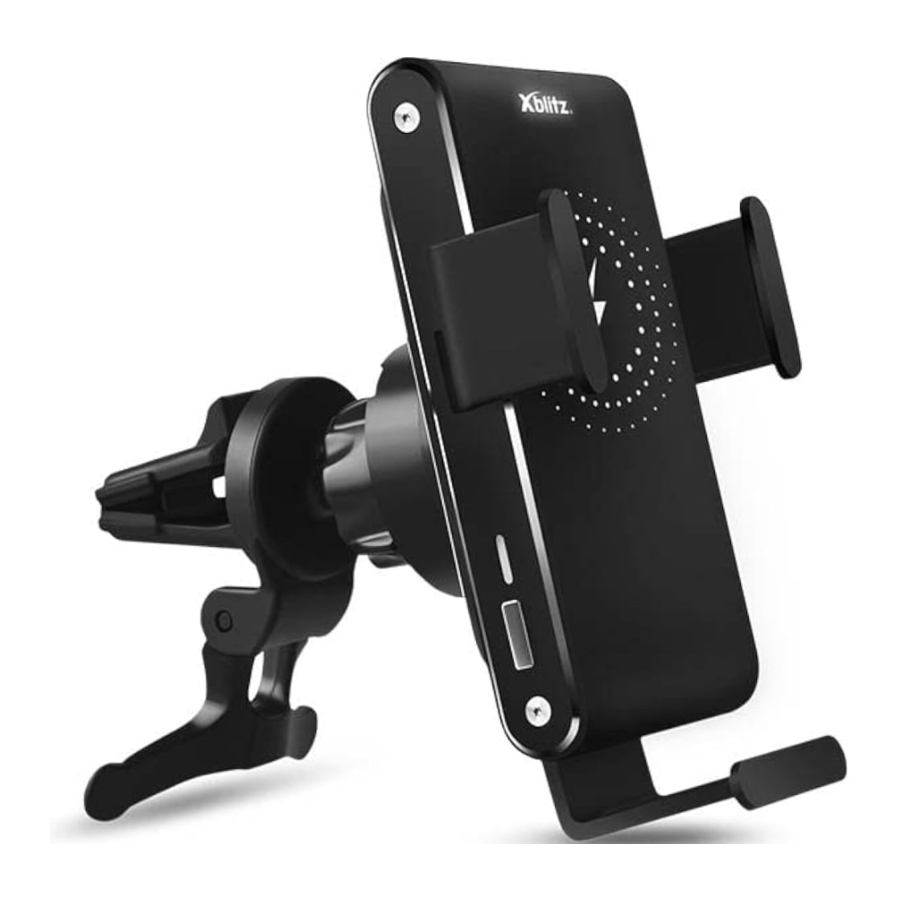

This appliance is a car holder designed to use in cars. The car holder has an automatically built-in wireless charger, mounting system, and automatic rotation.

ATTENTION!
The car holder is compatible with all smartphones equipped with the Qi wireless charging technology.

INCLUDED

1. Car holder
2. Air vent mount
3. Telescopic windscreen mount
4. USB type C cable
5. User manual

PRODUCT DESCRIPTION

1. Regulated base
2. Arms
3. Automatic rotation button
4. Wireless charger
5. LED light
6. Arm button
7. USB-C port

INSTALLATION

1. Installing the holder on an air vent or windshield:
   1. Follow the numbers on the picture to assemble parts of the device.

   2. Adjust the device according to your preference.

   3. Push the button on the mounting clip to set the angle of the holder and install the device on the air vent.

2. Installing the holder on an air vent or windshield:

3. Installing the smartphone in the holder:
   1. Automatic rotation system.

   2. To change the position to vertical or horizontal, press the button on the back of the holder.

   3. To switch the positions from vertical to horizontal, press the button on the right side of the holder, and the arms will automatically open.

4. Placing the smartphone in the holder:
   1. Both of the arms on the holder will open automatically after inserting the smartphone, and then hold the smartphone tightly in place.

   2. Removing the smartphone from the holder - press the key on the side and the arms will automatically open.

   3. LED light:
      White: Standby
      Blue: Charging
      Red: Abnormal charging

5. Connecting the holder to the power supply:
   1. Connect the wireless charger cord to the car adapter.
      For fast charging, use the Qualcomm quick charging adapter.


MODE OF OPERATION

1. Both of the arms on the holder open automatically after inserting the smartphone, and then hold the smartphone tightly in place.
2. To remove the smartphone from the holder, press the button on the side and the arms will automatically open.
3. The holder is equipped with a wireless charger and automatic rotation. After inserting your smartphone in the holder, it will automatically start charging the phone and switch to a horizontal position. Remember, your phone must be compatible with the Qi standard to use wireless charging. To ensure proper work of the charger, adjust the arms and the base of the holder so that the charging coil of the smartphone aligns with the coil in the car holder.

ATTENTION! The producer does not guarantee compatibility of the wireless charger with all smartphone models. The holder is equipped with a small capacitor that allows you to use all of its functions up to 20 minutes after disconnecting from the power supply.

CHARGING PROBLEMS

If the charger stops charging or is charging too slow, or the device is overheating, it may be caused by the following problems:

1. The phone case is too thick (2mm thickness is recommended).
2. The built-in wireless charging coil in the holder does not match the charging coil in the phone.
3. There is a piece of metal or a magnet on the back of the cell phone or the phone case.
4. The smartphone does not support wireless charging.
5. The charging cable is not up to standard.

SAFETY

1. Please keep the charger away from water or any other liquids.
2. When cleaning the charger, please make sure it is disconnected from the power supply.
3. Temperature range: -10~45°C.
4. Damage caused by failing to comply with the user manual results in warranty loss.
5. Damage caused by improper use and failure to comply with the rules results in warranty loss.
6. Due to safety concerns, do not change or modify the product.
7. It is recommended to regularly check the appliance for damage. If damage occurs, contact the authorized service center.
8. Do not pour liquids on the device, risk of permanent damage or fire.
9. Keep the device away from children.
10. If the device is overheating, unplug it from the power source and contact the authorized service center.
11. Do not plug the device into a power supply with voltage higher than recommended by the producer (in particular, do not plug it directly into a socket with a voltage of 220/230V). Failure to comply with the recommendations may result in damage or even ignition.

SPECIFICATION
Operating power: 5W, 7.5W, 10W, 15W max
Input: 9V-1.67A, 5V-2A, 12V-1.5A
Output: 9V-1.2A, 5V-1A, 12V-1.25A
Input port: USB-C
Body detector: Yes
Over-voltage protection, over-current protection, overheating protection: Yes
Sensor distance: ~6 cm
Sensor type: Magnetic sensor
Built-in Farah capacitor: Yes
Charging efficiency: 70%
Regulated base: Yes
Operating temperature: -10~45°
Weight: 140 g
Dimensions: 120x66x22 mm
Max. open size: 110 mm

WARRANTY/CLAIMS

This product is covered by a 24-month warranty. The warranty conditions are available on the website: https://xblitz.pl/warranty/
Complaints should be submitted with the complaint form which can be found at http://reklamacje.kgktrade.pl/
Contact details and the address of the service can be found on the website: www.xblitz.pl

Manufacturer:
KGK TRADE
sp. z o.o. sp. k.
Ujastek 5B,
31-752 Cracow,
Poland
