USE OF PRODUCT

Before use, read the instructions and safety measures carefully to avoid accidental damage to the equipment or injuries to the user.

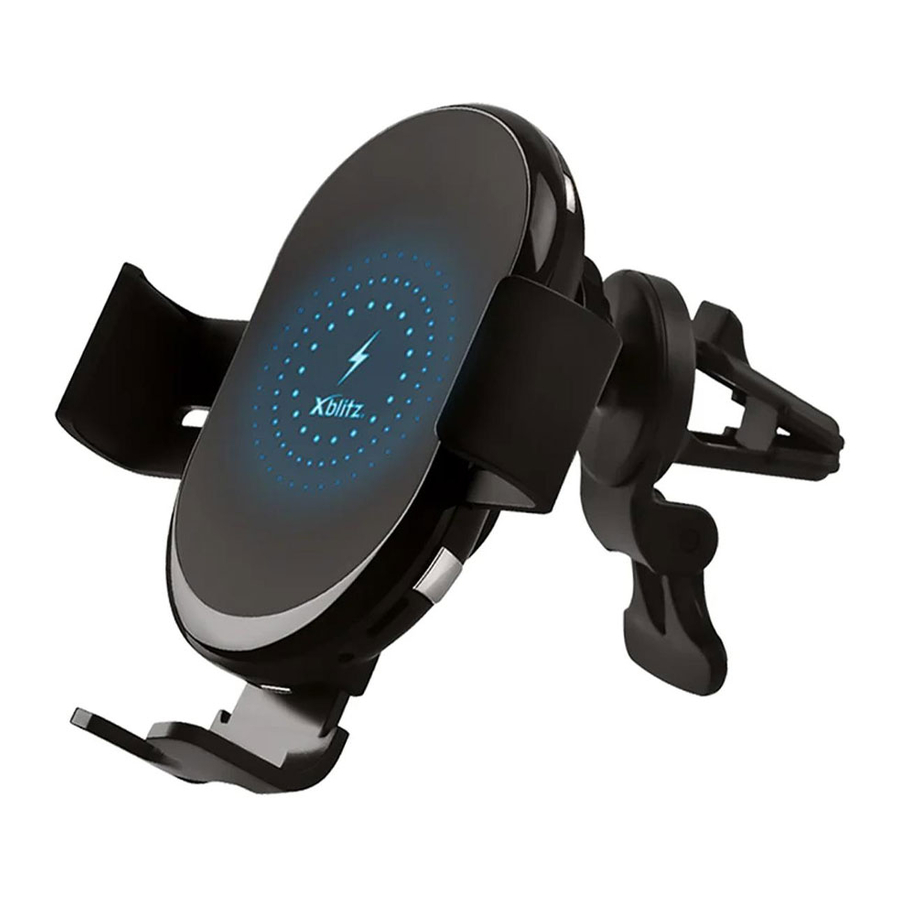

The device is a smartphone holder designed for use in cars.
The holder has a built-in wireless charger (standard QI) and an automatic smartphone charging system.

PACKAGE CONTENTS

Smartphone holder
User's manual
USB-C cable
Car ventilation grill mount
Suction cup mount (for windshield)

PRODUCT DESCRIPTION

Arms of the holder
Wireless charger
USB-C port
Adjustable base
Opening button
LED

INSTALLATION

Connect the smartphone holder to one of the mounts as shown in the image below
Tighten the plastic thread firmly to keep the holder in place.
VENTILATION MOUNT - Press the clamping clip and place it in the car's ventilation grill.
SUCTION CUP MOUNT – Put the suction cup on the windshield and pull the mounting lever to keep the device in place
Connect the holder to a power source using a USB-C cable.

HOW IT WORKS

The device has an electronic opening and closing system holding the smartphone in place, using a proximity sensor to automate the process.
In order to open the arms, use the button on the side of the device. After putting the smartphone in the holder, the arms should tighten around the phone.
To open the arms and remove the smartphone, press the button on the side of the device.

In addition, the handle has a built-in wireless charger.
The smartphone (if it supports the technology) will be charged automatically when put in the holder.

warning NOTE! The manufacturer does not guarantee the compatibility of the charger with all types of smartphones. The holder has a small capacitor, which allows you to open the holder for up to 20 minutes after disconnecting it from power.

warning NOTE! The manufacturer does not guarantee the compatibility of the holderwith any type of car.

warning NOTE! The color of the LED on the device indicates the charging status. White indicates that the device is in standby. Blue – charging normally. Red – charging error.

Incorrect charging of your phone may be caused by:

Using an incorrect cable.
Not connecting the device to an appropriate power source.
Phone case too thick (above 2mm).
Improper position of the phone in the holder.
Metal or magnetic components attached to the back of thephone case.
Wireless charging is not supported by your phone model.

COMMENTS

Damage caused by not following the instructions in this manual shall result in the warranty being voided.
In the event of damage caused by the failure to comply withthe safety rules, the manufacturer cannot be held responsible.
Due to safety reasons, it is forbidden to make changes and modifications to the product.
Check the device for damage regularly. If you detect any, contact an authorized service point.
Do not pour liquids on the product, as this can damage the equipment and carries a risk of causing a fire.
Keep the device away from children.
If you feel that the device overheats, disconnect it from power and contact the authorized service point.
Do not connect the device to a power supply with a higher voltage than recommended by the manufacturer (especially not directly to a 220/230V socket). Failure to do so may cause damage to the device or, in extreme cases, set it on fire.

SPECIFICATION

Operating power:	5W, 7.5W, 10W max
Input:	9V / 1.67A, 5V / 2A 9V / 1.2A, 5V / 1.5A
Output:	9V / 1.2A, 5V / 1.5A
Power port:	USB-C
Overvoltage / overheating protection:	Yes
Farah Capacitor:	1.5F
Charging capacity:	75%
Adjustable base:	Yes
Operating temperature:	-20~45°
Weight:	151g (with ventilation grip), 234g (with glass grip)
Size (without mount):	117x75x54mm
Arm width:	(max) 90mm
Charging standard:	QI

WARRANTY / CLAIMS

This product is covered by a 24-month warranty. The warranty conditions are available on the website: https://xblitz.pl/warranty/
Complaints should be submitted with the complaint form which can be found at http://reklamacje.kgktrade.pl/

Contact details and the address of the service can be found on the website: www.xblitz.pl

Specifications and contents of the kit are subject to change without notice. We apologise for any inconvenience.

KGK Trade declares that this device XBLITZ G750 PRO is compliant with significant requirements of directive 2014/53/EU. The text of this declaration may be found on the website: http://xblitz.pl/download/DOC/delaracja-CE-Xblitz-G750-pro.pdf

Manufacturer:
KGK Trade sp. z o.o. sp. k.
Os. Urocze 12
31-953 Cracow Poland
Made in P.R.C.

The crossed out trash can symbol indicates that unusable electrical or electronic devices, its accessories (such as power @™—™ supplies, cords) or components (for example batteries, if included) cannot be disposed of alongside with household waste. In order to dispose of the devices or its components (for example, batteries) deliver the device to the collection point, where it will be accepted free of charge. Disposal is subject to the recast version of the WEEE Directive (2012/19 / EU) and the Directive on batteries and accumulators (2006/66 / EC). Proper disposal of the device prevents degradation of the natural environment. Information about the collection points of the facilities is issued by the competent local authorities. Incorrect disposal of waste is subject to penalties provided for by the law in force in the given area.
