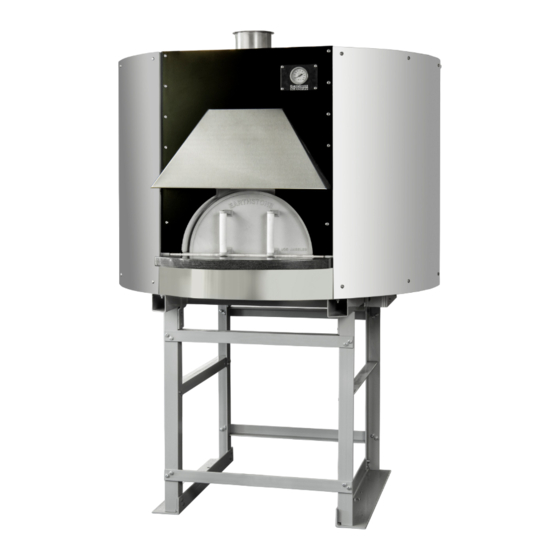

EarthStone 90-PAGW Installation Instructions Manual

Hide thumbs Also See for 90-PAGW:

Advertisement

Quick Links

Download this manual
RESIDENTIAL PRE-ASSEMBLED
INSTALLATION INSTRUCTIONS
FOR PA, PAG AND PAGW MODELS
EARTHSTONE OVENS-6717 SAN FERNANDO RD GLENDALE CA 91201
TELEPHONE: 800-840-4915
818-553-1134
FAX: 818-553-1133
www.earthstoneovens.com
e-mail:
info@earthstoneovens.com
A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN
REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS
OF UTMOST IMPORTANCE THAT THIS OVEN BE INSTALLED ONLY IN
ACCORDANCE WITH THESE INSTRUCTIONS
1/4/2018

Advertisement

loading

Related Manuals for EarthStone 90-PAGW

Summary of Contents for EarthStone 90-PAGW

  • Page 1 RESIDENTIAL PRE-ASSEMBLED INSTALLATION INSTRUCTIONS FOR PA, PAG AND PAGW MODELS EARTHSTONE OVENS-6717 SAN FERNANDO RD GLENDALE CA 91201 TELEPHONE: 800-840-4915 818-553-1134 FAX: 818-553-1133 www.earthstoneovens.com e-mail: info@earthstoneovens.com A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS...
  • Page 2 EARTHSTONE WOOD FIRE OVENS 6717 SAN FERNANDO RD, GLENDALE CA 91201 info@earthstoneovens.com www.earthstoneovens.com Residential Pre-Assembled installation instructions. Table of contents Page Instructions for moving and lifting oven NEXT PAGE Parts list Installation procedures written portion Required clearances and air gaps...
  • Page 3 INSTRUCTIONS FOR LIFTING AND MOVING OVEN Only proper heavy lifting ATTENTION: INSTALLING OVEN machinery and handling equipment should be used for unloading, moving and installing the Slowly lower oven into proper location. Oven oven. This duty should be performed by should be set on a level floor.
  • Page 4 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS---ETL LISTED LIST OF SUPPLIED ITEMS OVEN ADDITIONAL ITEMS CAST ALUMINUM DOOR DIAL TEMPERATURE GAUGE FOR WOOD FIRE OVENS DIGITAL THERMOMETER FOR GAS FIRE OVENS (REQUIRES 120V-3 AMP) TRAINING VIDEO...
  • Page 5 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED RESIDENTIAL PRE-ASSEMBLED INSTALLATION INSTRUCTION GUIDE READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND USING THE APPLIANCE. If this oven is not properly installed, a fire may result. To reduce the risk of fire, follow the installation instructions.
  • Page 6 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED INSTALLATION. OPERATING AND MAINTENANCE PREFACE Refer to pages 9, 10 and 11 for complete instructions. 1) On daily basis, and after the oven temperature is at least 500 at F: (a) Ashes are to be removed by a metal ash scoop/shovel or by a suitable fire-safe vacuum cleaner with long metal wand extensions provided by the user.;...
  • Page 7 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED INSTALLATION PROCEDURES Mark an outline on the floor of the location desired. This is to assure that you have adequate space. Refer to Fig. 1, pg. 6. Check that there is adequate clearance at the ceiling for the hood. There must be a minimum of 3 inches of clearance between the top of the oven and the surface of the drywall above.
  • Page 8 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED U.L. LISTED GREASE DUCT/BUILDING HEATING APPLIANCE CHIMNEY INSTALLATION (DIRECT VENTING) A U.L. listed Grease Duct/Building Heating Appliance Chimney may be connected to the opening in the primary hood of the oven. Refer to Fig. 18, pg. 8. For specific installation requirements refer to Selkirk Metalbestos Model PS and IPS Grease Duct Installation Instructions.
  • Page 9 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED ALL CLEARANCES SPECIFIED ARE THE MINIMUM REQUIRED AIR SPACES COMBUSTIBLES 3"MIN. 73”-83” 70”-80” OUTSIDE DIAMETER Figure 2 MODEL 60 - 33” X 32” MODEL 90 - 50", MODEL 110 - 58" U.M.C. & N.F.P.A.
  • Page 10 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED Oven stand Base plate ½ “ Dia. Anchors Coat with Simpson’s epoxy Embed 4” min. 4” to 6” conc. Floor slab FIGURE 17-A...
  • Page 11 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED RESIDENTIAL DIRECT VENTING FOR ORDERING PARTS MENTIONED ON THIS PAGE CONTACT EARTHSTONE 800-840-4915 OR YOUR SUPPLIER. MODELS 60 & 90 & 110 USE 6 INCH INSIDE DIAMETER GREASE DUCT/BUILDING HEATIN G APPLIANCE CHIMNEY...
  • Page 12 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED WOOD-FIRED PIZZA OVEN OPERATING INSTRUCTIONS WARNING: READ ALL INSTRUCTIONS CAREFULLY. IMPROPER USE OF THIS APPLIANCE MAY RESULT IN A BUILDING FIRE OR PERSONAL INJURY. INSTRUCTIONS MUST BE READ AND THOROUGHLY UNDERSTOOD BY ALL OPERATING AND SUPERVISING PERSONNEL. WATCH TRAINING VIDEO FOR VISUAL OPERATION INSTRUCTIONS.
  • Page 13 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED FIRING OVEN- NOTE: OVEN DOOR SHOULD BE REMOVED WHEN FIRING THE OVEN. Before starting, turn "ON" exhaust fan and make-up air blowers. Place a small amount of wood and kindling on the hearth over a fire-starter block. Light fire- starter.
  • Page 14 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED Store wood in a cool, dry place well away from any source of flame or heat. If stored outside, keep the fuel covered to protect from rain or snow. If stored inside, fuel should be kept in a covered metal container at least 6 inches above the floor.
  • Page 15 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED CLEARANCE INFORMATION FOR FACADES 1 inch minimum clearance to combustibles Facade Flue Collar Models 90 and 110 - 6 inch diameter Models 130 and 160 - 8 inch diameter Air gap must be sealed with a non combustible strip.
  • Page 16 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED IMPORTANT: PLEASE READ FOR GAS FIRE OR GAS/WOOD COMBINATION OVENS ONLY Combustion air intake procedures and installation Proper installation: Roof Air flow Air flow False Ceiling 24”x24” opening needed for combustion air. Only one intake should be installed located in the front or back of oven.
  • Page 17 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED Improper Installation (cont) 2) Oven is not closed to plenum/attic and is open to HVAC airflow. Roof Air flow Air flow Ceiling Instal ling a seale d enclosure arou nd th e ove n shell may cau se improper op erati on b y starving the burn er system of combustion ai r.
  • Page 18 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED NOTICE Expansion cracks, due to the refractory mass, are normal in the front entrance and on any interior surface. This will not effect the performance, efficiency and longevity of the oven in any way.
  • Page 19 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED IMPORTANT: PLEASE READ BEFORE FIRING OVEN. PRE-ASSEMBLED OVEN CURING Pre-assembled ovens are pre-cured at the factory; however a two day curing process is required before using the oven. Oven curing is a process of removing moisture from the oven that has accumulated during the oven installation.
  • Page 20 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED What kind of wood to use?: Oak, Almond, Walnut, Citrus, Apple, Cherry and most fruit and hard woods. Moisture Content: Moisture content should not exceed 15 to 25 percent. Firewood from suppliers should be within this range.
  • Page 21 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ETL LISTED Position 1 Position 2 Position 3 Heat up time for wood fire models: (from cold start). Try not to over fire the oven. This will not harm the oven but you may get the oven to hot for cooking and may need to wait for the oven to cool down a little.
