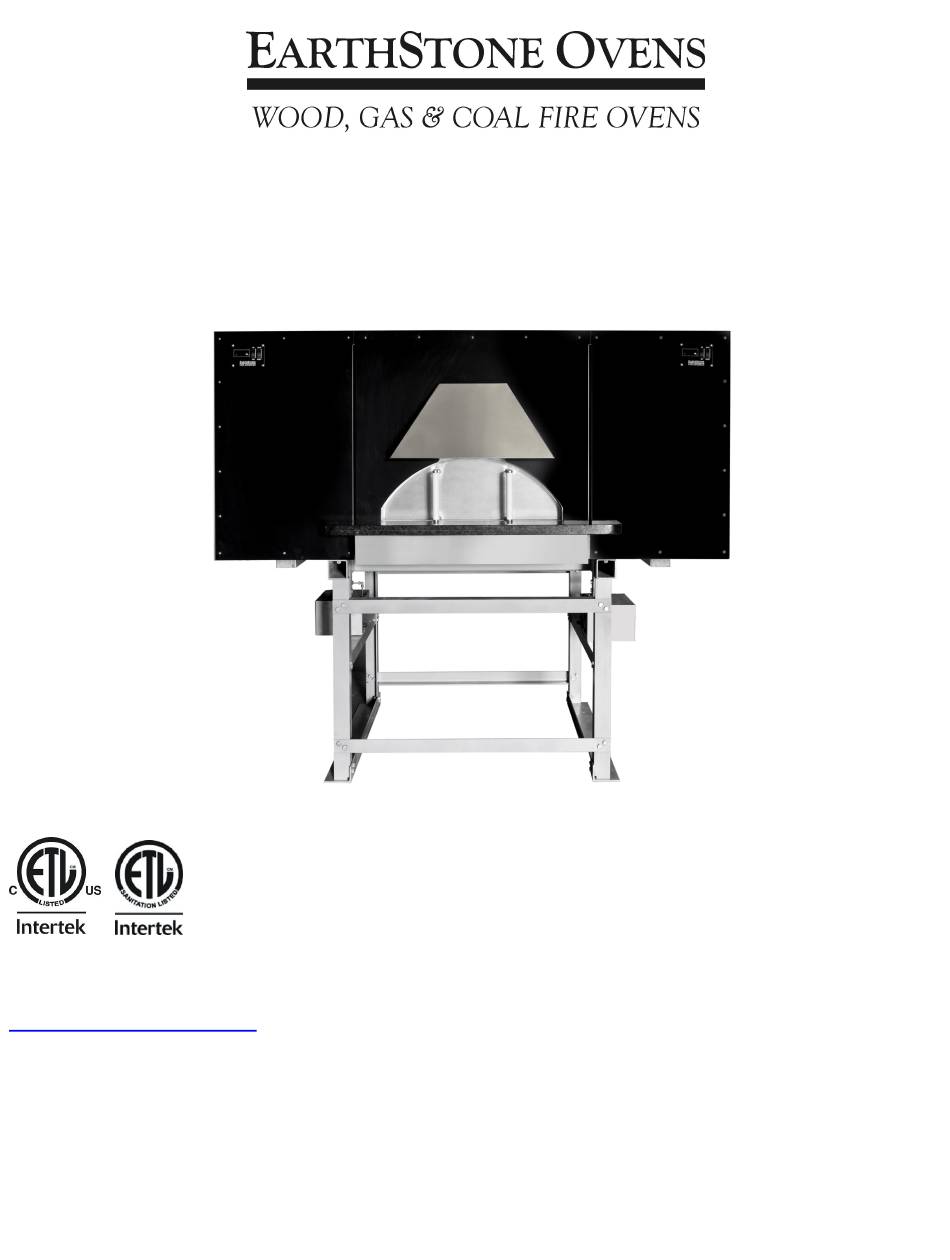

PRE-ASSEMBLED INSTALLATION INSTRUCTIONS
FOR DUE' OVEN SERIES
EARTHSTONE OVENS-6717 SAN FERNANDO RD GLENDALE CA 91201
TELEPHONE: 800-840-4915
818-553-1134
FAX: 818-553-1133
www.earthstoneovens.com
e-mail: earthstone@earthlink.net
A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN
REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS
OF UTMOST IMPORTANCE THAT THIS OVEN BE INSTALLED ONLY IN
ACCORDANCE WITH THESE INSTRUCTIONS
12/4/2013
Advertisement
Related Manuals for EarthStone 130-DUE-PA
Summary of Contents for EarthStone 130-DUE-PA
- Page 1 PRE-ASSEMBLED INSTALLATION INSTRUCTIONS FOR DUE’ OVEN SERIES EARTHSTONE OVENS-6717 SAN FERNANDO RD GLENDALE CA 91201 TELEPHONE: 800-840-4915 818-553-1134 FAX: 818-553-1133 www.earthstoneovens.com e-mail: earthstone@earthlink.net A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS...
- Page 2 EARTHSTONE WOOD FIRE OVENS 6717 SAN FERNANDO RD, GLENDALE CA 91201 earthstone@earthlink.net www.earthstoneovens.com Pre-Assembled installation instructions. Table of contents Page Instructions for moving and lifting oven Parts list Installation procedures written portion Required clearances and air gaps 6,14 Exhausting 4-9,13-14...
- Page 3 INSTRUCTIONS FOR LIFTING AND MOVING OVEN INSTALLING OVEN ATTENTION: Only proper heavy lifting machinery and handling equipment should be Slowly lower oven into proper location. Oven used for unloading, moving and installing the should be set on a level floor. Shim as oven.
- Page 4 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS LIST OF SUPPLIED ITEMS ALUMINUM DOOR (Two doors with double opening option) DIAL TEMPERATURE GAUGE FOR WOOD FIRE OVENS DIGITAL THERMOMETER DISPLAY FOR GAS AND GAS/WOOD OVENS (REQUIRES 120V-3 AMP per display)
- Page 5 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- PRE-ASSEMBLED INSTALLATION INSTRUCTION GUIDE READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND USING THE APPLIANCE. If this oven is not properly installed, a fire may result. To reduce the risk of fire, follow the installation instructions. Please read this entire manual before you install the oven. Failure to follow instructions may result in property damage, bodily injury, or even death.
- Page 6 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- INSTALLATION. OPERATING AND MAINTENANCE PREFACE Refer to pages 9, 10 and 11 for complete instructions. 1) On daily basis and after the oven temperature is at least 500 at F: (a) Ashes are to be removed by a metal ash scoop/shovel or by a suitable fire-safe vacuum cleaner with long metal wand extensions provided by the user;...
- Page 7 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- INSTALLATION PROCEDURES Mark an outline on the floor of the location desired. This is to assure that you have adequate space. Refer to Fig. 1, pg. 6. Check that there is adequate clearance at the ceiling for the hood. There must be a minimum of 3 inches of clearance between the top of the hood and/or oven and the surface of the drywall above.
- Page 8 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- TYPE-I EXHAUST HOOD-Installed per NFPA 96, standard for ventilation control and fire protection of commercial cooking operations. (For commercial applications only) If required, a Type 1 hood must be placed above the cooking opening and set on the top of the oven.
- Page 9 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ALL CLEARANCES SPECIFIED ARE THE MINIMUM REQUIRED AIR SPACES COMBUSTIBLES Hood (If required) 3"MIN. 105" MIN. Outside Dimension FOR COMMERCIAL USE ONLY MODEL 90-Due' - (A) 60" x (B) 44" Figur e 2 MODEL 110-Due’ - (A) 92.25” X (B) 54.25”...
- Page 11 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- Oven stand Base plate ½ “ Dia. Anchors Coat with Simpson’s epoxy Embed 4” min. 4” to 6” conc. Floor slab FIGURE 17-A...
- Page 12 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS COMMERCIAL DIRECT VENTING FOR ORDERING PARTS MENTIONED ON THIS PAGE CONTACT EARTHSTONE OR YOUR SUPPLIER. Tel: 800-840-4915- 818-553-1134 6 INCH DIAMETER GREASE DUCT - Models - 90, Café, 110, 110-Due (Dual opening) 8 INCH DIAMETER GREASE DUCT - Models 90-Due, 120, 130, 160, 110-Due (Single opening), 130-Due (Dual opening)
- Page 13 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- WOOD-FIRED PIZZA OVEN OPERATING INSTRUCTIONS WARNING: READ ALL INSTRUCTIONS CAREFULLY. IMPROPER USE OF THIS APPLIANCE MAY RESULT IN A BUILDING FIRE OR PERSONAL INJURY. INSTRUCTIONS MUST BE READ AND THOROUGHLY UNDERSTOOD BY ALL OPERATING AND SUPERVISING PERSONNEL. WATCH TRAINING VIDEO FOR VISUAL OPERATION INSTRUCTIONS.
- Page 14 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- The fire should be built directly on the hearth; DO NOT elevate fire. FIRING OVEN- NOTE: OVEN DOOR SHOULD BE REMOVED WHEN FIRING THE OVEN. Before starting, turn "ON" exhaust fan and make-up air blowers.
- Page 15 Refer to NFPA 96 for procedures for inspection, cleaning and maintenance for solid fuel cooking. SERVICE OF OVEN TEMP. MONITORING EQUIPMENT Replace with Temp. Gauge rated 6-14 VDC, Temp. Range -58 0 F to 932 0 F. (Earthstone Ovens Model ESO-TTC) Replace AC adapter with U.L.
- Page 17 Model 90 - 38.000"...
- Page 18 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- IMPORTANT: PLEASE READ FOR GAS FIRE OR GAS/WOOD COMBINATION OVENS ONLY Combustion air intake procedures and installation Proper installation: Roof Roof Air flow Air flow Air flow Air flow False Ceiling False Ceiling 24”x24” opening needed for 24”x24”...
- Page 19 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- Improper Installation (cont) 2) Oven is not closed to plenum/attic and is open to HVAC airflow. Roof Air flow Air flow Ceiling Installing a sealed enclosure around the oven shell may cause improper operation by starving the burner system of combustion air.
- Page 20 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- NOTICE Expansion cracks, due to the refractory mass, are normal in the front entrance and on any interior surface. This will not effect the performance, efficiency and longevity of the oven in any way. Cut view of inside oven...
- Page 21 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- What kind of wood to use?: Oak, Almond, Walnut, Citrus, Apple, Cherry and most fruit and hard woods. Moisture Content: Moisture content should not exceed 15 to 25 percent. Firewood from suppliers should be within this range.
- Page 22 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- POSITION 1 POSITION 2 Try not to over fire the oven. This will not harm the oven but you may get the oven to hot for cooking and may need to wait for the oven to cool down a little.
