Srne HF2420S40-75 User Manual

All-in-one solar charger inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

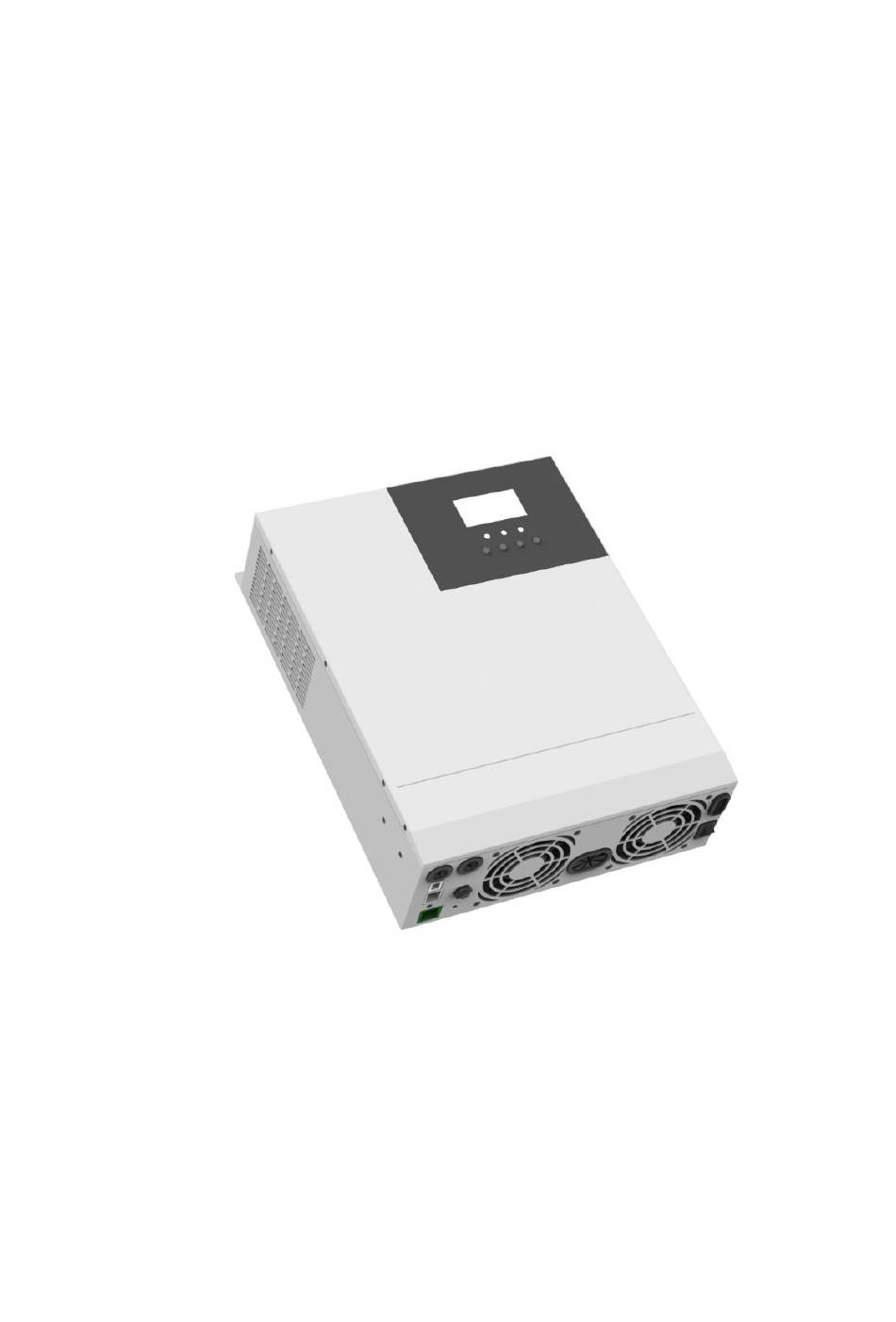

All-in-one solar charger inverter
User Manual
Product models:
HF2420S40-75 | HF2420S60-100
HF2430S40-75 | HF2430S60-100
All-in-one solar charge inverter V7.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HF2420S40-75 and is the answer not in the manual?

Questions and answers

Related Manuals for Srne HF2420S40-75

Summary of Contents for Srne HF2420S40-75

  • Page 1 All-in-one solar charger inverter User Manual Product models: HF2420S40-75 | HF2420S60-100 HF2430S40-75 | HF2430S60-100 All-in-one solar charge inverter V7.0...
  • Page 2 Important safety instructions Please keep this manual for future use. This manual contains all safety, installation and operating instructions for the HF Series all-in-one solar charge inverter. Please read all instructions and precautions in the manual carefully before installation and use. ...

  • Page 3: Table Of Contents

    CONTENTS 1. GENERAL INFORMATION ....................4 1.1 P ....................... 4 RODUCT OVERVIEW AND FEATURES 1.2 B ........................ 5 ASIC SYSTEM INTRODUCTION 1.3 A ............................. 6 PPEARANCE 1.4 D ..........................7 IMENSION DRAWING 2. INSTALLATION INSTRUCTIONS ..................8 2.1 I ........................8 NSTALLATION PRECAUTIONS 2.2 W ..............

  • Page 4: General Information

    1. General information 1.1 Product overview and features HF series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrial standard.

  • Page 5: Basic System Introduction

    1.2 Basic system introduction The figure below shows the system application scenario of this product. A complete system consists of the following parts: 1. PV module: Convert light energy into DC power, and charge the battery through the all-in-one solar charge inverter, or directly invert into AC power to drive the load. 2.

  • Page 6: Appearance

    1.3 Appearance ⑧ ① AC input port Cooling fan ⑨ ② AC output port Battery port ⑩ ③ USB communication port ON/OFF rocker switch ⑪ ④ RS485 communication port PV port ⑫ ⑤ Dry node port Touch button ⑬ ⑥ Grounding screw hole LED Indicator ⑭...

  • Page 7: Dimension Drawing

    1.4Dimension drawing All-in-one solar charge inverter V7.0...

  • Page 8: Installation Instructions

    2. Installation instructions 2.1 Installation precautions Please read this manual carefully prior to installation to familiarize yourself with the installation steps.  Be very careful when installing the battery. Wear safety goggles when installing a lead-acid liquid battery. Once coming into contact with the battery acid, rinse with clean water timely. ...

  • Page 9: Wiring Specifications And Circuit Breaker Selection

     Refer to the table below for PV input wire diameter and switch: Recommended PV Maximum PV Recommended air switch or Models wiring diameter input current circuit breaker type HF2420S40-75 /10AWG 2P—40A 8mm 2 /8AWG HF2420S60-100 2P—63A HF2430S40-75 2P—40A /10AWG HF2430S60-100 2P—63A...
  • Page 10 Refer to the table below for recommended AC input wire diameter and switch: Recommended AC Maximum bypass Recommended air switch or Models input wiring diameter input current circuit breaker type 6mm 2 /10AWG HF2420S40-75 2P—40A 6mm 2 /10AWG HF2420S60-100 2P—40A 6mm 2 /10AWG HF2430S40-75 2P—40A 6mm 2 /10AWG HF2430S60-100 2P—40A...
  • Page 11 Maximum Recommended air Models AC output wiring inverter AC bypass output switch or circuit breaker diameter output current type 6mm 2 /10AWG HF2420S40-75 8.6A 2P—40A 6mm 2 /10AWG 8.6A HF2420S60-100 2P—40A 6mm 2 /10AWG HF2430S40-75 2P—40A 6mm 2 /10AWG HF2430S60-100 2P—40A...

  • Page 12: Installation And Wiring

    2.3 Installation and wiring Installation steps:： Step 1: Determine the installation position and the space for heat dissipation. Determine the installation position of the all-in-one solar charge inverter, such as wall surface; when installing the all-in-one solar charge inverter, ensure that there is enough air flowing through the heat sink, and space of at least 200m to the left and right air outlets of the inverter shall be left to ensure natural convection heat dissipation.
  • Page 13 Step 2: Remove the terminal cover Step3: Wiring AC input / output wiring method: ① Prior to AC input/output wiring, disconnect the external circuit breaker and confirm that the wire used is thick enough. Please refer to Section 2.2 “Wiring Specifications and Circuit Breaker Selection”;...
  • Page 14 ：Ground L：Live N：Neutral ③ Properly connect the AC output wire according to the wire sequence and terminal position shown in the figure below. Please connect the ground wire first, and then the live wire and the neutral wire. The ground wire is connected to the grounding screw hole on the cabinet through the O-type terminal.
  • Page 15 PV input wiring method: ① Prior to wiring, disconnect the external circuit breaker and confirm that the wire used is thick enough. Please refer to Section 2.2 “Wiring Specifications and Circuit Breaker Selection”; ② Properly connect the PV input wire according to the wire sequence and terminal position shown in the figure below.
  • Page 16 BAT+: Battery positive electrode BAT-: Battery negative electrode Warnings: ① Mains input, AC output and PV array will generate high voltage. So, before wiring, be sure to disconnect the circuit breaker or fuse; ② Be very careful during wiring; do not close the circuit breaker or fuse during wiring, and ensure that the “+”...
  • Page 17 Step 5: Install the terminals cover. Step 6: Turn on the all-in-one solar charge inverter First, close the circuit breaker at the battery terminal, and then turn the rocker switch on the left side of the machine to the "ON" state. The "AC/INV" indicator flashing indicates that the inverter is working normally.

  • Page 18: Operating Modes

    3. Operating modes 3.1 Charging mode 1) PV priority: PV module will charge the battery preferentially, and the battery is charged by the Mains only when the PV system fails. During the day, solar energy is fully used to charge, while at night, it converts to the Mains.

  • Page 19: Output Mode

    3.2 Output mode  PV priority mode: Switch to mains supply when the PV charging fails. This mode maximizes the use of solar energy while maintaining battery power, suitable for use in the areas with relatively stable grid.  Mains priority mode: Switch to inverter only when the mains fails (when there was mains power, switch to mains power for charging and power supply).Then, the unit is equivalent to a backup UPS, suitable for areas with unstable grid.

  • Page 20: Lcd Screen Operating Instructions

    4. LCD screen operating instructions 4.1 Operation and display panel The operation and display panel is as shown below, including 1 LCD screen, 3 indicators and 4 operation buttons. Operation buttons introduction Function Description buttons Enter/Exit Settings menu Previous choice DOWN Next choice Confirm/Enter Options under the settings menu,...
  • Page 21 LCD screen introduction Icons Functions Icons Functions Indicates that the AC input Indicates that the inverter circuit terminal has been connected to is working the grid Indicates that the AC input mode Indicates that the machine is in in APL mode (wide voltage range) the Mains Bypass mode Indicates that the PV input terminal Indicates that the AC output is in...
  • Page 22 Indicates that the current battery Indicates that the machine has an type of the machine is a lead-acid alarm battery Indicates that the battery is in Indicates that the machine is in a charging state fault condition Indicates that the AC/PV charging Indicates that the machine is in circuit is working setup mode...
  • Page 23 Real-time data viewing method On the LCD main screen, press the “UP” and “DOWN” buttons to scroll through the real-time data of the machine. Parameters Parameters on the left side of the in the Parameters on the right Page screen middle of side of the screen the screen...

  • Page 24: Setup Parameters Description

    4.2 Setup parameters description Buttons operation instructions: Press the “SET” button to enter the setup menu and exit the setup menu. After entering the setup menu, the parameter number [00] will flash. At this point, press the “UP” and “DOWN” buttons to select the code of parameter item to be set. Then, press the “ENT” button to enter the parameter editing mode, and the value of the parameter is flashing.
  • Page 25 Parameter Parameter Settings Description name When the parameter [01] =SOL/SBU, the Utility to battery voltage is higher than the set value, and [05]28.8V Battery Power the output is switched from the mains to the default Setpoint inverter. Setting range: 24V~30V. Cannot be lower than the value of [04] / [35] settings.
  • Page 26 Parameter Parameter Settings Description name Lithium iron phosphate battery LF07/LF08/LF09, corresponding to 7 strings ,8 strings and 9 strings of lithium iron phosphate battery; for 7 [08] strings, default constant-voltage charge voltage LF07/LF08/LF09 is 24.8V; for 8 strings, default constant-voltage charge voltage is 28.4V;...
  • Page 27 Parameter Parameter Settings Description name Battery undervoltage alarm point; when the battery voltage is lower than the point, an Battery under undervoltage alarm is given, and the output is [14] 22V default voltage alarm not turned off; the setting range is 20V~26V, with a step of 0.2V.
  • Page 28 Parameter Parameter Settings Description name After the power saving mode is enabled, if the load is null or less than 50W, the inverter Power saving [22] ENA output is turned off after a delay for a certain mode period of time. When the load is more than 50W, the inverter automatic restart.
  • Page 29 Parameter Parameter Settings Description name Max AC charger S series model：Max AC charger current. [28] 80A default current Setting range: 0~80A； Supply for industrial frequency transformer [29] DIS default (disabled) Split Phase Supply for industrial frequency transformer [29] ENA (enabled) Battery When the battery voltage is under voltage, the undervoltage...

  • Page 30: Battery Type Parameters

    4.3 Battery type parameters For Lead-acid Battery : Battery type Colloidal lead Vented lead Sealed lead acid User-defined acid battery acid battery battery (SLD) (User) (GEL) (FLD) Parameters 30.0V 30.0V 31.0V 18～30V Overvoltage disconnection voltage Battery fully charged recovery point(setup item 37) (Adjustable) (Adjustable) (Adjustable)
  • Page 31 For Lithium Battery : Ternary Lithium Lithium Lithium Ternary Battery type lithium iron iron iron lithium battery phosphat phosphat phosphate battery (N08) e battery e battery battery Parameters (N07) (LF07) (LF08) (LF09) 31.6V Overvoltage disconnection voltage Battery fully charged recovery point(setup 27.4V 30.4V 23.2V...

  • Page 32: Other Functions

    5. Other functions 5.1 Dry node Working principle: This dry node can control the ON/OFF of the diesel generator to charge the battery. ① Normally, the terminals are that the NC-N point is closed and the NO-N point is open; ② When the battery voltage reaches the low voltage disconnection point, the relay coil is energized, and the terminals turn to that the NO-N point is closed while NC-N point is open.

  • Page 33: Protection

    6. Protection 6.1 Protections provided Protections Description PV current/power When charging current or power of the PV array configured exceeds limiting protection the PV rated, it will charge at the rated. At night, the battery is prevented from discharging through the PV PV night reverse- module because the battery voltage is greater than the voltage of PV current protection...
  • Page 34 PV reverse polarity When the PV polarity is reversed, the machine will not be damaged. protection AC reverse Prevent battery inverter AC current from being reversely input to protection Bypass. Bypass over current Built-in AC input overcurrent protection circuit breaker. protection When the discharge output current of the battery is greater than the Battery input over...

  • Page 35: Fault Code Meaning

    6.2 Fault code meaning Whether it Fault code Fault name affects the Description output or not 【01】 BatVoltLow Battery undervoltage alarm Battery discharge average current 【02】 BatOverCurrSw overcurrent software protection 【03】 BatOpen Battery not-connected alarm 【04】 BatLowEod Battery undervoltage stop discharge alarm 【05】...

  • Page 36: Handling Measures For Part Of Faults

    6.3 Handling measures for part of faults Fault Faults Handling measures code Check if the battery air switch or the PV air switch has Display No display on the screen been closed; if the switch is in the "ON" state; press any button on the screen to exit the screen sleep mode.

  • Page 37: System Maintenance

    7. System maintenance  In order to maintain the best long-term performance, it is recommended to conduct following checks twice a year. Make sure that the airflow around the unit is not blocked and remove any dirt or debris from the heat sink.

  • Page 38: Technical Parameters

    8. Technical parameters Models HF2420S40 -75 HF2420S60 -100 HF2430S40 -75 HF2430S60 -100 AC mode Rated input 220/230Vac voltage (170Vac~280Vac) ±2% Input voltage (90Vac-280Vac) ±2% range Frequency 50Hz/ 60Hz (Auto detection) 47±0.3Hz ~ 55±0.3Hz (50Hz); Frequency Range 57±0.3Hz ~ 65±0.3Hz (60Hz); Overload/short Circuit breaker circuit protection...
  • Page 39 Loaded motor capability Rated battery input 24V (Minimum starting voltage 22V) voltage Battery voltage Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... range settable on LCD screen) Power saving Load ≤50W mode AC charging Battery type Lead acid or lithium battery Maximum charge 0-60A 0-80A current(can be set)
  • Page 40 Certified specifications Certification CE(IEC 62109-1) EMC certification EN61000, C2 level Operating -15°C to 55°C temperature range Storage -25°C ~ 60°C temperature range Humidity range 5% to 95% (Conformal coating protection) ≤60dB Noise Heat dissipation Forced air cooling, variable speed of fan Communication USB/RS485(WiFi/GPRS)/Dry node control interface...

This manual is also suitable for:

Hf2430s40-75Hf2420s60-100Hf2430s60-100
