Related Manuals for Teltone TSP Base

Summary of Contents for Teltone TSP Base

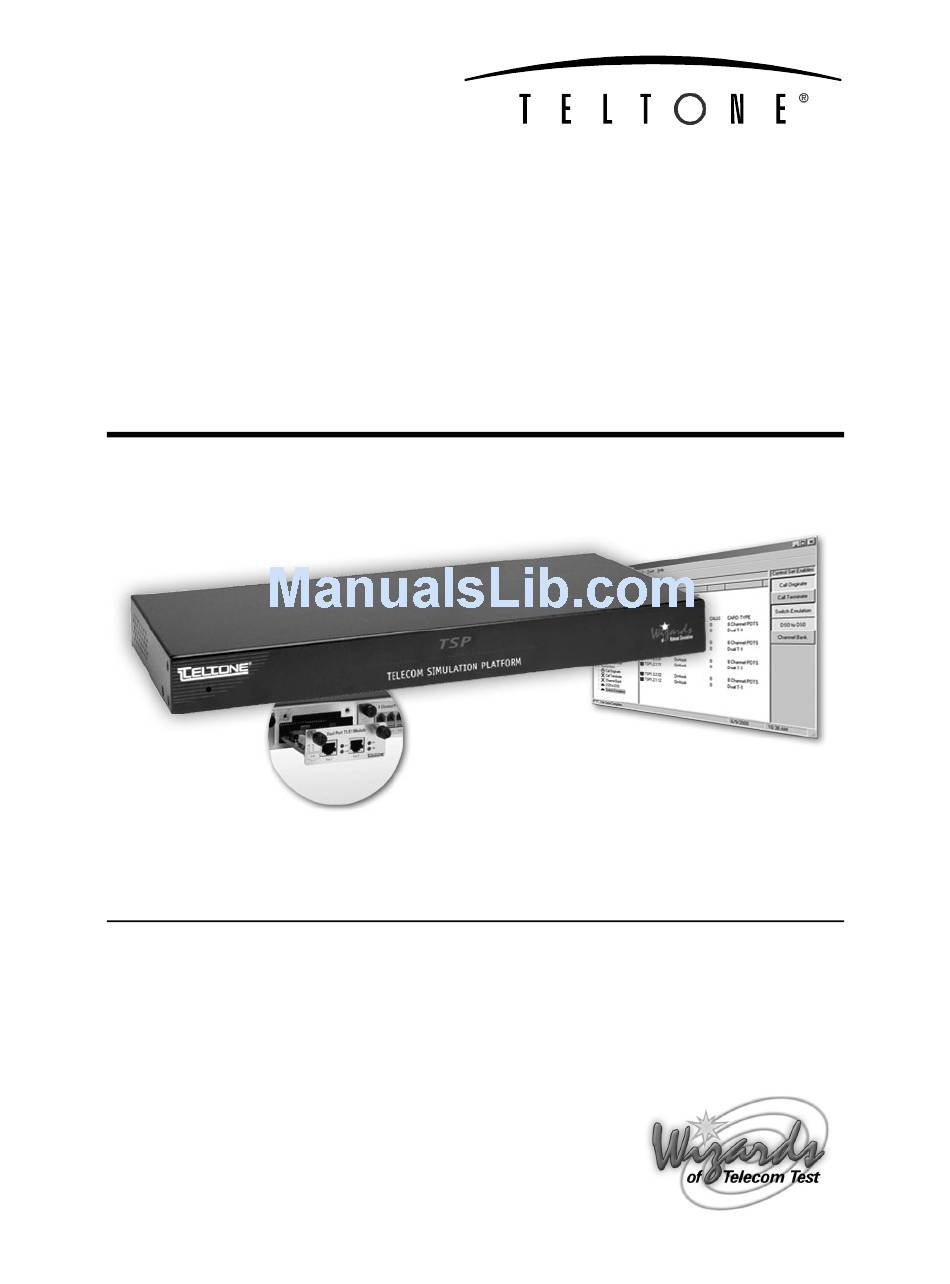

  • Page 1 Telecom Simulation Platform User’s Manual Part No.: 40-400-00049 Revision: J...
  • Page 2 Copyright © 2001 Teltone Corporation All Rights Reserved Trademarks Teltone is registered trademarks of Teltone Corporation. TSP is a trademark of Teltone Corporation. Windows is a registered trademark of Microsoft Corporation. Other company and product names may be trademarks or registered trademarks of their respective owners.

  • Page 3: Table Of Contents

    Contents IMPORTANT USER SAFETY INSTRUCTIONS ........vi REGULATORY COMPLIANCE .
  • Page 4 Telecom Simulation Platform Authorization Code ........... . . 18 Software Updates .
  • Page 5 Appendix 1 Flowcharts ............58 Timings Tab for Analog LS, T1/E1 GS FXS, and T1/E1 LS FXS .

  • Page 6: Important User Safety Instructions

    Telecom Simulation Platform IMPORTANT USER SAFETY INSTRUCTIONS When using your equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3.

  • Page 7: Overview

    Overview The Teltone TSP (Telecom Simulation Platform) is a combined hardware and software platform used to simulate connections to different telephony interfaces. These include T1, E1, and Analog POTS, and in the future, other interfaces. The AC power input is universal, accepting 90 to 250 VAC, from 43 to 63 Hz.

  • Page 8: Hardware Options

    AC operating power must be within 90 to 250 Volts AC and the operating frequency from 43 to 63 Hz. A standard North American plug is provided with the unit, although the TSP base unit uses an industry standard IEC three prong connector so that almost any international power plug can be used.

  • Page 9: Operating System Requirements

    Operating System Requirements The PC Configuration software will operate on Windows 95/98/2000 and Windows NT. The following minimum disk storage capacities are required for the basic installation and storage of saved files: 6 Mb required on the disk with the Windows operating system 4 Mb required on the disk the application is installed on 7 Mb additional required to install the Adobe Acrobat reader Connections...

  • Page 10: Simulation Interfaces

    Telecom Simulation Platform Ethernet connection The network connection is a 10/100 base T using an RJ-45 connector. This connection is necessary for downloading voice messages and software updates to the TSP. The Ethernet cable provided is a cross-over cable and is only used when connecting directly to a PC. Refer to Figure 4 for cable pinouts.
  • Page 11 Figure 5 T1/E1 Cable Important: A shielded T1/E1 cable must be used for the TSP to be FCC Part 15 compliant. The Single T1/E1 Module looks like the Dual T1/E1 Module except there is only one port. See Figure 6. Figure 6 Dual T1/E1 Module LINK This LED indicator shows that the T1/E1 link is active...

  • Page 12: And 8 Channel Pots Modules

    Telecom Simulation Platform 4 and 8 Channel POTS Modules 4 Channel POTS Module Cable requirements, Pinouts, Technical Specs · The 4 Channel POTS interface module will use industry standard RJ-11 jacks and the wiring also meets industry standards, using Pins 3 and 4 for Tip and Ring. Pins 1,2,5, and 6 have no connection.

  • Page 13: Getting Started

    · TSP-PRI, T1 Primary Rate ISDN software module If any of the items you ordered are missing or damaged, contact Teltone’s Customer Service department at 425-951-3388. The TSP modules are ESD (electro-static discharge) sensitive devices and are shipped in static shield packaging.

  • Page 14: Configuring The Tsp Hardware/Software

    The TSP does not support two Dual T1/E1 modules. Note 2: If using both a 4-Channel POTS and a 8-Channel POTS module, Teltone recommends placing the 4-Channel POTS module in Slot 2 and the 8-Channel POTS module in Slot 3.

  • Page 15: Software Installation Instructions

    SETUP.EXE. Follow the on screen instructions. Important It will be necessary to obtain an Authorization Code from Teltone Customer Service after the first Unit is created with the configuration software to enable testing with the TSP. Once the Authorization Code is installed, the TSP can be used with any PC using the current configuration software version.

  • Page 16: Units Configuration

    Help menu and choosing About TSP. Confirm the latest version available by going to the Teltone web site at www.teltone.com, and verifying the version under Software Downloads for the TSP or call Technical Support 425-951-3390.

  • Page 17: Templates Configuration

    Templates Configuration 1. Create Templates to configure the types of channels based on the modules being used (i.e. Analog Loop Start template for POTS and T1 Wink Start template for T1/E1 modules). The template will be associated with the channels to be tested when a Control Set is created. Templates are created by going to the Templates menu and clicking New.

  • Page 18: Simulation Types

    Telecom Simulation Platform 6. Once the Control Sets have been defined, you can run your simulation by enabling it with the Control Set Enables button from the main TSP screen. Simulation Types The three basic types of calls are End-to-End, Call Originate, and Call Terminate. End-to-End calls are similar to calls placed through any switch.

  • Page 19: Call Originate And Call Terminate

    Figure 10 Analog LS to T1/E1 End-to-End The TSP connects an Analog Loop Start channel to a T1/E1 channel. Figure 11 Analog LS to Analog LS End-to-End The TSP connects an Analog Loop Start channel to another Analog Loop Start channel. Call Originate and Call Terminate The TSP generates calls to the equipment under test in Call Originate mode.
  • Page 20 Telecom Simulation Platform Figure 12 T1/E1, Call Originate and Call Terminate Diagram With Call Originate mode, the TSP generates calls on the channels of a T1/E1 line to the equipment under test. With a Dual T1/E1 module, the calls can be generated on both T1/E1’s simultaneously.

  • Page 21: Programming The Tsp

    Programming the TSP The software loaded on the PC controls the TSP and its configuration. Multiple projects can be saved and used for different testing applications and TSP units. Once all connections have been made and the TSP is powered up, start the TSP program. Telecom Simulation Platform (TSP) main screen Figure 14 TSP Main Screen The Telecom Simulation Platform screen starts with a default Project file and is ready for...

  • Page 22: Control Set Enables

    Network control. Important It will be necessary to obtain an Authorization Code from Teltone Customer Service after the first Unit is created to enable testing with the TSP. The message: “Unit ‘name’ requires an Authorization Code to enable its operation.

  • Page 23: Serial Connection

    Figure 16 Example of a communications failure to TSP Teltone recommends using the Query Card Types command for configuring the TSP. If the TSP is not connected, manual configuration can be done. To do this, choose the Slot that coincides 40-400-00049, Rev.

  • Page 24: Authorization Code

    An Authorization Code is necessary to enable the TSP the first time it is used, and also to enable any purchased software modules (such as TSP-PRI). This code, obtained from Teltone’s Customer Service, needs to be loaded only once and is stored in the TSP permanently.

  • Page 25: Software Updates

    Before contacting Teltone for the Authorization Code, please have the following available: · Hardware ID (see below) · Serial Number (on the bottom of the unit) · Software Serial Number (on the CD) · Your name · Your title ·...
  • Page 26 Telecom Simulation Platform The IP Address field on the General tab for the Units screen displays the IP of the TSP that is currently being communicated with and is used to connect to other TSP’s already assigned an IP address and connected to the network. If the serial connection is used for control of the TSP, the Ethernet connection is still required if using audio files or to download software updates.

  • Page 27: Slot Tabs

    If a Project is opened that has the previous IP address of a TSP unit, the program will advise of the new IP address and ask if you want to change to the new IP address. This only occurs on the PC that was controlling the TSP when the IP was changed.
  • Page 28 Telecom Simulation Platform used when the TSP acts as the CPE and clocks from the equipment under test (i.e., if the TSP is set for Internal clock, the equipment under test should be set for External clock, and vice versa). Note: If using only one port on a Dual T1/E1 that is configured for External Clock, port 2 must be used and will derive its clock from the equipment under test.
  • Page 29 E1 Card Mode Figure 18 shows the parameters on the E1 tab in the E1 card mode. The E1 parameters include, Clock, Signaling, Line Coding and PCM Encoding options. They are configured on this screen by clicking on the corresponding radio button. The Line Build-out defaults to 0-133 ft (0 dB level) but can be changed for different distances or dB loss expected on the line.

  • Page 30: The 4 And 8 Channel Pots Card Types

    Telecom Simulation Platform Line Coding For Line Coding, AMI suffices if no DDS data exists on any of the T1 channels. HDB3 is used when DDS data channels are present to compensate for when an all Zeros state exists (when equipment is off).

  • Page 31: Channels Tab

    Programming the TSP Channels Tab The Channels tab is where each channel can be assigned a Phone Number, Transmit Digits (T1/E1 only) and Audio Message. The Channel Configuration gives the channel an assignment number based on the name the unit was given, the slot number the module is in, the port (each physical connector on a card is considered a port and is numbered on the card), and the logical channel (1-24 on a T1, 1-30 on an E1, 1-2 on an 8 Channel POTS and only 1 on a 4 Channel POTS).
  • Page 32 Telecom Simulation Platform Immediate Dial, FXS, or Q.421 channel. This provides routing information as in DNIS operation for the equipment under test, if needed. Note: Only in-band DTMF signaling is available. R1 and R2, MF signaling is currently not supported by the TSP.

  • Page 33: Channel Configuration Wizard

    Channel Configuration Wizard Click on the Wizard button under Channel Configuration. The Channel Configuration Wizard screen will come up. Figure 20 Channel Configuration Wizard Screen This screen can be used to automatically assign Phone Number, Transmit Digits, and Audio Message for all the channels on that card type all at once either by Slot+Port+Channel or Increments.

  • Page 34: T1/E1 Alarms

    Telecom Simulation Platform Again, it is recommended to automatically configure the TSP by using the Query Card Types button. This error will not occur when using this method. T1/E1 Alarms When configuring for a T1/E1 module, and there is no T1/E1 signal present or the port is configured incorrectly, you will get a connection.

  • Page 35: Templates

    Templates Templates are used to define details of the channel protocols to be used for call simulation. The basic protocol is set on the Type tab, timings for that protocol are set on the Timings tab, and the signaling bit patterns used for the protocol are set on the Signaling tab. Click Template on the TSP main screen and choose New.

  • Page 36: Channel Protocols

    Telecom Simulation Platform Channel Protocols Analog Loop Start This is used only with 4 or 8 Channel POTS modules. The channel provides battery, ground and ringing to the terminating set. The following T1/E1 Configurations are used only with the T1/E1 modules: E1 ITU Q.421 Used only when equipment under test is set-up for E1 CAS operation.
  • Page 37 Programming the TSP Default Timings Set The choices of Emulation and Dialed are used in conjunction with the Controls Set type chosen. Emulation will be the default and is used in all but the Dialed Control Set type. When using the Dialed Control Set type, choose the Dialed Default Timing Set button by selecting the radio button.

  • Page 38: Timings Tab

    Telecom Simulation Platform Timings Tab Timings are used to control the intervals of all the different parts of the call process while the TSP is originating or terminating calls. The default times should be appropriate for most testing. These timing controls can be changed while the Template is assigned to a Control Set (which will be discussed in the Control Set section).

  • Page 39: Signaling Tab

    Teltone Corporation has verified the default bits states used during call progress. All predefined settings provided by Teltone will begin with a “*”. All others listed without the “*” will be those created by the user.

  • Page 40: Control Sets

    Telecom Simulation Platform Note: For E1, the C and D bits must be set for 0 and 1 respectively. Otherwise, synchronization problems will occur. Set as default for (channel protocol) Button The Set as default for (channel protocol) button allows the user to set a predefined protocol other than the factory default to be used when a Channel Protocol is chosen on the Type tab.

  • Page 41: Control Set Type Field

    Programming the TSP Figure 25 Control Set Screen The Control Set screen is used to choose the type of testing the TSP will do, the channels to be tested and the protocol used for the channels. Control Set Type Field The Control Set Type field is used to configure the mode the TSP will be in.

  • Page 42: Template Field

    Telecom Simulation Platform End-to-End Control Sets There are four types of End-to-End Control Sets. They are set up using Dialed, Switch Emulation, Channel Bank, and DS0 to DS0 Control Set Types. With this operation the TSP passes traffic through from one channel to another. Dialed Control Set Type -The Dialed Control Set Type allows for calling from one channel to another by dialing a telephone number.

  • Page 43: Channel Assignments

    Programming the TSP screen by clicking on New and creating the template as discussed in the Template section. Either choose a previously created Template from the drop down box or create a new Template by clicking New. This tells the TSP the type of channel protocol it will be using for initiating calls to the equipment under test.
  • Page 44 Telecom Simulation Platform control keys while selecting the channels. Click OK once the channels have been chosen. This will take you back to the Control Set screen (see Figure 25). Figure 27 Channel Assignments (T1 Channels) In this example, the Template was configured for T1 Wink Start type channel and named “T1 Wink St”...

  • Page 45: Executing A Simulation

    Stop Section The Stop section has the choices of Time, Elapsed Time, Number of Calls, and Manual. Selecting the radio button next to Time enables a field to set a predefined time for the TSP to stop testing. Choosing Elapsed Time enables a field to set the amount of time (in hours and minutes) the test is to run once started.
  • Page 46 Telecom Simulation Platform tree for the Control Set. See Figure 28. The same can also be done for all the other components on the display tree to display configurations. Testing is started by clicking on the Control Set Enable button. The button will appear depressed when enabled and a small Control Set in Figures 28 and 29, was configured for Manual Start and Stop, the test calls will start immediately and will not stop until the Control Set Enables button is clicked a second time.

  • Page 47: End-To-End Control Set Example

    Figure 30 T1/E1 Wink Start Call Status On T1/E1 Wink Start operation, there will be no the protocol operation. An only indication on the TSP screen. See Figure 30. End-to-End Control Set Example The Control Set for End-to-End operation is configured as discussed in the Control Sets section except there are two template fields for End-to-End operation.
  • Page 48 Telecom Simulation Platform Figure 31 Connecting Channels 5. Click on the Edit Channels button. The Channel Assignments screen will appear. See Figure In this example, channels are added under the “Analog LS” column by choosing the Available Channels in the upper left box. These are the POTS channels available for the simulation that will work with the Analog Loop Start template.

  • Page 49: Event Log Screen

    Event Log Screen An Event Log is created for all events and calls related to the TSP. Various filters can be turned on to eliminate conditions that you may not want to view. There are two views on the Event Log. Events, which shows all occurrences of any change in state on the TSP and on all calls;...
  • Page 50 Telecom Simulation Platform Figure 33 Calls Screen on Event Log The Calls screen only shows the calls taken place on the channels that have been running tests. This view shows the date/time and ID as in the Events view. It also has a Time to Answer field, Call Duration field and Disposition indicating if the call was answered or not.

  • Page 51: Options Screen

    Figure 35 Upgrades tab on the Options Screen Important The Upgrades tab is used to enable the TSP Program to run. Call Teltone Corporation’ Customer Service to receive the Authorization Code. The program will not work with the TSP until this is completed.

  • Page 52: Tsp Diagnostics

    TSP Diagnostics Going to Tools on the TSP main screen, and choosing Diagnostics opens the TSP Diagnostics screen and a Select Diagnostic Channels screen overlaid on top. See Figure 36. Click on the arrow and a list of channels will be displayed. Scroll to select the specific channel. Selecting All will bring up every channel on the TSP including the ones not in use.
  • Page 53 TSP Diagnostics Depending on the Channel Type, different call states can be sent by the TSP on individual channels. Note the buttons beneath the Channel Assignment on the individual boxes. These are used to force different signaling states. Ringing is forced by clicking the button.

  • Page 54: Tsp Trace

    TSP Trace The step by step call progress of a channel can be displayed with the Trace screen. This feature is helpful for troubleshooting problems on calls. Go to the Tools menu and click Trace to bring up the screen. Choose the channel to be monitored by clicking the arrow for the Channel field.

  • Page 55: Primary Rate Isdn Software Module (Tsp-Pri)

    Primary Rate ISDN Software Module (TSP-PRI) The TSP-PRI module is a purchased option that gives the TSP the capability of simulating PRI for T1 only. An authorization code is needed to enable this feature. It can simulate both the CPE and the Network for multiple Primary Rate ISDN switch platforms.

  • Page 56: Clock

    Telecom Simulation Platform Figure 39 T1 Tab on the Units screen Clock The Clock needs to be set to where one end is providing timing (normally the PSTN) while the other end is deriving clock from it (usually the CPE). The Internal clock setting is used when the TSP acts as the PSTN and provides the clocking to the equipment under test.

  • Page 57: Pcm Encoding

    PCM Encoding The TSP configuration software defaults to mu-law PCM Encoding which is the North American standard for T1. PCM encoding refers to the process used to digitize the analog signal. It is necessary to ensure this matches the equipment under test. E1 normally uses a-law PCM encoding.

  • Page 58: Channels Tab

    Telecom Simulation Platform Channels Tab Refer to Channels Tab in the Units section for configuring the Phone Numbers, Transmit Digits and Audio Message fields. In figure 41, the Subaddress, Calling Number and Called Number fields are specific to the T1-PRI Card Mode.
  • Page 59 Primary Rate ISDN Software Emulation Module As with the CPE Simulation, the Network Simulation on the PRI tab only allows channels to be assigned to templates configured for T1 Primary Rate (Network) protocol. Refer to the Templates and Control Sets sections to build test scenarios once the above parameters are configured.

  • Page 60: Troubleshooting

    Troubleshooting Icon: Problem: Error message “Communication error to unit ‘name’ Transmit Failure” Solution: 1. Check that the TSP is powered up and running. 2. Check the console connection. The console cable should connect between the Console jack on the TSP and a serial port on the PC, using a DB-9 or DB-25 adapter. 3.
  • Page 61 Error message “Unit ‘name’ requires an Authorization Code to enable its operation. Contact Teltone Corporation Solution: All TSP’s require that an Authorization Code be entered to enable their operation. Contact Teltone Corporation Customer Service to obtain an Authorization Code for your unit. Icons: Problem: T1/E1 Alarms Solution: 1.
  • Page 62 Telecom Simulation Platform Problem: Device connected to T1/E1 channel does not see calls generated by TSP. Solution: 1. Verify T1/E1 is not in alarm. 2. Verify that the channel is assigned to an appropriate control set and that the control set is enabled.

  • Page 63: Icon Legend

    Error lower in tree. (Yellow Dot with Red X) Unit Status Attempting to communicate with TSP. (Yellow Dot) Card Definitions do not match. Unit connected is not a Teltone TSP or requires an Authorization Code. Communication error to TSP. No Comm port defined for unit. T1/E1 Alarms...

  • Page 64: Appendix 1 Flowcharts

    Appendix 1 Flowcharts Timings Tab for Analog LS, T1/E1 GS FXS, and T1/E1 LS FXS On the Type tab (see Figure 23) for Analog Loop Start (LS), T1/E1 Ground Start (GS) FXS or T1/E1 Loop Start (LS) FXS Channel Types, DTMF is the default Signaling Type. Dial Tone and Ringback can be enabled/disabled by selecting the appropriate radio button.

  • Page 65: Call Process Flowcharts For Analog Ls, T1/E1 Gs Fxs Or T1/E1 Ls Fxs

    Inter-digit Dial Timeout This only applies when the Template is used in a Dialed Control Set type. It’s the time allowed between the dialing of digits before the TSP will timeout on the call. Delay Before Ringback In a Dialed Control set, the delay from the dialing of the last digit of a valid Phone Number to when the TSP starts to send ringback.
  • Page 66 Telecom Simulation Platform Figure 44 Call Originate Analog LS, T1/E1 GS FXS, and T1/E1 LS FXS Flowchart This call process occurs when the equipment under test answers and hangs up after call duration timer expires. TSP sends ringing to equipment under test Equipment under test answers TSP starts playing message if programmed on Units screen Call duration timer expires...

  • Page 67: Timings Tab For E1 Itu Q.421

    Equipment under test answers before Wait For Answer timer expires TSP starts playing message if programmed on Units screen Equipment under test goes on-hook before Call Duration timer expires TSP goes on-hook TSP starts next call, go to 0 The TSP uses Calling Party Control. The equipment under test is the Called Party and can hang up and pick up within the far end disconnect time without disconnect occurring Timings Tab for E1 ITU Q.421 The Type tab for E1 ITU Q.421 has DTMF Signaling Type and the choices of Ringback...

  • Page 68: Call Process Flowcharts For E1 Itu Q.421

    Telecom Simulation Platform Terminating Calls Delay Before Seize Acknowledge Delay before the TSP sends seize acknowledge back once it detects a seizure from equipment under test. Delay Before Answer The delay before the TSP sends an seize acknowledge once it detects a seizure from the equipment under test.
  • Page 69 TSP answers TSP starts playing message if programmed on Units screen Cut off disconnect (COD) from TSP and/or on-hook from equipment under test. COD occurs when the Call Duration timer expires only if the equipment under test is still off-hook. Actual call duration is dependent on when the equipment under test goes back on-hook.

  • Page 70: Timings Tab For T1/E1 Gs Fxo And T1/E1 Ls Fxo

    Telecom Simulation Platform Timings Tab for T1/E1 GS FXO and T1/E1 LS FXO The Type tab for T1/E1 Ground Start FXO and T1/E1 Loop Start FXO only gives DTMF Signaling Type and no other options. The Timings tab for T1/E1 Ground Start FXO and T1/E1 Loop Start FXO has the same parameters.

  • Page 71: Timings Tab For T1/E1 Immediate Dial

    Appendix 1 Flowcharts Far-End Disconnect Time Time the TSP delays after receiving an on-hook from the equipment under test before it goes to an on-hook state. Disconnect to Start Of New Call Time TSP delays after going on-hook before resetting for a new call. The call process for T1/E1 GS FXO and T1/E1 LS FXO is the same as the Flowcharts for the Analog Loop Start and T1/E1 Loop/Ground Start after the calls are connected.

  • Page 72: Call Terminate T1/E1 Immediate

    Telecom Simulation Platform Terminating Calls Delay Before Answer The delay before the TSP sends an off-hook indication once it detects an off-hook from the equipment under test. Wait for Dialing Start This only applies when the Template is used in a Dialed Control Set type. It’s the time the TSP will wait for digits to be sent before timing out.

  • Page 73: Timings Tab For T1/E1 Delay Dial And T1/E1 Wink Start

    Figure 53 Call Originate T1/E1 Immediate Flowchart Seizure from TSP TSP starts dialing the Transmit Digits assigned to channel (Unit screen) Dialing ends. Go to 0 on Call Originate Process flowcharts for Analog Loop Start all three scenarios. Timings tab for T1/E1 Delay Dial and T1/E1 Wink Start The Type tab for T1/E1 Delay Dial and T1/E1 Wink Start has DTMF Signaling Type and the choices of Ringback enable/disable.
  • Page 74 Telecom Simulation Platform Originating Calls Wait For Delay Dial/Wink Start Time before TSP initiates Delay Dial/Wink signaling at start call. Wait For Delay Dial/Wink End Time till TSP terminates Delay Dial/Wink signaling. For Wink Start, the timing defaults to .350 sec.

  • Page 75: Call Process Flow Charts For T1/E1 Wink And Delay Dial

    Call Process Flow Charts for T1/E1 Wink and Delay Dial Figure 55 Call Terminate T1/E1 Wink Flowchart Seizure by equipment under test TSP begins wink TSP ends wink Ringback starts (if enabled on Template) Ringback ends TSP answers TSP starts playing message if programmed on Units screen Cut off disconnect (COD) from TSP and/or on-hook from equipment under test.

  • Page 76: Timings Tab For T1 Pri (Cpe)

    Telecom Simulation Platform Timings Tab for T1 PRI (CPE) The Type tab for T1 PRI has the signaling type fixed as Common Channel (D channel 23) and Ringback choices disabled. Figure 57 Timings Tab for T1 PRI (CPE) The following gives a brief description of the parameters. Originating Calls Wait for Answer The time the TSP waits before abandoning a new call if there is no answer.

  • Page 77: Timings Tab For T1 Pri (Network)

    Appendix 1 Flowcharts Timings Tab for T1 PRI (Network) The Type tab for T1 PRI (Network) has the signaling type fixed as Common Channel (D channel 23) and Ringback choices are enabled. Figure 58 Timings Tab for T1 PRI (Network) ) The following gives a brief description of the parameters.
  • Page 78 Telecom Simulation Platform All Calls Delay Before Message The delay before an audio file is played if one has been assigned to the channel. Does not apply to End-to-End calls. Call Duration/Disable Timeout Controls the length of the call before the TSP starts a new call. Clicking on the box adjacent to Disable Timeout will allow the call duration to be determined by when the TSP receives an on-hook indication.

  • Page 79: Glossary Of Terms

    Glossary of Terms A-law The ITU-T companding standard in the conversion between analog and digital in PCM systems. A T1 line coding option. Alternate Mark Inversion - A line coding format where a successive Mark is inverted as part of the data stream. This is normally used when all channels of a T1 are configured for transmission of analog traffic.
  • Page 80 Telecom Simulation Platform Customer Premises Equipment. Term used to define telephony equipment that resides on the customer’s premises. D bit The least significant bit of the 24th frame, used in ESF format only, to send signaling information. A T1 framing type. Also known as D4 framing. A D4 frame is 193 data bits consisting of 192 data bits (8 bits per channel times 24 channels), and a single framing bit.
  • Page 81 Glossary Frame In T1, a block of data (193 bits) that includes an 8 bit sample of each channel (8 X 24 = 192) plus a synchronization bit called a framing bit. Foreign Exchange Office Foreign Exchange Station Ground Start Ground Start is a telephony term used to define a two wire circuit that uses a connection to Ground on the Ring lead to indicate the start of a call from the CPE.
  • Page 82 Telecom Simulation Platform A digital data stream defined as 24 independent channels processed simultaneously over two wire pairs at an aggregate speed of 1,544,000 bits per second. Template Templates are used to define the channel protocols and timing parameters for call simulation. Unit Term used by TSP to define a physical hardware platform Page 76...

  • Page 83: References

    References ANSI T1.403-1995 GR-30-CORE SR-TSV-002275 Digital Channel Bank Requirements & Objectives (MDP-326-140, Telecordia Technologies) ITU Fascicle III.3 ITU Fascicle III.3 40-400-00049, Rev. J Network and Customer Installation Interfaces, DS1 Metallic Interface, ANSI Publication, 1995 LSSGR: Voiceband Data Transmission Interface Bellcore Publication, Section 6.6, Issue 1, 12/94 BOC Notes on LEC Network, Bellcore Publication, Issue 2, 4/94 PUB 43801,...

  • Page 84: Revision History

    Revision History Version File Name Description Number 1.00 TSP.EXE Initial Release TSP.EXE Control of the TSP can now be done with the Ethernet connection. Dialed Control Set allows for the ability to call a channel by dialing a telephone number. A T1 Clear Channel can be connected to an Analog POTS channel using the Channel Bank Control Set Type.

  • Page 85: Warranty And Service

    “WARR DATE: MM/DD/YY”. Note that the warranty is voided if unit is opened by unauthorized personnel. Return Procedures If a unit is found to be defective, contact Teltone Customer Service at 425-951-3388 to obtain a Material Return Authorization (MRA) number. When returning units, provide the following information: ·...

  • Page 86: Ordering Information

    Ordering Information Hardware Chassis TSP-Base-01 Optional Hardware Modules TSP-ST1E1-01 TSP-DT1E1-01 TSP-4POTS-01 TSP-8POTS-01 Optional Software Modules TSP-PRI Accessories 101-00484-01 713-00028-02 730-00039-03 742-00033-01 742-00034-01 742-00034-02 742-00032-01 742-00036-01 TSP-YCABLE UM-113-019 Page 80 Base Chassis unit. Need to order one or more of the hardware modules to plug into chassis.

  • Page 87: Specifications

    Specifications AC Power Software Network Interface Modules Capabilities Programming Interface Call Types Supported Call Originate Call Terminate End to End Phone Numbers Message Playback Simulator Activation Diagnostics Protocol Analyzation Event Log T1/E1 Interface Connector Standard Transmit Level T1 Parameters Framing Formats Line Coding Clocking Line Build-out...
  • Page 88 Telecom Simulation Platform POTS Interface Connector Standard Loop Current Battery Source Ringing Source Ring Cadence on cycle off cycle Ring Frequency Impedance Audible Ringback Dial Tone Busy Tone Temperature Range Operating Storage Mechanical Specifications Dimensions Base Modules Weight Regulatory Safety United States Canada EMI Emissions...

  • Page 89: Index

    Index 4 and 8 Channel Pots Type Card ...24 4 Channel POTS Module...6 8 Channel POTS Module...6 Alarms ...28 Alerts ...15 Alerts Tab ...45 All Calls...59, 62, 64, 66, 68 Call Duration/Disable Timeout...59, 62, 64, 66, 68 Delay Before Message ...59, 64, 66, 68 Disconnect To Start Of New Call...59, 62, 65, 66, 68 Far-End Disconnect Time...59, 62, 65, 66, 68 Analog Loop Start...30...
  • Page 90 Telecom Simulation Platform Timing Defaults ...31 type...35, 36 Disconnect to Start of New Call...59, 65, 66, 68 Disconnect To Start Of New Call...62 DS0 to DS0 Control Set Type...35, 36 DTMF Signaling Type...58, 64, 65, 67 Dual E1 signaling ...22, 24, 51 Dual T1 clocking ...22, 24, 51 framing ...22, 24, 51...
  • Page 91 Units ...16 Project file...15 Query Card Types ...17 Quick Start...9 Refresh Event Log...43 Regulatory Compliance...vi Revision History...78 Ringback...31 enable/disable ...58, 65, 67 Ringback Length...59, 62, 66, 68 Ringing using Diagnostics ...47 Safety Instructions ...vi Select Diagnostic Channels screen...46 Serial Cable RJ-14 to RJ-14...3 Serial connection ...3, 17 Signaling...23 signaling protocol...33...
  • Page 92 Telecom Simulation Platform Ethernet Control ...20 Initialize ...28 Network Connection ...19 Network tab ...19 programming ...16 screen...16 Upgrades Tab...45 Version ...78 View Channel ...46 Page 86 Voice Messages See Audio Message Wait for Answer ...58, 61, 65, 68 Wait For Delay Dial/Wink End ...68 Wait For Delay Dial/Wink Start ...68 Wait for Dialing Start...62, 66 Wait For Seize Acknowledge...61...
