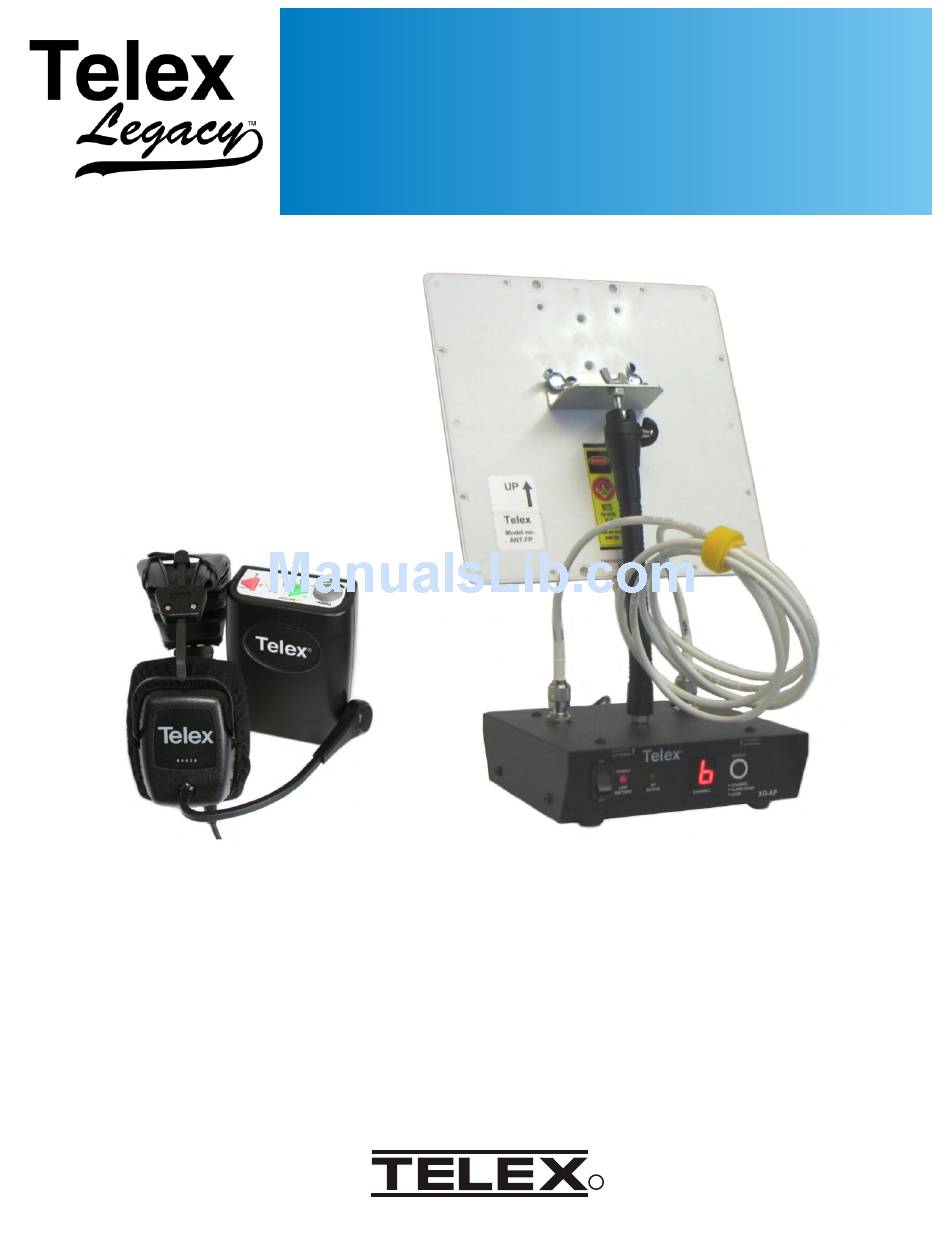

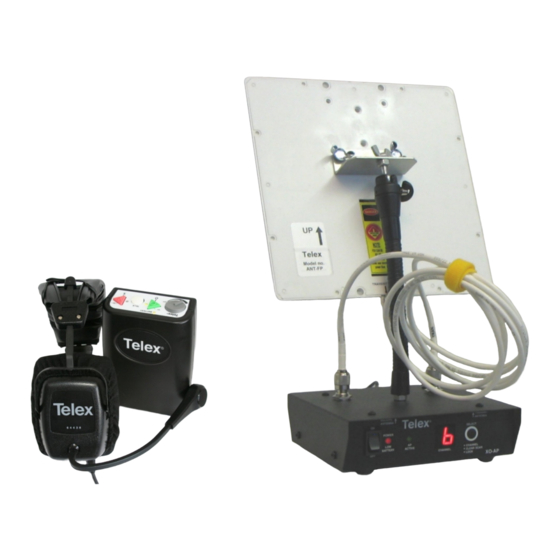

- Page 1 Operating Manual Wireless Intercom System XO-AP XO-1 Wireless Intercom System TELEX COMMUNICATIONS, INC.
-
Page 2: Table Of Contents
Long Term Storage ...5-3 Li-Ion Batteries...5-4 Software Version ...5-4 Section 6 Encryption Code Encryption Code ...6-1 Logging into a Beltpack (XO-1)...6-1 Beltpack Options ...6-2 Enter new password...6-2 Display current encryption key ...6-2 Enter new encryption key ...6-2 Exit ...6-3 Section 7... -
Page 3: Section 1 - Introduction
The beltpack uses an internal rechargeable Li-Ion battery that will provide up to 8 hours of uninterrupted operation. The XO-AP base station can support up to ten XO-1 beltpacks. The base station provides a central relay location which handles the audio traffic between beltpacks. -
Page 4: Section 2 - Xo-Ap Base Station
TRANSMIT Telex ANTENNA POWER BATTERY ACTIVE CHANNEL Front View 1. On/Off Switch – Turns the power on/off to the base station. 2. Power / Low Battery Light – Indicates the base station has power, either from the internal battery or external power connected to the unit. -
Page 5: Beltpack
3 seconds. A voice prompt will indicate "MIC ADJUST" mode has been entered. Keep the talk button held down. Section 3 - XO-1 Beltpack Controls and Connections MIC + The "O" button can now be use to reduce the microphone gain. -
Page 6: Section 4 - Specifications
XO-AP (Base Station)Size...6.00” L x 6.40” W x 2.00” H (15.24cm x 16.26cm x 5.08cm) XO-AP Weight...2 lb 3 oz (992g) XO-1 Size...5.25” L x 3.75” W x 1.68” H (13.33cm x 9.53cm x 4.27cm) XO-1 Weight ...12.5oz (354g) Carry Case Size...23.50” L x 8.50” W x 20.50” H (59.70cm x 21.60cm x 52.07cm) -
Page 7: Section 5 - Operation
Set-up Prior to use, the XO-1 beltpacks and the XO-AP base station need to have their battery packs fully charged. Refer to the charging instructions of this section. 1. Place the XO-AP base station in the area of use. 2. Attached the two antenna cables from the antenna to the XO-AP. - Page 8 4. Wear the beltpack on the hip. Place them in a position that allows for greatest visibility to the XO-AP antenna in the press box. 5. XO-1 Top Panel Buttons – The XO-1 has three top panel buttons: • TALK – This button enables/disables the beltpack’s microphone.
-
Page 9: Halftime
(Please see the discussion of Li-Ion batteries in the follow part of this section as to why) 2. Store the XO-1's and XO-AP in a clean, cool, dry location away from heat. The temperature of the storage location should not rise above room temperature. -
Page 10: Li-Ion Batteries
20% capacity if stored for long term right after being fully charged. It is also a good idea to charge the XO-AP and XO-1 batteries once every 6 months for three hours then take off charge. Do not fully charge. This helps to maintain... -
Page 11: Encryption Code
“turned on” by the user. The user may want to change their key to something unique. This may be done by following the steps below: Logging into a Beltpack (XO-1) Computer Requirements: Hardware Monitor •... -
Page 12: Beltpack Options
NOTE: The password entry does not give user feedback to the screen. NOTE: If the computer says, “failed to connect”, turn off the XO-1, check computer settings, and go back to step 6. Beltpack Options Once successfully logged into the beltpack you will be... -
Page 13: Trouble Shooting
Please reread the operation and encryption section of this manual to make sure you have completed system set-up properly. The following contains troubleshooting tips that may be helpful in solving the problem. Problem RF range of all the beltpacks is less than normal and/or beltpacks... - Page 14 25 seconds Can't change the RF channel the XO-AP is on. When the XO-1 beltpack power was turned on, the unit's power light came up, but the "O" button light never came up and communication never started.
-
Page 15: Rf Channels
(e.g. Channels 1, 6, and 11). 2.412 2.417 22 MHz Channel Bandwidth XO-1 & XO-AP RF Channelization Scheme Section 8 - RF Channels There three Channel Numbers 2.422 2.432 2.442... -
Page 16: Regulatory Information
Section 9 - Regulatory Information Regulatory Information The XO-1 and XO-AP comply with Part 15 of FCC rules and Canada RSS-210. Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. - Page 17 PH-200 Part Number XO-1 Beltpack and Battery 301950002 Charger. NOTE: User must provide XO-AP serial number and IP address of all XO-1/XO-APs in system with order. Single sided w/flexible dynamic 64438100LG boom mic, 150 ohm earphone, 6" connector Dual sided w/flexible dynamic...
- Page 18 Section 10 - Accessories and Replacement Items Continued Model Number ANT-FP ANT-FPM Part Number Dual 302054001 Antenna with Dual Coax, 11dBi Metal Tilt and Swivel Antenna 302054000 Mounting bracket for ANT-FP Antenna. Use for permanent mount of ANT-FP Flat Panel Antenna.
- Page 19 TELEX COMMUNICATIONS, INC. 8601 East Cornhusker Highway, Lincoln, NE 68507 Made in U.S.A. PN 804233-TX Rev D...
