Aqara Motion Sensor P1 - Body Motion Detector Manual

Product Introduction

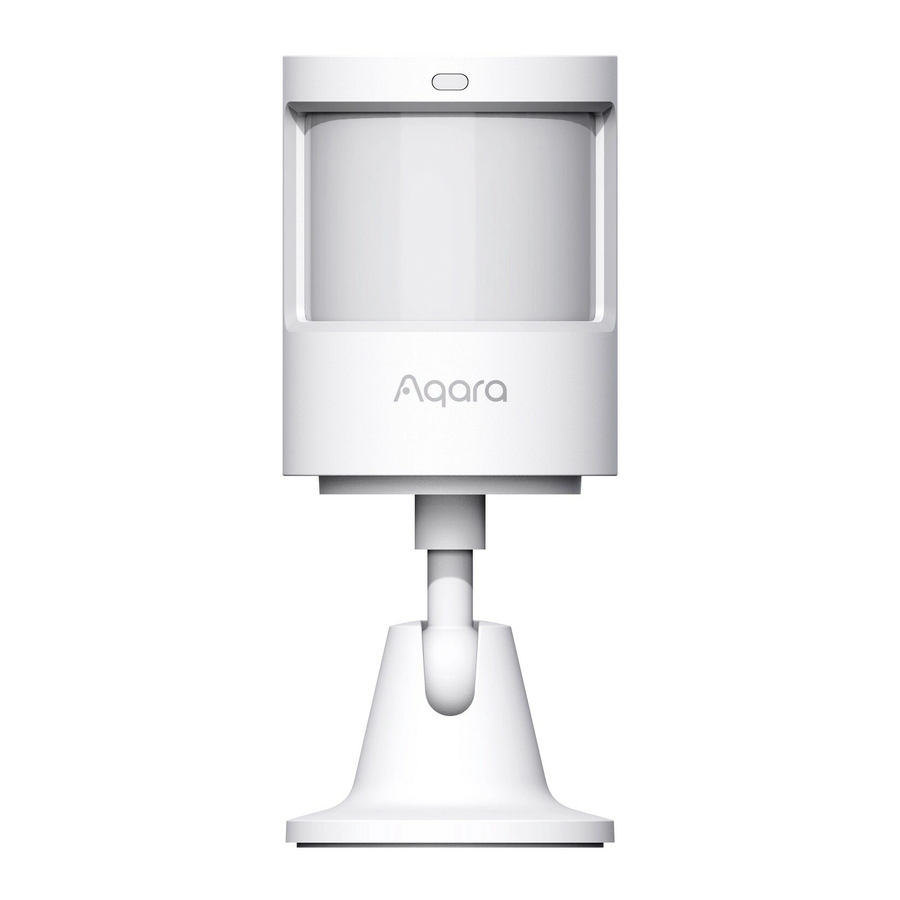

Motion Sensor P1 detects body motion and the state of ambient light.

If there are any people moving or any change in the ambient light state in the areas under detection, the motion sensor will send notice to the Aqara Home app through the connected Aqara Zigbee 3.0 Hub or link to other devices.

*An Aqara Zigbee 3.0 Hub or device with the function of Zigbee 3.0 Hub is required for use.
*If using with Apple HomeKit, an Apple Home Hub is required. Please visit www.aqara.com/support for more details.

Reset button
Long press 5s: Reset/Pairing mode
Click: Verification of effective communication distance/device searching

Quick Setup

1. Before activating the accessory, please make sure you have the Aqara Home app downloaded and an Aqara Zigbee 3.0 hub installed.
2. Remove the insulating pull tab.
   Pull the tab out from under the battery contact to the direction of the arrow to activate the product.
3. Please open the app, tap "Home" and then tap "+" in the top right corner to enter the "Add Device (Accessory)" page. Select "Motion Sensor P1" and add it according to instructions in the Aqara Home app.
4. Please see www.aqara.com/support for additional information.

*If adding fails, please move the product closer to the hub and try again.

Installation and Usage

Please confirm that communication between the motion sensor and the Aqara Zigbee 3.0 Hub works normally, and then install and fix it in position.

Installation Instructions

1. Please do not install on tile, glass, marble, or other smooth and easy-to-moisten objects to avoid the sticker from loosening.
2. Please do not install on the surface of a lighting tube or other high-temperature and heating objects to avoid the sticker from loosening.
3. Please do not install on the surface of wall coverings and other rough and uneven objects to avoid the sticker from loosening.
4. Please do not face it against electrical appliances and other heating sources to prevent infrared jamming from causing a false trigger.

   Effective detection area: Lateral view

   Effective detection area: Top view
   *Recommended installation height is 1.2-2 m. The detection scope gets smaller if it is lower than 1.2 m. There will be a blind zone at the bottom of the motion sensor if it is installed higher than 2 m.

Direct Installation

1. Choose an appropriate installation position and make sure the installation surface is clean and flat.
2. Put the sticker on the bottom of the battery cover, determine the detection direction, stick it to the desired installation position, and press hard and evenly for 30 s to make sure it sticks firmly.


Installation with Holder

1. Choose an appropriate installation position and make sure installation surface is clean and flat.
2. Stick the sensor to the installation pedestal, and press hard and evenly for 30 s to make sure it sticks firmly.

3. Stick holder pedestal in the required area, and press hard and evenly for 30 s to make sure it sticks firmly. In the case of installing on a wall surface, it is recommended that the holder gap faces upward to facilitate adjusting detection direction.


Battery Replacement

1. Take off the battery cover from its gap with screw driver, and stretch the screw driver into battery compartment lever opening and take off the battery compartment.

2. Install two brand-new CR2450 button batteries into the battery compartment, with one firmly sticking the compartment top on the polar front and the other firmly sticking to the compartment bottom on the polar front.

3. Align to and install the battery compartment based on arrow directions, and then put on the battery cover.


Product Specifications

Model: MS-S02
Battery: CR2450
Wireless Protocols: Zigbee 3.0
Dimensions: 33.1×33.1×41.6 mm
Operating Temperature: -10°C ~ 55°C (14°F ~ 131°F )
Operating Humidity: 0 ~ 95%RH, no condensation
Zigbee Operation Frequency: 2405-2480 MHz
Zigbee Maximum Output Power ≤ 13 dBm
What is in the Box: Motion Sensor P1 × 1, Holder × 1, Sticker × 1, User Manual × 1

Online Customer Service: www.aqara.com/support Manufacturer: Lumi United Technology Co., Ltd.
Address: Room 801-804, Building 1, Chongwen Park,
Nanshan iPark, No. 3370, Liuxian Avenue, Fuguang Community, Taoyuan Residential District, Nanshan District, Shenzhen, China.

Warnings

1. This product is not a toy, please keep children away from this product.
2. This product is designed for indoor use only. Do NOT use in humid environments or outdoors.
3. Beware of moisture, do NOT spill water or other liquids onto the product.
4. Do not place this product near a heat source.
5. Do not attempt to repair the product by yourself. All repairs should be performed by authorized personnel.
6. This product is designed only for improving the convenience of household life, and for status notifications. If the user violates the product instructions and this warning, the manufacturer is not responsible for any risks and property losses caused thereby.
   Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.

1. Risk of explosion if the battery is replaced by an incorrect type.
2. Dispose of used batteries according to the instructions.
3. Do not ingest battery, Chemical Burn Hazard.
4. This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
5. Keep new and used batteries away from children.
6. If the battery compartment does not close securely, stop using the product and keep it away from children.
7. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
8. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
9. Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas
10. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
11. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
12. Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
13. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
14. The equipment is only suitable for mounting at heights ≤ 2 m.
