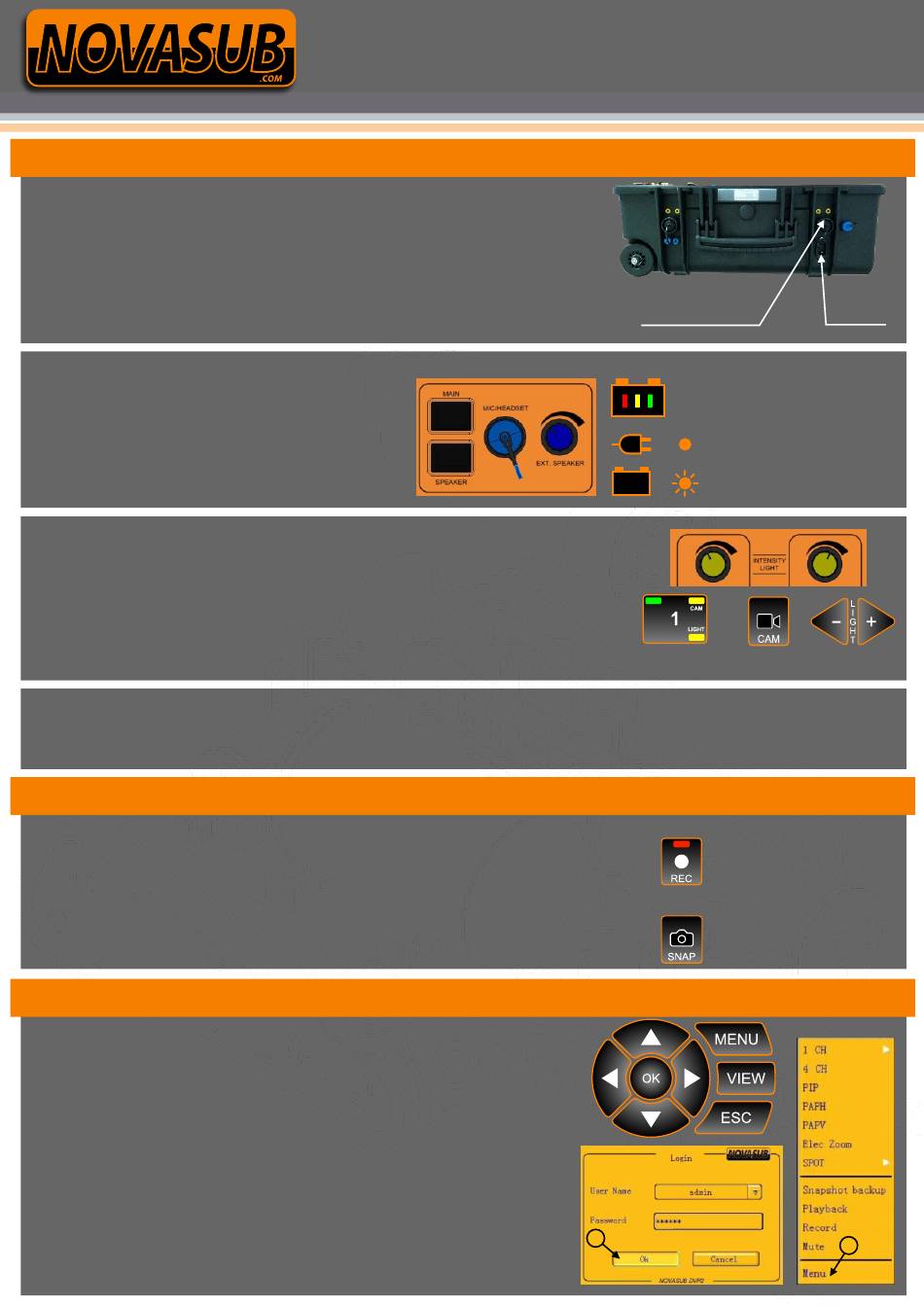

Novasub SCC-2DRVL-DVR-G3 Quick Start

Rev 1.3
STARTUP
Plug in main power cable
Plug in external power supply 100-240 vac. The system will automatically start
charging the internal battery. Even with the main power switch off.
Connect diver umbilicals
Connect the cable from the diver umbilicals to the SCC-2DRVL- DVR G3.
Connect optionally the yellow banana plugs.
Switch main power & main speaker on
The condition of the battery is indicated by the
charging level. The charging level of the battery will
blink if there is no external power supply (100-220
VAC). When the external power supply is connected
the charging level will not blink. Switch internal main
speaker on to hear the divers.
Switch the camera and LED light on
Press the button channel 1 or 2 to select a channel. Press the CAM button to
switch to camera. The channel button CAM LED illuminates yellow. Press + to
switch light on, repeat to increase light intensity. The channel button Light LED
illuminates yellow. Press and hold + to switch on the max. light intensity. Press
and hold light – to switch off. The light can also be controlled with the yellow light
rotation button.
Select View
Press the VIEW button to scroll through the view options. You can select one channel, PAP (Picture and Picture) and PIP
(Picture in Picture). To return to one channel. Press the channel button in a PAP view.
RECORDING
Recording of video
Press the REC button bellow the desired channel to start recording (the red REC
LED - turns on). Press again the same REC button to stop recording (the red REC
LED - goes out).
Snapshot
Take a snapshot of the video, select the proper channel and press SNAP button .
The current recordings are saved on the hard disk .
MAIN MENU
General operation
Press the MENU button to access the main menu. Use up and down arrows to
scroll in the main menu and select value submenu. Use arrows left and right to
scroll to submenu and go to the next item. Use OK (1) to select or confirm. Use
ESC to cancel or back one level.
Enter the menu
To log in, press MENU, press twice the right arrow until you reach Ok(1)
and press OK. You are now logged in. Press again MENU (2) to enter the
menu.
(The operation can also be done without using the keys foil. By using a USB mouse via one of the USB ports.
The MENU will be shown by clicking the right mouse button.)
Quickstart - SCC-2DRVL-DVR G3
Diver umbilical +
banana sockets
Battery status
Blinking: Battery
Not blinking: External power supply
Symbols
Explanation of battery or external
power supply.
Select channel Camera
Start & Stop recording
Snapshot
1
(1 of 4)
Power
cable
Light
2
