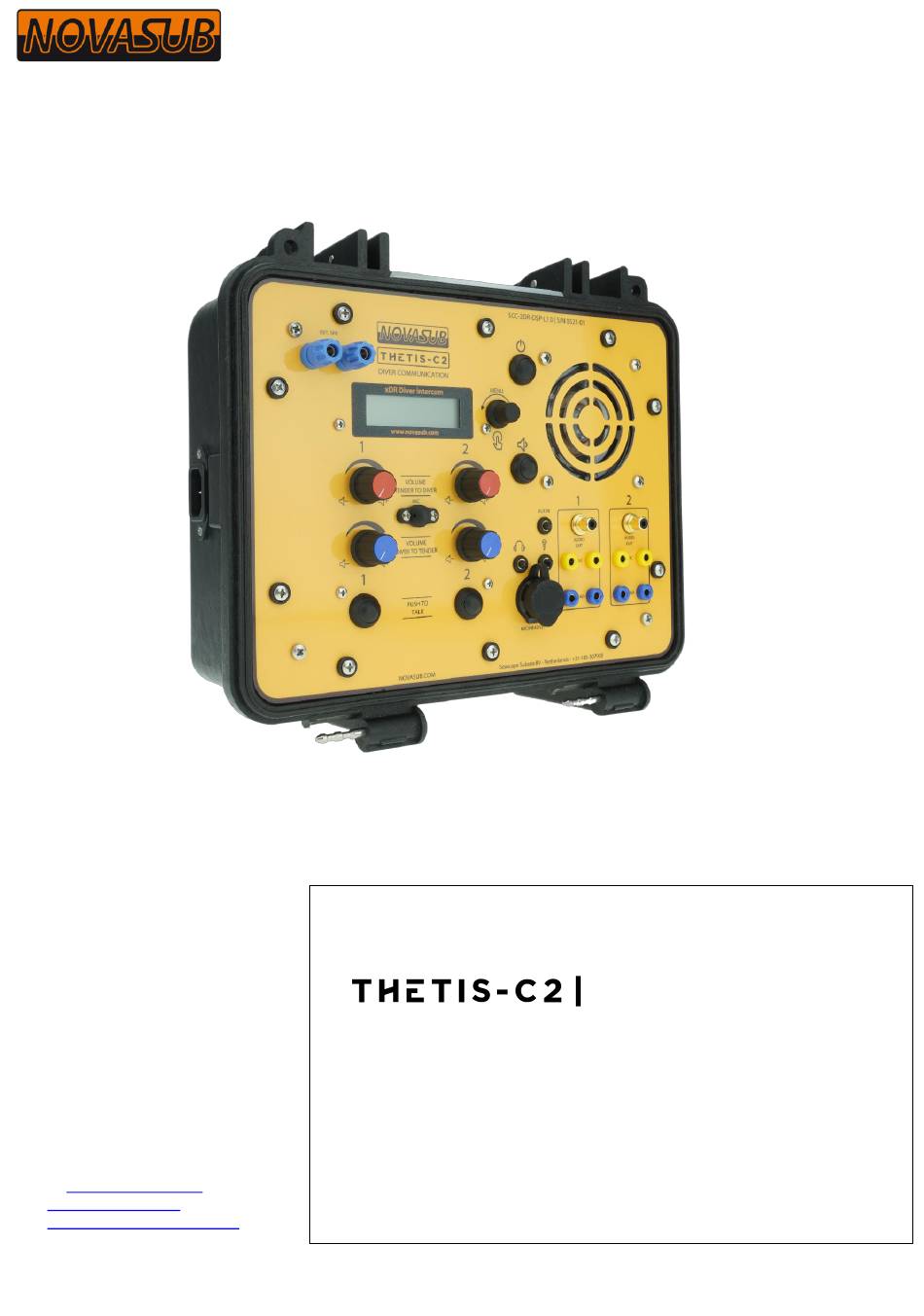

- Page 1 SCC-2DR-DSP-L1.0 Manual Operations Manual SCC-2DR-DSP-L1.0 NOVASUB Surface control case with digital two Seascape Subsea BV diver radio De Hoogjens 22 4254 XW Sleeuwijk The Netherlands T. +31-183-307900 info@novasub.com Version: 1.2 - Date: 02-09-2022 www.novasub.com www.seascapesubsea.com...
-
Page 2: Table Of Contents
HELP & SUPPORT ..................................... 13 WARRANTY ....................................14 Warranty Period....................................14 Exclusions and Limitations ................................14 This Limited Warranty is not enforceable if item: ........................... 14 Limitation of Liability ..................................14 www.novasub.com Version: 1.2 - Date: 02-09-2022 2 of 14... -
Page 3: Abbreviations / Terminology
Abbreviations / Terminology Ampere hour Comms Communication Diver Depth Gauge Diver Gas Analyzer DVR3 Digital Video Recorder Microphone NovaBus Novasub proprietary data transfer port Push To Talk Volt AC Diver intercom radio www.novasub.com Version: 1.2 - Date: 02-09-2022 3 of 14... -
Page 4: Introduction
Without using the Menu settings, by default the xDR will work as a standard 2 Diver intercom as you will be used too. Using the Menu you have access to an extensive settings menu in which you can configure and adjust the audio and other settings to your needs. www.novasub.com Version: 1.2 - Date: 02-09-2022 4 of 14... -
Page 5: Specifications
Jack 3.5mm (Mono) Audio Out Aux In Jack 3.5mm (Mono/Stereo) Battery Run time 6 hours Charging time 3 hours Size Length 305 mm Width 270 mm Height 144 mm Weight 4.1 kg www.novasub.com Version: 1.2 - Date: 02-09-2022 5 of 14... -
Page 6: Maintenance
Have your system serviced each 2 years by a Novasub Authorized Service Center. This service will include a general operational check, replacement of the battery, and overall upgrade of firmware. The service requires special tools and training. -
Page 7: General
Note that if any headset is plugged in, the internal Mic in the panel will not work. Note that both headset connections can work parallel with headsets if the headsets do not require too much power. www.novasub.com Version: 1.2 - Date: 02-09-2022 7 of 14... -
Page 8: Basic Controls
This uses a “Stay put push button”, this means that once you press it, it will remain in that position. Speaker ON Button Pushed in Speaker button Speaker OFF Button out www.novasub.com Version: 1.2 - Date: 02-09-2022 8 of 14... -
Page 9: Procedures
Conduct a visual inspection of unit to insure no damage has occurred during transportation to the job site, or since the last time the unit was used. • Connect an external power source if needed • Connect the Diver Umbilicals • Turn the system ON www.novasub.com Version: 1.2 - Date: 02-09-2022 9 of 14... -
Page 10: Xdr - Diver Intercom
All information for the controls of this subsystem can be found in the manual: xDR – Diver Intercom Manual All manuals and resources can be found under the “Support” tab on the website: www.novasub.com/support/ www.novasub.com Version: 1.2 - Date: 02-09-2022... -
Page 11: Connectors
Parallel to comms Head Blue socket Head multipin connector Audio output Audio 1&2 Type RCA socket Mating type RCA plug Function Pin layout centre pin Audio + connector housing Audio - www.novasub.com Version: 1.2 - Date: 02-09-2022 11 of 14... - Page 12 Type Banana screw socket Mating type Banana plug Function Pin layout Speaker + Speaker - Aux-in Audio Input Type Jack 3,5 mm Mating type Jack 3,5 mm Aux in Standard stereo www.novasub.com Version: 1.2 - Date: 02-09-2022 12 of 14...
-
Page 13: Help & Support
Further details about a Warranty Statement can be found at the chapter 10 Warranty For technical support contact your local a Novasub Authorized Service Center or Seascape Subsea BV. Seascape Subsea BV is the manufacturer of all Novasub branded products. -
Page 14: Warranty
2. has been repaired using unauthorized spare parts; modified or repaired by unauthorized Service Center; 3. serial number has been removed, altered or made illegible in any way, as determined at the sole discretion of Novasub; 4. has been exposed to chemicals. Novasub does not warrant that the operation of the product will be uninterrupted or error free, or that the product will work with any hardware or software provided by a third party.
