Jackery Explorer 1500 Pro, JE-1500B - Portable Power Station Manual

TECHNICAL SPECIFICATIONS

GENERAL INFO

Product Name: Jackery Explorer 1500 Pro
Model No.: JE-1500B
Capacity Lithium-ion 35Ah/43.2V DC (1512Wh)
Weight : About 17 kg/ About 37.48 lbs
Dimensions: 38.4x26.9x30.75 cm/15.12x10.59x12.11 in
Cycle Life: 1000 cycles to 80%+ capacity

OUTPUT PORTS

3 x AC Output: AC 120V, 60Hz, 15A, 1800W Rated, 3600W Surge peak
2 x USB-A Output: Quick Charge 3.0, 18W Max 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
2 x USB-C Output : 100W Max 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
Car Port: 12V⎓10A

INPUT PORTS

AC Input: AC 120V, 60Hz, 15A max
DC Input:
11-17.5V (Working Voltage) ⎓8A max, double to 8A max;
17.5-60V (Working Voltage) ⎓12A, double to 24A/1400W max

ENVIRONMENTAL OPERATING TEMPERATURE

Charge Temperature: 0~40°C (32~104 ℉)
Discharge Temperature: -10~40°C (14~104 ℉)

PACKAGE LIST

GET TO KNOW YOUR GEAR

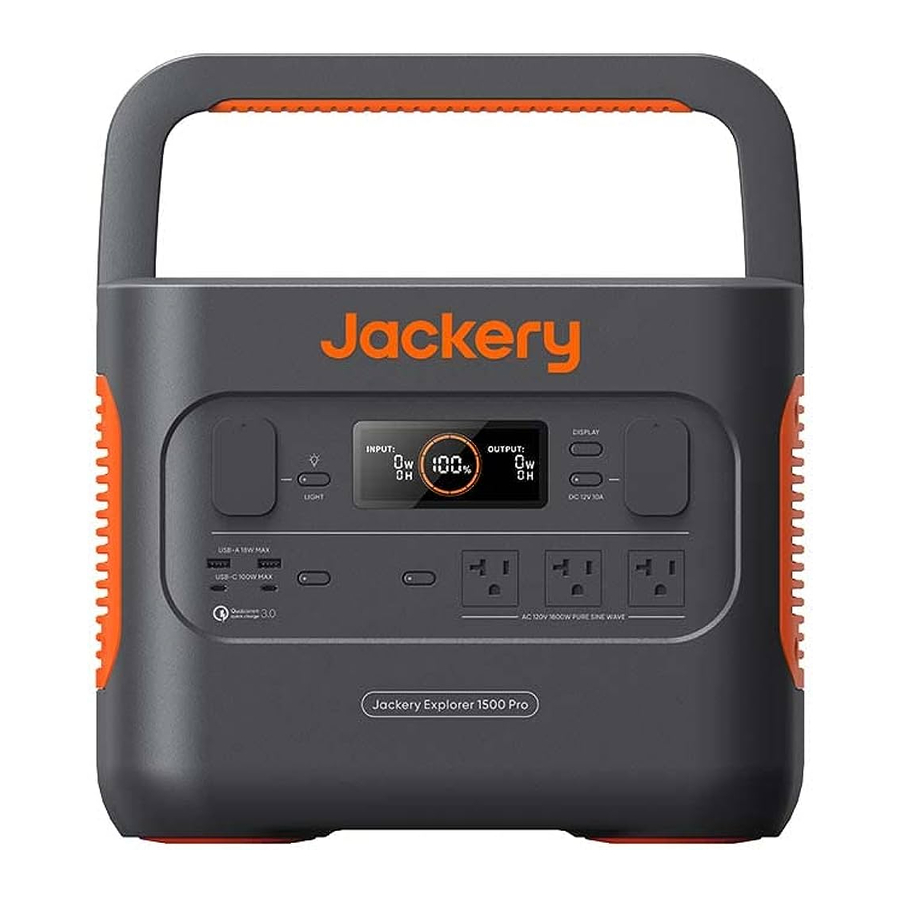

Product Appearance

LCD DISPLAY

1. Input Power
2. Remaining Charge Time
3. Solar Charging Indicator
4. AC Wall Charging Indicator
5. Car Charging Indicator
6. Low Battery Indicator
7. Remaining Battery Percentage
8. Output Power
9. Remaining Discharge Time
10. Error Code
11. High Temperature Warning
12. Low Temperature Warning
13. Low Power Mode
14. AC Power Indicator
15. Battery Power Indicator

Battery Power Indicator
When the product is being charged, the orange circle around the battery percentage will light up in sequence. When charging other devices, the orange circle will stay on.

Low Battery Indicator
When the battery is less than 20%, the Low Battery Indicator will stay on. When less than 5%, the Low Battery Indicator will flash. When it is being charged, the Indicator will be o.

Low Power Mode
To avoid forgetting to turn off the output during use that results in battery consumption, the product turns the Low Power Mode off by default. This occurs when no device is connected or the connected device is less than or equal to a certain value. (Refer to the table below for more details), the device will automatically shut down after 12 hours.

To turn on the Low Power Mode
Long press the AC Button and DISPLAY Button until the Low Power Mode icon lights up. In Low Power Mode, please remember to turn off the output to avoid battery consumption.

To turn off the Low Power Mode
Long press the AC Button and DISPLAY Button until the Low Power Mode icon disappears on the screen.

Fault code
In order to quickly solve the user's feedback, we set up common fault codes F0-F9 in the system: if you find any fault code of F0, F1, F2, F3, F4, F5, F6, F7 on the display screen, please contact us for after-sales treatment; If F6 code appears, please remove the load or unplug the charging plug, the product can restore by itself, if not, please contact after-sales treatment; If F9 fault code appears, please remove the load and the product can recover by itself, if not, please contact after-sales service.

High-temperature warning
If it appears on the screen, do not worry, the battery will restore automatically after cooling.

Low-temperature Warning
If it is displayed on the screen, do not worry. It will automatically restore after the ambient temperature is restored.

BASIC OPERATIONS

Power On/Off

AC Output On/Off: Press the AC Button, the AC Output operation indicator lights up. Then you can connect the equipment that needs AC charging. Press the AC Button again to turn off the AC Output.

USB Output On/Off: Press the USB Button, the USB Output operation indicator lights up. Then USB-A and USB-C Output Ports can be connected to external load devices. Press the USB Button again to turn off the USB Output.

Car Port On/Off: Press the Car Port Button, the Car Port operation indicator lights up. Then the Car Port can be connected to the external load devices. Press the Car Port Button again to turn off the output.

LCD Screen On/Off

To Turn On, press the DISPLAY Button, any Output Power Button, or LED Light Button. Or, when there's a charging input, the screen display will light up automatically.

To Turn Off, press the DISPLAY Button again and the screen display will turn off. Or, if there is no operation in 30 seconds, the product will enter a sleep state and the screen display will automatically turn off.

To get the screen always-on (under charging or discharging state), follow these steps: After the display screen lights up, double-click the DISPLAY Button and the mode of Always-On Display will be on.

To turn off Always-On Display, follow these steps: Press the DISPLAY Button and the screen will be turned off in 30 seconds.

Tip: During Always-On mode, the screen automatically turns off after 2 hours without charging or discharging.

LED Light On/Off

There are three modes of LED Light: Low Light mode, Bright Light mode, and SOS mode.

The operations are as follows: Press the LED Light Button, the LED will be turned on. The light will always turn on in Low Light mode and the output power on the screen is 1W. Press again to enter the Bright Light mode and the output power on the screen is 3W. Press the third time to enter the SOS mode and the output power on the screen is 3W. Then, press again to turn off the LED Light. In any of these modes, the light can be turned off by a long press.

CHARGING YOUR JACKERY EXPLORER 1500 PRO

Green energy first: We advocate to use the green energy first. This product supports two modes of charging at the same time: solar charging and AC wall charging.
When AC wall charging and solar charging are turned on at the same time, the product will give priority to solar charging and both methods will be used to charge the battery at the maximum permissible power.

CHARGING FROM THE WALL

Please use the AC cable included in the package.

SOLAR ENERGY CHARGING

Jackery SolarSaga 200 or 100 or 60 Solar Panel Connection Guide
If one or two solar panels are connected, you can directly connect the DC8020 port of the solar panel to theDC8020 port of Jackery Explorer 1500 Pro for charging. If three or four solar panels are connected, please refer to the method shown in the following figure to charge through the solar series connector
( Note: The solar series connector is not in standard configuration, so you need to purchase it separately. Please refer to the detailed operation instructions of the solar series connector before using it.)

When the two inputs are used at the same time, please make sure to use the same type of solar panel and the number of solar panels in the two inputs must be the same to avoid damage or charging problems of the equipment due to inconsistent voltages of the two channels.

The following way of connections are prohibited to charge this product:

Jackery SolarSaga 80 Solar Panel Connection Guide

Users who have purchased Jackery SolarSaga 80 can charge the product by referring to the connection mode shown below. The Jackery SolarSaga 80 supports the parallel connection or the parallel and then series connections to charge the product. The single input port of the Jackery Explorer 1500 Pro supports the input of up to six pieces of SolarSaga 80 solar panels, and two input ports support the input to up to 12 pieces of SolarSaga 80 solar panels. (When the power is connected with six solar panels in a single input port, the solar panels shall be divided into two groups, and each group of three solar panels shall be self-connected in parallel and then connected to Jackery Explorer 1500 Pro through the solar series connector. The solar series connector needs to be purchased separately.)
For detailed operation instructions on the self-parallel connection of the Jackery SolarSaga 80 solar panel, please refer to the user manual.

Warm Tip: Users can enter the number of solar panels in their own combination according to the number of solar panels they purchased. Currently, the product supports charging with 1, 2, 3, 4, 5, 6, 8, and 12 80W solar panels in combination.

DC7909 to DC8020 Adaptor Operation Guide

All of our solar panels on sale have been upgraded to include a DC7909 to DC8020 adapter. If you have purchased a Jackery solar panel without a DC7909 to DC8020 adapter, you can charge your Jackery Explorer 1500 Pro by following the connection instructions below.

CHARGING IN THE CAR

This product can be charged with a 12V car charger. Please start the vehicle before charging to prevent draining the car battery and prevent your vehicle from being unable to start.

Meanwhile, please ensure that the car charger and the car cigarette lighter provide a good connection, and ensure that the car charger is fully inserted. In addition, if the vehicle is running on bumpy roads, it is forbidden to use the car charger in case it burns due to a poor connection. The Company will not be responsible for any loss caused by non-standard operation.

Safety Precautions When Charging

1. Vehicle charging is only applicable in 12V vehicles, not in 24V ones. Please do not charge this product in 24V vehicle to avoid personal injury and property loss.
2. It is recommended to use Jackery accessories - solar panels for solar charging. We will not be responsible for the losses caused by using other brands' solar panels.

SAFETY PRECAUTIONS WHEN USING

The basic safety precautions should be followed when using this product, including:

1. Please read all instructions before using this product.
2. Close supervision is required when using this product near children to reduce the risk.
3. Risk of electric shock may occur if using accessories recommended or sold by non-professional product manufacturers.
4. When the product is not in use, please unplug the power plug from the product's socket.
5. Do not dismantle the product, which may lead to unpredictable risks such as fire, explosion or electric shock.
6. Do not use the product through damaged cords or plugs, or damaged output cables, which may cause electric shock.
7. Charge the product in a well ventilated area and do not restrict ventilation in any way.
8. Please put the product in a ventilated and dry place to avoid rain and water to cause electric shock.
9. Do not expose the product to fire or high temperature (under direct sunlight or in vehicle under high heat), which may cause accidents such as fire and explosion.
