X670E AORUS PRO X
User's Manual
Rev. 1001
GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen.
Also, to reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.
For more product details, please visit GIGABYTE's website.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X670E AORUS PRO X and is the answer not in the manual?

Questions and answers

Related Manuals for Gigabyte X670E AORUS PRO X

Summary of Contents for Gigabyte X670E AORUS PRO X

  • Page 1 User's Manual Rev. 1001 GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
  • Page 2 The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Product Introduction ..................4 Motherboard Layout ..................4 Motherboard Block Diagram ................5 Chapter 2 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the CPU and CPU Cooler ............... 10 Installing the Memory ..................13 Installing an Expansion Card .................

  • Page 4: Chapter 1 Product Introduction

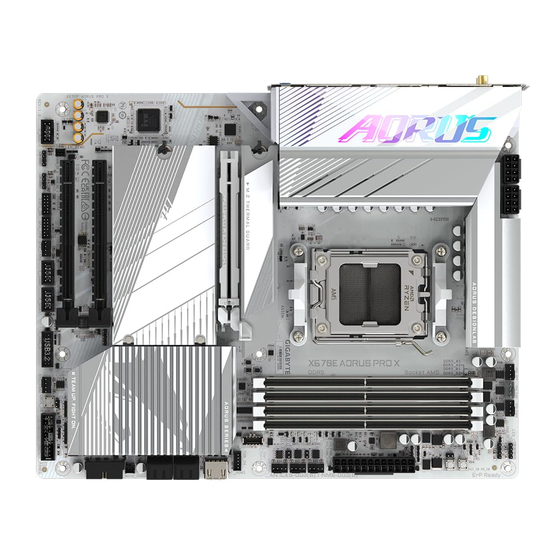

    Chapter 1 Product Introduction Motherboard Layout CPU_FAN SYS_FAN4 LED_C CPU_OPT QFLASH_PLUS ARGB_V2_2 ATX_12V ATX_12V1 QFLED PW_SW M2_WIFI Socket AM5 HDMI RST_SW USB 2.0 Hub USB20 U320G U32G2 U32G2_LAN SYS_FAN5_ PUMP AUDIO SYS_FAN6_ PUMP SYS_FAN3 Intel ® 2.5GbE LAN PCIEX16 THB_U4 Chipset ®...

  • Page 5: Motherboard Block Diagram

    Motherboard Block Diagram PCI Express 5.0 (Note) CPU CLK+/- (100 MHz) DDR5 5200/4800/4400 MT/s 2 M.2 Socket 3 (M2A_CPU, M2B_CPU) BIOS AM5 CPU eSPI ® Super I/O 2 HDMI 1 USB 3.2 Gen 2 Type-A 2 USB 3.2 Gen 1 CODEC 4 USB 2.0/1.1 USB 2.0...

  • Page 6: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 7: 2-2 Product Specifications

    2-2 Product Specifications AMD Socket AM5, support for: Š AMD Ryzen 7000 Series Processors ™ (Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD X670 Š Memory Support for DDR5 5200/4800/4400 MT/s memory modules Š 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) Š...
  • Page 8 Storage Interface Š CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 (Note) SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 (Note) SSD support) (M2B_CPU) Chipset: Š 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)(M2C_SB, M2D_SB) 4 x SATA 6Gb/s connectors...
  • Page 9 ATX Form Factor; 30.5cm x 24.4cm Form Factor Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. & Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version of apps.

  • Page 10: Installing The Cpu And Cpu Cooler

    Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
  • Page 11 B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. j G ently press the CPU socket lever handle down and away from the socket. k C ompletely lift up the CPU socket lock- ing lever.
  • Page 12 C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for your CPU cooler.) Apply an even and thin layer of thermal grease on the surface of the installed CPU.

  • Page 13: Installing The Memory

    Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) •...

  • Page 14: Installing An Expansion Card

    Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

  • Page 15: Back Panel Connectors

    1 Gbps data rate No data transmission or receiving is occurring 100 Mbps data rate LAN Port (Note) To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's website for more information. - 15 -...
  • Page 16 • When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent an electrical short inside the cable connector. & Please visit GIGABYTE's website for details on configuring the audio software. https://www.gigabyte.com/WebPage/697/realtek897-audio.html...

  • Page 17: Onboard Buttons And Leds

    CMOS_SW The reset button provides you with several functions to use. To remap the button to perform different tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST_SW (MULTIKEY)" for more information. • Always turn off your computer and unplug the power cord from the power outlet before using the clear CMOS button.

  • Page 18: Internal Connectors

    Internal Connectors ATX_12V/ATX_12V1 M2A_CPU/M2B_CPU/M2C_SB/M2D_SB F_PANEL CPU_FAN F_AUDIO SYS_FAN1/2/3/4 F_U320G SYS_FAN5/6_PUMP F_U32_1/F_U32_2 CPU_OPT F_USB1/F_USB2 EC_TEMP1/EC_TEMP2 THB_U4 NOISE_SENSOR SPI_TPM F_HDMI ARGB_V2_1/2/3 LED_C CLR_CMOS SATA3 0/1/2/3 Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •...
  • Page 19 1/2) ATX_12V/ATX_12V1/ATX (2x4 12V Power Connectors and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
  • Page 20 The header also provides speed control for a water cooling pump. Please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Smart Fan 6" for more information.
  • Page 21 6) CPU_OPT (CPU Fan/Water Cooling Pump Header) The fan/pump header is 4-pin and possesses a foolproof insertion design. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire).
  • Page 22 Cable For more information on the noise detection function, please navigate to the "Unique Features" page of GIGABYTE's website and search for "FAN CONTROL." Before connecting the cable to the header, make sure to remove the jumper cap; re-place the jumper cap if the header is not in use.
  • Page 23 Incorrect connection may lead to the damage of the LED strip. For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page of GIGABYTE's website. • To avoid abnormal LED behavior, do not connect addressable RGB Gen1 LED strips and addressable RGB Gen2 LED strips to the same header at the same time.
  • Page 24 1.5Gb/s standard. Each SATA connector supports a single SATA device. The SATA connectors support SB3 F RAID 0, RAID 1, and RAID 10. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array.
  • Page 25 Remove the protective film from the bottom of the motherboard heatsink, and finally, turn the M.2 EZ-Latch Click clip clockwise and then install the heatsink back in place. & Please visit GIGABYTE's website for details on using M.2 EZ-Latch Click/M.2 EZ-Latch Plus. M.2 SSD installation with M.2 EZ-Latch Click: https://www.gigabyte.com/WebPage/1048/M.2-EZ-Latch-Click.html...
  • Page 26 Connects to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch (please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Soft-Off by PWR-BTTN" for more information).
  • Page 27 F_USB3 F 15) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header.
  • Page 28 17) F_U32_1/F_U32_2 (USB 3.2 Gen 1 Headers) The headers conform to USB 3.2 Gen 1 and USB 2.0 specification and each header can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact the local dealer.
  • Page 29 19) THB_U4 (Add-in Card Connector) This connector is for a GIGABYTE add-in card. B S_ S B_ F_USB3 F 20) SPI_TPM (Trusted Platform Module Header) You may connect an SPI TPM (Trusted Platform Module) to this header. Pin No. Definition Data Output Power (3.3V)
  • Page 30 Reset The reset jumper provides you with several functions to use. To remap the button to perform different tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST_SW (MULTIKEY)" for more information. - 30 -...
  • Page 31 CMOS values. • After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or manually configure the BIOS settings (please navigate to the "BIOS Setup" page of GIGABYTE's website for more information). - 31 -...

  • Page 32: Chapter 3 Bios Setup

    If this occurs, try to clear the CMOS values and reset the board to default values. • Refer to the introductions of the battery/clear CMOS jumper/button in Chapter 2 or navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Load Optimized Defaults" for how to clear the CMOS values.
  • Page 33 Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup. <F12>: BOOT MENU Boot Menu allows you to set the first boot device without entering BIOS Setup.

  • Page 34: Chapter 4 Installing The Operating System And Drivers

    Step 1: Go to GIGABYTE's website, browse to the motherboard model's web page, download the AMD RAID Preinstall Driver file on the Support\Download\SATA RAID/AHCI page, unzip the file and copy the files to your USB thumb drive.

  • Page 35: Drivers Installation

    (GCC). Click Install to proceed with the installation. (In BIOS Setup, make sure Settings\Gigabyte Utilities Downloader Configuration\Gigabyte Utilities Downloader is set to Enabled.) When the End User License Agreement dialog box appears, press <Accept> to install GIGABYTE Control Center (GCC). On the GIGABYTE CONTROL CENTER screen, select the drivers and applications you want to install and click Install.

  • Page 36: Chapter 5 Appendix

    An M.2 PCIe SSD cannot be used to set up a RAID set either with an M.2 SATA SSD or a SATA hard drive. & Please visit GIGABYTE's website for details on configuring a RAID array. https://www.gigabyte.com/WebPage/1065/amd600-refresh-raid.html - 36 -...

  • Page 37: Regulatory Notices

    Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Name: GIGABYTE Model Number: X670E AORUS PRO X Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com...
  • Page 38 European Commission Delegated Directive (EU) 2015/863 Statement I prodotti con il marchio CE sono conformi con una o più delle seguenti GIGABYTE products have not intended to add and safe from hazardous Direttive UE, come applicabile: Direttiva EMC 2014/30/UE, Direttiva sulla substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP).
  • Page 39 For example, "REV:1.0" means the revision of the motherboard is 1.0. Motherboard revision no.: Wireless module manufacturer, model name: ® X670E AORUS PRO X rev. 1.0 Qualcomm Technologies, Inc. QCNCM865 X670E AORUS PRO X rev. 1.1 MediaTek Inc. MT7927, RZ738...

  • Page 40: Contact Us

    Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com...
