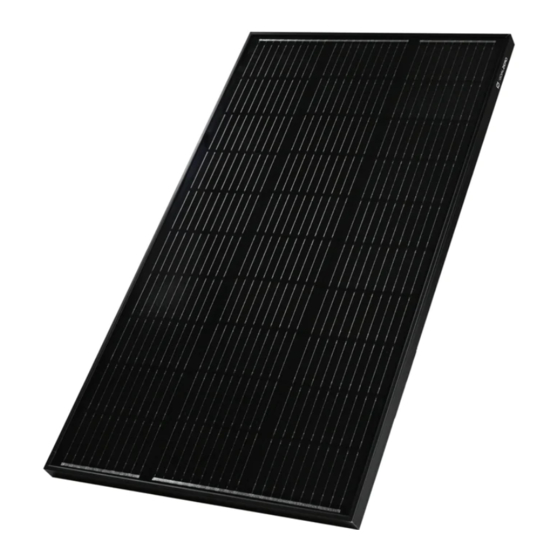

Goal Zero Boulder 100i - Solar Panel Manual

Get to Know Your Gear

In the Box

• Boulder 100i solar panel
• (4) Z-bracket
• (4) M6 Hex Bolt
• (4) M6 Hexagon Nut
• (4) M6 Split Lock Washer
• (4) M6 Flat Washer

How It Works

Plug the 4mm Solar Connectors on the back of your Boulder 100i into a 4mm Solar Connector, combiner, or adapter to plug into your desired device to collect and use solar power.
To plug the Boulder 100i into a Yeti, you will need an 4mm Solar Connector to HPP adapter.

How to Install Your Panel

1. Secure the Z Brackets to the Solar Panel
   1. Attach the Z-Bracket along the long side of the solar panel frame near the corner. Be sure the mounting foot of the bracket is facing away from the solar panel frame.
   2. Line up the mounting hole on the Z-Bracket with the hole on the solar panel frame.
   3. Attach the Z-Bracket to the solar panel frame with the M6 hex bolt, split lock washer, flat washer, and hexagon nuts.

   4. Repeat for the other 3 brackets, placing one near each corner of the solar panel.
2. Mount the Panel
   1. Choose a location to install your solar panel. We recommend picking a spot that is clear and will receive maximum sun exposure.
   2. Mount the panel as far away from rooftop obstructions as possible.

Connecting Multiple Panels

When connecting multiple panels, it is important to be mindful of the voltage input limitations of the device you are charging. The amount of input is impacted by whether you are connecting panels in a series or parallel configuration. Visit the Goal Zero website for more information about optimum solar panel setup:

Technical Specifications

Solar Panel
Rated Power	100W
Cell Efficiency	22%
Operating Voltage (peak power)	17.1V
Operating Current (peak power)	5.84A
Open Circuit Voltage VOC	20.52V
Short Circuit Current ISC	6.14A
Series Fuse Rating	9A
Temperature Coefficient (power)	-.39%/°C
Temperature Coefficient(Voltage)	-.3%/°C
Temperature Coefficient(current)	.06%/°C
Operating Temperature	-40° to 185°F
Connection
Connector	MC4®*
Cable Length	36in
Cable AWG	12 AWG
General
Weight	13.2lbs/6kg
Dimensions	23.07 x 38.58 x 1.18in 58.6 x 98 x 3cm
Certs
Warranty	2 years
Ingress Protection	IP67

*For warranty terms, conditions, and registration, go to www.goalzero.com/warranty.
* Based on Standard Test Conditions with Solar irradiance at 1000W/m^2, cell temperature of 25C and air Mass AM = 1.5

Frequently Asked Questions

Q: Can I plug the Boulder 100i directly into a Goal Zero Yeti?
A: No. You need an MC4®* to HPP adapter to connect the Boulder 100i to a Yeti. These panels are intended for RV installations with the Goal Zero Escape Ecosystem.

Q: How many solar panels can I connect together?
A: It varies depending on the device you're pairing your panels with. For example, the Goal Zero Yeti PRO 4000 will accept a maximum of 5 Boulder 100i panels in series, while the Yeti 1500X and all other 'X' line products can only accommodate 2 panels in series.

Q: Can I chain my Boulder 100i with third-party solar panels?
A: No. The Boulder 100i is not guaranteed to work with any other manufacturers' products. Many solar panels are manufactured differently. Pairing your Boulder 100i with third-party panels may result in product damage, fires, or other serious issues.
