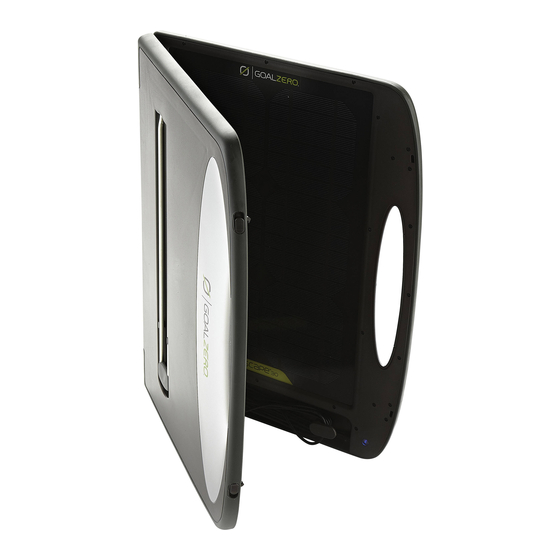

GOAL ZERO Escape 30 User Manual

GOAL ZERO Escape 30 User Manual

Advertisement

Quick Links

S O L A R
P A N E L
Get to know your gear
Getting Started
1. Be sure to ACTIVATE YOUR WARRANTY at www.GOALZERO.com/warranty
2. Open and remove the foam protector on the solar panel.
3. Prop up the legs and angle the panel towards the sun (see below).
4. Plug charging cable into your GOAL ZERO power pack.
BEST
SOLAR PANEL
How to use your gear
POWER IT
Highly efficient monocrystalline solar cells
deliver up to 30 Watts.
BRACE IT
Back legs help with optimum sun
positioning.
STORE IT
Panels fold into an easy to carry case with a
comfort grip handle.
SEE IT
The charging light turns on when it is
receiving power.
OKAY
BAD
Support legs
Metal support legs prop out for ideal positioning.
Security
Built in locking system secures panel when shut. To open it, push out
on both slide-tabs at the same time.
Power
a. The power plug stores easily around the cable tray. When
using, plug it into the input on you GOAL ZERO power pack.
b. The blue light turns on when power is being received into
the solar panel.
Clean
Wipe it clean with a dry or slightly damp cloth.
Technical Specs
Usage
Charges the following:
Approx. charge time:
ESCAPE 150
6-8 hours
EXTREME 350
12-24 hours
Smart phone, GPS
2-4 hours
Input
Solar panel
Rated wattage: 30W
Cell type: mono-crystalline
Open-circuit voltage: 18-20V
Converting eff.: 17-18%
Output
12V charging port (4.7mm)
14-16V, 2.0A max (30W), not regulated
General
Weight (no pkg)
12.2 lbs (5.5 kgs)
Dimensions
16x22x1.75 in (44.6x55.8x2.5 cm)
Warranty
12 months
Certifications
FCC and CE
Optimal Operating Temp.
32-104ºF (0-40ºC)
Optimal Storage Temp.
32-86ºF (0-30ºC)
