Replacement Parts Diagram; Www.airkinglimited.com - Air King Exhaust Fan with Light DRLC701 Operating Manual

# Qty. Description
1 1 Fan Housing
2 4 Mounting Rails
3 1 Collar
4 1 Damper
5 1 Polarized Receptacle
6 1 #8 Screw
7 1 Polarized Nylon Receptacle 2P
8 1 Goose Neck Wire Cover
9 1 #10 Ground Screw
10 1 14 ga Ground Wire
11 1 Scroll
12 1 Motor Plate
13 1 Impeller
14 2 Hex Nut
15 1 Motor
210572063 Rev. A 8-05

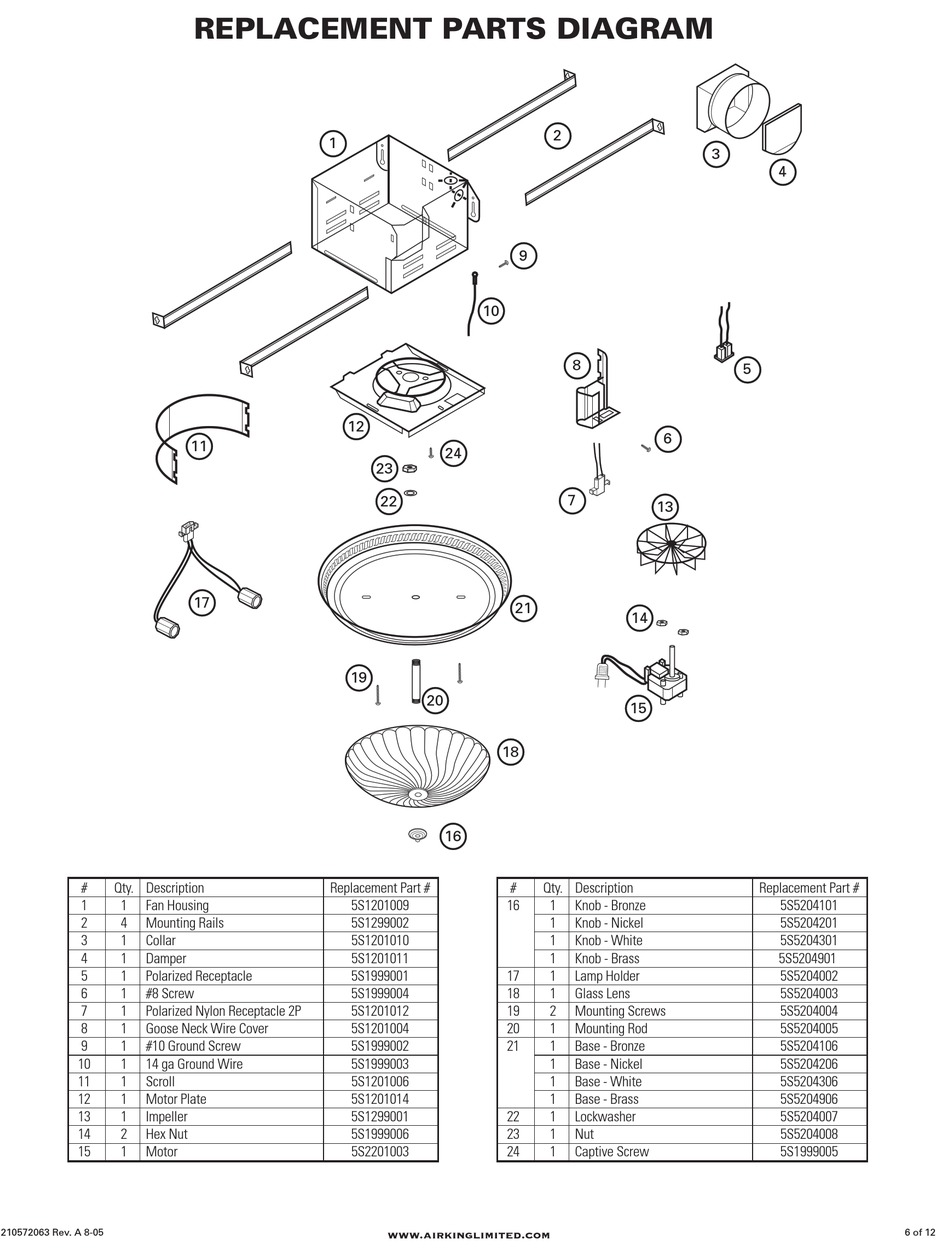

REPLACEMENT PARTS DIAGRAM

1
12
11
17
19
Replacement Part #
5S1201009
5S1299002
5S1201010
5S1201011
5S1999001
5S1999004
5S1201012
5S1201004
5S1999002
5S1999003
5S1201006
5S1201014
5S1299001
5S1999006
5S2201003
2
9
10
24
23
22
18
21
20
18
16
# Qty. Description
16 1
1
1
1
17 1
18 1
19 2
20 1
21 1
1
1
1
22 1
23 1
24 1

www.airkinglimited.com

3
8
5
6
7
13
14
15
Knob - Bronze
Knob - Nickel
Knob - White
Knob - Brass
Lamp Holder
Glass Lens
Mounting Screws
Mounting Rod
Base - Bronze
Base - Nickel
Base - White
Base - Brass
Lockwasher
Nut
Captive Screw
4
Replacement Part #
5S5204101
5S5204201
5S5204301
5S5204901
5S5204002
5S5204003
5S5204004
5S5204005
5S5204106
5S5204206
5S5204306
5S5204906
5S5204007
5S5204008
5S1999005
