Monoprice RVC100-70 Quick Install Manual

100 watt, 70v rotary speaker volume control

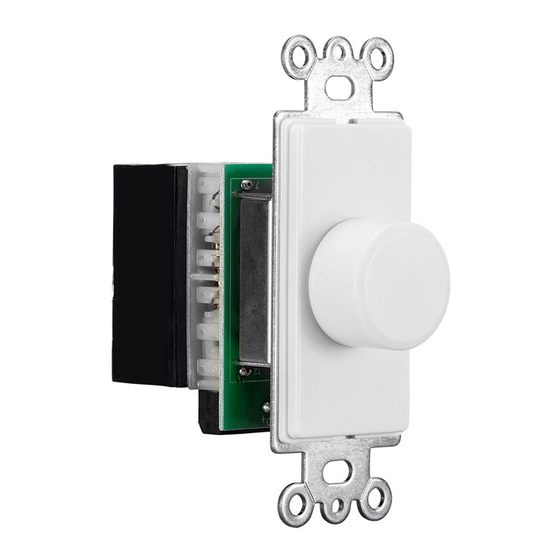

RVC100-70 100 Watt, 70V Rotary Speaker Volume Control

INTRODUCTION

The RVC100-70 is an in-wall, inline volume control for 70V music systems. It features 11

volume positions with make before break contacts. It supports a maximum load of 100

watts and can fit into a single gang junction box.

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for a

replacement.

1x RVC100-70 volume control

2x Silver 6-32 Mounting Screws

3x Decora Wall Plates (white, ivory, and almond)

3x Decora Inserts (white, ivory, and almond)

3x Knobs (white, ivory, and almond)

6x Painted Plate Screws (white, ivory, and almond)

1x Quick Install Guide

P/N 38164

Quick Install Guide

Table of Contents

Do you have a question about the RVC100-70 and is the answer not in the manual?

Page 1 Quick Install Guide INTRODUCTION The RVC100-70 is an in-wall, inline volume control for 70V music systems. It features 11 volume positions with make before break contacts. It supports a maximum load of 100 watts and can fit into a single gang junction box.
Page 2 INSTALLATION GUIDELINES  Check your local building and fire rating code for low-voltage device installation and wiring requirements before you being your installation.  Even if allowed by local building codes, we do not recommend installing volume controls in the same box as high voltage wiring controls, such as dimmers or switches.
Page 3 8. Inspect all connections to ensure that there are no stray wire strands. 9. Install the volume control into a wall box or ring using the two included Silver 6-32 Mounting Screws. Do not force the volume control into the box to ensure that the connections do not come loose.
Page 4 DIMENSIONS SPECIFICATIONS Model 38164 Frequency Response 20Hz ~ 20kHz ±0.5dB with typical 70V load Total Harmonic Distortion < 1% Power Rating 100 watts RMS Maximum Speaker Load @70V 100 watts Wire Connector Removable screw clamp Maximum Supported Wire Gauge 12 AWG 11 position rotary switch with make-before- Rotary Switch break contacts...
