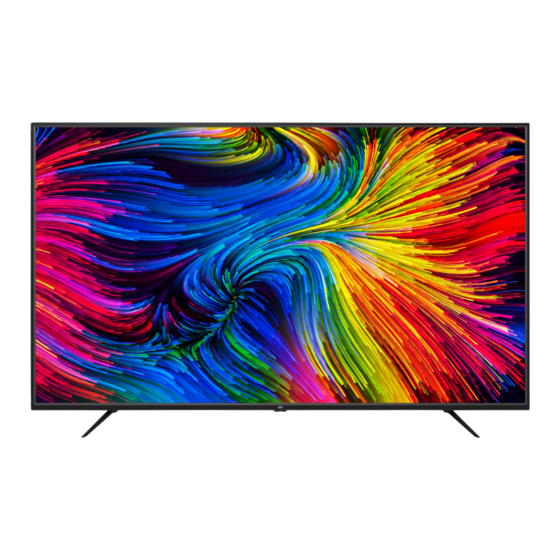

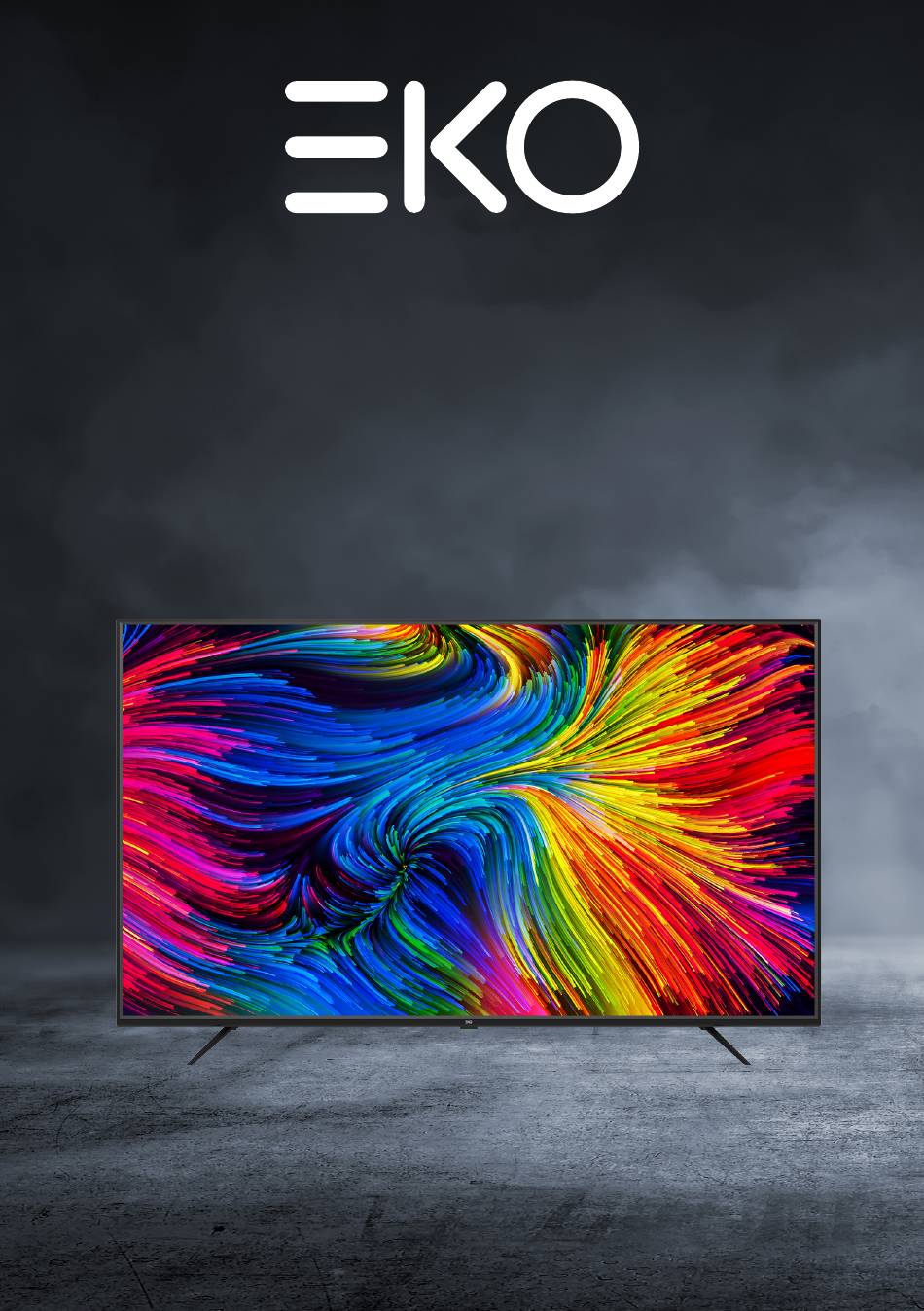

- Page 1 50” 4K ULTRA HD SMART TV K500USN INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Installation Controls and Connections Remote Control First Time Setup Smart Home Input Menu Menus Picture Sound Channel Time Setup Advanced Parental Guidance Network EPG (Electronic Program Guide) Record / Timeshift FAQs Specifications Customer Helpline Last Page... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the TV. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. - Page 5 GENERAL SAFETY INSTRUCTIONS (Cont.) IMPORTANT INFORMATION • Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard • Do not temper or change or modify the product in any way. •...
- Page 6 GENERAL SAFETY INSTRUCTIONS (Cont.) • Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire. • The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
- Page 7 GENERAL SAFETY INSTRUCTIONS (Cont.) Please make sure upon positioning this product, the place is: • Not wet or damp and Well ventilated • Away from direct sunlight or heaters. • Away from splashes or food. • Protected from excessive dust or grease. •...
-
Page 8: Installation
INSTALLATION Install the stand as described below, or if you want to mount it to a wall, please contact a professional installer. Please ensure the TV is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. Attaching the stand Step 1 Place a soft cushioned material on top of a flat surface to prevent damaging the screen pan-... - Page 9 INSTALLATION (Cont.) Wall-Mounting Instructions Please ensure the TV is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. • We recommend you use a professional installer as we assume no liability for any eventual damage to the product or injury to yourself if you mount the TV on your own.
-
Page 10: Controls And Connections
CONTROLS AND CONNECTIONS TV BUTTONS... - Page 11 CONTROLS AND CONNECTIONS (Cont.) SIDE OF TV BOTTOM OF TV 1. HDMI 2 2. HDMI 1 (ARC) 3. RF (ANTENNA) 4. USB 2 AND 1 5. OPTICAL 6. R & L AUDIO 7. CVBS 8. RJ45 9. HDMI 3 USB connection Insert a USB storage device into the USB port to record, playback of video/music/photo...
-
Page 12: Remote Control
REMOTE CONTROL... - Page 13 REMOTE CONTROL (CONT.)
- Page 14 REMOTE CONTROL (Cont.) Using the Remote Control • Battery should normally last for about one year. • Do not mix old and new batteries in the remote • Do not use different types of battery • If you do not intend to use the unit for a long time, please remove batteries from the remote to avoid accident.
-
Page 15: First Time Setup
First Time Setup WELCOME SCREEN Please follow through with the welcome screen indications for setting up your TV. COUNTRY SELECTION Select the country you are located in (Australia), this will help all settings related to location and Time. NETWORK Search for your Wi-Fi network or make sure your ethernet cable is connected to the TV and select “Wired Network”. - Page 16 First Time Setup (Cont.) INPUT & DVB-T TUNING If not on TV Source (DVB-T), Press “Source” on the remote control and select “DVB-T/T2” option. Once Selecting DVB-T/T2 - Make sure to select “SEARCH” to commence scanning of local TV.
-
Page 17: Smart Home
Smart Home Press “HOME” on the remote control to access Smart home page. Use the direction arrows to navigate and select your desired app with “OK”. SETTINGS SOURCE ETHERNET/WIFI TIME PRE-INSTALLED APPS... -
Page 18: Input Menu
INPUT • Press the SOURCE button on the RC for the below menu to appear. -
Page 19: Menus
MENUS MAIN MENU To access MENU settings, Press the menu button on the remote control and the menu will display on your screen. -
Page 20: Picture
MENUS (Cont.) PICTURE Press the MENU on your remote control, when your on “Picture”, then press RIGHT direction button to enter the menu. Picture Mode: Choose among Standard, Movie, User and Dynamic/Soccer depending on the region. It will be set to “User” mode automatically when you adjust any of the following six items. -
Page 21: Sound
MENUS (Cont.) SOUND Press the MENU on your remote control, when your on “Sound”, then press RIGHT direction button to enter the menu. Sound Mode: Choose among Standard, Music, Movie, Sport/Soccer and User depending on the region, User. It will be set to”User” mode automatically when you adjust the value of 120Hz,500Hz,1.5KHz,5KHz or 10KHz. -
Page 22: Channel
MENUS (Cont.) CHANNEL Press the MENU on your remote control, when your on “Channel”, then press RIGHT direction button to enter the menu. Auto Tuning: Select “Auto Tuning” to search the programs automatically. If you want to stop the auto tuning, press EXIT button. Then press button to exit searching and button to continue searching. -
Page 23: Time
MENUS (Cont.) TIME Press the MENU on your remote control, when your on “TIME”, then press RIGHT direction button to enter the menu. Auto Sync: Select the mode of auto sync to be “Auto” or “Manual”. Clock: Setup the TV clock ( Date, Month, Year, Hour and Minute). It is available only when Auto Sync is set to “Manual”. -
Page 24: Setup
MENUS (Cont.) SETUP Press the MENU on your remote control, when your on “SETUP”, then press RIGHT direction button to enter the menu. OSD Language: Select your desired OSD language. Audio Languages: (Only for some regions) Set the primary or secondary digital audio language corresponding to the signal. - Page 25 MENUS (Cont.) Internet Update Check: Update the software system by network connectior. Software Information: (Only for some regions) Show the current software information such as software version, etc. Standby Scan: (Only for some regions) Search for programs automatically when the TV turns standby. Dynamic Rescan: (Only for some regions) Turn on to automatically update the program of the scanned frequency.
-
Page 26: Advanced
MENUS (Cont.) ADVANCED Press the MENU on your remote control, when your on “SETUP”, then press RIGHT direction button to enter the menu. Input the initial password (0000) or your own password to access this feature, then press OK button to enter the following features. Lock System: Select On to enable the following three menu items. -
Page 27: Parental Guidance
MENUS (Cont.) PARENTAL GUIDANCE Before Starting: “0000” is the default password setting. Parental Guidance will only turn on once you have turned “Lock System” to “ON”. Now you can adjust parental guidance to the below depending on what you want to protect younger persons from viewing. Options to lock/block live TV program viewer ratings: PG Rated and Above M Rated and Above... -
Page 28: Network
MENUS (Cont.) NETWORK Press the MENU on your remote control, when your on “NETWORK”, then press RIGHT direction button to enter the menu. Wired Network: Connect the network cable to the LAN port at the back of the TV. Access main menu and select “NETWORK” sub-menu. Select “Wired Network”, and then select “Auto Input”, wait a few seconds, the network configuration will be finished successfully. -
Page 29: Epg (Electronic Program Guide)
MENUS (Cont.) EPG / RECORDING To access EPG Option Settings, press the GUIDE button on your remote control to display the program guide. Note: You must have a USB Drive inserted into the TV USB port. Navigate the Electronic program guide by using the directional keys. The Colour buttons at bottom of screen for additional funcitons such as: Record, Remind, Schedule list and info. -
Page 30: Record / Timeshift
MENUS (Cont.) RECORD / TIMESHIFT To access the quick menu, while watching live TV press “OK” on your remote control and a quick menu will appear on the top of your screen. HOTKEY / PVR Record: Select record to start recording the channel you are watching. Start Timeshift: Timeshift timeshift function, while watching TV for a short time, you can now rewind Live TV back to the point you turned on timeshift function and continue watching TV. -
Page 31: Faqs
FAQs GENERAL PROBLEMS WITH TV SET PROBLEM SOLUTION No Power. Make sure power plug is inserted correctly into power outlet. No Picture. Make sure the following is connected correctly • Adjust the antenna • Move TV away from any products that may cause interference. •... -
Page 32: Specifications
SPECIFICATIONS Display Device 50” 4K ULTRA HD SMART TV Resolution 3840 x 2160 Display Colours 1.07 Billion Contrast ratio: 4000 : 1 Aspect Ratio 16 : 9 Refresh Rate 60Hz ETHERNET / WiFi Yes/ 802.11 b/g/n Movie: mpg/mpeg/mpeg2-ps/mp4/mkv/avi/asf/flv Multimedia Playback Format under Music: mp3/aac/AC3 USB Mode... - Page 33 THIS PAGE IS LEFT BLACK ON PURPOSE...
- Page 34 THIS PAGE IS LEFT BLACK ON PURPOSE...
- Page 35 THIS PAGE IS LEFT BLACK ON PURPOSE...
- Page 36 CUSTOMER SUPPORT: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
