Summary of Contents for EKO K580USN

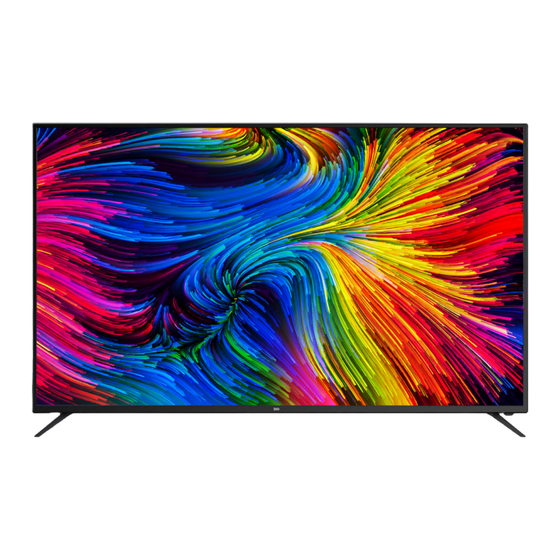

- Page 1 58” 4K ULTRA HD SMART TV K580USN INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Installation Controls and Connections Remote Control First Time Setup Smart Home Basic Operations Tuning your TV Menus Picture Sound Setting Lock PVR Option Network About FAQs Specifications Customer Helpline Last Page... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the TV. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. - Page 5 GENERAL SAFETY INSTRUCTIONS (Cont.) IMPORTANT INFORMATION • Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard • Do not temper or change or modify the product in any way. •...
- Page 6 GENERAL SAFETY INSTRUCTIONS (Cont.) • Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire. • The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
- Page 7 GENERAL SAFETY INSTRUCTIONS (Cont.) Please make sure upon positioning this product, the place is: • Not wet or damp and Well ventilated • Away from direct sunlight or heaters. • Away from splashes or food. • Protected from excessive dust or grease. •...
-
Page 8: Installation
INSTALLATION Install the stand as described below, or if you want to mount it to a wall, please contact a professional installer. Please ensure the TV is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. Attaching the stand Step 1 Place a soft cushioned material on top of a flat surface to prevent damaging the screen... - Page 9 INSTALLATION (Cont.) Wall-Mounting Instructions Please ensure the TV is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. • We recommend you use a professional installer as we assume no liability for any eventual damage to the product or injury to yourself if you mount the TV on your own.
-
Page 10: Controls And Connections
CONTROLS AND CONNECTIONS TV BUTTON... - Page 11 CONTROLS AND CONNECTIONS (Cont.) SIDE OF TV BOTTOM OF TV ANTENNA (RF) USB 1 & 2 INPUT RJ45 (ETHERNET) EARPHONE HDMI 1 HDMI 2 HDMI 3 / ARC CVBS AUDIO LEFT & RIGHT USB connection Insert a USB storage device into the USB port to record, playback of video/photo/music...
-
Page 12: Remote Control
REMOTE CONTROL... - Page 13 REMOTE CONTROL (Cont.) POWER: ON/OFF NUMBER BUTTONS (0-9): Select a TV channel EPG: Display Electronic program guide. 4. INPUT: Display the input menu. VOL +/-: Turn the volume up/down SMART HOME: Return back to Smart TV menu. SETTINGS: Display the Settings menu. : RIGHT/LEFT UP/DOWN buttons to navigate the on-screen menus.
- Page 14 REMOTE CONTROL (Cont.) Using the Remote Control • Battery should normally last for about one year. • Do not mix old and new batteries in the remote • Do not use different types of battery • If you do not intend to use the unit for a long time, please remove batteries from the remote to avoid accident.
-
Page 15: First Time Setup
FIRST TIME SETUP WELCOME You have the option of setting your desired displayed language for your smart TV. Please select a language (english recommended). DATA COLLECTION AND FIRMWARE UPDATED NOTICE You have the option of setting your desired displayed language for your smart TV. Please select a language (english recommended). - Page 16 FIRST TIME SETUP (Cont.) COUNTRY SELECTION Select the country you are located in (Australia), this will help with all settings related to locations and time. NETWORK Search for your Wi-Fi network or make sure your ethernet cable is connected to the TV and select “Wired Network”.
- Page 17 FIRST TIME SETUP (Cont.) INPUT / DVB-T TUNING Select TV then select the type of tuning you want for your TV. Make sure you select the first option “DVBT”. This is what is required for Australian TV. Once selecting DVBT, Make sure to select “SEARCH” to commence scanning of local TV.
-
Page 18: Smart Home
SMART HOME To access your streaming apps, Press “ ” on your remote control, then go left to “APPS”. To select which app you want to open, go up into the selection of apps and using the left or right directional arrows you can go through the apps that are built into your TV. -
Page 19: Basic Operations
BASIC OPERATIONS • Press the INPUT button to display the input source list. • Press the buttons to select the input source, and then perss ENTER to confirm. • You can access connected USB drives by selecting USB. -
Page 20: Tuning Your Tv
TUNING YOUR TV AUTO TUNING YOUR TV: Make sure that your Antenna (RF) cable is plugged into your TV before proceeding. • Press the MENU button for the below menu to appear. • Use the directional arrows on your remote control and go to “Program”. •... -
Page 21: Menus
MENUS MAIN MENU To access MENU settings, Press the menu button on the remote control and the menu will display on your screen. -
Page 22: Picture
MENUS (Cont.) PICTURE To access PICTURE settings, press the MENU on your remote control, go to PICTURE. Contrast: Adjusts the lightness and darkness between objects and the background. Brightness: Adjusts the brightness of the picture. Colour: Adjusts the colors, making them lighter or darker. Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull. -
Page 23: Sound
MENUS (Cont.) SOUND To access Sound settings, press the MENU on your remote control, go to “SOUND”. SOUNDS MODES Selects the normal sounds mode. Standard: Provides clear and live sound for music. Music: Provides live and full sound for movies. Movie: Emphasizes bass over other sounds. -
Page 24: Setting
MENUS (Cont.) SETTING To access TIME settings, press the MENU on your remote control, go to SETTING. Select Menu/TV language. Language: How long for OSD/Menu to be displayed on screen when accessed. OSD Time: Turn on or turn off HBBTV Function. HBBTV: Link Setup is HDMI CEC Settings, Link Setup:... -
Page 25: Lock
MENUS (Cont.) LOCK To access LOCK settings, press the MENU on your remote control, go to LOCK. Can select On or Off. Lock Systen: Default Passowrd: “0000” is the default password setting. Set Password: Enter your 4 digit password, once entered confirm password by entering the same 4 digit code and your new password has been saved. -
Page 26: Pvr Option
MENUS (Cont.) PVR Option To access PVR Option Settings, press the MENU on your remote control and go to PVR Option. Note: You must have a USB Drive inserted into the TV USB port. PVR File System: Press up/down direction keys to select PVR file system, Select submenu in DTV mode. -
Page 27: Network
MENUS (Cont.) NETWORK SETTINGS To access NETWORK settings, press the MENU on your remote control, go to Option then Network Configuration. Once you enter Network Configuration, press right direction arrow to “WIFI” and select it. To scan for your WIFI network, go down and select “Scan AP”, once scanning is complete, choose your WIFI network, then select PASSWORD and a small key board will appear. -
Page 28: About
MENUS (Cont.) ABOUT To access About settings, press the MENU on your remote control, go to ABOUT. Netflix - Do not select option to Deactivate or Terminate Netflix, this will permenantly remove netflix from your TV and you will not be able to re-install it. -
Page 29: Faqs
FAQs GENERAL PROBLEMS WITH TV SET PROBLEM SOLUTION No Power. Make sure power plug is inserted correctly into power outlet. No Picture. Make sure the following is connected correctly • Adjust the antenna • Move TV away from any products that may cause interference. •... -
Page 30: Specifications
SPECIFICATIONS 58” 4K ULTRA HD SMART TV Display Device 3840 x 2160 Resolution 5000:1 Contrast ratio: 1.07 Billion Colours 16 : 9 Aspect Ratio Music: MP3, M4A, AAC,WMA Multimedia Playback Format under Movie: AVI,MP4,MPG,MKV,MOV,DAT, VOB,RM,RMVB USB Mode Photo: JPG, BMP, PNG 100-240V ~ 50/60Hz Power Source 180W... - Page 31 THIS PAGE IS LEFT BLANK ON PURPOSE.
- Page 32 CUSTOMER SUPPORT: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
