- Page 1 OWNER’S MANUAL Video Cassette Recorder DV-S103WN PAL NTSC...
-
Page 2: Drawing Your Attention
DRAWING YOUR ATTENTION Thank you purchasing this VCP, developed to provide advanced features and functions for high quality performance. To obtain the best results and to avoid malfunction, PLEASE CAREFULLY READ THE DESCRIPTIONS AND OPERATING PROCEDURE CONTAINED IN THIS OWNER’S MANUAL PRIOR TO OPERATING THIS VCP. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions, and instructions on the appliance, or the ones described in the operating instructions and adhere to them. - Page 4 Water and Moisture–Do not use powerline Ventilation–The slots and openings in the Portable Cart Warning–An appliance and cart operated sets near water-for example, near a cabinet are provided for necessary ventilation. combination should be moved with care. Quick bathtub, washbowl, kitchen sink, laundry tub, in To ensure reliable operation of the set, and to stops, excessive force, and uneven surfaces may a wet basement, or near a swimming pool, etc.
- Page 5 –Never place the set in a confined space such as Power-Cord Protection–Route the power cord –Do not place the set over a radiator or heat a bookcase, or built-in cabinet unless proper in order not to be walked on or pinched by items register, or where it is exposed to direct ventilation is provided.
- Page 6 SERVICE Damage Requiring Service–Unplug the set –If the set has been subjected to excessive Servicing–Do not attempt to service the set from the wall outlet and refer servicing to shock by being dropped, or the cabinet has yourself as opening or removing covers may qualified service personnel under the following been damaged.
- Page 7 IMPORTANT NOTES • Audio-visual material may include works of copyright which must NOT be recorded without the authority of the owner of copyright. • Note that main voltage is supplied to the unit whenever the main plug is connected to the supply socket. •...
- Page 8 ACCESSORIES 1. INSTRUCTION MANUAL 2. REMOTE CONTROL 3. RF CABLE 4. BATTERIES (AAA SIZE)
-
Page 9: Introduction
INTRODUCTION CONGRATULATIONS on your purchase of a new VHS VCP. This VCP is an existing, new VCP designed to satisfy all your VHS tape play and recording needs. And, with proper used and care, your new VCP will offer many year of viewing enjoyment. Just a few of the feature include. -
Page 10: Table Of Contents
TABLE OF CONTENTS NOTE: This Video Cassette Player is compatible with any Video Cassette Player bearing the VHS mark. The VCP is designed to expand your opportunities for home viewing and not for any usage which might violate the copyright laws. Save the original shipping carton and packing materials;... -
Page 11: Identification

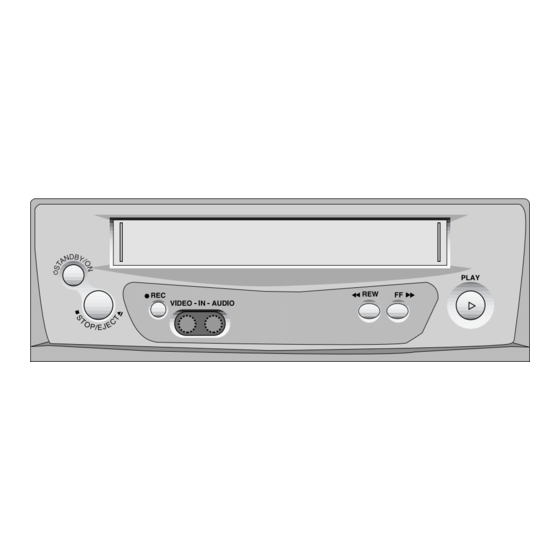

IDENTIFICATION FRONT PANEL CAUTION: Standby key won’t be used STANDBY KEY CASSETTE COMPARTMENT to turn on (or off) the main power. STOP/EJECT KEY PLAYBACK KEY AUDIO/VIDEO IN JACK RECORD KEY FAST FORWARD/CUE KEY REWIND/REVIEW KEY *If this key is pressed in the PLAYBACK mode, the VCP enters the Forward Picture Search mode *If this key is pressed in the PLAYBACK mode, the VCP and if pressed in the STOP mode,... - Page 12 IDENTIFICATION (continued) FRONT PANEL DISPLAY V C R N T S C R E P E AT R E C Turned on : color is red Slow Turned off : color is green Record Tape Loading Record Pause Playback , REPEAT Auto Repeat Fast forward Stop...
- Page 13 IDENTIFICATION (continued) REAR PANEL AC POWER CORD RF OUT TERMINAL ANT IN TERMINAL (Connect to the antenna terminal of the TV receiver (Connect the TV antenna to through the RF cable (provided)) this terminal) SCART JACK...
- Page 14 REMOTE CONTROL OPERATION RANGE 1. Any object between the remote control and VCP will block the path of beam when it is being used. Dark walls, direct sunshine or very bright (incandescent) light will reduce the remote control sensitivity. 2. Hold the remote control within an angle range of about 30º from either side of the remote sensor center as shown.
- Page 15 BATTERY INSTALLATION 1. Remove the battery cover on the reverse side of the remote control. 2. Install 2 batteries (“AAA” size) into the remote control. (Carefully install batteries to match the polarity diagrams) 3. Close the battery cover. • It is advisable to take batteries out of the remote control when it is not in use for a long time.
- Page 16 IDENTIFICATION (continued) REMOTE CONTROL BASIC FUNCTIONS TV/VCR TURN ON/OFF EJECT AUTO REPEAT ENCORE SLOW - /+ PAUSE/STILL FRAME REWIND/REVIEW FAST FORWARD/CUE PLAYBACK STOP RETRACKING TRACKING -/+ SYSTEM SELECT (PAL/NTSC) RF OUTPUT SELECTION RECORD SPEED...
- Page 17 WHEN YOU USE THE REMOTE CONTROL • Do not press two keys at the same time. • Do not expose the remote sensor to the sunshine. • It causes the VCP not to operate. • Avoid direct sunshine and strong shock. •...
-
Page 18: To Get Started
TO GET STARTED ANTENNA CONNECTION 1. Remove the Antenna Cable from the TV set. Connect it to the “ANT.IN” terminal of the VCP. 2. Connect one end of the RF cable to the “RF.OUT” terminal of the VCP. 3. Connect the other end to the “ANT.IN” terminal of the TV. Antenna TV set... -
Page 19: Channel Setting
VIDEO CHANNEL SETTING The built-in RF converter permits playback of video and audio The converter channel of all units is set to UHF channel 36 prior to recordings through a TV receiver. The signals from the RF converter shipment. Setting your TV receiver to UHF channel 36 may provide are viewed through a vacant channel not used for broadcasting in video playback. -
Page 20: Basic Operation
BASIC OPERATION CASSETTE LOADING/UNLOADING LOADING UNLOADING ŒPush the cassette into the cassette compartment ŒPress the STOP/EJECT key twice on the VCP (in the gently. PLAYBACK mode) or press EJECT key once on the remote (Arrow mark at the top) control. This first press will stop the tape in any mode except AUTO REPEAT. - Page 21 BASIC OPERATION (continued) ERASURE PROTECTION Video cassettes are equipped with a safety tab to prevent accidental erasure. When the tab is removed, recording can not be performed. • TO PREVENT ACCIDENTAL ERASURE • TO RECORD AGAIN • After recording, break off the safety tab with a •...
- Page 22 BASIC OPERATION (continued) BASIC PLAYBACK Each key of remote control functions identically with the keys on the front panel. NOTE: This VCP has Full Auto Function. If the cassette without the safety tab is inserted, the VCP will operate automatically: “TURN ON PLAYBACK REWINDING...
- Page 23 BASIC OPERATION (continued) Œ Œ LOADING ´ ´ PLAYBACK ˇ ˇ STOP POWER STOP/ EJECT PLAY <Remote Control> <Front Panel> Press the PLAY key, then pictures will Press the STOP/EJECT key once. The appear within 1 second and PLAY The power is on automatically when tape will stop but remain fully loaded indicator will display.
-
Page 24: Special Operation
SPECIAL OPERATION The VCP enters into the PLAYBACK mode during special operations as soon as pressing the PLAY key. ˇ ¨ Œ ´... - Page 25 SPECIAL OPERATION (continued) Œ Œ TO VISUALLY SEARCH FORWARD ´ ´ TO VISUALLY SEARCH REVERSE • Press the FF key once in the PLAYBACK mode. And then • Press the REW key once in the PLAYBACK mode. And then the tape will be rewound rapidly with the the tape advances rapidly with the pictures .
- Page 26 SPECIAL OPERATION (continued) AUTO REPEAT If you press the A.REPEAT key during playback, the tape will be re-playback after rewinding. In the A.REPEAT mode, only A.REPEAT and key will be operated. AUTO REPEAT ENCORE If you release the Auto Repeat mode, repress the A.REPEAT key on the remote control.
-
Page 27: Picture Adjustment
PICTURE ADJUSTMENT AUTO TRACKING ADJUSTMENT • Since this VCP has the Auto Tracking Adjustment function, it can play clear pictures without special operations. • Auto Tracking Adjustment operates automatically when the cassette is inserted. • If noise bars appear in the picture during playback, press the TRK +/ –... -
Page 28: Video System
VIDEO SYSTEM RECORDING / PLAYBACK VIDEO SYSTEM • RECORDING This VCP is possible to record not only PAL signal, but NTSC. This VCP select the system automatically according to the input signal (PAL or NTSC) in the record mode. INPUT SIGNAL RECORD SIGNAL SECAM MESECAM... -
Page 29: Recording Tv Programs
RECORDING TV PROGRAMS Since this VCP has no its own TUNER, this has no function to receive TV broadcasting signals. To record TV programs, please use the another TV or VCP having the function to receive TV broadcasting signals with own TUNER. 1. - Page 30 OPERATION ´ ˆ ¨ Œ Œ PREPARATION (TV) ´ ´ LOADING ˇ ˇ SPEED SELECTION ¨ ¨ RECORDING ˆ ˆ STOP Turn on the TV and Insert a blank cassette Press the SPEED key to Press the REC key. To finish the recording, select the desired CH tape gently.
- Page 31 2.INDIRECT RECORDING (BY VCR WITH TUNER) CONNECTION • Connect the Scart jack on the another VCP set to the Scart jack on the rear by using Scart cable or front panel of VCP by using Phone to Scart cable. ( It will record Front Input Signal only if both (Front and Rear) phone A/V jack connected.)
- Page 32 OPERATION ´ ˆ ¨ Œ Œ PREPARATION (TV) ´ ´ LOADING ˇ ˇ SPEED SELECTION ¨ ¨ RECORDING ˆ ˆ STOP Turn on the power of Insertaoriginaltapeto Press the SPEED key to Press the PLAY key on the To interrupt the recording, playbackVCP.Insertthe select the recording playback VCP.
-
Page 33: Before Calling Service Personnel
BEFORE CALLING SERVICE PERSONNEL Before calling service personnel, check the following points for a possible cause of the trouble. A minor adjustment on your part may eliminate the trouble. SYMPTOMS POSSIBLE CAUSES There is no power to the VCP. Is the power cord connected? Operation key does not function. -
Page 34: Specification
SPECIFICATIONS General Power requirement AC 90–250V~, 50/60Hz Power consumption 14 Watt Weight 3.5 kg Temperature Operating: 5°C to 35°C Storage: –20°C to 60°C Tape deck section Format VHS standard Video signal system PAL /MESECAM /NTSC(3.58) color signal Scanning system Rotary, slant azimuth, two-head helical scan system Tape width 12.65 mm Tape speed...
