luceco UTF6WCCT Installation & Operating Instructions

FTYPE ULTRA 4W/6W COLOUR CHANGE
FIRE RATED LED DOWNLIGHT & CONNECTOR
PART CODE: UTF6WCCT / UTR6WCCT
This Luminaire contains a light source of Class: C
ASSEMBLY AND INSTALLATION
• This product is only suitable for indoor use
• This product is suitable for direct insulation cover (layover and blanket)
• This product must be disconnected before insulation resistance testing of the lighting circuit
• IP65* rated – zone 1 & 2 suitable
• *: IP65 is rated for exposed parts. IP20 for recessed parts.
• Wire for interconnection ≥1.5mm
• Maximum amount of interconnections:50pcs/2A current
• UK Flat Cable: 6242Y 2x1.5mm
• EU Round Cable: H03VV-F 3x0.75mm .H05VV-F 3x1.0mm -1.5mm
1

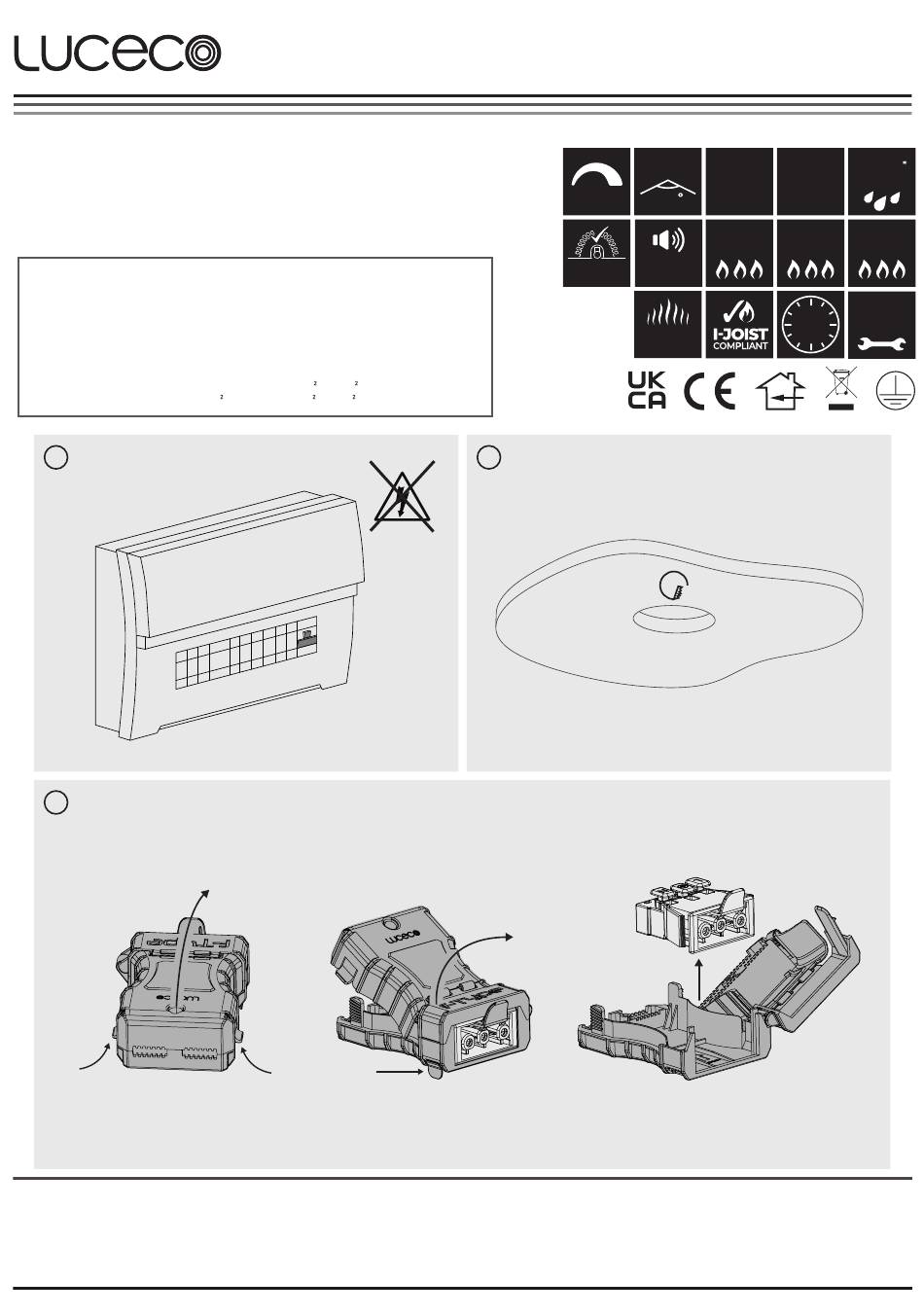

3 HOW TO OPEN THE CONNECTOR
1. To open cable clamp,
lift on locking tabs.
UTxx-CCT.DC.05.2023
2
+1.0mm , 6242Y 2x1.0mm +1.0mm
2 2
Tech Help Line
0330 0249 279
UK -
+44 (0)1952 238 100
Non UK -
Supplied by LUCECO
Stafford Park 1, Telford, Shropshire,
England, TF3 3BD
www.luceco.com
Visit our website at
Installation & Operating Instructions
2
2. To open collar, push
locking tab and lift.
BEAM
>
ANGLE
60
DIMMABLE
30
FIRE RATED
ACOUSTIC
INSULATION
PART E
COVERABLE
AIR LEAKAGE
PART C
76mm
Suggested
3. Remove terminal block.
Servicio de asistencia telefónica
0330 0249 279
UK -
+34 93 829 55 74
Non UK -
(EU) Luceco SE
C/ Bobinadora 1-5
08302 Matarό Spain
www.luceco.com
Visite nuestra web en
M A T T
CRI
IP65
WHITE
80 RATED
BEZEL
SUPPLIED
60 90
min min min
FIRE RATED FIRE RATED
7 year
standard
50,000
WARRANTY
HOURS
