luceco LED3EP80 Installation & Operating Instructions

Installation & Operating Instructions

EMERGENCY LIGHTING TESTING

Months 1 to 11 inclusive – Function test, interrupt the permanent/unswitched supply and check the luminaire operates in emergency
mode at reduced output
Month 12 (Annual) – As months 1 to 11 but for a full 3 hour duration
Luminaire Ref / Location: .................................... In case of difficulty, contact the installation engineers:-
Full recharge time 24 hours
ROUTINE TEST RECORD
Year 1 Year 2
Monthly test Signed Date Signed
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
3 Hour

WARRANTY

Products are protected by warranty for a period of 3 year warranty, extendable to 7 years with online registration from date of purchase
against defects in material and workmanship (unless otherwise stated). Should a product fail to perform as described within the
warranty period it will be repaired or replaced with the same or equivalent product by Luceco, free of charge provided that you: (1)
return the product to us with shipping charge prepaid, (2) provide us with proof of the original date of purchase and (3) quote our return
authorization number.
Repaired or replaced products will be returned to you with shipping charges prepaid. Replacement products may be refurbished
or contain refurbished materials. If in our sole discretion, we are unable to repair or replace a defective product, we will refund the
purchase price of the product.
This warranty will not apply if in our judgment, the product fails due to damage in shipment, handling, storage, accident, abuse or
misuse, or if it has been used in a manner not conforming to our product instructions, has been modified in any way, or has any serial
number removed or defaced. Repair or attempted repair will void this warranty. Our maximum liability under the terms of this warranty
is limited to the purchase price of the product covered by the warranty.
The warranty is given under English Law. If any part of this warranty is deemed unenforceable (including any provision in which we
exclude our liability to you) the enforceability of any other parts of the warranty will not be affected. These terms do not reduce your
statutory rights.
THESE TERMS AND CONDITIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
For further details, terms and conditions and online registration please see www.luceco.co
Tech Help Line
0845 194 7584
UK -
+44 (0)1952 238 100
Stafford Park 1 TF3 3BD ENGLAND
Non UK -
Luceco is a registered trade mark of Nexus Industries Ltd.
Tel: ...............................................................
Duration 3 hours Lamp type - LED
Year 3 Year 4
Date Signed Date Signed Date
Supplied by Visit our website at
BG Electrical Ltd
www.luceco.co

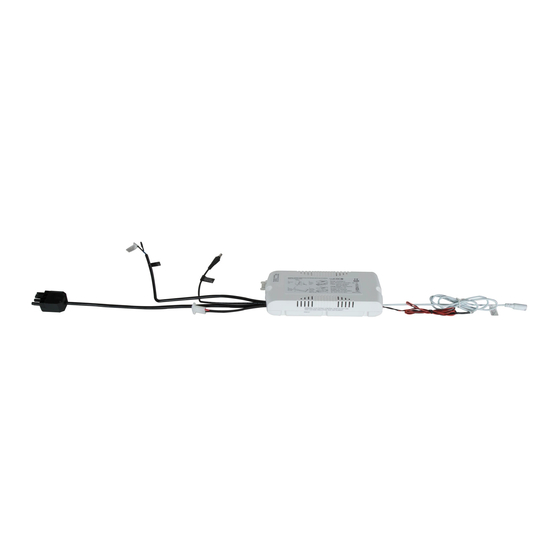

Remote 3hr
Emergency Pack
PART CODE: LED3EP80
SPECIFICATIONS
• Suitable for use with Mains voltage of 230/240V AC
Year 5
Signed Date
• This product must be disconnected before insulation
resistance testing of the lighting circuit
• Check for electrical cables and pipes before installation
WARNING - AVOID RUNNING THE LED MAINS DRIVER AND EMERGENCY PACK WITHOUT THE LOAD CONNECTED. FAILURE TO DO SO MAY
RESULT IN DAMAGE TO THE LED LUMINAIRE.

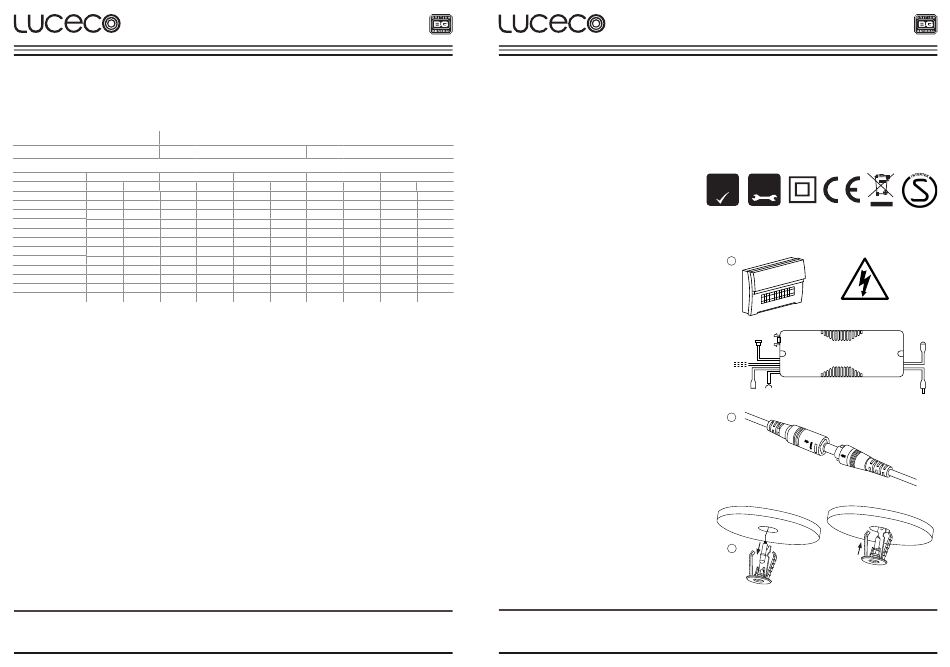

INSTALLATION – NON DIMMING
Turn OFF power supply, ensure all required equipment and tools
are present.
The emergency pack is supplied pre-wired for easy connection
to luminaires and drivers. 5 connections need to be made:
• Live/Neutral to input of Driver A
• Output of driver to inverter B
LED luminaire input C
•
• Indicator light D
• Connect Battery E
Mains input F
•
DRIVER (A & B)
The emergency pack is supplied pre-wired for connection to
the LED driver supplied with the luminaire. Use the L/N cable
from the emergency pack (2) as the input for the LED driver, and
connect the pre-wired connector from output of the driver to
input for emergency pack.
LUMINAIRE INPUT (C)
Connect male lead from inverter to female socket on luminaire.
Align arrows, push together and twist to lock. (2)
INDICATOR LED (D)
Drill a 18mm hole close to the installation location of the
luminaire. Feed the indicator cable through the cut out, insert
into the housing then push both into the ceiling until secure. (3)
Page 4
Tech Help Line
0845 194 7584
UK -
+44 (0)1952 238 100
Non UK -
Installation & Operating Instructions
NOTE – To comply with regulations, Installation must be carried out by
suitably qualified competent person and in accordance with the current
IEE Wiring Regulations (BS7671) and Building Regulations.
The Emergency pack requires 2 Live feeds, 1 to charge the battery pack
and 1 for switching of the product.
ENSURE ELECTRICAL SUPPLY AND BATTERY CONNECTION IS
DISCONNECTED/ISOLATED BEFORE COMMENCING INSTALLATION OR
ANY MAINTENANCE WORK. HIGH VOLTAGE COULD BE PRESENT AT
THE OUTPUT CONNECTION IF THE BATTERY IS NOT DISCONNECTED.
3 year 1 year
on site

GUARANTEE

WARRANTY
1
E
F
B A
2
3
Supplied by
BG Electrical Ltd
Stafford Park 1 TF3 3BD ENGLAND
Luceco is a registered trade mark of Nexus Industries Ltd.
Turn OFF Power Supply
D
LED3EP80
C
Page 1
Visit our website at
www.luceco.co
