Villager VEST 1800 Operation Handbook

Electric snow thrower
Hide thumbs

Advertisement

Quick Links

Download this manual
Villager
VEST 1800
ELECTRIC SNOW THROWER
Villager VEST 1800
OPERATION HANDBOOK
1

Advertisement

loading

Related Manuals for Villager VEST 1800

Summary of Contents for Villager VEST 1800

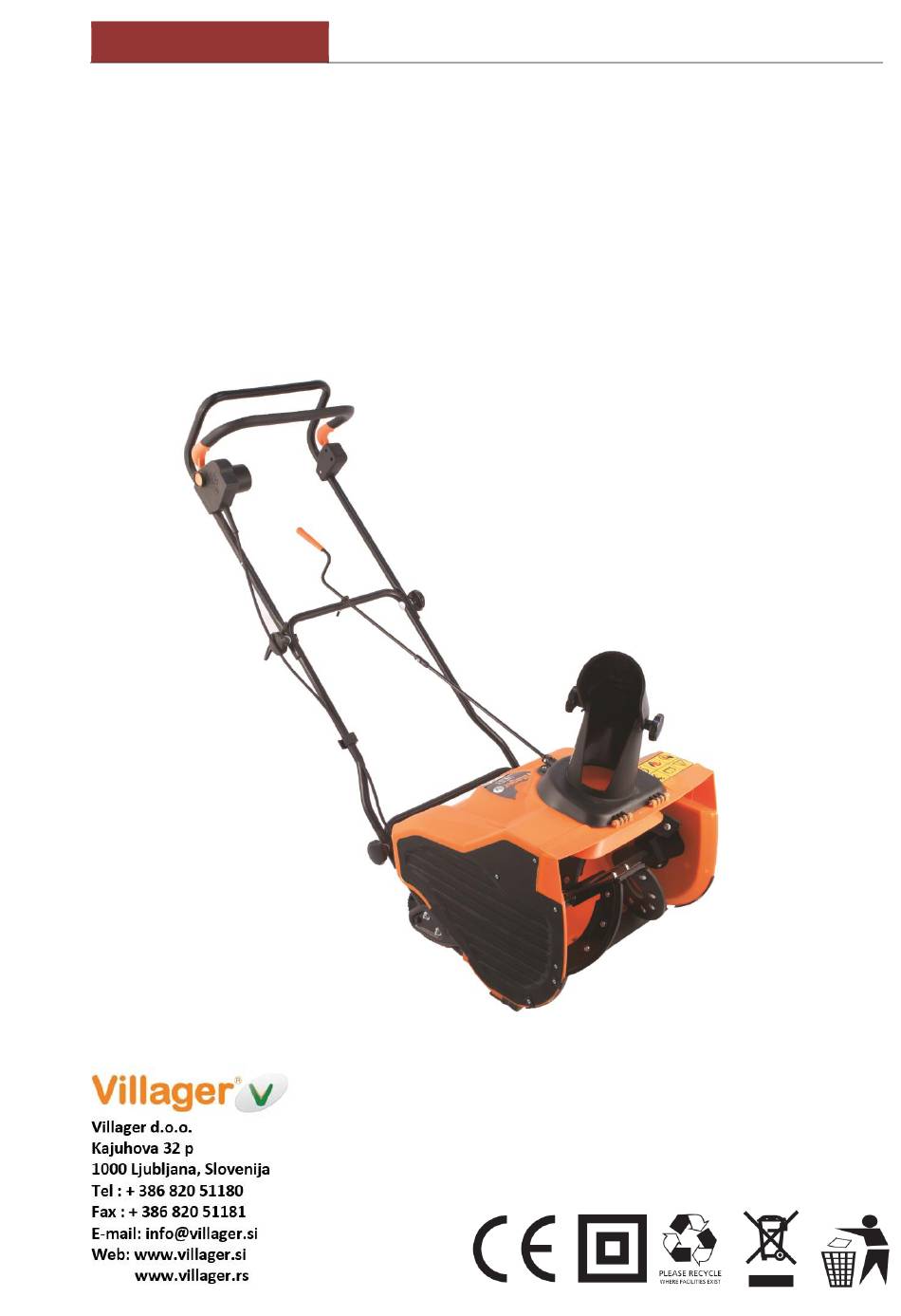

  • Page 1 Villager VEST 1800 ELECTRIC SNOW THROWER Villager VEST 1800 OPERATION HANDBOOK...
  • Page 2 Villager VEST 1800 To reduce the risk of hazard, users must read through this handbook first! You will find safety or danger warning signs on the machine. They are intended to remind you of your safety during operation. Please do not tear it down or alter it.
  • Page 3 Villager VEST 1800 Fig. 1-1 Get to know your machine. Be familiar with main components of the machine (Fig. 1). Get to know about the application and restrictions of snow thrower and related potential hazards. DON’T do any operation that doesn’t comply with specific requirements. Violation against it may lead to a danger.

  • Page 4: Machine Assembly

    Villager VEST 1800 Notes to Operation, Maintenance and Storage of VEST 1800 Electric Snow Thrower 1. Take out the snow thrower and other items out of the package. Erect the machine by holding the left and right handrails in the correct position. Check all items for any damage caused during transportation.
  • Page 5 Villager VEST 1800 3.2 Mount Handrails: Point upside Lower Handrail Insert Mid Handrail Upper Handrail Locking Lever Cable Clamp Cable Hanger Fig. 4 Fig. 5-a Fig. 5-b Fig. 5-c Fig. 5 3.2.1 Mount the mid handrail: Take up part B of Fig. 4, make the support sleeve end of the rocker point upside and insert it into part A of Fig.
  • Page 6 Villager VEST 1800 3.4 Mount the Crank Rocker: Upper rocker Upper rocker Rocker support sleeve Lower rocker Lower rocker Lock screw Donja klackalica Fig. 6-a Fig. 6 Fig. 6-b Take part A of Fig. 6-a and insert it into part B on the mid handrail first in a manner as shown in the figure, and then into connecting sleeve of part C on the lower rocker until two pin roll holes are aligned;...
  • Page 7 Villager VEST 1800 A- Power Cord Hanger B – Power cord with plug Fig. 7 WARNING! Electric shock may cause severe injury or even death; please pay attention to these warnings:  Never have any part of the machine get contacted with the water when it is energized; if the machine becomes damp, wipe dry before startup.
  • Page 8 Villager VEST 1800 4.4 Power On and Off A-Button Switch A-Startup/ Shutdown Lever B-Switch Box Fig.. 9 Fig. 10 4.4.1 Power On: Press down the button switch on the right of the switch box; see Fig. 9. 4.4.2 Startup: Grip the startup lever tightly to start the machine. See Fig. 10.

  • Page 9: Maintenance

    Villager VEST 1800 5.9 When the snow throwing task has to be carried out on surfaces having cobbles, gravels, crushed stones or without pavement, the snow scraping board should maintain a (proper) distance from the cobble or gravel base by pivoting the wheels and pushing down the lever to raise the machine so that loose matters on the surface will not be thrown out along with the snow.

  • Page 10: Technical Parameters

    Villager VEST 1800 7. Storage 7.1 Wipe off dusts from the machine, and service it. The machine may become damaged or failed due to the lack of maintenance. 7.2 Disconnect the power plug on the machine, and check the extension line for wear or damage; make replacement in case of any wear or damage.
  • Page 11 TUVRheinland test report no: 15050788 MD Machinery directive 2006/42/EC TUVRheinland test report no: 15061823 Product name : Electric snow thrower Villager VEST 1800 Country of origin and import China Products have been tested and evaluated by applying of certain standards characteristic for...
