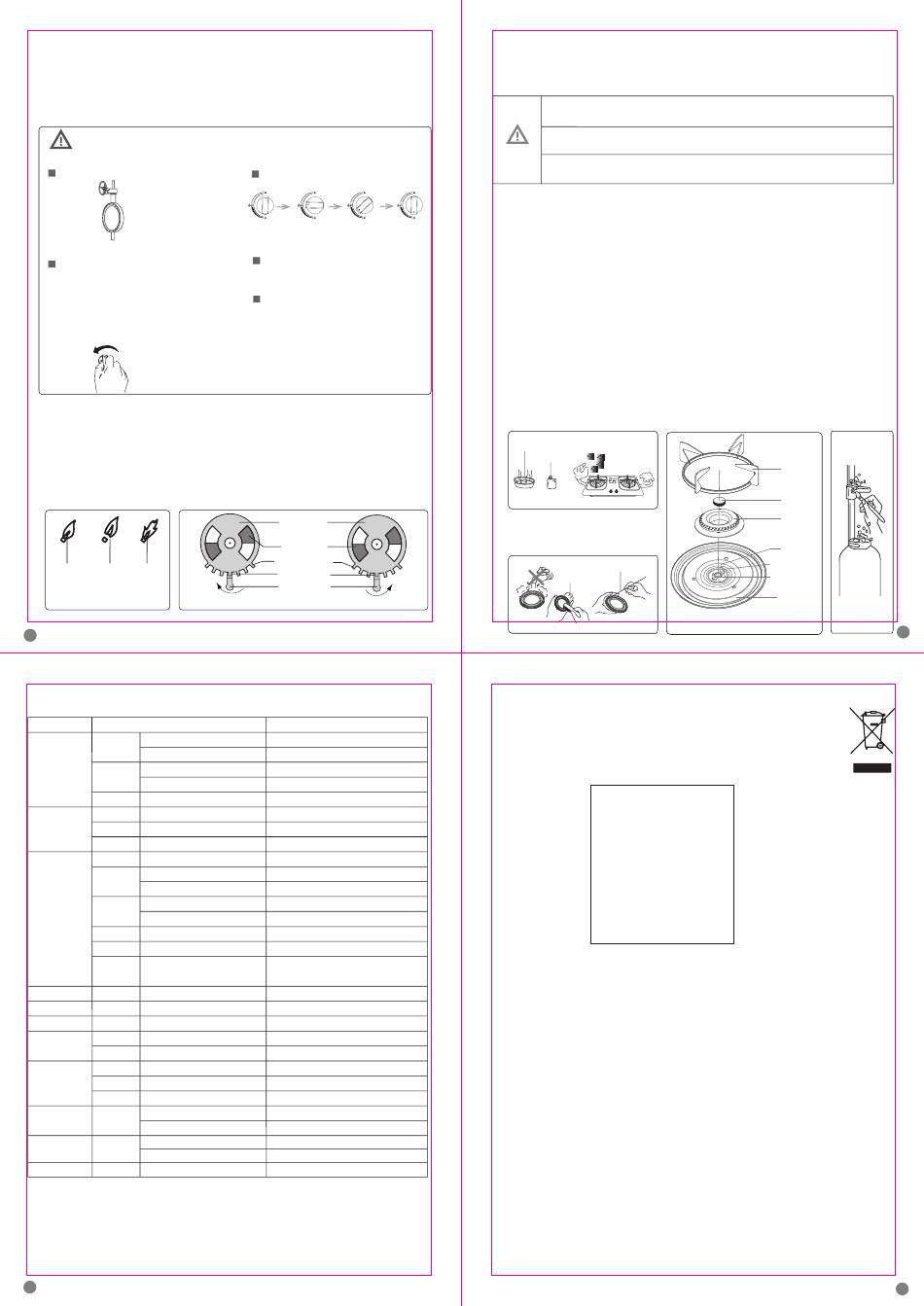

4. USER MANUAL
Before using for the first time, make sure the gas type specified on the nameplate of the gas hob is the
same as the type of gas you are currently using, and confirm that the burner parts, pot rack, knobs,
gas-dedicated connecting pipe and gas pipe are correctly installed. There will be residual air in the gas
line for the first-time use and ignition will be difficult, which is a normal phenomenon. Please repeat
igniting until it's normal.
◆ Ignite and adjust the fire
First of all, install a D dry battery in the battery box at the bottom of the gas hob and follow the order in
the diagram to ignite and adjust the fire.
Note: when adjusting the fire, please do not adjust the position near "OFF" to avoid
flameout. It is normal to hear the sound of "bang" when it's off.
Note
1 Open the indoor gas main valve
Main gas valve diagram
2 Press the knob downwards and turn
counterclockwise to the horizontal position
(the state of high flame). After the fire holes
are all ignited, continue to press for 3-5
seconds and release for use after the
flameout protection is launched; if the flame
is extinguished when releasing, turn the
knob clockwise to off position and repeat the
above ignition operation.
◆ Use an appropriately sized pan
The minimum bottom diameter of the pan to be used is 120mm.
◆ Air regulator adjustment and air volume control
When the flame is in poor condition, adjust the air regulator at the bottom of the hob. When the flame
is long and yellow, turn the adjustable handle to the right to increase the air volume; when the flame is
away from the fire hole, turn the adjustable handle to the left to reduce the air volume. When the flame
state is normal, fasten the slot of adjustable handle with fixed throttle gear.
Correct Lifted flame Yellow flame
combustion state
state
state
Note: Normal flame color is light blue
Turn left to reduce air volume
4
6. TROUBLESHOOTING AND HANDLING
Fault Cause
Dead battery
Battery
No battery, poor contact or reverse
installation
No ignition
Ignition porcelain far away from the
Ignition
fire hole
porcelain
Dirty or wet top
needle
Pulser Parts failure
Safety valve Not working due to short press time
Flame is
extinguished when
Thermocouple Dirty top
releasing
Valve body
Valve body is not fully pressed
Valve is not open or not fully open
Gas valve
Fire cover is not installed in place
Failure or difficulty Fire cover
Fire hole is blocked
in ignition in pulsed
ignition
Ignition Dirty or wet top
porcelain
Damp or spilled water
needle
Connecting
Flattened or bent
pipe
Low battery, slow discharge frequency
Battery
Too high or too low gas outlet pressure
Gas
Fire cover Fire cover is not installed in place
Loud burning noise
Lifted flame and
Excessive air output
Air regulator
blow-off
Flameout in use
Thermocouple Dirty top
Gas source
Unstable gas pressure
Unstable flame
Fire cover
Fire cover is not installed in place
Air regulator Too little air output
Long and yellow
Fire cover Fire cover is not installed in place
flame
Air source
Impurities contained in gas
Connecting pipe ages, cracks, breaks
Foul smell Gas leakage or falls off
Fire cover is not installed in place and gas
is leaked while igniting
Fire cover is not installed in place
Uncertain length
Fire cover
of flame
Blocked fire hole
Red flame Gas High gas humidity
6
3 Adjust the fire
Off High Medium Low
4 Turn the knob clockwise to the vertical
"off" position, turn off the gas hob.
5
Make sure to close the indoor gas main
valve after using the hob.
Fixed air regulator
Adjustable air regulator
Fixed air regulator gear teeth
Adjustable air regulator slot
Adjustable air handle
Turn right to increase air volume
Troubleshooting method
Replace with new battery
Re-install and confirm the correct polarity
please adjust the discharge distance to 3-5mm
Clean the top with a soft cloth and wipe dry
Contact service center for maintenance
Re-ignite and keep 3-5 seconds after ignition
Clean the top with a soft cloth
Hold the knob, press the valve body to the end
and ignite
Verify that the valve is fully open
Confirm that the fire cover is properly installed in place
Clear and clean the fire hole dirt
Clean the top with a soft cloth
Clean with dry and soft cloth
Replace with new gas dedicated connecting pipe
Replace with new battery
Use gas hob dedicated reducing valve in line with
national standards or check the gas supply for gas
Confirm that the fire cover is corrected installed
in place
Re-adjust the air regulator until the flame is burning
properlye
Clean the top with a soft cloth
Please contact the gas company to handle it
Confirm that the fire cover is properly installed in place
Readjust air regulator until the flame is burning
correctly
Confirm that the fire cover is properly installed in place
Please contact the gas company to handle it
Replace with new gas dedicated connecting pipe
Confirm that the fire cover is properly installed in place
Confirm that the fire cover is properly installed in place
Clear and clean fire hole dirt
Calcium contained in moisture causes red flame, but
it doesn't affect burning
◆ Change the applicable gas type
In case of changes in gas type due to relocation or local uniform gas reform, etc., professional trained
maintenance personnel will implement gas type changes to the gas hob. Please change the gas type
according to the gas type applicable to the models in the technical data list and the dedicated sales
area of the product. It is forbidden to disassemble the gas hob by yourself to avoid any safety accident.
5. ROUTINE INSPECTION AND MAINTENANCE
Before cleaning and maintaining the gas hob, please close the indoor gas main valve and
make sure the gas hob is in a cooling state. Do not dismantle the gas hob cooktop and
internal parts during the cleaning process.
As ignition porcelain needle surface is made of ceramic material, avoid crush due to hard
objects in cleaning and maintenance. Otherwise it will affect the ignition performance.
Note
The thermocouple is a sensitive component that controls the on-off of the gas line.
Regular cleaning is required to prevent dirt from attaching. Otherwise, the accidental
flameout protection function will be affected.
◆ Inspection
● Gas connecting pipe should be connected reliably without cracks. If leakage is found, please
immediately stop using and carry out timely replacement. It is advisable to check the air tightness of
the connections (as shown in the soapy water leak detection diagram, apply soap and water on the
connections to check the air tightness) and replace the connecting pipe at least once a year.
● Do not stack inflammable objects around the gas hob.
● The burner parts must be properly installed in place (as shown in the burner assembly) and the fire
holes should not be blocked by spills.
● Ignition porcelain needle and thermocouple surface can not have residual food, dirt and water.
◆ Maintenance
● Cooktop, pot rack are cleaned with soft cloth dipped in neutral, non-corrosive detergent.
● In case that the gas contains impurities, after long-term use, it will form carbon deposition,
sintering, etc. within fire holes of the fire cover and block the fire holes. In the use of gas hobs, if
uneven or individual fire holes are found to be flameless, please turn off the gas hob, remove the fire
cover in time until the burner is cooled, use a fine steel needle to remove the dirt and carbon
deposition inside the fire hole and use the hob again after the treatment.
Do not apply water directly to the fire cover (as the blisters temporarily block the fire hole) and do not
rub the coated surface with a harder object, which can cause irreparable damage to the black-coated
surface. Please use a soft brush to clean the dirt on the surface of the fire cover.
● After cleaning, please refer to the illustration of the burner assembly to properly install the inner ring
fire cover, outer ring fire cover and pot rack, and confirm that the installation is in place. Otherwise,
uneven flame and lifted flame caused may affect the normal use of hob. Scratches beyond repair
caused by bump, impact and other improper installation will not be warranted.
Cooktop cleaning diagram
Burner parts diagram
Warm water
Neutral detergent
Fire cover cleaning diagram
Fine steel needle
Cotton brush
Correct Disposal of This Product:
This marking indicates that this product should not be disposed of together with other
household waste. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote sustainable re-use of
material resources. To return your unwanted product, please use local return and collect
systems or contact the retailer where the product was purchased. They should be able to
take the appliance for environmentally-safe recycling.
ATTENTION！
This appliance must be installed in
compliance with the current
regulations and only installed in rooms
equipped with adequate ventilation.
Consult the instruction manual before
proceeding with installation or use of
the appliance.
Country of Destination：MALAYSIA
Diimport & Diedar oleh：
Haier Electrical Appliances (Malaysia) Sdn. Bhd.(Co.Reg.No:594702-A)
Unit H-08-03, Level3, Block H Persiaran Wawasan,Pusat Bandar Puchong,
47160, Puchong, Selangor, Malaysia.
Soapy water leakage
detection diagram
Pot rack
Inner ring fire cover
Outer ring fire cover
Burner
Ignition porcelain
needle
Thermocouple
Drip pan
The picture shows the burner parts diagram and
please refer to purchased products for details.
