Owner's Manual

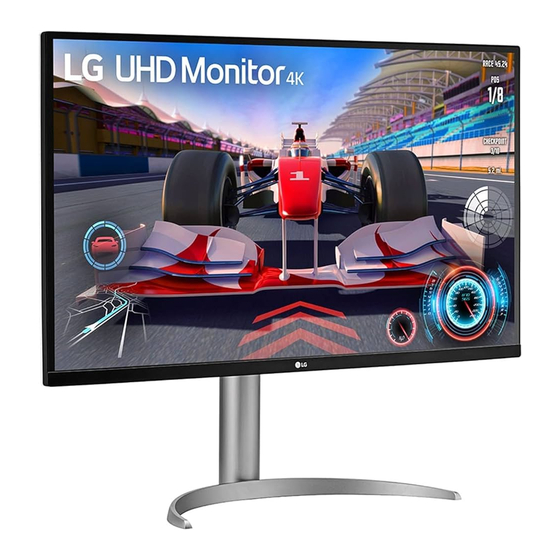

LED LCD COMPUTER MONITOR
(LED Computer Monitor*)
* LG LED Monitor applies LCD screen with LED backlights.
This product is a computer monitor and not for television purpose.
Please read this manual carefully before operating your set and retain it for future reference.
27UQ750
32UQ750P
www.lg.com
Copyright 2023 LG Electronics Inc. All Rights Reserved.
Advertisement
Table of Contents
Related Manuals for LG UQ750
Summary of Contents for LG UQ750
- Page 1 LED LCD COMPUTER MONITOR (LED Computer Monitor*) * LG LED Monitor applies LCD screen with LED backlights. This product is a computer monitor and not for television purpose. Please read this manual carefully before operating your set and retain it for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS USING THE MONITOR ............... 13 - Connecting to a PC ......................14 HDMI Connection ......................14 ASSEMBLING AND PREPARING ............4 DisplayPort Connection ....................14 - Installing ..........................5 USB-C connection ......................14 Moving and Lifting the Monitor ..................5 - Connecting Peripherals ....................15 Installing on a Table ......................6 USB Device connection .....................15 Using the Kensington Lock ....................6... - Page 3 PRODUCT SPECIFICATION ..............24 - Support Mode ........................26 (Preset Mode, DisplayPort / USB-C) ..................26 (Preset Mode, HDMI) ......................27 HDMI Timing (Video) ......................28 TROUBLESHOOTING ................ 29 LICENSE ................... 30 OPEN SOURCE SOFTWARE NOTICE INFORMATION ......31...
-
Page 4: Assembling And Preparing
It is recommended that use the supplied components. • If you use generic cables not certified by LG, the screen may not display or there may be image noises. • The product figures and screen displays used in this manual are examples to help consumers use the product and may differ from the actual product. -
Page 5: Installing
Installing CAUTION • Avoid touching the monitor screen as much as possible. Moving and Lifting the Monitor - This may result in damage to the screen or some of the pixels used to create images. • Standing the monitor panel up vertically may cause the monitor to fall due to the joystick and cause damage When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or or injury. -
Page 6: Installing On A Table
Installing on a Table Using the Kensington Lock • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm away from For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website the wall to ensure sufficient ventilation. -
Page 7: Installing On The Wall
Installing on the Wall Installing the Wall Mount Plate To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor. This monitor meets the specifications for the wall mount plate or other compatible devices. Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall. - Page 8 • Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel. • To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions.
-
Page 9: Product Description
Product Description How to Use the Joystick Button You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/ down with your finger. Basic Functions Power on: Press the joystick button once with your finger to turn on the monitor. Power off: Press and hold the joystick button once more than 5 seconds with your finger to turn off the monitor. -
Page 10: Adjusting The Stand Height
Adjusting the Stand Height Adjusting the Angle Place the monitor mounted on the stand base in an upright position. Place the monitor mounted on the stand base in an upright position. Handle the monitor with both hands for safety. Adjust the angle of the screen. The angle of the screen can be adjusted forward or backward from -5°... -
Page 11: Pivot Feature
Pivot Feature Raise the monitor up to the maximum height. The pivot feature allows the monitor to rotate 90° clockwise. WARNING • When using the Pivot function, do not rotate the monitor too fast or with excessive force. The table may be scratched by contact with the monitor’... - Page 12 Rotate the monitor clockwise as shown in the figure. NOTE • Auto Pivot feature of the display is not supported. • The screen can be rotated easily using the screen pivot shortcut key provided with your Windows operating system. Note that some Windows versions and some graphics card drivers may use different settings for the screen pivot key or may not support the pivot key at all.
-
Page 13: Table Of Contents Using The Monitor
Press the joystick button, go to [Settings] > [Input], and then select the input option. CAUTION • If you use generic cables not certified by LG, the screen may not display or there may be image noises. • Do not press the screen for a prolonged time. This may cause image distortion. -
Page 14: Connecting To A Pc
Connecting to a PC DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. • This monitor supports the * feature. NOTE : A feature that allows you to add a device to your computer without having to reconfigure anything or install any manual drivers. -
Page 15: Connecting Peripherals
Connecting Peripherals CAUTION • Cautions when using a USB device. USB Device connection - A USB device with an automatic recognition program installed, or that uses its own driver, may not be recognised. The USB port on the product functions as a USB hub. - Some USB devices may not be supported or may not work properly. -
Page 16: Headphones Connection
Headphones Connection Connect peripherals to the monitor via the headphones port. NOTE • Peripheral devices are sold separately. • Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited. • If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones. -
Page 17: User Settings
USER SETTINGS Main Menu Features NOTE • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. Activating the Main Menu Press the joystick button on the bottom of the monitor. Move the joystick up/down and left/right to set the options. Press the joystick button once more to exit the main menu. -
Page 18: Menu Settings
Menu Settings [Quick Settings] [Settings] > [Quick Settings] To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the [Settings]. • [Brightness]: Adjusts the brightness of the screen. • Move the joystick up/down and left/right to set the options. [Contrast]: Adjusts the contrast of the screen. -
Page 19: [Input]
[Input] [Picture] [Settings] > [Input] [Settings] > [Picture] > [Picture Mode] • [Input List]: Selects the input mode. • [Picture Mode]: Select the Picture mode that suits the each standard mode; [Custom], [Vivid], [HDR Effect], [Reader], [Cinema], [sRGB], [DCI-P3], [FPS], [RTS], [Color Weakness]. •... - Page 20 [Settings] > [Picture] > [Picture Adjust] • [DFC] • - On: Adjusts the brightness automatically according to the screen. [Brightness]: Adjusts the brightness of the screen. • - Off: Disables the [DFC] feature. [Contrast]: Adjusts the contrast of the screen. •...
- Page 21 [Settings] > [Picture] > [Game Adjust] [Settings] > [Picture] > [Color Adjust] • • [Response Time]: Sets a response time for displayed pictures based on the movement of the picture on the [Gamma]: Adjust the Gamma; [Gamma 2.0], [Gamma 2.2] and [Gamma 2.4]. screen.
-
Page 22: [Sound]
[Sound] [General] [Settings] > [Sound] [Settings] > [General] • [Volume]: Adjusts the volume level. • [Language]: Sets the menu screen to the desired language. - You can adjust [Mute] / [Unmute] by moving the joystick button to in the [Volume] menu. •... - Page 23 • [Power LED]: When the [Power LED] function is turned on, it operates as follows: - On mode: Light up - Sleep Mode (Standby Mode): Blinking - Off mode: Off • [Automatic Standby]: If there is no operation on the monitor for a certain period of time, the monitor will automatically switch to standby mode.
-
Page 24: Product Specification
PRODUCT SPECIFICATION Dimensions: Monitor Size (Width x Depth x Height) • With Stand (mm): 613.5 x 293.3 x 569.3 • Without Stand (mm): 613.5 x 45.4 x 363.5 27UQ750 Specifications are subject to change without notice. Weight (Without Packaging) The symbol means alternating current, and the symbol means direct current. - Page 25 PRODUCT SPECIFICATION Dimensions: Monitor Size (Width x Depth x Height) • With Stand (mm): 714.3 x 239.3 x 597.6 • Without Stand (mm): 714.3 x 45.7 x 420 32UQ750P Specifications are subject to change without notice. Weight (Without Packaging) The symbol means alternating current, and the symbol means direct current.
-
Page 26: Support Mode
Support Mode (Preset Mode, DisplayPort / USB-C) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 60.004 1280 x 1024 79.976 75.025 1280 x 720 1920 x 1080 67.5 1920 x 1080... -
Page 27: (Preset Mode, Hdmi)
(Preset Mode, HDMI) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 60.004 1280 x 1024 79.976 75.025 1280 x 720 1920 x 1080 67.5 1920 x 1080 66.587 59.934... -
Page 28: Hdmi Timing (Video)
HDMI Timing (Video) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) 480p 31.5 720p 1080p 67.5 1080p 2160p 2160p... -
Page 29: Troubleshooting
TROUBLESHOOTING Screen display is unstable and shaky. / Images displayed on the monitor leave shadow trails. • Did you select the appropriate resolution? - If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended resolution. -
Page 30: License
• Have you installed the display driver? - Be sure to install the display driver from our web site: https://www.lg.com. Each model has different licenses. Visit www.lg.com for more information on the license. - Make sure to check if the graphics card supports function. -
Page 31: Open Source Software Notice Information
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge. - Page 32 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial No.
