Summary of Contents for Bosch SMS6ECI93E

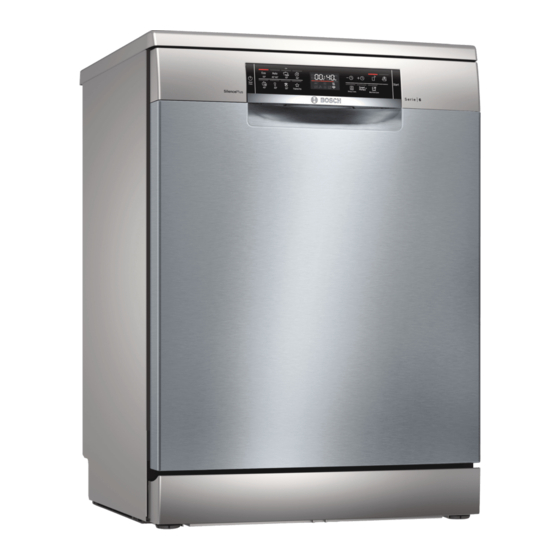

- Page 1 Dishwasher SMS6ECI93E [en] Information for Use Connect Get the app Scan QR code your dishwasher with Home Google Play and the Google Play logo are trademarks of Google Connect today! LLC. Apple and the Apple logo are trademarks of Apple Inc.
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Features........ 23 1.1 General information.... 4 8.1 Top basket....... 23 1.2 Intended use...... 4 8.2 Etagere ........ 24 1.3 Restriction on user group.. 4 8.3 Bottom basket ...... 24 1.4 Safe installation ...... - Page 3 20 Customer Service.... 54 13.2 Arrange tableware .... 34 20.1 Product number (E-Nr.), 13.3 Removing tableware.... 35 production number (FD) 14 Basic operation ....... 35 and consecutive numbering (Z-Nr.) ........ 55 14.1 Switching on the appliance ... 35 20.2 AQUA-STOP guarantee .. 55 14.2 Setting a programme ....
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. ▶ Check that there is a distance of at least 5 cm between the ap- pliance and installation lines. -
Page 7: Damaged Appliance
Safety en ▶ Do not sit or stand on the appliance door when open. Knives and utensils with sharp points can cause injuries. ▶ Arrange knives and utensils with sharp points in the cutlery bas- ket with the points downwards, on the knife shelf or in the cut- lery drawer. -
Page 8: Risk To Children
en Safety ▶ If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box and turn off the water tap. ▶ Call customer services. → Page 54 Incorrect repairs are dangerous. ▶... - Page 9 Safety en WARNING ‒ Risk of crushing! With higher-level appliances, children can become crushed between the appliance door and cabinet doors underneath. ▶ Keep an eye on children when opening and closing the appli- ance door. WARNING ‒ Risk of chemical burns! Rinse aid and detergent may cause chemical burns to the mouth, throat and eyes.
-
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on 3.3 Sensors ▶ the appliance, do not use sponges The sensors adjust the programme with a rough surface or abrasive sequence and strength in the auto- cleaning agents. matic programmes depending on the To prevent corrosion, do not use ▶... -
Page 12: Efficient Dry
en Installation and connection ¡ Further information documents 3.4 Efficient Dry ¡ Installation material The appliance door opens automatic- ¡ Salt filling aid funnel ally during the drying phase. This en- ¡ Mains cable sures a particularly economical dry- ¡ Quick reference guide ing result. -
Page 13: Drainage Connection
Installation and connection en 4.3 Drainage connection 4.5 Electrical connection Connect your appliance to drainage Connecting the appliance to the connection so dirty water is dis- electricity supply charged via the wash cycle. Notes ¡ Follow the Safety instructions Installing the drainage connection → Page 4. -
Page 14: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 55. The data you need for Customer Service → Page 54. - Page 15 Familiarising yourself with your appliance en Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 30 Bottom basket Bottom basket → Page 24 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 27 Lower spray arm The lower spray arm washes the table- ware in the bottom basket.
-
Page 16: Controls
en Familiarising yourself with your appliance 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. ON/OFF button and reset Switching on the appliance button → Page 35 Switching off the appliance... -
Page 17: Programmes
Familiarising yourself with your appliance en Remote Start → "Remote Start ", Page 41 Start button Starting the programme → Page 36 Programme buttons and addi- Programmes tional functions → "Programmes", Page 19 Additional functions → "Additional functions", Page 22 button If you press for approx. 3 seconds, you can open the basic set- tings. - Page 18 en Familiarising yourself with your appliance Symbol Description The symbols show the current cycle of the ap- pliance, e.g. washing , rinsing or drying . If you have activated the electronic start timer, the symbol lights up on the display. → "Setting timer pro- gramming", Page 36 If you have activated the...
- Page 19 Programmes en 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 20: Information For Test Institutes
en Programmes Programme Programme se- quence Tableware: Particularly gentle: ¡ Delicate tableware, cutlery, tem- ¡ Pre-Rinse Glass 40° perature-sensitive plastics, ¡ Cleaning 40 °C glasses and stemware ¡ Intermediate rinse Level of soiling: ¡ Final rinse 60 °C ¡ Lightly adhering fresh food rem- ¡... -
Page 21: Additional Functions
Programmes en When programmes have been down- loaded and on delivery of the appli- ance, the name of the programme will be displayed in the app. The dis- play alternately shows "AP:P" and the remaining running time. Tip: You can use the Home Connect app to download additional pro- grammes and save them to the button. - Page 22 en Additional functions 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme.
-
Page 23: Features
Features en Press in the levers on the right and 8 Features left on the outside of the basket. You can find an overview of the pos- sible features of your appliance and how to use them here. These features depend on the model of your appliance. -
Page 24: Etagere
en Features 8.2 Etagere Use the cutlery shelf and space un- derneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery. 8.4 Folding prongs Use the folding prongs to position tableware securely, e.g. plates. If you do not need the cutlery shelf, you can fold it up. -
Page 25: Cutlery Drawer
Features en Push the lever forwards and fold 8.6 Extra Clean Zone down the prongs . Use the Extra Clean Zone in the top basket to clean soiled tableware thor- oughly, e.g. muesli bowls. To use the prongs again, fold them back up. -
Page 26: Before Using For The First Time
en first time Pull the tab on the Extra Clean first time 9 Before using for the Zone up and forwards . first time first time 9.1 Performing the initial con- figuration On initial start-up or after a reset to the factory settings, you will need to make settings. -
Page 27: Overview Of Water Hardness Settings
Water softening system en To ensure good dishwashing results, 10 Water softening sys- you can treat the water with special salt and the water softening system. To avoid damage to the appliance, water with a hardness above 9 °E Hard water leaves limescale on the must be softened. -
Page 28: Special Salt
en Water softening system To save the settings, press Note: Only use special salt for for 3 seconds. dishwashers. Do not use salt tablets. Do not use table salt. 10.3 Special salt Add the special salt to the dis- You can use special salt to soften penser. -
Page 29: Regeneration Of The Water Softening System
Rinse aid system en ¡ The water hardness is 0 - 8 °E. Additional power consump- 0.05 You do not need to use special tion in kWh salt. The consumption values specified Press . are laboratory measurements determ- To open the basic settings, press ined in accordance with the currently for 3 seconds. -
Page 30: Setting The Amount Of Rinse Aid
en Detergent Add rinse aid up to the max mark. To save the settings, press for 3 seconds. 11.3 Switching the rinse aid system off If you find the rinse aid refill indicator irritating, e.g. when using combined detergents with a rinse aid compon- ent, you can switch the rinse aid sys- tem off. -
Page 31: Unsuitable Detergents
Detergent en starch and remove protein. Oxygen- With powder and liquid detergent the based bleaching agents are generally dosage can be individually adjusted used to remove coloured marks, e.g. to the level of soiling of the table- tea or ketchup. ware. For better washing and drying results Note: Follow the manufacturer's in- and to avoid damage to the appli-... -
Page 32: Information On Detergents
en Detergent Add the detergent to the dry deter- 12.3 Information on deter- gent dispenser. gents Follow the instructions on detergents 50 ml in everyday use. 25 ml ¡ Detergents marked as "organic" or 15 ml "ecological" (environmentally friendly) generally contain lower levels of active agents or com- pletely dispense with certain sub- stances. -
Page 33: Tableware
Tableware en Close the lid of the detergent dis- 13.1 Damage to glass and penser. tableware Only put glasses and china in the dishwasher if it is marked as dish- washer-safe by the manufacturer. Avoid damage to glass and table- ware. Cause Recommenda- tion The following... -
Page 34: Arrange Tableware
en Tableware ¡ For better washing and drying res- Cause Recommenda- ults, position items with curves or tion recesses at an angle so water can Highly caustic al- If you are using run off. kaline or highly highly caustic al- acidic cleaning kaline or highly solutions, in par- acidic cleaning... -
Page 35: Removing Tableware
operation en The Eco 50° programme is espe- cially environmentally friendly and ideal for normally soiled tableware. It is the most efficient programme for the combination of energy/wa- ter consumption for this type of tableware and evidences conform- ity with the EU Ecodesign Direct- ive. -
Page 36: Setting Timer Programming
en operation 14.4 Setting timer program- 14.6 Activating button lock ming The button lock prevents the appli- ance from being operated accident- You can delay the start of the pro- ally or incorrectly while running. gramme by up to 24 hours. Press or ... -
Page 37: Switching Off Appliance
operation en 14.10 Switching off appliance Please note the information on Safe use → Page 10. Press Tip: If you press during the wash cycle, the programme currently run- ning will be interrupted. When you switch the appliance back on, the programme continues automatically. -
Page 38: Basic Settings
en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H:04 H:00 - H:07 Set the water softening sys-... - Page 39 Basic settings en Basic setting Display text Selection Description Tone volume SL:02 SL:00 -SL:03 Adjustment of tone volume. Level "SL:00" switches the signal tone off. If the Eco drying function is activated, the end of the pro- gramme is not indicated by an audible signal tone.
-
Page 40: Changing Basic Settings
en Home Connect Basic setting Display text Selection Description Remote Start rc:01 rc:00 - rc:02 Activate or deactivate → "Remote Start ", Page 41. The following settings are possible: ¡ With the setting "rc:00", the function is perman- ently deactivated. ¡ With the setting "rc:01", the function can be selec- ted via the button. -
Page 41: Home Connect Quick Start
Home Connect en Home Connect services in your coun- The Home Connect app guides try. You can find information about you through the entire login pro- this at: www.home-connect.com. cess. To be able to use Home Connect, Setting up Home Connect you must first set up the connection to the WLAN home network (Wi-Fi Requirements and to the Home Connect app. -
Page 42: Data Protection
en Cleaning and servicing Note: Please note that the Requirements ¡ The appliance is connected to your Home Connect functions can only be WLAN home network. utilised with the Home Connect app. ¡ The appliance is connected to the Information on data protection can be Home Connect app. -
Page 43: Tips On Appliance Care
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.bosch-home.com/ mend cleaning your appliance at reg- store or from customer service. ular intervals. Machine Care is a programme which... -
Page 44: Filter System
en Cleaning and servicing ¡ Make sure that there are no alu- 17.5 Filter system minium parts, e.g. extractor hood The filter system removes coarse grease filters or aluminium pans, in soiling from the dishwashing cycle. the interior of the appliance. ¡ If you have not run Machine Care after 3 washing cycles, the indic- ator for Machine Care will go out automatically. -
Page 45: Cleaning Spray Arms
Cleaning and servicing en Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ... - Page 46 en Cleaning and servicing Pull up the lower spray arm to re- Check the outlet nozzles on the move. spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. a The spray arm clicks into position. Insert the upper spray arm and screw it firmly in place.
-
Page 47: Troubleshooting
This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website www.bosch-home.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. - Page 48 en Troubleshooting Fault Cause and troubleshooting E:32-00 will light up Remove the filter from the supply hose alternately or indicator for water supply lights Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back on. Check the water connection for leaks. Restore the power supply.
- Page 49 Troubleshooting en Fault Cause and troubleshooting E:61-03 will light up Not an appliance fault. Siphon connection is still alternately. Water is closed or the wastewater hose is kinked or blocked. not drained. Check the connection to the siphon and open if ne- cessary.
-
Page 50: Cleaning Spray Arms", Page
en Troubleshooting Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒... -
Page 51: Top Basket", Page
Troubleshooting en Fault Cause and troubleshooting Remnants of food on Filters are inserted incorrectly and/or not engaged. tableware. Insert the filters properly. → "Filter system", Page 44 Engage the filters. Washing programme selected too weak. Select a more intensive washing programme. ▶ → "Programmes", Page 19 Adjust the sensitivity of the sensors. - Page 52 en Troubleshooting Fault Cause and troubleshooting Removable streaks Tableware has been precleaned too intensely. The are present on sensors chose a weaker programme. Stubborn soiling glasses, glassware cannot be entirely removed. with a metallic appear- Only remove large remnants of food and do not ▶...
-
Page 53: Clean Wastewater Pump
Transportation, storage and disposal en Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 54: Protect Appliance From Frost
en Customer Service 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 55: Customer Service
Customer Service en Customer Service for a period of at 20.2 AQUA-STOP guarantee least 10 years from the date on In addition to warranty claims against which your appliance was placed on the seller under the purchase agree- the market within the European Eco- ment and in addition to our manufac- nomic Area. -
Page 56: Technical Specifications
en Technical specifications 21 Technical specifications Weight Max.: 60 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure ¡ min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 13 place settings You can find more information about... -
Page 57: Declaration Of Conformity
BSH Hausgeräte GmbH hereby de- A detailed Declaration of Conformity clares that the appliance with Home can be found online at www.bosch- Connect functionality conforms to the home.co.uk among the additional essential requirements and other rel- documents on the product page for evant provisions of Directive your appliance. - Page 60 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
