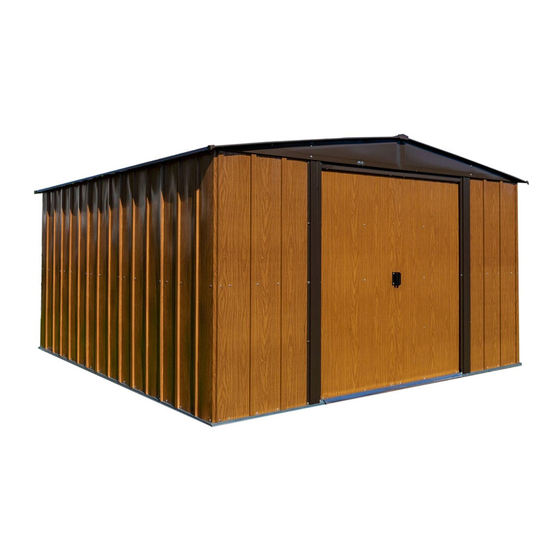

Arrow Storage Products SpaceMaker WL108CL Series Owner's Manual & Assembly Instructions
  1. Manuals
  2. Brands
  3. Arrow Storage Products Manuals
  4. Outdoor Storage
  5. SpaceMaker WL108CL Series
  6. Owner's manual & assembly instructions

Arrow Storage Products SpaceMaker WL108CL Series Owner's Manual & Assembly Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual & Assembly Instructions
HT01c
Steel Shed
725480721
Storage Area:
74 Sq. Ft.
6,9 m
2
BUILDING DIMENSIONS * Size rounded o to the nearest foot
*Approx.
Base
Size
Size
10' x 8'
121" x 92 3/4"
3,0 m x 2,3 m
307,3 cm x 235,6 cm
413 Cu. Ft.
11,7 m
3
Exterior Dimensions
(Roof Edge to Roof Edge)
Width
Depth
123 1/4"
95 1/4"
313,1 cm
241,9 cm
Model No.
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE MUST BE TAKEN WHEN
HANDLING THE VARIOUS PIECES TO AVOID A MISHAP. FOR SAFETY SAKE,
PLEASE READ SAFETY INFORMATION PROVIDED IN THIS MANUAL BEFORE
BEGINNING CONSTRUCTION. WEAR GLOVES WHEN HANDLING METAL PARTS.
Interior Dimensions
(Wall to Wall)
Height
Width
Depth
72 7/8"
118 1/4"
185,1 cm
300,4 cm
228,6 cm
WL108CL
Register • Enregistrer • Regístrate
/
ShelterLogic.com
product-registration
Opening
Height
Width
90"
71 5/8"
55 1/2"
181,9 cm
141,0 cm 152,4 cm
Door
Height
60"

Advertisement

loading
Need help?

Need help?

Do you have a question about the SpaceMaker WL108CL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Arrow Storage Products SpaceMaker WL108CL Series

Summary of Contents for Arrow Storage Products SpaceMaker WL108CL Series

  • Page 1 Owner's Manual & Assembly Instructions HT01c Model No. WL108CL Steel Shed Register • Enregistrer • Regístrate 725480721 ShelterLogic.com product-registration Storage Area: 74 Sq. Ft. 413 Cu. Ft. CAUTION: SOME PARTS HAVE SHARP EDGES. CARE MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES TO AVOID A MISHAP. FOR SAFETY SAKE, 6,9 m 11,7 m PLEASE READ SAFETY INFORMATION PROVIDED IN THIS MANUAL BEFORE...
  • Page 3 BEFORE YOU BEGIN..HS02b Owner's Manual Before beginning construction, check local building codes regarding footings, location and other requirements. Study and understand this owner's manual. Important information and helpful tips will make your construction easier and more enjoyable. Assembly Instructions: Instructions are supplied in this manual and contain all appropriate information for your building model.

  • Page 4: Tools And Materials

    PLAN AHEAD..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
  • Page 5 SAFETY FIRST..XA04 Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in pieces of your building since some contain the assembly of this building. Be familiar with sharp edges.
  • Page 6 CARE & MAINTENANCE..XA05 Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up scratches as soon as you notice them on your unit. Immediately clean the area with a wire brush; wash it and apply touch-up paint per manufacturer's recommendation. Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom.
  • Page 7 Base DS06 The Base For Your Building OPTION 1: Directly on ground (earth) Assemble your building directly on level ground (grass, dirt, rock, sand, etc.). OPTION 2: Wood Platform If you decide to build your own base, be sure to select the appropriate materials. These are the recommended materials for your base: 2 x 4's (38 mm x 89 mm) Pressure Treated Lumber 5/8"...
  • Page 8 Anchoring XA07 Anchoring Down The Building It is important that the entire oor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm) dia.
  • Page 9 Hardware DS08 Remove from bag of screws and save for the last step 65900A #10Bx1/2" (13 mm) 65923 65004 65103 Black Screw (8) #8-32x3/8" (10 mm) #8Ax5/16" (8 mm) #8-32 Hex Nut (161) (Packed with Screws) Bolt (161) Screw (326) 65109 66646 #8-32 Acorn Nut (4)

  • Page 10: Parts List

    Parts List R12 ctr Assembly Part Part Quantity Check Key No. Number Description in Carton List 3719 Door Handle Brace 7332 Wall Panel (Side) 9373 Front Wall Panel 9365 Front Wall Channel 5986 Rear Wall Angle 6000 Right Gable 6001 Left Gable 10497 Horizontal Door Brace...
  • Page 11 Assembly by Key No.
  • Page 12 Step 1 8934 Ramp (1) Parts Needed For 9367 Front Floor Frame (2) Floor Frame Assemblies 8936 Rear Floor Frame (2) A14ctr 8937 Side Floor Frame (4) (13) 9367 The front oor frame is made up of 8934 three pieces. The side floor frames and the rear floor frame are made up of two pieces.

  • Page 13: Frame Assemblies

    5986 Rear Wall Angle (2) Step 2 Parts Needed For 9917 Rear Wall Channel (2) Frame Assemblies 9922 Side Wall Channel (4) A15 ctr 8839 Side Wall Angle (4) 9917 9917 Rear Wall Channel 118 1/8" 300,0 cm The main frame pieces reinforce the walls.
  • Page 14 Step 3 Parts Needed For 10470 Roof Beam (8) Roof Beam Assemblies D16 ctr (30) 10470 The roof beams join the two gables and support the roof panels. The main roof beam is made up of four 10470 pieces overlapped back to back at the center.
  • Page 15 Step 4 Parts Needed For 6403 Door Track Splice (1) Door Track Assembly 9366 Door Track (2) A17 ctr NOTE: Door Track Splice (painted part) 6403 The door track assembly supports the sliding doors and reinforces the front wall. It is made up of three pieces. Using the door track splice, (painted), join the door track (galvanized) pieces end-to-end as...
  • Page 16 Step 5 Front Floor Assembly (1) Parts Needed For Side Floor Assembly (2) Floor Frame Rear Floor Assembly (1) A18ctr RIGHT REAR Assemble the four corners of 8937 the oor frame using two screws at each corner as shown. At the front corners fasten bolts through from the bottom with nuts on top.
  • Page 17 Step 6 Parts Needed For 6515 Wall Panel (2) 9373 Front Wall Panel (2) Corners 8470 Corner Panel (4) L19ctr Narrow Side 8470 (26) Wide Side NOTE REAR The remainder of the building assembly 8470 requires many hours and more than one person.
  • Page 18 Door Track Assembly (1) Step 7 Rear Wall Angle Assembly (1) Parts Needed For Side Wall Angle Assemblies (2) Frames Rear Wall Channel Assembly (1) A20 ctr Side Wall Channel Assemblies (2) 5986 (30) Wall Angles The main frame pieces give rigidity to Must Face the side walls and provide a surface Inside...
  • Page 19 Step 8 Parts Needed For 7332 Wall Panel (4) Wall Panels 6515 Wall Panel (4) D21ctr STEP 6515 6515 (112) (17) 7332 The wall panels come in two widths. 6515 Each wall panel has a crimped rib STEP 7332 on one side. The crimped rib should go under the rib of the panel that follows it.
  • Page 20 Step 9 Parts Needed For 9369 Door Jamb (2) Front Channel/Door Jamb 9365 Front Wall Channel (2) D22ctr 9365 (18) The door jambs reinforce the door STEP opening and provide an attractive trim. Follow these steps for both INSIDE OF door jambs.
  • Page 21 Step 10 Parts Needed For 6000 Right Gable (2) 6001 Left Gable (2) Gable Assemblies A23 ctr 5971 Roof Beam Bracket (4) The gables go on top of the front and rear walls to support the roof beams. NOTE The gables are packed nested together and might be mistaken as one piece.
  • Page 22 Step 11 Parts Needed For Left Gable Assemblies (2) Right Gable Assemblies (2) Gables/Braces 6635 Gable Brace (2) A24 ctr (20) Lift and fasten a right and left gable, under angle at corner, to the door track and rear wall angle with screws. Hint: On the rear gable, use a bolt and nut at the overlapping rear wall angle.
  • Page 23 Step 12 Parts Needed For Main Roof Beam (1) Roof Beams Single Roof Beam (2) A25 ctr (12) STEP Spread the two halves of the main roof beam and fasten the roof beam to the gable brace of the front gable. Single Roof Beam Assembly Fasten the other end of the main roof beam to the gable brace of the...
  • Page 24 Step 13 Parts Needed For 8468 Right Roof Panel (1) Right Roof Panel A26 ctr STEP 8468 8469 Installing the roof panels is best done with a step ladder. Begin installing 7483 7483 roof panels at the back right corner of the building.

  • Page 25: Roof Assembly

    Step 14 8468 Right Roof Panel (1) Parts Needed For 8469 Left Roof Panel (2) Roof Assembly 7483 Roof Panel (2) A27 ctr 6529 Roof Panel (2) STEP STEP (19) (38) 8469 Left Roof Panel 7483 Roof Panel Install a left roof panel at the left Weather Stripping 7483 Roof Panel 6529 Roof Panel...
  • Page 26 Step 15 8840 Ridge Cap (1) Parts Needed For 7483 Roof Panel (2) Ridge Caps & Panels 8486 Ridge Cap (1) A28 ctr (16) (40) 8840 STEP Strips Install the rst ridge cap on the completed roof section using bolts and nuts.
  • Page 27 Step 16 Parts Needed For 8485 Left Side Roof Trim (2) Roof Trim 8836 Right Side Roof Trim (2) A29ctr Attach the right and left side roof trim to the lower end of the roof panels on each side of the building using screws at each panel overlap.

  • Page 28: Door Assembly

    3719 Door Handle Brace (2) Step 17 Parts Needed For 10475 Right and Left Doors (2) Door Assembly 10497 Horizontal Door Brace (4) D30ctr 6278 Vertical Door Brace (2) (12) The steps on this page tell how to assemble the right door. You will per- form exactly the same procedures for the left door.
  • Page 29 Step 18 Parts Needed For Right Door Assembly (1) Door Installation & Adjustment Left Door Assembly (1) A31ctr Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the building) behind door jamb into the front frame track.
  • Page 30 SOME FACTS ABOUT RUST XA35 SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out. when bare metal is exposed to moisture. Problem areas include screw holes, unfinished edges, or 2.
  • Page 32 Anchoring HT32c Anchoring Anchor your building at this time.
