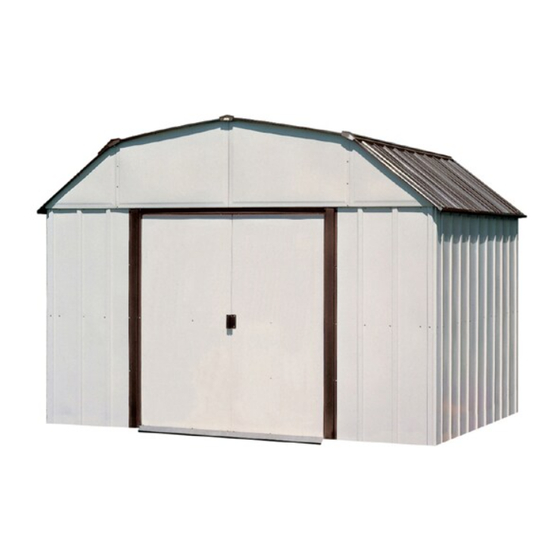

Summary of Contents for Arrow Storage Products CO1014
Page 1
All manuals and user guides at all-guides.com Owner's Manual & Assembly Instructions CM01 Model No. CO1014 C1 DK1014 B1 LX1014 C1 VS1014 C1 VY1014 A1 WV1014 C1 YT1014 C1 697.68604 A1 697.68630 A1 SG1014FB Missing Parts, Questions on Assembly? Call: 1-800-851-1085 or assist@arrow- sheds.com...
Page 2
All manuals and user guides at all-guides.com...
Page 3
All manuals and user guides at all-guides.com BEFORE YOU BEGIN..Owner's Manual Before beginning construction, check local building codes regarding footings, location and other requirements. Study and understand this owner's manual. Important information and helpful tips will make your construction easier and more enjoyable.
All manuals and user guides at all-guides.com PLAN AHEAD..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
Page 5
All manuals and user guides at all-guides.com SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in pieces of your building since some contain the assembly of this building.
Page 6
All manuals and user guides at all-guides.com CARE & MAINTENANCE..Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up scratches as soon as you notice them on your unit. Immediately clean the area with a wire brush;...
Page 7
All manuals and user guides at all-guides.com ACCESSORIES..FLOOR FRAME KITS ROOF STRENGTHENING (heavy snow load) KITS Extra roof beams and gable braces designed for added protection against heavy snow accumulation. Increases the strength of your roof. BEFORE AFTER ANCHOR KITS Model No.
All manuals and user guides at all-guides.com ORDERING ACCESSORIES..02/13 We recommend that you purchase accessory items from your local storage building dealer whenever possible; however, because the full line of accessories is not always available from all dealers, Arrow is o ering them to you on a direct basis.
Page 9
All manuals and user guides at all-guides.com Base The Base For Your Building No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is recommended as an e ective method of properly securing your building after assembly is complete. OPTION 1: Directly on ground (earth) Assemble your building directly on level ground (grass, dirt, rock, sand, etc.).
Page 10
All manuals and user guides at all-guides.com Anchoring Anchoring Down The Building It is important that the entire oor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Arrow Anchoring Kit: (Model No. AK4 or 60298) Use 1/4"...
Page 11
All manuals and user guides at all-guides.com Hardware SO11 ctr Remove from bag of screws and save for the last step 65900A #10Bx1/2" (13 mm) 65923 65004 65103 Black Screw (8) #8-32x3/8" (10 mm) #8Ax5/16" (8 mm) #8-32 Hex Nut (240) (Packed with Screws) Bolt (240) Screw (446)
All manuals and user guides at all-guides.com Parts List SO12et ctr Assembly Part Part Quantity Check Key No. Number Description In Carton List 3719 Door Handle Brace 9373 Front Wall Panel 6020 Corner Panel 6108 Large Right Gable 6109 Large Left Gable 6114 Small Right Gable 6115...
Page 13
All manuals and user guides at all-guides.com Assembly by Key No. SO13et ctr...
Page 14
All manuals and user guides at all-guides.com Step 1 8934 Ramp (1) Parts Needed For 9367 Front Floor Frame (2) Floor Frame Assemblies 8936 Rear Floor Frame (2) SO14ctr 10387 Side Floor Frame (4) (13) 9367 The front oor frame is made up of 8934 three pieces.
All manuals and user guides at all-guides.com 5986 Rear Wall Angle (2) Step 2 Parts Needed For 10389 Rear Wall Channel (2) Frame Assemblies 10388 Side Wall Channel (4) SO15 ctr 10391 Side Wall Angle (4) Rear Wall Channel 10389 118 1/8"...
Page 16
All manuals and user guides at all-guides.com Step 3 Parts Needed For 10386 Roof Beam (8) Roof Beam Assemblies SO16ctr 10386 (30) 10386 The roof beams join the two gables Roof Beam 159 3/8" 404,8 cm and support the roof panels. The main roof beam is made up of four pieces overlapped back to back at the center.
Page 17
All manuals and user guides at all-guides.com Step 4 Parts Needed For 6403 Door Track Splice (1) Door Track Assembly 9366 Door Track (2) A17 ctr NOTE: Door Track Splice (painted part) 6403 The door track assembly supports the sliding doors and reinforces the front wall.
Page 18
All manuals and user guides at all-guides.com Step 5 Front Floor Assembly (1) Parts Needed For Side Floor Assembly (2) Floor Frame Rear Floor Assembly (1) SO18 ctr RIGHT REAR Assemble the four corners of 10387 the oor frame using two screws at each corner as shown.
Page 19
All manuals and user guides at all-guides.com Step 6 Parts Needed For 6515 Wall Panel (2) 9373 Front Wall Panel (2) Corners 6020 Corner Panel (4) SO19 ctr Narrow Side 6020 (34) Wide Side NOTE REAR The remainder of the building assembly 6020 requires many hours and more than one person.
Page 20
All manuals and user guides at all-guides.com Step 7 Parts Needed For Rear Wall Channel Assembly (1) Mid Frames Side Wall Channel Assembly (2) SO20 ctr (20) The mid frame pieces give rigidity to the side and rear walls. Fasten the rear wall channel across the middle of the rear wall using screws.
Page 21
All manuals and user guides at all-guides.com Step 8 Door Track Assembly (1) Parts Needed For Rear Wall Angle Assembly (1) Top Frames Side Wall Angle Assembly (2) SO21 ctr (26) The top frame pieces give rigidity to the walls and provide a surface for attaching the gables which support the roof.
Page 22
All manuals and user guides at all-guides.com Step 9 Parts Needed For 6515 Wall Panel (10) Wall Panels SO22 ctr STEP (144) (15) Crimped Rib STEP Each wall panel has a crimped rib Underneath on one side. The crimped rib should go under the rib of the panel that 6515 Detail Showing...
Page 23
All manuals and user guides at all-guides.com Step 10 Parts Needed For 9369 Door Jamb (2) Front Channel/Door Jamb 9365 Front Wall Channel (2) SO23 ctr 9365 (18) STEP The door jambs reinforce the door opening and provide an attractive INSIDE OF trim.
Page 24
All manuals and user guides at all-guides.com 6108 Large Right Gable (2) Step 11 Parts Needed For 6109 Large Left Gable (2) 6114 Small Right Gable (2) Gable Assemblies 6115 Small Left Gable (2) SO24et ctr 6085 Roof Beam Bracket (4) 69835 Green Edge Trim (Plastic Piece)
Page 25
All manuals and user guides at all-guides.com Left Gable Assemblies (2) Step 12 Parts Needed For Right Gable Assemblies (2) Gables/Roof Beams Single Roof Beam Assemblies (2) SO25 ctr 6636 Gable Brace (2) (28) (12) Lift and fasten a right and left gable, under angle at corner, to the door track and rear wall angle with screws.
Page 26
All manuals and user guides at all-guides.com Step 13 Parts Needed For Main Roof Beam Assembly (1) Roof Beam/Braces 6227 Roof Beam Brace (2) SO26 ctr STEP Fasten the track supports to the front gable assembly only, as shown. Track Supports 6228 Wrap the weather stripping tape around the two joined edges of the large left and right gables.
Page 27
All manuals and user guides at all-guides.com Step 14 Parts Needed For 6188 Right Roof Panel (1) Right Roof Panel SO27et ctr Installing the roof panels is best done with a step ladder. Install the rst roof panel at the back right corner of the building.
Page 28
All manuals and user guides at all-guides.com Step 15 Parts Needed For 6189 Left Roof Panel (1) 6538 Roof Panel (2) Ridge Caps & Panels 6797 Ridge Cap (3) SO28 ctr Screws To Roof Beam (21) (22) Install a left roof panel 6189 at Fasten at Fasten At the left rear corner of the roof.
Page 29
All manuals and user guides at all-guides.com Step 16 Parts Needed For 6538 Roof Panel (4) Ridge Caps & Panels 6869 Ridge Cap (3) SO29 ctr (32) (16) Install two roof panels 6538 work- ing side to side. Cover the notched areas of the roof panels with strips of NOTE weather stripping tape and continue...
Page 30
All manuals and user guides at all-guides.com 6538 Roof Panel (2) Step 17 Parts Needed For 6797 Ridge Cap (3) Ridge Caps & Panels 6188 Right Roof Panel (1) SO30 ctr 6189 Left Roof Panel (1) (36) (72) Reducing Large Gable Bulge Install the third ridge caps 6797 Loosen eight bolts and nuts shown.
Page 31
All manuals and user guides at all-guides.com Step 18 Parts Needed For 6893 Left Side Roof Trim (2) 6892 Right Side Roof Trim (2) Roof Trim 6015 Side Roof Trim (2) SO31 ctr (10) Attach the right, left and side roof trim to the lower end of the roof panels on each side of the building using screws at each panel overlap.
All manuals and user guides at all-guides.com 3719 Door Handle Brace (2) Step 19 Parts Needed For 10475 Right and Left Doors (2) 10497 Horizontal Door Brace (4) Door Assembly SO32 ctr 6278 Vertical Door Brace (2) (12) The steps on this page tell how to assemble the right door.
Page 33
All manuals and user guides at all-guides.com Step 20 Parts Needed For Right Door Assembly (1) Door Installation & Adjustment Left Door Assembly (1) SQ33 ctr Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the building) behind door jamb into the...
Page 34
All manuals and user guides at all-guides.com Anchoring and Floor Frame XA34 Anchoring Anchor your building at this time. Floor Frame If you have purchased a Floor Frame Kit you need to install it at this time.
Page 35
All manuals and user guides at all-guides.com SOME FACTS ABOUT RUST XA35 SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out. when bare metal is exposed to moisture. Problem areas include screw holes, unfinished edges, or 2.
Page 36
All manuals and user guides at all-guides.com CO1014 C1 DK1014 B1 LX1014 C1 VS1014 C1 VY1014 A1 WV1014 C1 YT1014 C1 697.68604 A1 697.68630 A1 SG1014FB CM36 715830118...
