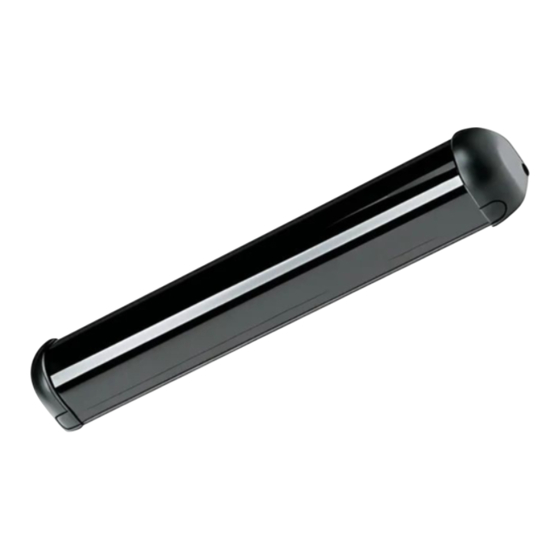

Safety sensor for automatic revolving doors
Hide thumbs Also See for MR8570:

Advertisement

Quick Links

PLEASE KEEP FOR FURTHER USE
DESIGNED FOR COLOUR PRINTING

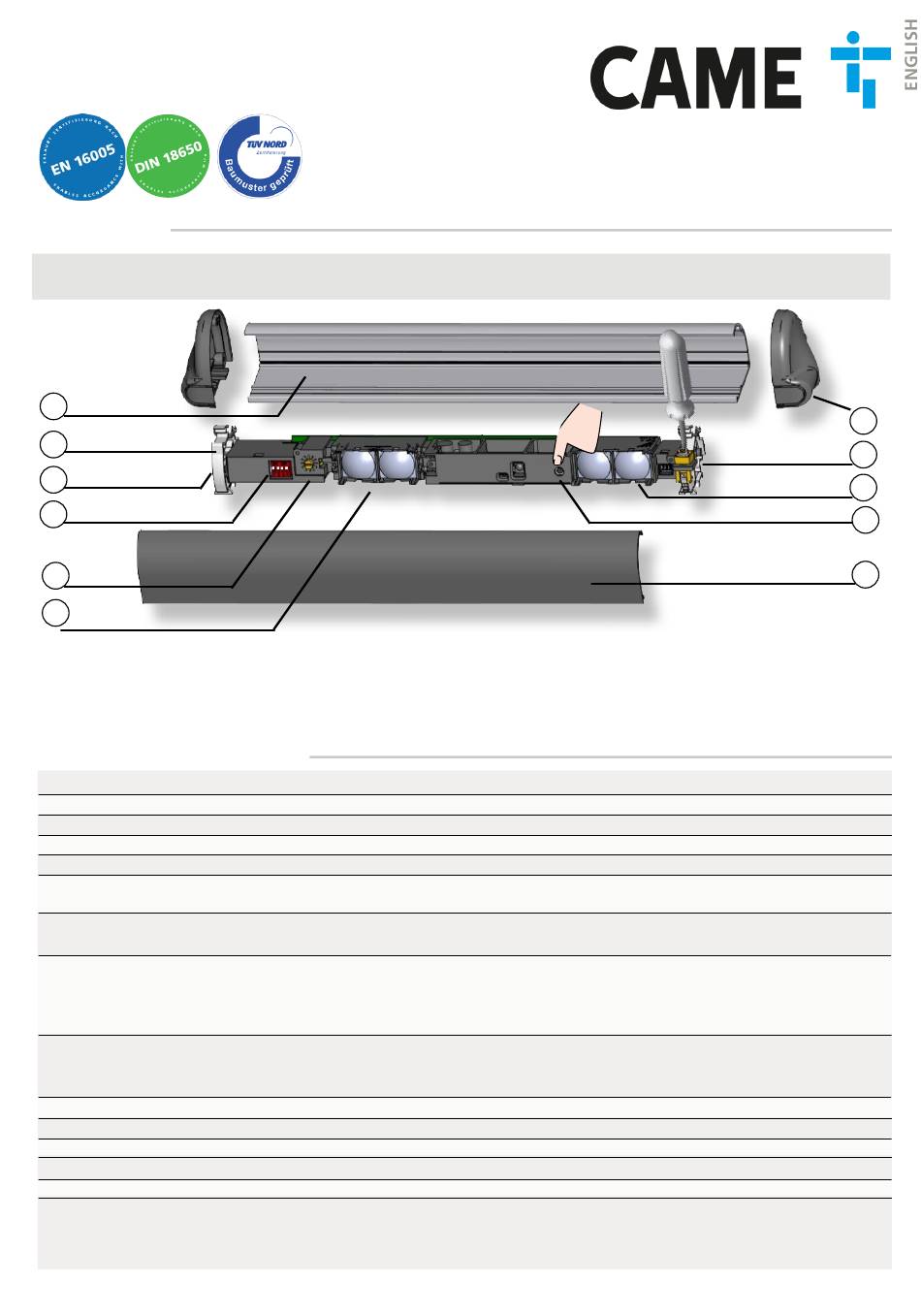

MR8534/MR8570/MR8590
DESCRIPTION
Is a safety sensor for automatic revolving doors based on active infrared technology. It secures the area in front of the
moving door leaf. To do so, modules must be installed on the top rail of the door leaf.
1
2
3
4
5
6
TECHNICAL SPECIFICATIONS
Technology:
Emission field:
Mounting height:
Reaction time:
Max. presence time:
Supply voltage:
Max current consumption:
Output:
Max. contact voltage
Max. contact current
Max. switching power
Input:
Max. contact voltage:
Voltage threshold:
Max. number of modules:
Reflectivity:
Degree of protection:
Temperature range:
Expected lifetime:
Conformity:
MR8534-70-90/FA01345M06 - 06/2019
SAFETY SENSOR
FOR AUTOMATIC REVOLVING DOORS
User's Guide for product version 0500 and higher
See product label for serial number
1.
2.
3.
4.
5.
6.
active infrared with background suppression
400 mm (W) x 70 mm (D) (at 2 m mounting height; 4 spots active)
1.3 m to 3.5 m
64 ms (typ)
1 minute
12 V - 24 V AC +/-10% ; 12 V - 30 V DC -5%/+10%
(to be operated from SELV compatible power supplies only)
95 mA @ 24 V AC/ 70 mA @ 24 V DC; 170 mA @ 12 V AC/ 130 mA @ 12 V DC (MASTER)
85 mA @ 24 V AC/ 60 mA @ 24 V DC; 180 mA @ 12 V AC/ 113 mA @ 12 V DC (other modules)
2 relays (free of potential contact)
42 V AC/DC
1 A (resistive)
30 W (DC) / 42 VA (AC)
1 optocoupler (free of potential contact)
30 V
high: >10 V DC; low: <1 V DC
4 (up to 6 if 24 V DC)
min. 5% at IR-wavelength of 850 nm
IP54
-25 °C to +55 °C; 0-95% relative humidity, non condensing
20 years
DIN 18650-1: ch. 5.7.4; EN 16005 ch. 4.6.8;
EN 12978; IEC/EN 61508 (SIL2)
EN ISO 13849-1 Performance Level «c» CAT. 2
(under the condition that the door control system monitors the sensor at least once per door cycle)
profile
supporting clip
main connector
DIP-switch
calibration screw
receiver
7.
end cap
8.
clip with angle adjustment screw
9.
transmitter (TX)
10.
push button
11.
front face
Specifications are subject to changes without prior notice.
All values measured in specific conditions.
7
8
9
10
11

Advertisement

loading
Need help?

Need help?

Do you have a question about the MR8570 and is the answer not in the manual?

Questions and answers

Summary of Contents for CAME MR8570

  • Page 1 PLEASE KEEP FOR FURTHER USE DESIGNED FOR COLOUR PRINTING MR8534/MR8570/MR8590 SAFETY SENSOR FOR AUTOMATIC REVOLVING DOORS User’s Guide for product version 0500 and higher See product label for serial number DESCRIPTION Is a safety sensor for automatic revolving doors based on active infrared technology. It secures the area in front of the moving door leaf.
  • Page 2 MOUNTING THE PROFILE 2 cm Mount the profiles as close as possible to the closing edge. Leave 2 cm To loosen the modules, please use for the black end caps. Take the position of the white clips into account a screwdriver. before drilling and fastening the screws.
  • Page 3 SETTINGS UNCOVERED MOUNTING FREQUENCY BACKGROUND ZONE SIDE RELAY 1 FREQ A HIGH* STOP RELAY 2 FREQ B REOPENING LED during detection: Set different Not enough background Approximate values at 2 m: FACTORY VALUE R1 > RED frequencies on reflectivity: switch to OFF high= 40 cm, low = 15 cm R2 >...
  • Page 4 - The warranty is invalid if unauthorized repairs are made or attempted by unauthorized personnel. Came S.p.A.- Via Martiri Della Liberta 15 - IT-31030 DOSSON DI CASIER (TV) TEL (+39) 0422 4940 - FAX (+39) 0422 4941 - info@came.com - www.came.com CAME hereby declares that MR8534/MR8570/MR8590 is in compliance with European directives 2014/30/EU (EMC), 2006/42/EC (Machinery) and 2011/65/EU (RoHS).
