Instruction book
4.3

Digital controller

Identification
Reference
1
2
3
4
5
6
7
8
9
10
8+9
8+10
Icons
Icon
2920 7112 50

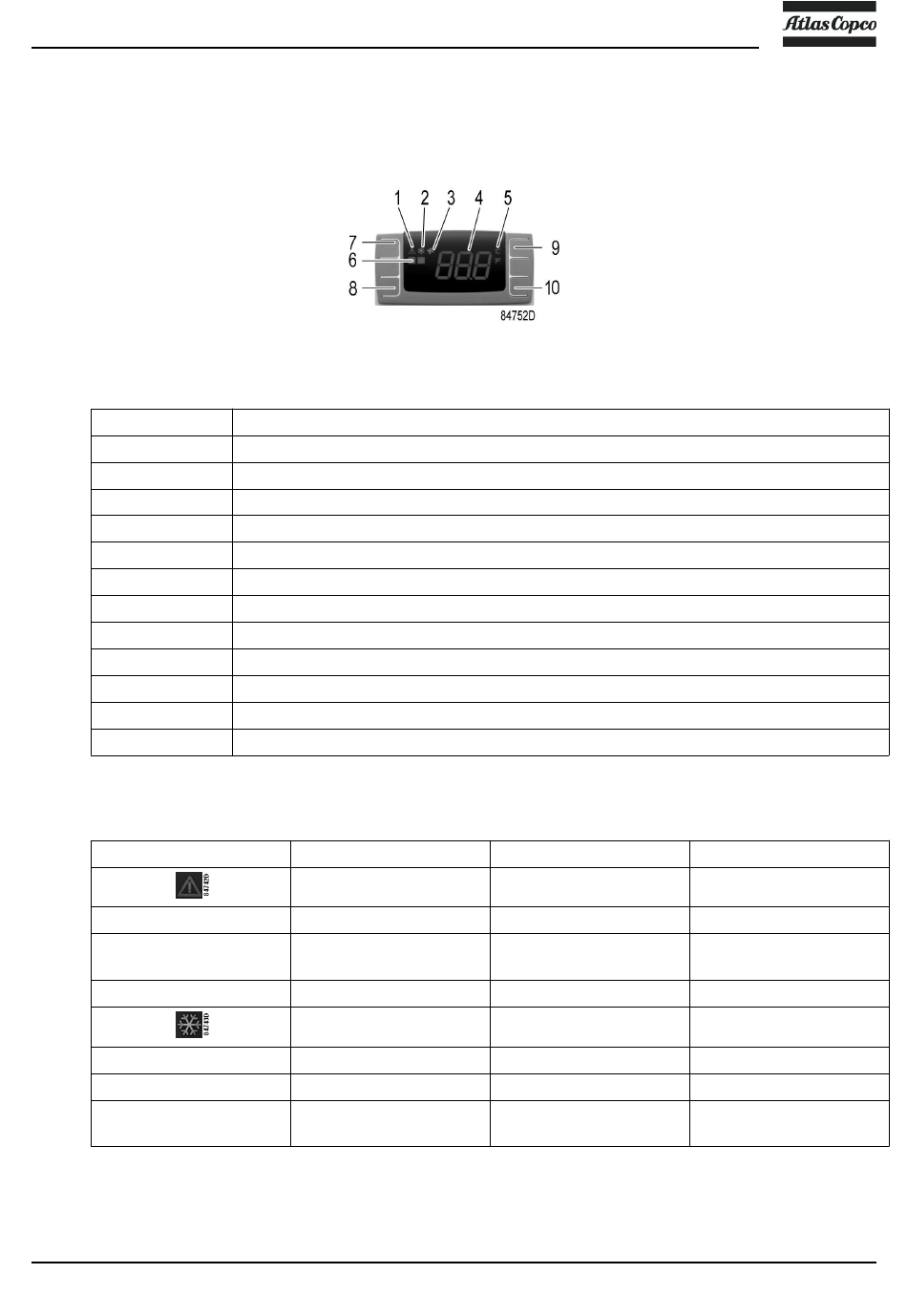

Front panel of the controller
Name
Alarm icon
Refrigerant compressor icon
Fan icon
PDP (dewpoint) temperature
Unit (°C or °F)
Alarm LED
Button to snooze or to reset the alarm (only for remote alarm function).
SET button
UP button
DOWN button
Back to previous screen
Menu
Name
Alarm
Refrigerant compressor
Mode
Off
On
Off
On
Flashing + SE
Flashing + L2
Function
No active alarms
Probe failure alarm
High temperature or low
temperature alarm
Service alarm
Dryer off
Dryer on
Maintenance warning
Dewpoint too low
Dryer is stopped
