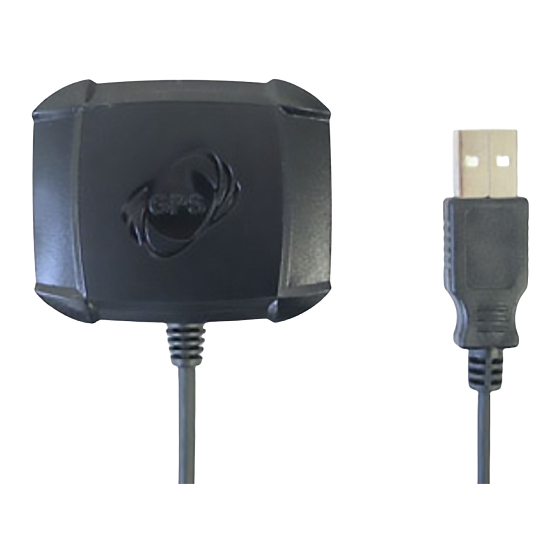

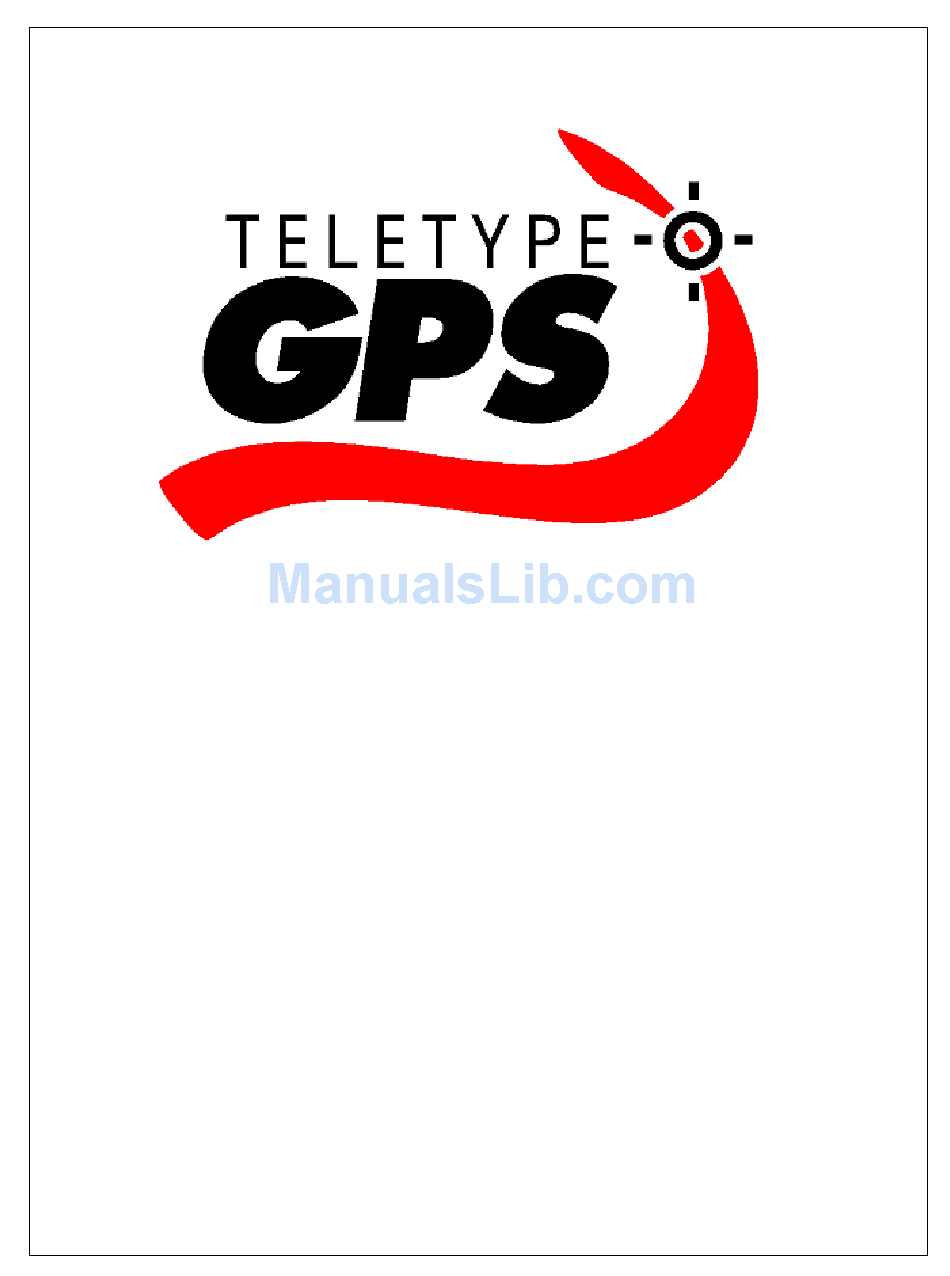

TeleType GPS

Mini-Auto USB

GPS

Installation Manual

Version 022005

Table of Contents

Need help?

Do you have a question about the 1250 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teletype 1250

Page 2 Mini-Auto USB GPS Driver Installation Manual © 2005 ... Teletype GPS All rights reserved. No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the publisher.
Page 3: Table Of Contents
2 Frequently Asked Questions (FAQ) ... 43 3 Information about the Files in Driver ... 45 4 Contents of Product ... 46 5 Hardware Specifications ... 46 6 Contact Teletype GPS ... 48 © 2005 ... Teletype GPS ... 6 Contents...
Page 4 Part...
Page 5: Part I Introduction
This product should not be used to determine ground proximity for aircraft navigation. For use in vehicles, it is the sole responsibility of the owner/operator of the TeleType GPS to place and secure the GPS unit so that it will not interfere with the vehicle operating controls and safety devices, obstruct the driver's view of driving conditions, or cause damage or personal injury in the event of an accident.
Page 6: Glossary
Peripheral device - a computer device such as mouse, keyboard, printer, or scanner. USB (Universal Serial Bus) port - is a computer standard designed to connect peripheral devices to your PC. A picture of USB ports on a computer is located below. © 2005 ... Teletype GPS...
Page 7 Part...
Page 8: Part Ii Software And Hardware Installation
4. At the "Add New Hardware Wizard" window, please click on NEXT to continue with the installation process. Teletype GPS navigational software does not support Windows 98. However, the USB GPS receiver will support Windows 98.
Page 9 Software and Hardware Installation 5. Select the one that states "Install the software automatically (Recommeded)" and click on NEXT. © 2005 ... Teletype GPS...
Page 10 Mini-Auto USB GPS Driver Installation Manual 6. Specific driver location and click the NEXT button. © 2005 ... Teletype GPS...
Page 11 Since you are using a floppy drive, by default the specific location should be A:\\. However, if your computer or if you set it up differently, the specific location might not be A:\\ anymore. 7. Click on the NEXT button. © 2005 ... Teletype GPS...
Page 13: Check Enabled Com Port
1. Double-click on the screen. 2. From this window, double-click on the Control Panel icon. © 2005 ... Teletype GPS Software and Hardware Installation Checking which COM Port the USB GPS receiver is on is important because you will need to know this information when configuring map and/or chart software.
Page 14 Mini-Auto USB GPS Driver Installation Manual 3. A new window will come up and from here double-clicked on the System icon. © 2005 ... Teletype GPS...
Page 15 Software and Hardware Installation 4. A new window will come up and from here, click on the tab Device Manager. © 2005 ... Teletype GPS...
Page 16 Mini-Auto USB GPS Driver Installation Manual 6. Double-click on PORTS (COM & LPT). Then Select "USB to Serial Port" and click Properties button. © 2005 ... Teletype GPS...
Page 18: Un-Install Usb Gps Driver
1. Insert the floppy disk that came with the USB GPS Receiver into your floppy drive. 2. Doubled-click on Method 1 otherwise follow the steps in icon on your desktop and a new window will appear on the screen. Method © 2005 ... Teletype GPS...
Page 19 Steps: 1. Doubled-click on 2. Doubled-click on the CONTROL PANEL icon and a new window will appear on the screen. © 2005 ... Teletype GPS Software and Hardware Installation icon in the My Computer window. If you do not copy the files to your computer before you un- install, you might have the potential to lose all the data on your floppy disk.
Page 20 Mini-Auto USB GPS Driver Installation Manual 3. Doubled-click on the SYSTEM icon and a new window will appear displaying your system setup. © 2005 ... Teletype GPS...
Page 22 Mini-Auto USB GPS Driver Installation Manual 5. Double-click on PORTS (COM & LPT). Then Select "USB to Serial Port". © 2005 ... Teletype GPS...
Page 23: Windows Xp
2. Plug-in the GPS receiver into the USB port of the PC (computer). 3. A "Found New Hardware Wizard" screen should come up. This may take a few minutes. 4. At the "Found New Hardware Wizard" window, please do the follwing in order. © 2005 ... Teletype GPS Software and Hardware Installation...
Page 24 Select "No, not this time" l Click on NEXT to continue with the installation process. 5. A new window will come up and please select "Install from a list or specific location (Advanced)." Then click on NEXT to continue. © 2005 ... Teletype GPS...
Page 25 6. A new window will come up and please select "Search for the best driver in these locations" and checked the box that states "Include this location in the search." Then click on NEXT to continue. This search process might take a few minutes. © 2005 ... Teletype GPS...
Page 26 7. A new window will come up warning you about a compatibility issue, but there is no need to worry. Just click on the CONTINUE ANYWAY button. This search process might take a few minutes. © 2005 ... Teletype GPS...
Page 27 Software and Hardware Installation 8. A new window will show up asking you to click on the FINISH button. 9. The installation is now complete and the USB GPS is ready to use. © 2005 ... Teletype GPS...
Page 28: Check Enabled Com Port
Checking which COM Port the USB GPS receiver is on is important because you will need to know this information when configuring map and/or chart software. Please keep the floppy disk in a safe place for future reference. © 2005 ... Teletype GPS...
Page 30 Mini-Auto USB GPS Driver Installation Manual 5. In DEVICE MANAGER, select Ports(COM & LPT). And you should see, your newly installed device (in the circle). © 2005 ... Teletype GPS...
Page 31 6. Double-click on "Teleype USB-to-Serial Bridge (COM4)" (the same one from step 5 above in the red circle). 7. You will get the property screen for the the Teleype USB-to-Serial Bridge (COM4). Click on the DRIVER tab. © 2005 ... Teletype GPS...
Page 33: Un-Install Usb Gps Driver
Method 1 Steps: 1. Insert the floppy disk that came with the USB GPS Receiver into your floppy drive. 2. Doubled-click on © 2005 ... Teletype GPS Software and Hardware Installation Method 1 otherwise follow the steps in icon on your desktop and a new window will appear on the screen.
Page 34 2. In SETTINGS, click on CONTROL PANEL. 3. Click on in CONRTOL PANEL. icon in the My Computer window. icon on your computer (not from the floppy disk) and follow the on- on your taskbar and go to SETTINGS. © 2005 ... Teletype GPS...
Page 37 6. Doubled-click on PORTS(COM & LPT1) and find "Teletype USB-to-Serial Bridge(COM4)" or Singled-click on the © 2005 ... Teletype GPS Software and Hardware Installation and then find "Teletype USB-to-Serial Bridge(COM4)". The COM4 above varies depending upon what your computer assigned it as.
Page 38 Mini-Auto USB GPS Driver Installation Manual 7. Doubled-click on "Teletype USB-to-Serial Bridge(COM4)" and you will see a new window that comes up on your screen. © 2005 ... Teletype GPS...
Page 39 Software and Hardware Installation 8. Click on the DRIVER tab. Then click on the UN-INSTALL button. © 2005 ... Teletype GPS...
Page 40 Mini-Auto USB GPS Driver Installation Manual 9. A window will come up asking you are sure about un-installing the USB GPS Driver. Click on the OK button and follow the on-screen instructions. © 2005 ... Teletype GPS...
Page 41 Part...
Page 42: Part Iii How-To-Guide
3. Start your Teletype GPS Pro program. 4. Once your Teletype GPS Pro program loads, click on Tools and then click on GPS status. 5. You should see the GPS status window come up on the screen, click on the button that says Open Port.
Page 43 USB GPS Receiver to. Make sure that the bps is 9600 in the GPS status window. The instructions are for Teletype GPS software, therefore it does not matter are you using Windows 98 or XP.
Page 44 Part...
Page 45: Part Iv Other Options
Windows 2000 and/or Windows XP. This problem does not has anything to do with the GPS receiver. To fix this problem, please refer to the answer in question 4. Question 4: What do I do if my GPS receiver is recognized as a Microsoft serial mouse? Answer 4: © 2005 ... Teletype GPS Other Options...
Page 46 The following are the reasons why it might take the USB GPS a long time to get a fix position. l The GPS receiver is not in a still position for the first time. l Performance of the GPS receiver may be affected by its surroundings. © 2005 ... Teletype GPS...
Page 47: Information About The Files In Driver
Information about the Files in Driver The following is a description of the Driver files for the USB GPS Receiver. © 2005 ... Teletype GPS => Cars, boats, and planes equipped with solar control filmed windows. => Among high buildings, under bridges or tunnels.
Page 48: Contents Of Product
Removes USB GPS driver from the computer. You can copy the files on the floppy disk to your comptuer for back up purposes. Name 1. USB GPS receiver 2. Driver Software on floppy Disk TELETYPE MINI AUTO USB GPS RECEIVER Quantity © 2005 ... Teletype GPS...
Page 49 ELECTRICAL Primary Power Current ENVIRONMENTAL Temperature Operation Humidity 5% to 95% Dynamics © 2005 ... Teletype GPS Integrated built-in patch antenna L1 1575.42Mhz, C/A code -135dBm (typical) 12 channels parallel, "all-in-view" tracking 2D/3D automatic selection cold start: 48 seconds warm start: 38 seconds hot start: 8 seconds <...
Page 50: Contact Teletype Gps
Mini-Auto USB GPS Driver Installation Manual Contact Teletype GPS If you have any questions or problems regarding Teletype GPS products, please feel free to contact us using the following methods. Method 1 - Live Chat Please click on this link ->...
