Teletype 1351 Installation Manual

USERS' TIPS
1. Keep the GPS receiver still until the position is fixed the first
time. Otherwise obtaining a fixed position will take longer.
2. The performance of the GPS receiver is affected by the
weather and the surrounding environment. Locking in your
position may take longer under the following circumstances:
A. Cars, boats and planes equipped with solar control
filmed windows
B. Among high buildings, under bridges or tunnels
C. Under high voltage cables or nearby radio wave
sources, such as mobile phone base stations
D. Bad weather
In this case, you are suggested to:
A. Attach the optional external antenna.
B. Move to an open space.
C. Move away from the sources of intereferences.
D. Wait until the weather condition is improved.
3. Date and time on your computer should be accurate to
within one hour.
4. Select "File, Exit" to quit the GPS program properly.
5. The first time you start using the GPS receiver, be sure you
have a fully charged receiver.
6. Operating range for the GPS receiver is 0-70 (Celsius) or
32-158 (Fahrenheit). Keep in your mind that your Pocket
PC may have a different operating range.
TeleType Co., Inc. 20 Park Plaza Park Plaza
Boston, MA 02116 42.351648 N 71.06832 W
www.teletype.com Tel: 617-542-6220
Conf533:C:GPSDOC:1351

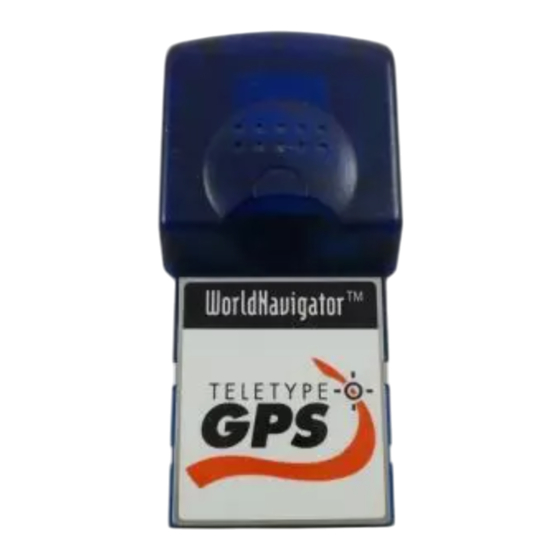

TELETYPE COMPACT FLASH GPS
RECEIVER
Product #1351
TeleType Compact Flash GPS Receiver is designed for any device
with a Compact Flash Type I Slot (or PCMCIA slot using CF to PC
card adapter)*. NMEA 0183 v2.0
with TeleType GPS software or virtually any other software desired.
* Compaq iPAQ needs an expansion jacket
compliant, the receiver can be used
