- Page 1 D IGITA L A U DIO OPE RATION M ANUAL H T S 2 . 1 DID 058278...
- Page 2 C O N T E N T 1. Functional Characteristics 2. Instruction of Panel Functional Keys ® 3. Instruction of Bluetooth Remote Control Function Buttons 4. Performance Characteristics and Indicators 5. Precautions in Use...

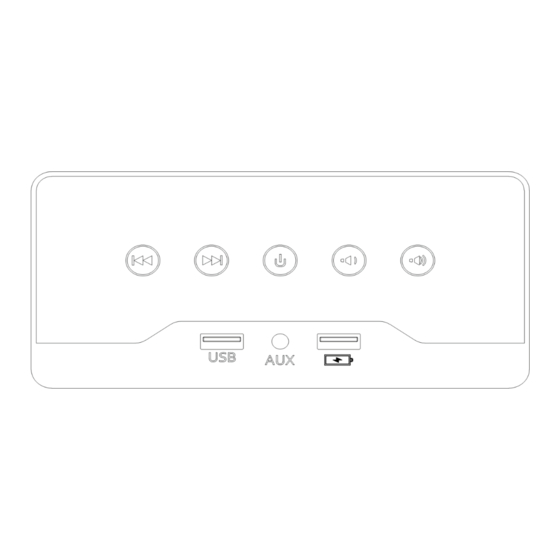

- Page 3 Functional Characteristics The SOUNDSTAGE™ platform is a multi-function digital sound system High Definition USB playback AUX Mode Multi-functional sound selection 2.1 Channel High Definition output Panel Function Keys Panel Buttons are all touch-sensitive Power switch/play-pause button When a finger touches the power switch for about 1 second, the audio is turned on with a music tone.
- Page 4 Touching the power switch again, audio recovers to playbock mode. Touching the power switch for about 1 second, audio is switched off. “Next Track” touch sensitive key Touch this key to play next track Last Track” touch sensitive key Touch this key to play last track Volume increase key Touch this key to increase the volume.
- Page 5 USB input interface Insert a USB flash drive to play high-quality MP3 music files on the drive AUX external audio interface This interface can input audio sources such as mobile phones, CDs, DVDs, MP3s, MP4s, MP5s, computers, etc. Instruction of Bluetooth ®...
- Page 6 Mute button This button is a mute/unmute common cycle button. Press once to mute and press again to unmute. Next track button, same as panel button Last track button, same as panel button Pause/Play button, same as panel button Volume increase button, same as panel button Volume decrease button, same as panel button...
- Page 7 Subwoofer volume increase button Subwoofer volume decrease button Left and right channel volume increase button Left and right channel volume decrease button 1. There are 6 states in the Pre-Programmed Equalizer Settings: (EQ NORMAL) (EQ OPTIMUM) (EQ ROCK) (EQ JAZZ) (EQ CLASSIC) (EQ COUNTRY)
- Page 8 Frequency range and frequency response is 20~20000Hz Loudness 85dB Distortion less than .005% 1000 Hz Impedance 4Ω/8Ω 10. Signal to noise ratio 90dB 11. Input impedance 100kΩ 12. Input sensitivity 300 mv 13. SOUNDSTAGE™ Digital Output Power 50W 14. SOUNDSTAGE™ Bluetooth ® audio receiving/transmitting frequency 2.4G...
- Page 9 Precautions in Use Improper use may damage the SOUNDSTAGE™ audio system. The following methods can extend the life of your SOUNDSTAGE™ system last longer. 1. The normal working temperature of audio equipment is 0ºC -45ºC. (32º to 113º) If the exposed ambient temperature is too high, the components may be damaged, and accelerate the aging of the electrical components.
- Page 10 Authorized SOUNDSTAGE USA Retailers are granted use of the Bluetooth ® Marks under the Licensing Agreement granted to SOUNDSTAGE USA, LLC / Mountain Creek Home, LLC and agree to abide by SIG Bluetooth Brand Guidelines. ® FCC REGISTRATION NUMBER (FRN): 0029862075...
