DIMENSIONI
CODICE
DESCRIZIONE / DESCRIPTION
/ CODE
STAFFA MICHELANGELO L. 440
SCD500201
SCD500205
/ MICHELANGELO BRACKET L. 440
STAFFA MICHELANGELO L. 500
SCD500202
SCD500206
/ MICHELANGELO BRACKET L. 500
SCD500203 STAFFA MICHELANGELO L. 560
SCD500207
/ MICHELANGELO BRACKET L. 560
STAFFA MICHELANGELO L. 650
SCD500204
SCD500208
/ MICHELANGELO BRACKET L. 650
2
/ DIMENSIONS
800
D

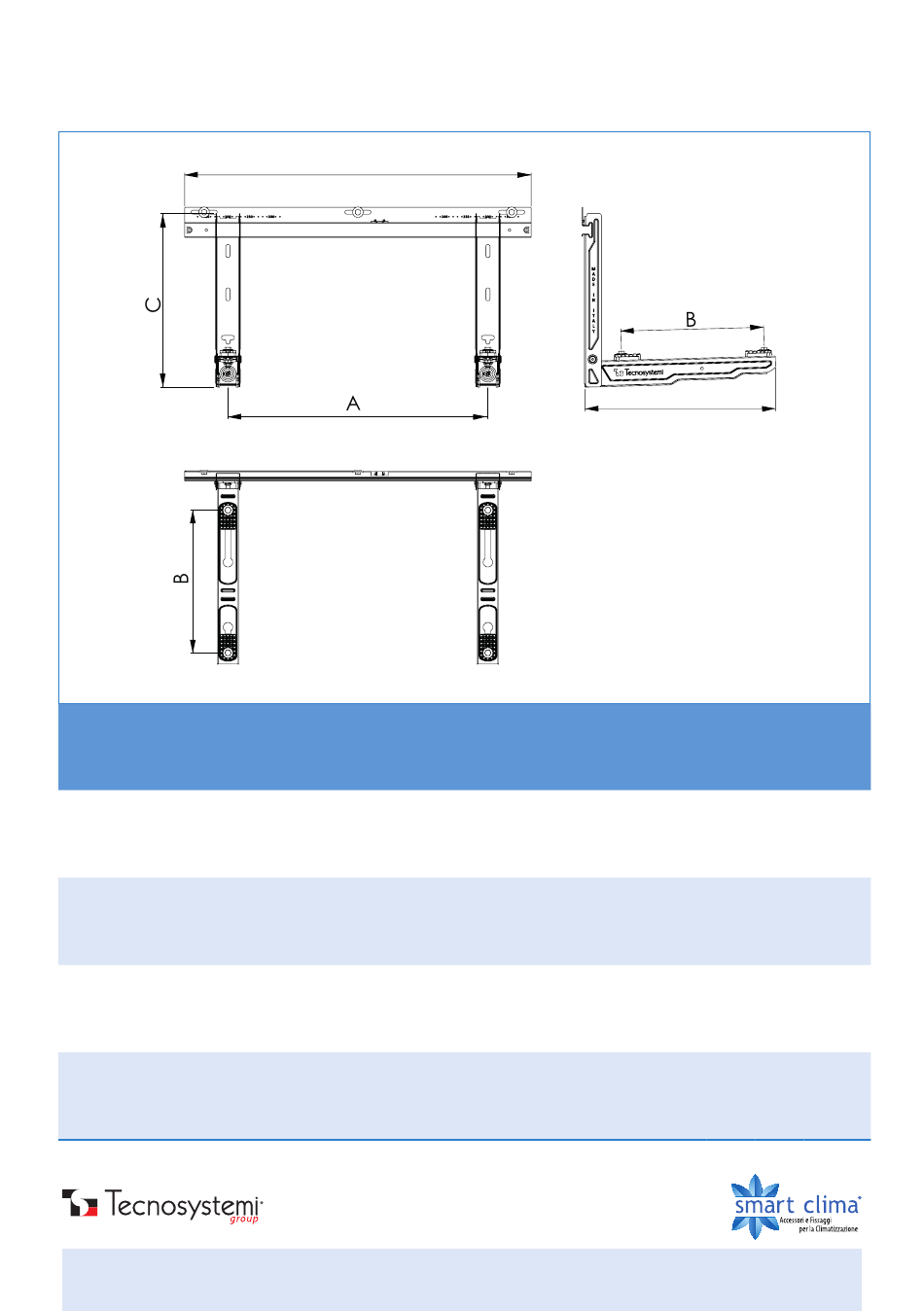

DIMENSIONI / DIMENSIONS
A B C
[mm] [mm] [mm]
350/750 180/330 400
350/750 230/390 400
350/750 270/450 400
350/750 340/540 400
PORTATA
D / LOAD
[mm] [kg]
440 110
500 130
560 150
650 150
