Techne IFB-101 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IFB-101
OPERATOR'S MANUAL
Issue 11
Date of issue:
3rd May 2005
Techne logo is a trademark
© Techne, 2002

Advertisement

Table of Contents
loading

Related Manuals for Techne IFB-101

Summary of Contents for Techne IFB-101

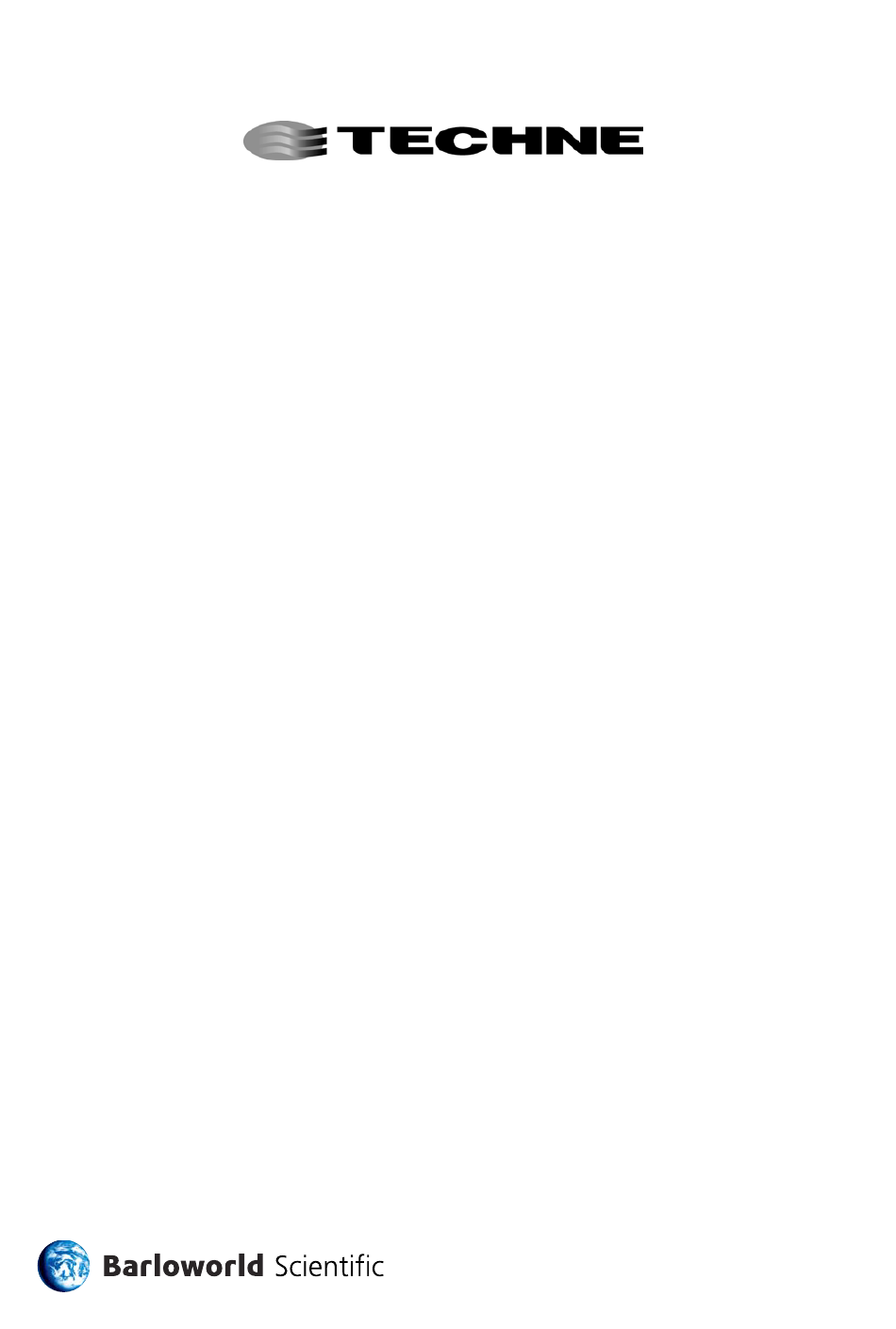

  • Page 1 IFB-101 OPERATOR’S MANUAL Issue 11 Date of issue: 3rd May 2005 Techne logo is a trademark © Techne, 2002...

  • Page 3: Table Of Contents

    I F B - 1 0 1 O P E R A T O R ’ S M A N U A L CONTENTS IFB-101 Operator’s Manual page SAFETY AND INSTALLATION English Français Deutsch Español OPERATOR SAFETY Warning Note General Description...
  • Page 4 I F B - 1 0 1 O P E R A T O R ’ S M A N U A L PAGE 2...
  • Page 5 I F B - 1 0 1 O P E R A T O R ’ S M A N U A L NOTES PAGE 3...
  • Page 6 Installation properly packed for shipping: if in doubt, contact your supplier. See the De-contamination Certificate supplied 1. All Techne units are supplied with a power cable. This with your unit. may be integral or plug-in. 2. Before connecting the mains supply, check the voltage 1.

  • Page 7: Français

    Voir le certificat de Installation décontamination livré avec le produit. 1. Tous les appareils Techne sont livrés avec un câble 1. Nettoyage d’alimentation qui peut être intégré à l’appareil ou à Avant de nettoyer l’appareil, assurez-vous TOUJOURS raccorder.

  • Page 8: Deutsch

    Nähe von leicht brennbaren Materialien; vermeiden Sie enthaltenen Beschreibungen und Spezifikationen, behält Arbeiten in der Nähe von leicht entzündbaren sich Techne hiermit das Recht vor, Änderungen an den Flüssigkeiten oder Gasen. Geräten bzw. an einzelnen Geräteteilen durchzuführen. · Bringen sie KEINE Flüssigkeiten direkt in Ihr Gerät.

  • Page 9: Español

    Este manual ha sido preparado exclusivamente para los De acuerdo con las instrucciones contenidas en este clientes de Techne y nada de lo especificado en este manual y con las normas y procedimientos generales de folleto de instrucciones se tomará como una garantía, seguridad, es muy importante que sólo personal...

  • Page 10: Operator Safety

    I F B - 1 0 1 O P E R A T O R ’ S M A N U A L WARNING Poor fluidisation causes hot spots, heater failure, and damage to other parts. Follow instruction book carefully. For correct fluidisation, pay attention to; INSTALLATION Ensure bath is level and air supply is adequate.

  • Page 11: General Description

    The combination of excellent heat transfer characteristics and high heat capacity are ideal for attaining rapid stabilisation at an isothermal condition. Techne industrial fluidised baths use aluminium oxide as the fluidising medium. They have been designed to remove plastic residue from extruder and moulding machine tools, paint build up from paint fixtures, and carry out various heat treatment processes.
  • Page 12 I F B - 1 0 1 O P E R A T O R ’ S M A N U A L During operation the correct fluidising air flow must be determined by visually inspecting the surface of the fluidised bath. When the fluidised bath is heated the air within the bath expands;...

  • Page 13: Technical Specification

    I F B - 1 0 1 O P E R A T O R ’ S M A N U A L TECHNICAL SPECIFICATION Temperature range 50°C to 600°C Temperature control stability at 450°C +5°C Temperature uniformity at 450°C 10°C Internal dimensions diameter...

  • Page 14: Installation

    I F B - 1 0 1 O P E R A T O R ’ S M A N U A L INSTALLATION Mount the fluidised bath in the position where it is to be used. It is important to ensure that the bath is level, otherwise it will fluidise incorrectly.
  • Page 15 Recommended Threshold Limit Values (TLVs) are available in publications such as the Health and Safety Executives Guidance Note EH15/76 in the UK, a copy of which is available from Techne on request. PAGE 13...

  • Page 16: Fume Ignition

    I F B - 1 0 1 O P E R A T O R ’ S M A N U A L Fume Ignition Spontaneous ignition may occur above the surface of the fluidised bath or within the exhaust ductwork if the concentration exceeds the lower explosive limit. The fume concentration is dependent upon the rate of fume production in the fluidised bath and the level of dilution achieved by entraining air from above the bath or through the dilution tee.

  • Page 17: Fume Cleaning

    The exact combination of fume treatment components required depends upon the application and local conditions. Technical staff are available to discuss particular applications and offer advice as to which combination is required. Techne are able to offer the following fume treatment equipment: Cyclone Scrubber...

  • Page 18: Operation

    I F B - 1 0 1 O P E R A T O R ’ S M A N U A L OPERATION To set the temperature controller to the required operating temperature, switch on the electrical supply which will illuminate the power and cut-out indicators. Then set the required temperature, either by using the thumbwheel on the Eurotherm 101 or the up and down arrows on the Eurotherm 807.
  • Page 19 I F B - 1 0 1 O P E R A T O R ’ S M A N U A L Special Operating Pprocedures for use when Removing Plastic Residue The industrial fluidised bath detailed in this manual is suitable for “burning off” plastic residue from plastic machine tools, and is effective on the full range of polymers.

  • Page 20: Operating Procedures For Plastic Residue

    I F B - 1 0 1 O P E R A T O R ’ S M A N U A L bath, either on the surface or at the base of the bath, depending upon the density of the material involved.

  • Page 21: Maintenance

    I F B - 1 0 1 O P E R A T O R ’ S M A N U A L MAINTENANCE 1) The aluminium oxide fluidising medium, not being degradable,will only require replacement when losses occur due to attrition and spillage, or contamination with inert pigments, fillers or acidic by products from the cleaning process.
  • Page 22 I F B - 1 0 1 O P E R A T O R ’ S M A N U A L the bed medium clean and free flowing, and free of gums, acids, agglomerates, partly decomposed plastic, char and larger particles. These cleaning processes have the additional benefit of ensuring good fluidisation and this, in turn reduces burn off time, reduces uneven heating of parts and thus distortion, increases heater life by eliminating localised hot-spots, and makes cleaning easier on a regular basis.

  • Page 23: Fault Finding

    I F B - 1 0 1 O P E R A T O R ’ S M A N U A L FAULT FINDING Any service or repair work should only be carried out by a trained electronic or electro mechanical technicians.
  • Page 24 I F B - 1 0 1 O P E R A T O R ’ S M A N U A L v) Reset the central temperature monitor to a temperature of 200°C which will energise the upper solenoid valve. Adjust the upper valve until the total indicated air flow rate is approximately 160 l/min.

  • Page 25: Spare Parts

    I F B - 1 0 1 O P E R A T O R ’ S M A N U A L SPARE PARTS Part Description Part Numbers for 200V 220V 380V 415V 480V Temperature Controller 6104671 6104671 6104671 6104671 6104671 6005966...

  • Page 26: Accessories

    I F B - 1 0 1 O P E R A T O R ’ S M A N U A L ACCESSORIES Part No. Description F5967 F5976 Basket F5243 * Extraction Fan 380/415V 50Hz F5148 * Extraction Fan 380/415V 50Hz F6110 Reducing Spigot 150/100mm AB-100...
  • Page 27 I F B - 1 0 1 O P E R A T O R ’ S M A N U A L PAGE 25...
