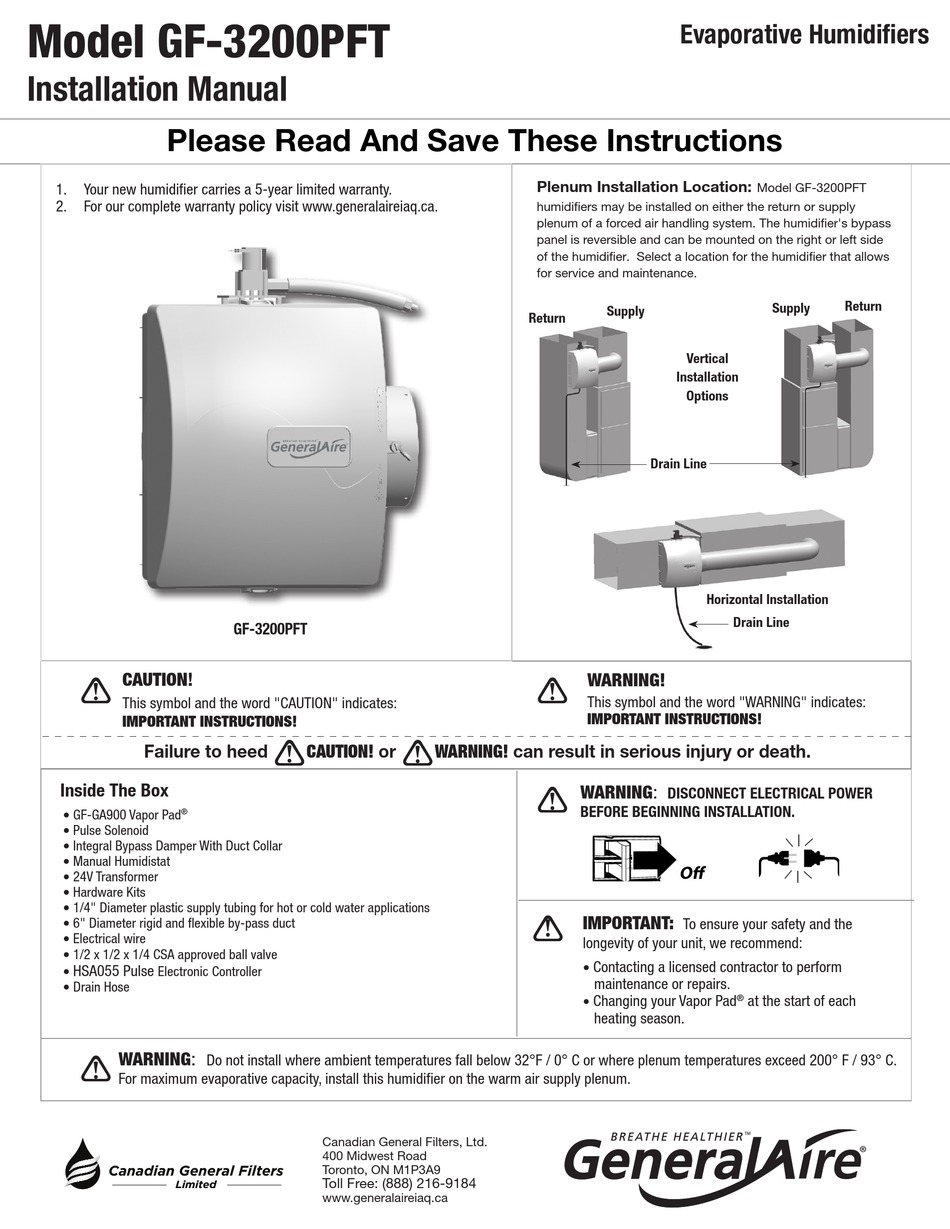

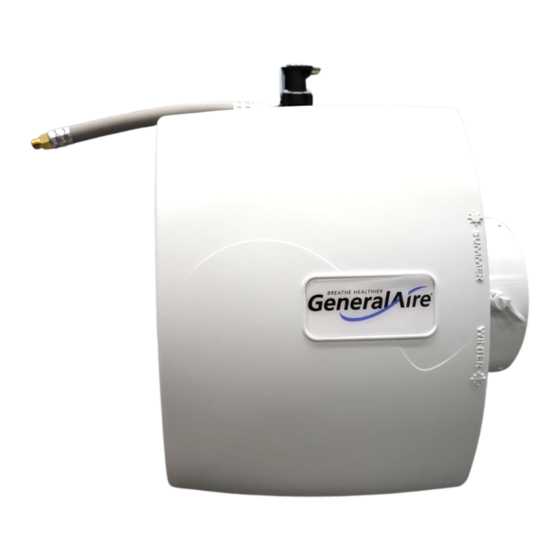

Model GF-3200PFT
Installation Manual
Please Read And Save These Instructions
1.
Your new humidifier carries a 5-year limited warranty.
2.
For our complete warranty policy visit www.generalaireiaq.ca.
CAUTION!
!
This symbol and the word "CAUTION" indicates:
IMPORTANT INSTRUCTIONS!
Failure to heed
Inside The Box
• GF-GA900 Vapor Pad
®
• Pulse Solenoid
• Integral Bypass Damper With Duct Collar
• Manual Humidistat
• 24V Transformer
• Hardware Kits
• 1/4" Diameter plastic supply tubing for hot or cold water applications
• 6" Diameter rigid and flexible by-pass duct
• Electrical wire
• 1/2 x 1/2 x 1/4 CSA approved ball valve
HSA055 Pulse
•
Electronic Controller
• Drain Hose
WARNING:
Do not install where ambient temperatures fall below 32°F / 0° C or where plenum temperatures exceed 200° F / 93° C.
!
For maximum evaporative capacity, install this humidifier on the warm air supply plenum.
Canadian General Filters
Limited
GF-3200PFT
!
CAUTION! or
Canadian General Filters, Ltd.
400 Midwest Road
Toronto, ON M1P3A9
Toll Free: (888) 216-9184
www.generalaireiaq.ca
Plenum Installation Location:
humidifiers may be installed on either the return or supply
plenum of a forced air handling system. The humidifier's bypass
panel is reversible and can be mounted on the right or left side
of the humidifier. Select a location for the humidifier that allows
for service and maintenance.
Return
WARNING!
!
This symbol and the word "WARNING" indicates:
IMPORTANT INSTRUCTIONS!
!
WARNING! can result in serious injury or death.
• WARNING:
!
BEFORE BEGINNING INSTALLATION.
!
IMPORTANT:
longevity of your unit, we recommend:
Contacting a licensed contractor to perform
•
Changing your Vapor Pad
•
Evaporative Humidifiers
Model GF-3200PFT
Supply
Supply
Vertical
Installation
Options
Drain Line
Horizontal Installation
Drain Line
DISCONNECT ELECTRICAL POWER
To ensure your safety and the
maintenance or repairs.
at the start of each
®
heating season.
Return
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GeneralAire GF-3200PFT
Summary of Contents for GeneralAire GF-3200PFT
- Page 1 Model GF-3200PFT Evaporative Humidifiers Installation Manual Please Read And Save These Instructions Plenum Installation Location: Your new humidifier carries a 5-year limited warranty. Model GF-3200PFT For our complete warranty policy visit www.generalaireiaq.ca. humidifiers may be installed on either the return or supply plenum of a forced air handling system.
- Page 2 INSTALLATION PREPARING THE UNIT Electric Valve Install and fasten the water diffuser, the long plastic piece, with two screws (#6 x 1/2") inside the top part of the humidifier. Install the solenoid valve (mounted on a plastic bracket) outside of the top of the humidifier.
- Page 3 INSTALLATION INSTALLING THE VAPOR PAD (Shown at Right) Slide the pad and frame into the bottom part of the humidifier. Push the pad against the back opening of the humidifier until it locks (snaps) into place with the pad retainer. Lock the Pad In Place CONNECTING THE WATER SUPPLY TUBING TO THE WATER HAMMER...
- Page 4 INSTALLATION, CONTINUED INSTALLING THE 120 VOLT TRANSFORMER Note: Do not install it on a furnace supplied with a different voltage. Connect the transformer primary to the relay activated when the furnace is in a heating cycle. Some furnaces have power terminals that can be used for accessories.
- Page 5 WARRANTY Your new humidifier carries a 5-year limited warranty. For our complete warranty policy and registration visit www.generalaireiaq.ca. Model GF-3200PFT Electronically Controlled Pulsed Flow Humidifier Please read the instructions carefully before starting the installation. This humidifier must be installed by a qualified heating and air conditioning contractor.
