Jenn-Air JMC8130DDR Installation Instructions

INSTALLATION
INSTRUCTIONS
Improper installation of the grounding
circuit can result in a risk of electric
shock.

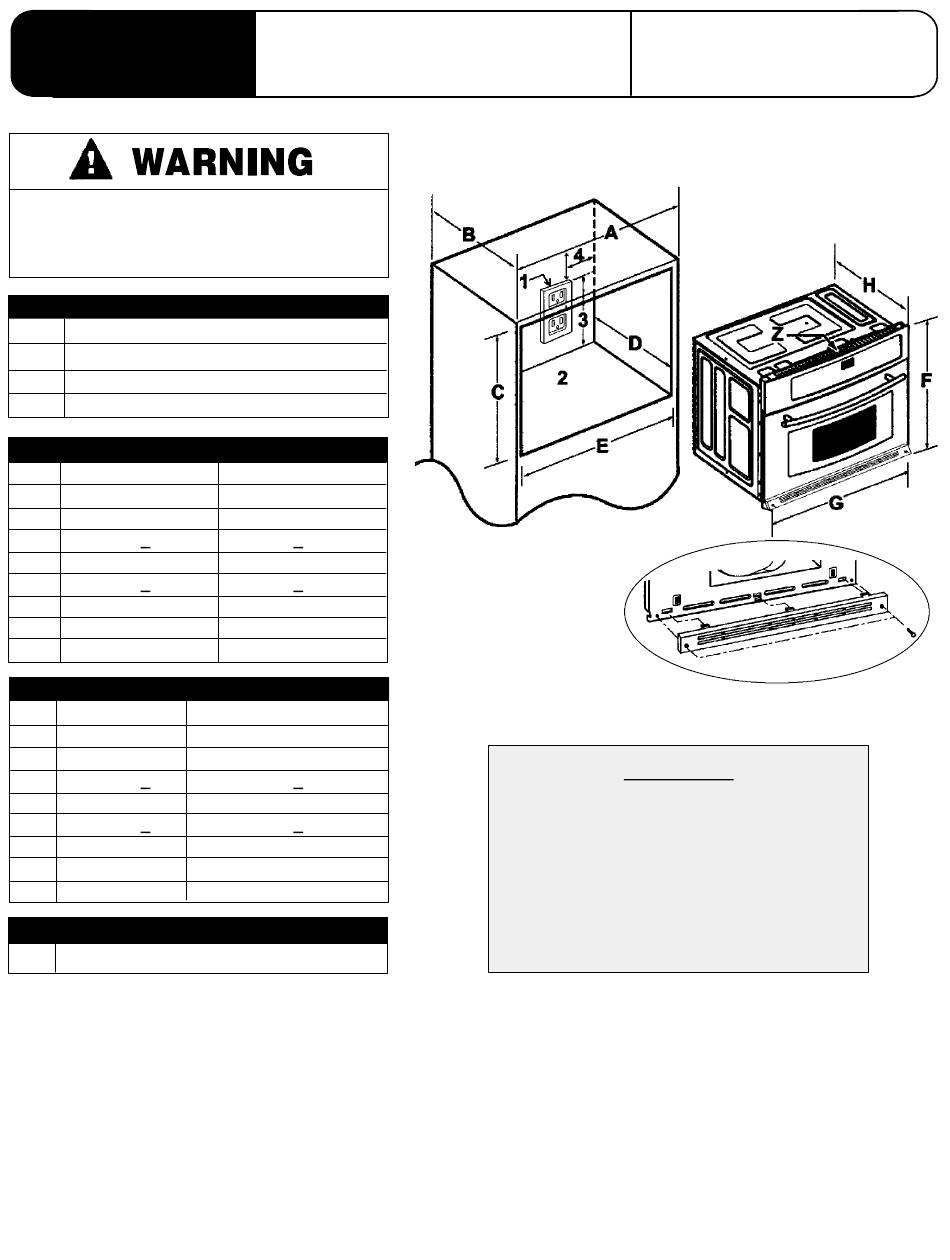

27² & 30² MICROWAVE OVEN DESCRIPTION
1 Properly Polarized and Grounding Outlet.
2 5/8² Plywood Floor (Must Support 100 lbs.)
3 About 15-7/8 Inches
4 About 1-3/8 Inches
27² MICROWAVE OVEN DIMENSIONS
inches
A 27 MIN
B 24 MIN
C 22-5/8 + 1/16
D 24 MIN
E 25-1/2 + 1/16
F 23-7/16
G 26-3/4
H 20-3/16
30² MICROWAVE OVEN DIMENSIONS
inches
A 30 MIN
B 24 MIN
C 22-5/8 + 1/16
D 24 MIN
E 28-1/2 + 1/16
F 23-7/16
G 29-3/4
H 20-3/16
NOTES
Z Do not block air intake slots along top of oven.
3828W5U0230
Built-In 27² ² ² ² & 30² ² ² ²
Microwave Ovens
Centimeters
68.58 MIN
60.96 MIN
57.47 + 0.16
60.96 MIN
64.77 + 0.16
59.69
67.95
51.27
Centimeters
76.2 MIN
60.96 MIN
57.47 + 0.16
60.96 MIN
72.39 + 0.16
59.69
75.56
51.27
403 WEST FOURTH STREET, NORTH
MICROWAVE OVEN CUTOUT
CAUTION
For European style cabinets (flush front)
the required clearance for operation of
the oven door is minimum spacing of
7/8² between the cutout and the door,
hinge or drawer of the cabinet. Some
built-in cabinets may not be wide
enough, due to their construction, to
allow this installation.
NEWTON, IA 50208
Bottom Grill
8101P504-60
(05-03-02)
