- Page 1 K I C K E R INSTRUCTION MANUAL thrustme.no...
- Page 2 Page 25-47 Norwegian Page : 48-70 German ALWAYS REMOVE the magnetic kill switch when not using the Kicker. This is to prevent an unintentional start-up. Warnings and advisories at the end of each language. Advarsler og veiledning står på slutten av hvert språk.
- Page 3 Recommended action before use Important information: • Before every use check that the propeller is rotating freely and not stuck. Make sure the magnetic kill switch is not attached to avoid unintended startup. If the propeller is stuck, please contact your nearest dealer. DO NOT try to force the motor to run, forcing it to run may cause fire in the motor.
- Page 4 Find your icon on the pages to learn more TABLE OF CONTENTS What's in the box First time Charging the Kicker and Remote How things work How to charge and store the batteries Mounting the motor Warnings Maintenance and service...
- Page 5 INPUT : 12V - 48V DC/ 5A /50W OUTPUT : 21V/ 2 A Charge time internal battery 6 hour`s Velcro To minimize lateral movement from the Kicker Universal ThrustME tool Tool for tightening screws or change worn parts Propeller knife...
- Page 6 INCLUDED KICKER remote KICKER motor Wristband for remote Magnetic kill switch KICKER safety cord KICKER charger 110-240V KICKER bag...
- Page 7 QUICK GUIDE For first time use – please do the following steps Connect the charger to the Kicker Red-light on charger indicates charging Attach the kill switch Verify that the display is ON Insert the remote in the charging slot located under...
- Page 8 Remote connected Internal battery charging The KICKER is protected with an automatic circuit breaker and temperature sensors. If the motor stops while running, it needs to be reset. Before resetting check that the propeller is free for seaweed or other objects. If the battery temperature is too high, the KICKER needs time to cool down.
- Page 9 REMOTE FUNCTIONS Hole for wrist band Reverse thrust (one push = one step) Remote (removable) Stop Forward thrust (one push = one step) Charging and indicator light, pulses while charging To change direction you always need to push the stop button first. NOTE: The remote vibrates when a button is pushed NOTE: Remote is equipped with 2,4 GHz system transmitting with only 1mV, so the range is limited to approx.
- Page 10 REMOTE FUNCTIONS – PAIRING Read through all steps before you start the paring mode The system needs to be turned off for the pairing mode (kill switch removed). (Kill switch needs to be in easily accessible to be used in the last part of the pairing mode.) Forward button Revers button...

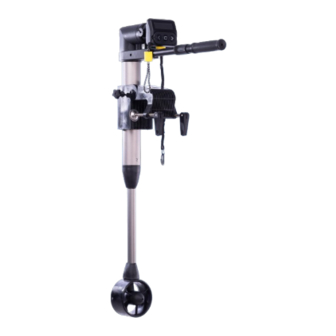

- Page 11 OPERATION INSTRUCTIONS Familiarize yourself with all the motor controls. For instance, you should be able to stop the motor quickly if necessary. Display & remote Steering handle with adjustable length Twist to fasten and loosen Handle for tilt mechanism Transom mount Fastening Screw THRUSTER...
- Page 12 Attach the safety band and connect it to the boat to prevent loosing the motor in the water. Fasten one end of the safety cord to the Kicker and fasten the other end to a secure place at the boat.
- Page 13 Tilt mechanism Using the tilt mechanism, please open the handle for tilt mechanism and adjust the motor for the desired position. After adjustment fasten the handle to lock Fasten the motor. Loosen In shallow waters use the tilt mechanism to adjust the motor.
- Page 14 MOUNTING Adjusting the length of the motor Loosen the friction screw. When this is almost completely unscrewed, you can pull the motor up from the transom mount There are two screws on the mounting ring. These are loosened and the ring is placed in the desired place to get the right length in relation to the transom...
- Page 15 The KICKER remote is charged by wireless charging (induction). Place the remote in the slot in the KICKER display and the remote will be charged. Charging time: 0-100% approx. 30min Note: Magnetic kill switch needs to be connected to charge the remote.
- Page 16 MAINTENANCE THE KICKER is designed for minimum maintenance work, and we have made great efforts to provide you with a product with a little maintenance as possible. The product will last longer and give you a better experience if you do the following :...
- Page 17 MAINTENANCE Removing/replacing propeller If it should be necessary to remove / replace the propeller follow steps bellow: 1. Unscrew the 3 screws and. 2. Gently remove the front bracket on the thruster 3. Unscrew the 2 propeller screws. 4. Pull off the propeller and replace the propeller For re-installation do the following steps in reverse order: Remember to replace all parts and make sure that everything is correct assembled and tightened.
- Page 18 Never operate the motor if someone is in the water close to the floating device. Do not use the KICKER if you suspect damage to the system or if there has been done modifications that has not been done by a certified manufacturer.
- Page 19 Make sure the weather conditions are within the margins for a safe ride, both present and future. The KICKER is limited to private use and the warranty will not apply if the product is used commercially, even if this is just of a temporarily character.
- Page 20 WARNINGS Make sure the KICKER is turned OFF before handling the unit out of water. The magnetic kill switch is removed and the display is not lit. This is to prevent an unintentional start-up. Use suitable clothes. Do not use wide clothes, jewellery or other items that may get caught up in moving parts, such as the propeller.
- Page 21 WARNINGS / BATTERIES The KICKER is equipped with an internal Li-Ion battery, and even if it tested by the manufacturer in normal conditions, the product has to be treated carefully. Even if the KICKER is certified by IP67 standards (waterproof down to 1m for 30minutes), we do not recommend to keep the product bellow water or store it in areas with high humidity.
- Page 22 Any unauthorized attempts at repair or reconstruction will result in immediate guarantee and warranty forfeiture. Please note that opening the KICKER main frame will result in guarantee and warranty forfeiture. In warranty cases please read the warranty information on the next page.
- Page 23 WARRANTY THRUSTME guarantees the final purchaser of a KICKER that the product is free from material and manufacturing faults during the period stated below. THRUSTME will indemnify the final purchaser for any expense required to repair a material or manufacturing fault. This indemnification obligation does not cover the incidental costs of a warranty claim or any other financial losses (e.g., costs for towing, telecommunications, food,...
- Page 24 To check a warranty, claim and to process a warranty, we require your assistance: For returning the KICKER, we recommend keeping the original THRUSTME packaging. If this is no longer available, packaging that prevents transport damage must be used (as transport damage is not included in the warranty).
- Page 25 You can, in line with local regulations, hand in the KICKER at a collecting point. From there it will be professionally disposed. We in the THRUSTME highly recommend you to disposal all parts for recycling for taking good care of our environment.
- Page 26 EU Declaration of Conformity Manufacturer's name and address THRUSTME AS (916 762 437) Veritasveien 25, 4007 Stavanger Norway Legal person authorized to prepare the Only the manufacturer can make technical technical documentation documentation. Description of the machine Electric propulsion motor for water, with internal batteries.
- Page 27 UKCA Declaration of Conformity Manufacturer's name and address THRUSTME AS (916 762 437) Veritasveien 25 4007 Stavanger NORWAY Legal person authorized to prepare the Only the manufacturer can make technical technical documentation documentation. Description of the machine Electric propulsion motor for water, with internal batteries.
- Page 28 Technical specifications Motor: • Motor: Brushless Out-Runner • Max Power: 1000 Watt • Rated Power 750 Watt • Operation voltage: 18.5 V • Static Thrust (forward): 16 Kg Battery: • Battery type: Li-ion • Capacity: 259 Wh • Nominal voltage: 18.5 V •...
- Page 29 THRUSTME AS Veritasveien 25 4007 Stavanger Norway www.thrustme.no Designed and developed in Norway...
