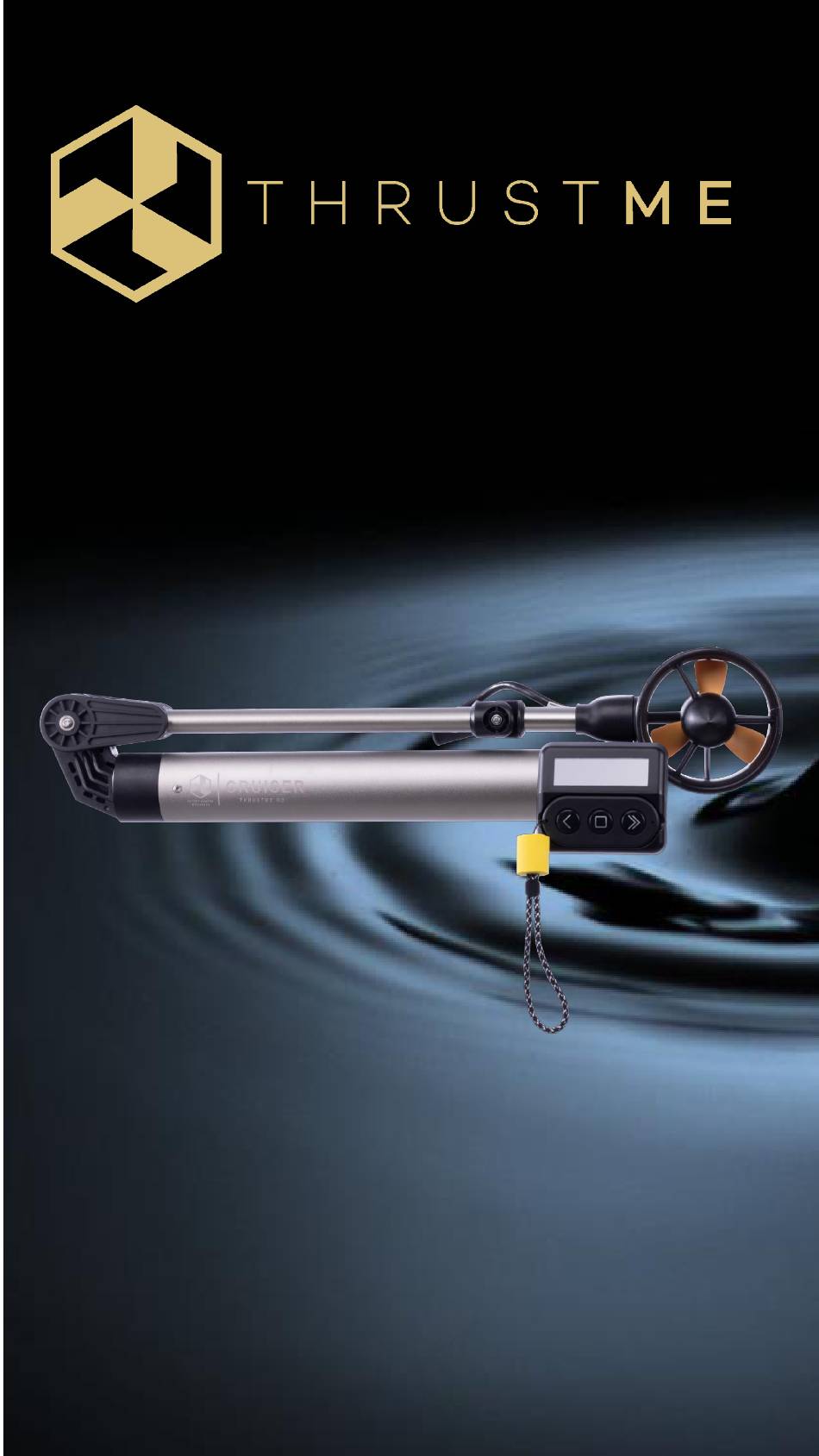

- Page 1 C R U I S E R INSTRUCTION MANUAL thrustme.no...
- Page 2 LANGUAGE English Warnings and advisories at the end. We recommend that you write down the serial number in this manual for future reference. Sticker located here Serial Number: C_ _ _ - _ _ _ _-_ _ _ _ This example will be written C006-2022-0010...
- Page 3 Find your icon on the pages to learn more TABLE OF CONTENTS What's included First time charging the Cruiser and remote How things work How to fit on a kayak, canoe, SUP etc. How to charge and store the batteries...
- Page 4 INPUT : 12V - 48V DC/ 5A /50W OUTPUT : 21V/ 2 A Charge time internal battery 6 hour`s Universal ThrustME tool Tool for tightening screws or change worn parts Propeller knife Cuts seaweed, fishing line and other things that...
- Page 5 INCLUDED CRUISER motor Backpack CRUISER remote Mounting bracket Magnetic kill switch Harness for kayak, canoe and SUP (Also works as the main switch) Wrist band for remote, CRUISER charger 230V CRUISER safety cord with floating element...
- Page 6 QUICK GUIDE Congratulations with your CRUISER For first time use – please do the following steps Connect the charger to the Cruiser Red-light on charger indicates charging Attach the Kill switch Verify that the display is ON Insert the Remote in the Charging slot located...

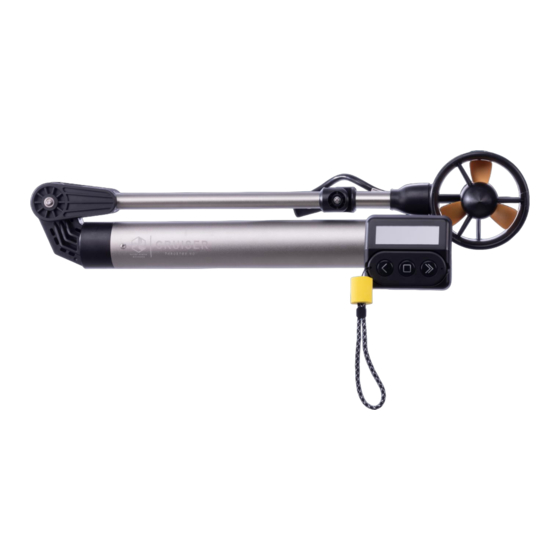

- Page 7 MAIN FUNCTIONS Upper pivot point. 3-pin motor connector Lower pivot point Motor Display Wireless remote Charge and external battery connection Rotating swivel Pivot screw (Loosen screw before rotating) Jack for fastening the main bracket to the floating device Attachment screw Spring pin (Pull and set in rest position before rotating)
- Page 8 Pull to release Lift & Jack for fastening Moment clip/ lock Moment bracket, this prevents the CRUISER to move and keeps the CRUISER steady. (Note: place the moment bracket above water level to prevent drag) Velcro for belt length adjustment Attachment plate for kayak, canoe, SUP , float plane, etc…...
- Page 9 Remote connected Internal battery charging The CRUISER is protected with an automatic circuit breaker and temperature sensors. If the motor stops while running, it needs to be reset. Before resetting check that the propeller is free for seaweed or other objects. If the battery temperature is too high, the CRUISER needs time to cool down.
- Page 10 REMOTE FUNCTIONS Hole for wrist band Reverse thrust (one push = one step) Remote (removable) Stop Forward thrust (one push = one step) Charging and indicator light, pulses while charging To change direction you always need to push the stop button first. NOTE: The remote vibrates when a button is pushed NOTE: Remote is equipped with 2,4 GHz system transmitting with only 1mV, so the range is limited to approx.
- Page 11 REMOTE FUNCTIONS – PAIRING Read through all steps before you start the paring mode The system needs to be turned off for the pairing mode. (Kill switch removed) (Kill switch needs to be in easily accessible to be used in the last part of the pairing mode.) Forward button Revers button...
- Page 12 HOW TO FIT ON A KAYAK, CANOE, SUP, Etc. Step Adjust the harness to fit your floating device. Step Attach the harness and CRUISER on your floating device, and adjust. Please make sure that the harness is tight around the floating device. Step Install the propeller in the most centre of your floating device as possible.
- Page 13 Rest position attachment plate. Attach CRUISER to attachment plate when needed. Place the CRUISER on the most suitable place before use. (May vary between different types of kayaks, canoes and SUP ) 1. Front 2. Centre - front/back 3. Back...
- Page 14 The CRUISER remote is charged by wireless charging (induction). Place the remote in the slot in the CRUISER display and the remote will be charged. Charging time: 0-100% approx. 30min Note: Magnetic kill switch needs to be connected to charge the remote.
- Page 15 MAINTENANCE The CRUISER is designed for minimum maintenance work, and we have made great efforts to provide you with a product with a little maintenance as possible. The product will last longer and give you a better experience if you do the following : After use in seawater, run the thruster in a bucket with freshwater for a short while, also clean all parts with fresh water to prolong the life of the components.
- Page 16 MAINTENANCE Removing/replacing propeller If it should be necessary to remove / replace the propeller follow steps bellow: 1. Unscrew the 3 screws and. 2. Gently remove the front bracket on the thruster 3. Unscrew the 2 propeller screws. 4. Pull off the propeller and replace the propeller For re-installation do the following steps in reverse order: Remember to replace all parts and make sure that everything is correct assembled and tightened.
- Page 17 Never operate the motor if someone is in the water close to the floating device. Do not use the CRUISER if you suspect damage to the system or if there has been done modifications that has not been done by a certified manufacturer.
- Page 18 Take the CRUISER out of the water if the vessel is driven by other means (f.eks oars, sail, towed by other boats). Please make sure that you have read and understood all the warnings...
- Page 19 WARNINGS Make sure the CRUISER is turned OFF before handling the unit out of water. The magnetic kill switch is removed and the display is not lit. This is to prevent an unintentional start-up. Use suitable clothes. Do not use wide clothes, jewellery or other items that may get caught up in moving parts, such as the propeller.
- Page 20 30minutes), we do not recommend to keep the product bellow water or store it in areas with high humidity. Do not drop, hit or do anything else to the CRUISER that might damage the battery or other components in any way.
- Page 21 Any unauthorized attempts at repair or reconstruction will result in immediate guarantee and warranty forfeiture. Please note that opening the CRUISER main frame will result in guarantee and warranty forfeiture. In warranty cases please read the warranty information on the next page.
- Page 22 WARRANTY THRUSTME guarantees the final purchaser of a CRUISER that the product is free from material and manufacturing faults during the period stated below. THRUSTME will indemnify the final purchaser for any expense required to repair a material or manufacturing fault. This indemnification obligation does not cover the incidental costs of a warranty claim or any other financial losses (e.g., costs for towing, telecommunications, food,...
- Page 23 To check a warranty, claim and to process a warranty, we require your assistance: For returning the CRUISER, we recommend keeping the original THRUSTME packaging. If this is no longer available, packaging that prevents transport damage must be used (as transport damage is not included in the warranty).
- Page 24 You can, in line with local regulations, hand in the CRUISER at a collecting point. From there it will be professionally disposed. We in the THRUSTME highly recommend you to disposal all parts for recycling for taking good care of our environment.
- Page 25 UKCA Declaration of Conformity Manufacturer's name and address THRUSTME AS (916 762 437) Veritasveien 25 4007 Stavanger NORWAY Legal person authorized to prepare the Only the manufacturer can make technical technical documentation documentation. Description of the machine Electric propulsion motor for water, with internal batteries.
- Page 26 EU Declaration of Conformity Manufacturer's name and address THRUSTME AS (916 762 437) Veritasveien 25, 4007 Stavanger Norway Legal person authorized to prepare the Only the manufacturer can make technical technical documentation documentation. Description of the machine Electric propulsion motor for water, with internal batteries.
- Page 27 Technical specifications Motor: • Motor: Brushless Out-Runner • Max Power: 1000 Watt • Rated Power 750 Watt • Operation voltage: 18.5 V • Static Thrust (forward): 16 Kg Battery: • Battery type: Li-ion • Capacity: 259 Wh • Nominal voltage: 18.5 V •...
- Page 28 THRUSTME AS Veritasveien 25 4007 Stavanger Norway www.thrustme.no Designed and developed in Norway...
