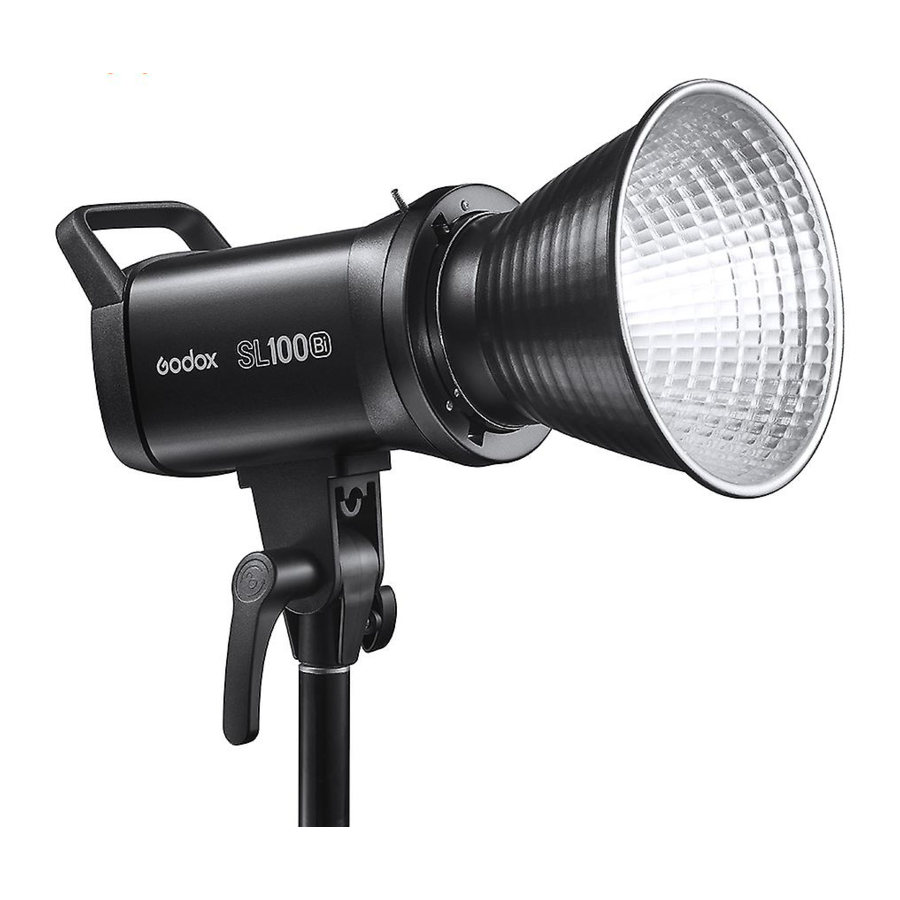

Godox SL100Bi - Bi-color LED Video Light Manual

Foreword

Thank you for purchasing Godox product!
SL Series LED Video Light SL100Bi is suitable for live recording, video shooting, and many other occasions with stable light resource, even illumination and adjustable color temperature.

Features:

• Freely adjust color temperature from 2800K to 6500K
• With stable light source and adjustable light brightness from 0% to 100%
• With 11 Fx special effects mode to simulate various of shooting scenes
• Can be remote controlled by 2.4G and smartphone APP
• Bowens-mount support various of accessories
• Clear LCD display
• With excellent heat dissipation

When using your photographic equipment, basic safety precautions should always be followed, including the following:
Read and understand all instructions before using.
Close supervision is necessary when any appliance is used by or near children. Do not leave appliance unattended while in use.
Care must be taken as burns can occur from touching hot parts.
Do not operate an appliance with a damaged cord or if the appliance has been dropped or damaged – until it has been examined by a qualified serviceman.
Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.
If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat.
Always unplug appliance from an electrical outlet before cleaning and servicing and when not in use. Never yank cord to pull plug from outlet. Grasp plug and pull to disconnect.
This appliance is not waterproof device. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.
Do not disassemble. Should repairs become necessary, this appliance must be sent to an authorized maintenance center. Incorrect maintenance behavior may cause electric shock when the appliance is subsequently used.
When this appliance is working, please do not cover the Thermovent, and please do not look directly at or touch the COB lamp beads under any circumstances.

Name of Body

Light Head

1. Light Body
2. LED Beads
3. Protect Cover
4. Bowens-mount
5. Accessory Locking Ring
6. Reflector
7. Umbrella Input
8. Direction Adjust
9. Bracket
10. Thermovent
11. Air Inlet
12. Handle
13. Display
14. DIM Dial
15. CCT/FX Dial
16. FX Button
17. GR Button
18. CH Button
19. Bluetooth
20. Power On/Off
21. Power Jack

LCD Panel

What's in the Box

Optional Accessories

The product can be used in combination with the following accessories sold separately, so as to achieve best photography effects: RC-A6 Remote Control, Power Inverter, Softbox, Photographic Umbrella, Light Stand, Honey Comb, Beauty Dish, Snoot, etc.

Power Source

Connect the LED light to power source with power cable. Then, press the power switch to turn it on off.

Operation

Brightness Adjustment: turn the DIM dial to adjust brightness from 0% to 100%. Turn the CCT/FX dial to decrease the value while rightwards to increase. And adjust 1 value in normal operation while 10 values in quick operation.

Color Temperature Adjustment: in LED continuous lighting mode, turn the CCT/FX select dial to adjust color temperature from 2800K to 6500K. Turn the select dial on the left to decrease the value while rightwards to increase.
Switch 100 unit values at normal speed and 500 unit values at quick speed.

Light Effects Mode

Short press the FX button to enter or exit the special effects. When entering the FX modes, FX icon will be displayed on the LCD panel. Then, turn the CCT/FX select dial on the left to choose one mode from the 11 special effects modes to achieve creative shooting.

2.4G Wireless Setting

With 2.4G wireless system, LED Video Light SL100Bi has receive and control function. Up to 16 groups of LED lights can be controlled. 32 channels and 99 wireless IDs are available with strong anti-interference capability. Please set the channels, groups and IDs of LED light to the same as those of RC-A6 remote control (optional) before usage.

CH Channel adjustment: short press CH button and the CH values will be blinking on the display. Turn the DIM dial on the right to adjust channels from 1 to 32. Turn the select dial leftwards to decrease the value while rightwards to increase. Press the CH button again to confirm.

GR Group adjustment: short press GR button and the GR values will be blinking on the display. Turn the DIM dial on the right to adjust groups from 0 to 9 and A to F. Turn the select dial leftwards to decrease the value while rightwards to increase. Short press the GR Button again to exit from GR setting.

ID Setting: long press the CH and GR button together until the ID values is blinking on the display. Turn the DIM dial on the right to adjust IDs from OFF and 1 to 99. Turn the select dial leftwards to decrease the value while rightwards to increase. Then, long press CH and GR button to exit from ID setting.

Bluetooth Setting

1. Bluetooth MAC code checking: short press the Bluetooth button until Bluetooth MAC code is displayed. Press the Bluetooth button again and the MAC code will disappear. And the code will be displayed after returning to the main interface.
2. Scan the QR code to download the "GodoxLight" smartphone APP(can be used in Android and Apple). For more smartphone APP operations, please open the "help" in APP to gain detailed guidance.

3. Bluetooth reset function: long press the SET button for 2 seconds and the Bluetooth icon will blink because of resetting. And the icon will stop blinking after being successfully reset.

Note: The APP can be used directly on the firstly installed device (smartphone or iPad). When change to other mobile device (smartphone or iPad), the light shall be reset before the normal connection of APP.

Failures Reminder

lighting indicates fan failure, flashing indicates failure.
lighting indicates high temperature alarm, flashing indicates high temperature protection status and light automatically enters the shutdown procedure.

Technical Data

Changes made to the specifications or designs may not be reflected in this manual.

Maintenance

• This product, except consumables e.g. battery, power cable and connect cable, is supported with a one-year warranty.
• Avoid sudden impacts and the product should be dedusted regularly.
• Maintenance of the flash must be performed by our authorized maintenance department, which can provide original accessories.
• Unauthorized service will void the warranty.
• If the product had failures or was wetted, do not use it until it is repaired by professionals.
• Changes made to the specifications or designs may not be reflected in this manual.

Note: This form shall be sealed by the seller.

Maintenance and Service Support Information

The warranty period and service types of products are implemented according to the following Product Maintenance Information:

Godox After-sale Service Call 0755-29609320-8062

GODOX Photo Equipment Co., Ltd.
Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao'an District, Shenzhen, China
Tel: +86-755-29609320(8062)
Fax: +86-755-25723423
E-mail: godox@godox.com
godox.com
