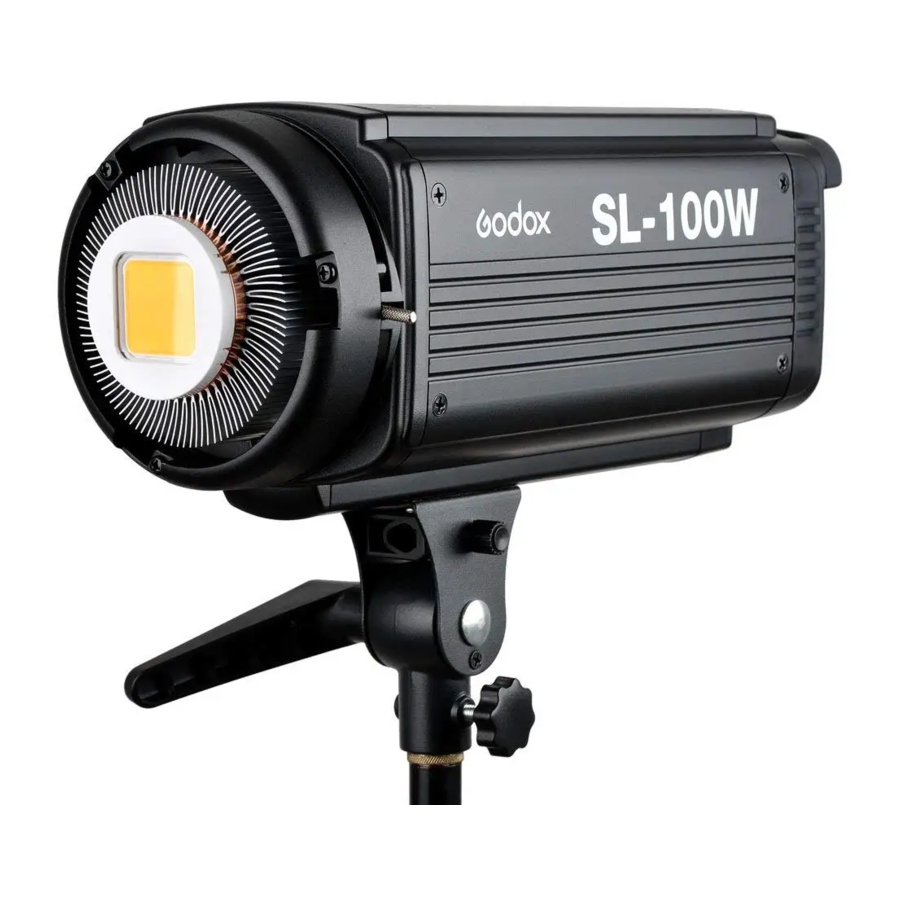

Godox SL-100W, SL-100Y - LED Video Light SL Series Manual

Foreword

Thank you for purchasing this Godox Product!
SL Series video lights are excellent for product shooting, photojournalistic and video recording, etc. It creates stable light resource and even illumination for photography.
Two models are available: White Version (5600K), Yellow Version (3300K).

Features

  • 100W LED bulbs guarantee high light brightness
  • The color rendering index is over 90 and R9 is over 50, presenting the objects authentically
  • Wirelessly adjust light brightness
  • Wireless 433MHz grouping system (6 groups & 16 channels)
  • Large-sized LCD panel. Settings auto saved
  • With temperature control function to prevent overheating
  • With specialized protect cover to protect the LED beads
  • With red copper heatsink and built –in fan to offer excellent heat dissipation
    Type Model
    White Version(Color Temperature 5600K) SL-100W
    Yellow Version(Color Temperature 3300K) SL-100Y

For your safety

warning Do not place in high temperature or high humidity conditions.
warning If this product overheats, it will cease operation and resume working after cooling down. This is due to the built-in over temperature protection.
warning Do not handle with wet hands, immerse in water, or expose to rain.
warning Do not dissemble or modify this product. Should the product break open as the result of a fall or other accident, send the defective back to authorized service center for inspection and maintenance.

Parts

Body

Parts Overview - Part 1 - Body

  1. LED Beads
  2. Protect Cover
  3. Heatsink
  4. Accessory Slot
  5. ON/OFF Power Switch
  6. Select Dial + SET Button
  7. CH/GRP Button
  8. AC Power Jack
  9. Antenna
  10. LCD Panel (White in Blue)
  11. Mounting Bracket
  12. Umbrella Input
  13. Direction Adjusting Handle

LCD Panel

Parts Overview - Part 2 - LCD Panel

Remote Control

  1. LCD Panel (Black in White)
  2. Power Switch
  3. CH/GRP Button
  4. SET Button
  5. "-" Button
  6. "+" Button
  7. Battery Compartment
  8. Battery Compartment Cover

Accessories

Operation

Using the Video Light

  • Connect the light with AC power jack.
  • Press the ON/OFF Power Switch, the video light begins to giving out light.
  • LCD panel shows the information.

Light Brightness Adjustment

  • Turn the select dial to adjust the light brightness.
  • The light brightness adjustable range is at 10%~100%.

Temperature Indication

  • This video light checks its temperature at any time to avoid dangerous situations. It will auto power off when the temperature is too high.
  • Press the SET button for 2 seconds and the temperature can be switched between Celsius and Fahrenheit.

Wireless Remote Control

With 433 MHz wireless system, this product has remote grouping and control function. Up to 6 groups of video lights can be controlled. 16 channels are available with strong anti-interference capability.

  • Please set the channels and groups of video light to the same as those of remote control before usage.
  • When using the White Version, please set the color temperature of the remote control as 5600K constantly;
  • When using the Yellow Version, please set the color temperature of the remote control as 3300K constantly;

Adjusting Channel/Group of the Video Light

  • Press the CH/GRP button and the group icon blinks. Turn the select dial to choose a group ID (A to F).
  • Press the CH/GRP button twice and the channel icon blinks. Turn the select dial to choose a channel ID (1 to 16).

Adjusting Channel/Group of the Remote Control

  • Press the CH/GRP button and the group icon blinks. Press the"-""+" button to choose a group ID (A to F).
  • Press the CH/GRP button twice and the channel icon blinks. Press the"-""+" button to choose a channel ID (1 to 16).

Adjusting Light Brightness/Color Temperature with the Remote Control

  • Press the"-""+" button to adjust the light brightness.
  • Press the SET button of the remote control once and the color temperature icon blinks. Press the"-""+" button to adjust the color temperature.

Other Operation Tips

  • Pressing the ON/OFF button on the remote control can turn on/off all the video light groups.
  • Pressing the "SET" button on the remote control for 2 seconds can turn on/off the current video light group.
  • Please remove the battery if the light will not be used for an extended period of time.

caution When there are some abnormal situations in the inner video light, the relevant LCD signs will blink as warnings. For example:

  1. When the fan stops working due to fault, II signs will blink to alarm.
  2. When heatsink' temperature is over 70 Celsius degrees, the temperature on the LCD panel will blink and the video light will stop working.

Technical Data

Video Light White Version SL-100W Yellow Version SL-100Y
AC Power Supply AC 100~240V 50/60Hz
Channel 16
Group 6 groups (A, B, C, D, E, F)
Power Max. 100W
Color Temperature 5600K±300K 3300K±300K
100% Illuminance (LUX) 2400 (1m)
100% Luminous Flux 13000
Color Rendering Index 90-92
R9 50-60
Light Brightness Range 10%~100%
Operation Temperature -10~50°C
Safe Temperature ≤70°C
Dimension 34x23x13cm (Not included the Lamp Cover)
Net Weight Approx. 2.41kg
Remote Control RC-A5
Power Supply 3.0V(AAA*2)(not include)
Wireless Frequency 433MHz
Distance(emptiness) ≥20m
Channel 16
Group 6 groups (A, B, C, D, E, F)
Standby Time Over one year
Operation Temperature -10~50°C
Dimension 120mm*38mm*15mm
Net weight 30g

* Product design and specifications are subject to change without notice.

Add: 2/F, Building A4, Xinhe Huafa Industrial Zone, Fuhai RD West, Fuyong Town, Baoan District, Shenzhen 518103, China
Tel: +86-755-29609320(8062) / +86-755-25726373
Fax: +86-755-25723423
E-mail: godox@godox.com
