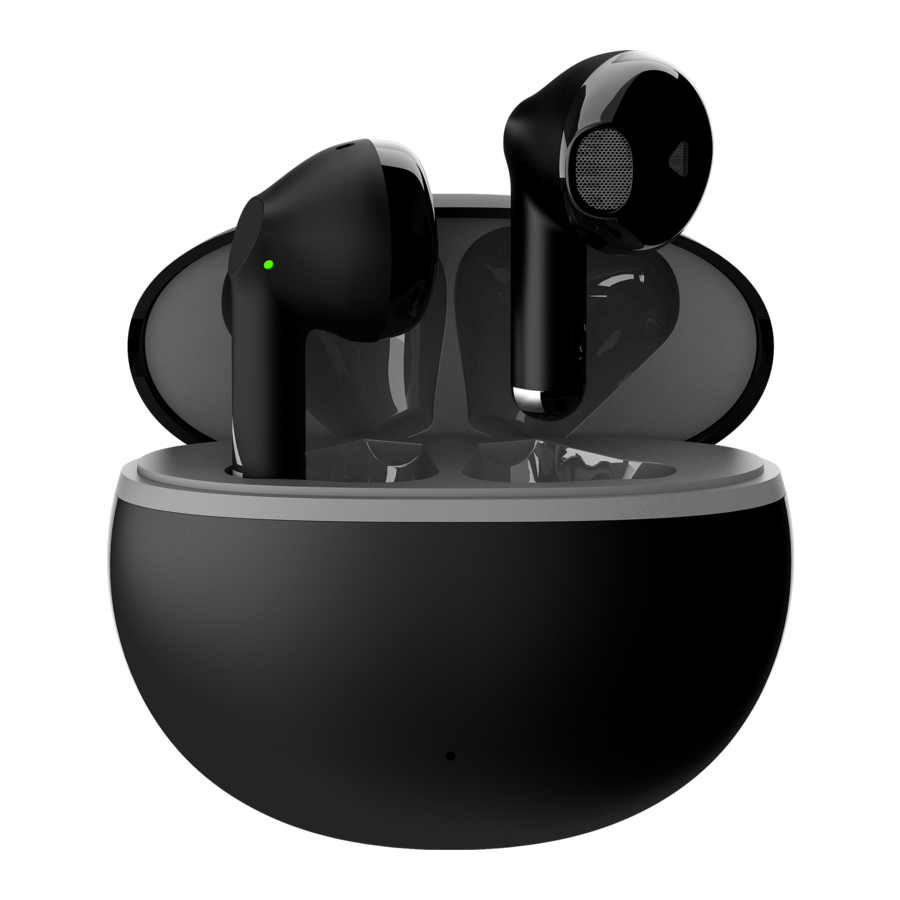

Creative ZEN AIR DOT - Lightweight True Wireless Sweatproof In-Ear Headphones Quick Start Guide

CONTROLS

Powering On / Off

Power on / off the individual earbud while out of its charging case.

Playback Mode

1. Play / Pause

2. Previous Track

3. Next Track

4. Siri / Google Assistant


Call Mode

INCOMING CALL

1. Answer Call

2. Decline Call


ONGOING CALL

3. End Call


TOGGLING PHONE LINE SWITCHING

4. Answer Call 2, Call 1 On Hold

5. Switch Between Call 1 and Call 2

6. Decline Call 2, Remain On Call 1


OVERVIEW

1. Touch Controls
2. Earbuds LED Indicators
3. Charging Case LED Indicator
4. USB-C Charging Port

BATTERY CASE CHARGING INDICATOR

	Charging		Solid Red
	Fully Charged		LED Off
	Battery Low		Flashing Red

EARBUDS LED BEHAVIOR

	Earbuds Charging		Solid White
	Earbuds Fully Charged		LED Off
	Bluetooth Pairing Mode		Flashing Green / White
	Bluetooth Paired		LED Off
	Reconnecting To Previously Paired Device		Flashing Green

To re-initiate Bluetooth Pairing, disconnect the earbuds from the connected device. The earbuds will automatically initiate Bluetooth Pairing mode after.

MASTER RESET

Manually disconnect the earbuds from your device. While the earbuds are outside of the charging case, tap both earbuds four times, then press and hold the earbuds for 2 seconds. Both earbuds' LED indicators will flash white three times, then power off. Creative Zen Air DOT will then reset to factory default.

Master Reset is reserved for cases where users encounter issues while earbuds are in use or during situations such as: Bluetooth Pairing failure, failure to pair secondary earbud with the main earbud, or to reset all data.

COMMON CONNECTIVITY ISSUES

This article highlights a phenomena and recommendation for music cutting out and earbuds that do not stay connected. When pairing a smart mobile device with the earbuds, the signal is strongest when there is a line-of-sight between the pairing devices.

If the signal passes through the body, which is mostly made up of water fluid, it may get absorbed, which may result in pairing difficulty. If the mobile device is already connected to the earbuds, it may result in signal lost or the earbuds may get disconnected.

TECHNICAL SPECIFICATIONS

Headphone Drivers

• 13 mm Neodymium Driver x 2

Frequency Response

• 20–20,000 Hz

Microphones

• Omni-directional MEMS x 1 (Per Earbud)

Bluetooth Version

• Bluetooth 5.3

Bluetooth Profiles

• A2DP
• AVRCP
• HFP

Audio Codec

• SBC

Wireless Operating Frequency

• 2402–2480 MHz

Wireless Operating Range

• Up to 10m / 33 ft measured in open space.
  Walls and structures may affect range of device

Playtime

• Up to 7 hours per charge
• Up to 24 hours of total playtime^

Battery

• Earbuds: Lithium-ion button battery 3.7V 40 mAh 0.148 Wh
• Charging Case: Lithium-ion polymer battery 3.7V 350 mAh 1.295 Wh

Charging Time

• < 2 hours

IP Rating

• IPX4 (Earbuds only)

Operating Temperature

• 0–45°C

Maximum RF Output Power

• 3 dBm

Input Rating

• 5V 1A

^ Based on moderate volume level. Actual battery life will vary with use, settings, songs, and environmental conditions

Note: Compliance marking are located in the charging case.

Important Safety Instructions

Do not listen to audio on your earphones or headphones at high volume for prolonged periods of time as hearing loss may result.

Address: Creative Technology Ltd, 31 International Business Park, #03-01, Singapore 609921. Telephone: +65 6895 4101 (standard international call charges apply.)

REGISTER YOUR PRODUCT
creative.com/register

TECHNICAL SUPPORT
creative.com/support

© 2023 Creative Technology Ltd. All rights reserved. Creative, the Creative logo and Zen are trademarks or registered trademarks of Creative Technology Ltd in the United States and/or other countries. The Bluetooth word mark and logo are owned by Bluetooth SIG, Inc. and any use of such marks by Creative Technology Ltd is under license. All other trademarks are the property of their respective owners and are hereby recognized as such. All specifications are subject to change without notice. Actual product may differ slightly from images shown. Use of this product is subject to a limited warranty.
