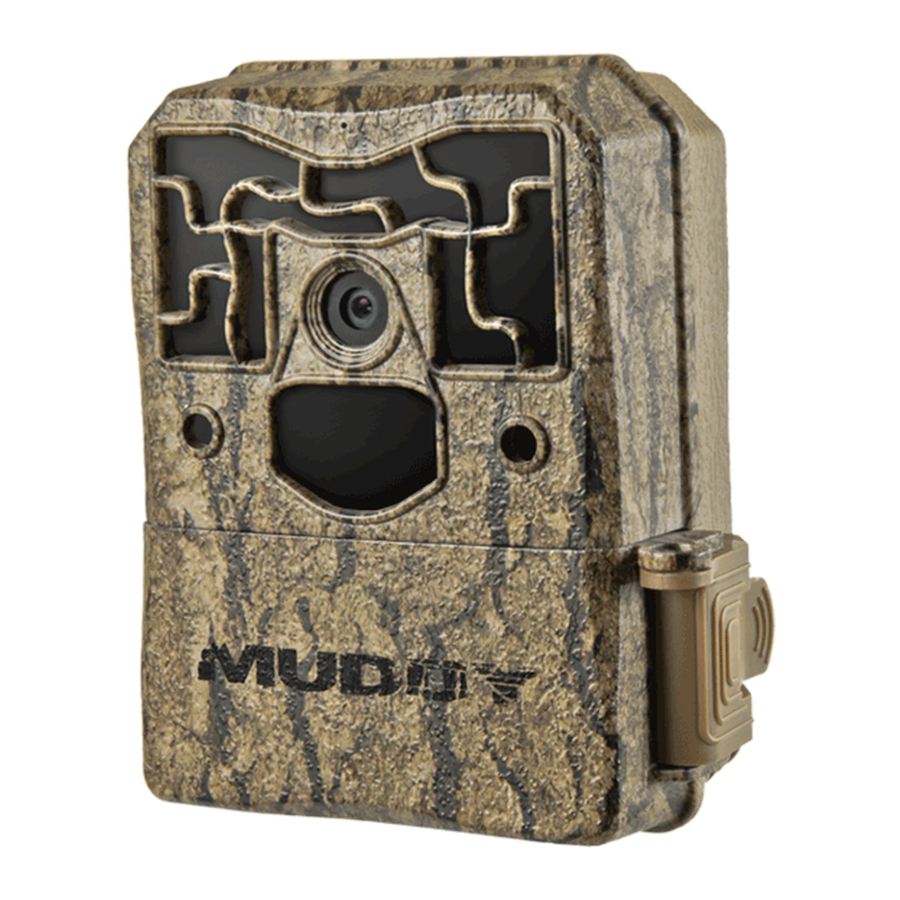

Muddy Pro-Cam 20, MTC600 - Combo Camera Manual

INCLUDES

REQUIRED FOR STARTUP

• 6 - AA Cell Alkaline Batteries (recommend name brand for best performance, sold separately)
• 1 - SDHC Storage Card (Up to 32GB) (sold separately) The Pro-Cam Trail Cameras require a minimum of 4GB. It is highly recommended to use Class 10 SDHC Cards to provide optimal performance.
• 1 - External SDHC memory card reader for viewing photos/videos (sold separately)

NOTE: 12V DC hookup is available. Both power supply options can be used in combination with each other. If both power supply's are connected, the trail camera will run off of the 12V power before switching over to the 6-AA Cell batteries. The battery indicator will display "EXT" for the power available from the 12V DC option.

FEATURES & SPECS

INSTALLING BATTERIES

IF USING AA - CELL BATTERIES

1. To remove the internal AA battery pack, press chamber lightly and slide the eject/open button inside camera cover (Fig. 1). Next, pull firmly to remove chamber and insert batteries (Fig. 2).

2. Reference the battery icons located on the inside of the chamber compartment. Insert the batteries accordingly as indicated by the positive and negative battery icons (Fig. 3).

3. Slide the battery compartment back into the camera housing until it is completely engaged in the slot in the bottom of the housing (Fig. 4).


NOTE: Installing any of the 6-AA batteries in the wrong direction may cause the batteries to leak acid and could possibly explode, causing camera failure and damage to the battery compartment.

IF USING 12V DC POWER SOURCE

1. Remove the rubber port cap at the bottom of the camera (Fig. 1). Using a universal 12V DC cord, plug in to the bottom port option (Fig. 2).


2. Run the cord to the side of the camera where there is a hook provided behind the hinge of the camera door. This will support the power cord and take pressure off of the connection point (Fig. 3).

3. When not in use, replace the rubber port cap at the bottom of the camera to protect the 12V DC universal plug-in port.

NOTE: Make sure the camera is powered off prior to installing the batteries.

MEMORY CARD INSTALL

(sold separately)

1. To access the user interface and insert a SDHC Card, lift up on the side locking latch located toward the bottom of the side of the camera. After the latch is disengaged, move latch to allow the interface door to open (Fig. 1).

2. Insert the SDHC card with the contacts facing away. The SDHC card should slide in freely with little resistance. Continue pressing the card inward until you hear a click. This means the SDHC card is locked in place and ready for use. (Fig. 2).

3. To remove SDHC card, press the card inwards to release.

NOTE: We do NOT recommend using cards that came out of a camera from a different manufacturer, or one that has previously been used in a point and shoot camera. Doing so, your Pro-Cam might not be able to accept or read the SDHC Card properly. Use the Format SDHC Card function on the camera for a full format before each use (after you have either copied or reviewed all your photos, see the section for reviewing photos), or if any problems occur. Another option is a full format on a PC. Formatting a SDHC card clears file system corruption and erases everything on the SDHC card.

QUICK-START

Your Pro-Cam will come with the following standard options already preset. You can leave all settings as defaulted to start taking quality pictures, but you'll want to make sure to set up the current Date and Time.

Setup date/time (Defaults to original date/time – may need to be re-programmed if you reset the default settings)

SETUP DATE/TIME
CAMERA MODE – CAMERA
IMAGE QUALITY – HIGH
VIDEO QUALITY - HD
VIDEO LENGTH – 10 SEC
PICTURE DELAY – 10 SEC
BURST MODE – 3-BURST STANDARD
TEMPERATURE UNIT – FAHRENHEIT
CAMERA ID – MY CAMERA
PICTURE INFO BAR – ON
TIME-LAPSE FREQ – 1 MIN
TIME-LAPSE PERIOD:
TIMER AM - 6:00 AM -> 10:00 AM
TIMER PM - 2:00 PM -> 6:00 PM
FLASH MODE – AUTO
PIR SENSITIVITY – MEDIUM
SD OVERWRITE - OFF

ADVANCED SETTINGS

Slide the power button from OFF to ON position to activate the camera and view the user setup screen. Setting the functions is easy;

1. Simply press the M button to access the menus, and use the UP or DOWN arrows to scroll through the menu settings.
2. To select the menu setting you want to adjust, press the OK button.
3. Make your adjustments, and press OK button to accept the settings and change to another menu.

*Note: any changes you make to settings are not saved until you hit the OK button. If you power the camera off prior to hitting the OK button, settings will remain unchanged.

TIME AND DATE

This will set the Date, Year, and Time of day to be imprinted on your photos/videos.

Press the OK button for the month setting to flash. Use the UP and DOWN arrows to change. Press the LEFT or RIGHT arrows to move to the DATE and set this accordingly. Next, press the LEFT or RIGHT arrows to move to the year and set accordingly. Continue to adjust the hour, minute, and am/pm on the time. Press the OK button when finished, and press the UP or DOWN arrows to go on to another menu.

CAMERA MODE

Sets the camera to photos, videos or timelapse mode.

CAMERA - The following other settings are recommended to be set when in Camera Mode: Image Quality, Picture Delay, Burst Mode, Flash Mode, PIR Sensitivity, SD Overwrite

VIDEO - The following other settings are recommended to be set when in Video Mode: Video Quality, Video Length, PIR Sensitivity, SD Overwrite

TIMELAPSE - The following other settings are recommended to be set when in Timelapse Mode: Timelapse Frequency, Timelapse Period Timer AM & PM, PIR Sensitivity, SD Overwrite. NOTE: In Timelapse mode, your Pro-Cam will still trigger if an animal walks in front of the camera with the current Camera settings you have saved, regardless of the Timelapse settings, so you never miss a thing.

This feature is great for taking photos of game from a long range that you normally couldn't get. Timelapse mode takes a photo at a fixed time whether there is activity or not, depending on the settings you choose, (see Timelapse settings).

IMAGE QUALITY

Sets the quality at which you would like the camera to take the pictures. Setting your Pro-Cam to low will allow you to store more images on the SDHC card, at a lower quality. The high setting will allow the highest quality images but requires more storage space.

Options are: HIGH, MEDIUM or LOW

VIDEO QUALITY

Selects the quality of Video you want to capture.

Options are: HD or Standard

High Def. 1280 with sound, has the best quality, and takes up more storage space

Standard with sound, compresses the file smaller to save space, and has lower quality

VIDEO LENGTH

Selects the length you would like each video to be.

Options are: 5 sec, 10 sec, 20 sec, 30 sec, 1 min, 2 min

PICTURE DELAY

Selects the trigger delay at which you want to run your camera. This is the amount of time between each trigger the camera takes.

Options are: 2.5 sec, 5 sec, 10 sec, 20 sec, 30 sec, 1 min, 5 min, 10 min, 30 min, 60 min

On a lower setting, the camera will trigger more often than when a higher delay is selected.

BURST MODE

Sets how many photos the camera will take in a row when the camera is triggered. The amount of time you want between burst photos will determine if you want Burst Fast or Burst Standard set.

Burst Fast = .6 seconds delay in between burst photos

Burst Standard = 2 seconds delay in between burst photos

Options are: 2–8 Burst Fast, 2–8 Burst Standard, OFF

Example: Setting the camera to 3-Burst Fast will give you 3 photos, .6 seconds apart

Setting the camera to 3-Burst Standard will give you 3 photos, 2 seconds apart

TEMPERATURE UNIT

Imprints the current temperature on your photo/video files.

Options: Fahrenheit or Celsius

CAMERA ID

Gives a name to your trail camera that will imprint on the photo/video files.

PICTURE INFO BAR

Allows you to choose if you want the photo/ video files to have the current information imprinted on your files or not.

Info included on bar:

MOTION TEST

Allows you to determine distance and aim for your detection zone. When this setting is on, you can walk to your target area and move around. The red detection LED will light up when the camera detects you. The camera will arm when it does not detect motion for 30 seconds.

DEFAULT SETTING

Resets all of the menu settings back to default. Reference Quick Start default settings.

TIMELAPSE FREQ

Sets the period of time you want between timelapse photos.

Options are: 5 sec, 10 sec, 20 sec, 30 sec, 1 min, 2 min, 5 min, 10 min, 30 min, 60 min

Example: If you choose 1 minute, a photo will be taken once every minute for the Timelapse Period you set it for (see below).

TIMELAPSE PERIOD

Sets the period of time the camera will take timelapse photos.

Options are: Custom Timer Am, Custom Timer PM

The Timer AM and Timer PM period settings can be individually programmed.

Example: Timer AM 6:00 AM ->10:00 AM will take images during this 4 hour period for the set Timelapse Freq. Timer PM 3:30 PM ->6:00 PM will take images during this 2.5 hour period for the set Timelapse Freq.

Note: Timelapse images will store in a separate folder on your SDHC card for easy access when reviewing your Pro-Cam images. Using the timelapse option might fill up your SDHC card more often than normal depending on your settings.

FLASH MODE

Gives you the option to have the camera automatically use the Invisible Flash LEDs when necessary, or off.

Options: AUTO or OFF

Turning the flash mode off will trigger photos during hunting hours only, which can extend your battery life and save storage space.

PIR SENSITIVITY

Adjusts the sensitivity at which the camera detects an object in the field of view and triggers to take a picture.

Options are Low, Medium, High.

You are able to fine tune the sensitivity depending on the various weather environments.

FORMAT SDHC CARD

Allows you to format your SDHC Card. Formatting a SDHC card clears file system corruption and erases everything on the SDHC card. NOTE: It is highly recommended to either perform a full format on the SDHC Card via a PC, or by performing the Format option on the trail camera before each use.

FW VERSION

Displays the version of firmware that is installed on the camera.

SD OVERWRITE

When the SD Overwrite feature is ON, if the SDHC card is full, the camera will begin to erase the oldest picture or videos on the SDHC card and overwrite with the new pictures and videos.

MOUNTING & FIELD SET-UP

Your Pro-Cam trail camera comes with a 5' nylon mounting strap which allows for quick and easy mounting (Fig. 1). The camera has an open slot on each side of the back for your strap to thread through for mounting. There is also a cable track formed in the back of the camera for additional cable securing (cable sold separately). The bottom of the camera features a ¼"-20 mount receiver to attach to various Muddy mounts (MTCA-TCS03 Dual Camera Ground Mount, MTCA-TCS02 Adjustable Trail Camera Support, sold separately) (Fig. 2). Your Pro-Cam trail camera also has a loop in the latch for padlock security (padlock sold separately) (Fig. 3).

Once you have your trail camera mounted where you want it. Be sure you run the "Motion Test" function on your camera for proper aim and distance.

The motion detection angle of your Pro-Cam trail camera is about 50 degrees, which is slightly wider than the camera Field of View. The motion detection distance in ideal conditions is 50 feet. This can be greatly affected by weather conditions, animal body size, and speed at which an animal passes through the detection zone.

ARMING THE CAMERA

Your Pro-Cam trail camera will arm itself to take pictures when powered on, with no button activity for 30 seconds, and on the home screen. After 30 seconds, the camera is armed and ready to take pictures. The camera will arm itself in 90 seconds with no activity and in the camera menu.

You can also quickly activate the camera by pressing the RIGHT arrow from the main startup screen. This will start a 3 second delay. At which point, the camera will be armed and ready to take pictures.

REVIEWING IMAGES

The easiest way to review the images on your SDHC card, is to insert the card into a home computer.

Some computers will have a SDHC slot equipped, where you can directly insert and view the images.

If your computer does not come equipped with an SDHC slot, you will need to purchase an SDHC Card Reader. These are inexpensive, and can be found at your local electronics/ hardware store.

CAMERA CARE

Moisture, vibration, and extreme temperature can cause severe damage to your trail camera and should be avoided. Keeping your camera free from moisture and vibration and using in the correct temperatures will assure you many years of maintenance free service and operation.

MOISTURE

Although the Pro-Cam trail camera has a very durable waterproof membrane inside the molded ABS material shell, care must be taken to prevent water damage.

• NEVER mount your trail camera upside down or leave the case open for an extended period of time.
• NEVER change batteries, camera settings, or SDHC Cards in heavy rain.
• If your camera would happen to get water inside, remove the batteries immediately and allow the camera to dry out for several days before activating it.

VIBRATION

Like any electronic device, your Pro-Cam trail camera is designed with many small electronic components that are very sensitive to vibration. Failure to follow careful handling and transport may cause extreme and irreparable damage to your camera.

• NEVER drop the camera on a hard surface
• ALWAYS transport your camera in a method to avoid bouncing around or vibration

TEMPERATURE

Recommended storage and operating temperature: -10°F to 140°F. NOTE: Battery life and functions may discontinue or experience shortness in extreme cold/warm temperatures

• NEVER store your camera in a vehicle or other contained environment with extremely high temperatures for an extended period of time!

TROUBLESHOOTING

CAMERA NOT RESPONDING: If your camera at any time does not respond when powered on, or you cannot power it off, your camera may be locked up. The best way to resolve this problem is to remove the AA battery compartment for a period of 10 seconds. This will cut the main power supply to the camera and will take care of the problem. If you are using an alternate power supply, remove any connections for a full 10 seconds.

BAD SDHC CARD: Over time a SDHC or any storage device could become corrupt. If your camera fails to acknowledge the SDHC card, we recommend that you replace the card with a new SDHC card or one from a different MUDDY trail camera that you know works. This will help determine whether the problem is the SDHC card or the camera. We do NOT recommend using cards that have been used in cameras from different manufactures and/or different styles of cameras unless a Full Format on a PC is done to those cards.

NOTE: If you used a Point and Shoot camera to view your pictures and videos on the SDHC Card, this may cause problems when inserted back into your trail camera. It is recommended to do a Full Format on a PC before it goes back into the trail camera.

IMAGE QUALITY: Your Pro-Cam is designed to give you optimum trigger speed, along with great night photo clarity. There may be some instances where an animal is moving extremely fast or light conditions may be insufficient, causing a smearing/blurry object within your image. This is a natural part of photo taking and may occur from time to time.

Prolonged exposure from looking directly into any infrared light could cause cataracts or permanent retinal damage. Do not look directly into the camera during test mode! Failure to follow this warning may cause serious injury or blindness!

Do not expose camera interior components, batteries, or SDHC card to rain or water. Make sure camera and hands are completely dry before handling. Failure to follow this warning may result in serious damage to the camera and/or its parts, personal electrical shock or death!

Only batteries as designated in this manual should be used. Failure to follow this warning may result in leaking batteries, serious damage to the camera, and personal injury or death!
