Summary of Contents for Muddy PRO-CAM 20

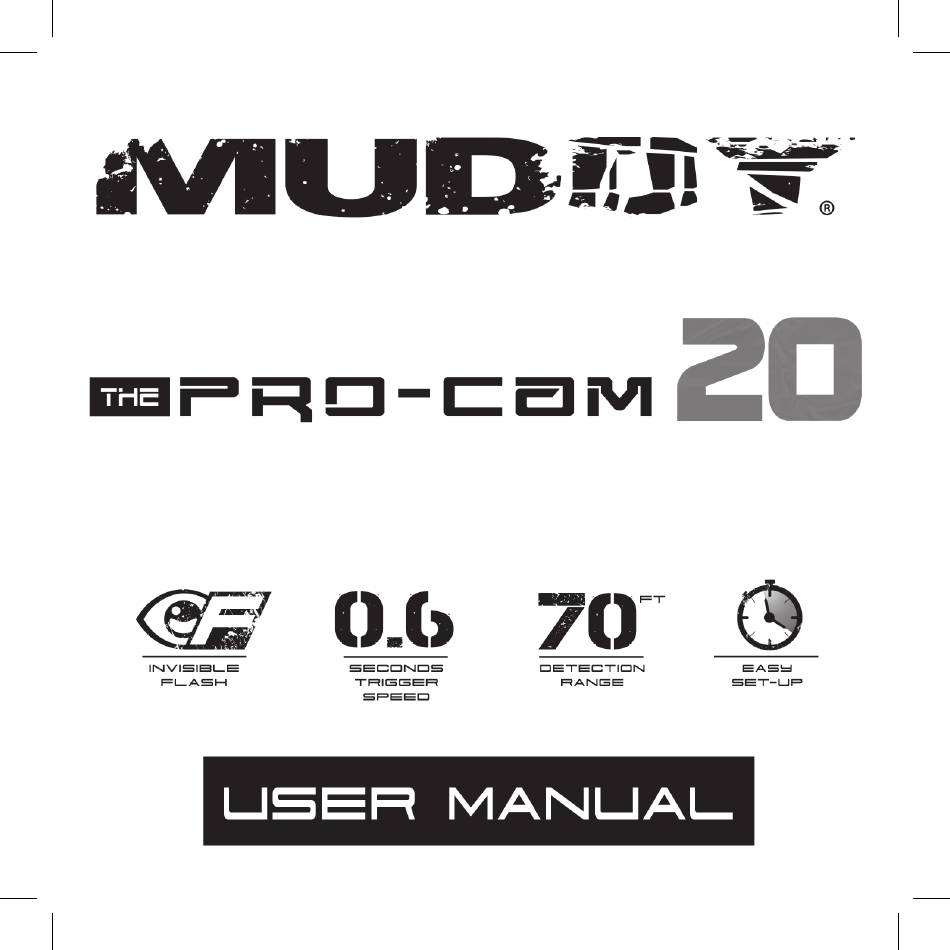

- Page 1 MODEL MTC600...
-
Page 2: Table Of Contents
ITEMS REQUIRED FOR STARTUP......ADVANCED SETTINGS ........10 FEATURES & SPECS........... MOUNTING & FIELD SETUP......16 CAMERA DIAGRAMS........CAMERA CARE ..........18 BATTERY INSTALLATION........TROUBLESHOOTING........19 MEMORY CARD INSTALLATION......WARRANTY INFORMATION......20 QUICK-START........... OWNER’S RECORD...........21 INCLUDES: Camera Manual 5’ Mounting Strap REQUIRED FOR STARTUP: • 6-AA Cell Alkaline Batteries (recommend name brand for best performance, sold separately) •... -
Page 3: Features & Specs
FEATURES & SPECS: Camera Specifications 1280 x 720 HD with Sound Image Res. 20 MP (Day), 5 MP (Night) Video Mode or VGA (32 FPS) with Sound Image Detail Color (Day), B/W (Night) Video Length 6 Options: 5 Sec - 2 Min Illumination 36 LEDs with Invisible Flash Detection Range... -
Page 4: Camera Diagrams
LEDs Camera Lens Light Motion Test LED Sensor Power PIR Sensor Button S E T U P D A T E T I M E 0 1 0 2 1 6 01 : 0 1 A M O O K Door Mode Set-up... - Page 5 SDHC Card Slot 12V DC Mounting Receiver Battery Chamber Latch Port (1/4” - 20) Release...
-
Page 6: Battery Installation
INSTALLING BATTERIES: Fig. 1 IF USING AA - CELL BATTERIES 1. To remove the internal AA battery pack, press chamber lightly and slide the eject/open button inside camera cover (Fig. 1). Next, pull Fig. 2 Fig. 3 firmly to remove chamber and insert batteries (Fig. - Page 7 BATTERIES CONT . . . Fig. 2 IF USING 12V DC POWER SOURCE 1. Remove the rubber port cap at the bottom of the camera (Fig. 1). Using a universal 12V DC cord, plug in to the bottom port option (Fig.
-
Page 8: Memory Card Installation
MEMORY CARD INSTALL: (sold separately) Fig. 1 1. To access the user interface and insert a SDHC Card, lift up on the side locking latch located toward the bottom of the side of the camera. After the latch is disengaged, move latch to allow the interface door to open (Fig. -
Page 9: Quick-Start
QUICK-START: Your Pro-Cam will come with the following standard options already preset. You can leave all settings as defaulted to start taking quality pictures, but you’ll want to make sure to set up the current Date and Time. Setup date/time (Defaults to original date/time – may need to be re-programmed if you reset the default settings) CAMERA ID –... - Page 10 TIME AND DATE: This will set the Date, Year, and Time of day to be imprinted on your photos/videos. Press the OK button for the month setting to flash. Use the UP and DOWN arrows to change. Press the LEFT or RIGHT arrows to move to the DATE and set this accordingly.
- Page 11 IMAGE QUALITY: I M A G E Q U A L I T Y Sets the quality at which you would like the camera H I G H to take the pictures. Setting your Pro-Cam to low will allow you to store more images on the SDHC card, at a lower quality.
- Page 12 BURST MODE: B U R S T M O D E Sets how many photos the camera will take in a row when the camera is triggered. The 3 - B U R S T S T A N D A R D amount of time you want between burst photos will determine if you want Burst Fast or Burst Standard set.
- Page 13 PICTURE INFO BAR: P I C T U R E I N F O B A R Allows you to choose if you want the photo/ video files to have the current information imprinted on your files or not. Info included on bar: MOON CAMERA ID PHASE BURST TEMP...
- Page 14 TIMELAPSE FREQ: T I M E L A P S E F R E Q Sets the period of time you want between timelapse photos. 1 M I N U T E Options are: 5 sec, 10 sec, 20 sec, 30 sec, 1 min, 2 min, 5 min, 10 min, 30 min, 60 min Example: If you choose 1 minute, a photo will be taken once every minute for the Timelapse Period you set it for (see below).
- Page 15 PIR SENSITIVITY: P I R S E N S I T I V I T Y Adjusts the sensitivity at which the camera detects an object in the field of view and H I G H triggers to take a picture. Options are Low, Medium, High.
-
Page 16: Mounting & Field Setup
(cable sold separately). The bottom of the camera features a ¼”-20 mount receiver to attach to various Muddy mounts (MTCA-TCS03 Dual Camera Ground Mount, MTCA-TCS02 Adjustable Trail Camera Support, sold separately) (Fig. 2). Your Pro-Cam trail camera also has a loop in the latch for padlock security (padlock sold separately) (Fig. - Page 17 ARMING THE CAMERA: Your Pro-Cam trail camera will arm itself to take pictures when powered on, with no button activity for 30 seconds, and on the home screen. After 30 seconds, the camera is armed and ready to take pictures. The camera will arm itself in 90 seconds with no activity and in the camera menu.
-
Page 18: Camera Care
CAMERA CARE: Moisture, vibration, and extreme temperature can cause severe damage to your trail camera and should be avoided. Keeping your camera free from moisture and vibration and using in the correct temperatures will assure you many years of maintenance free service and operation. MOISTURE: Although the Pro-Cam trail camera has a very durable waterproof membrane inside the molded ABS material shell, care must be taken to prevent water damage. -
Page 19: Troubleshooting
SDHC card, we recommend that you replace the card with a new SDHC card or one from a different MUDDY trail camera that you know works. This will help determine whether the problem is the SDHC card or the camera. We do NOT recommend using cards that have been used in cameras from different manufactures and/or different styles of cameras unless a Full Format on a PC is done to those cards. -
Page 20: Warranty Information
Muddy Pro-Cam Trail Camera’s 1 Year Limited Warranty: For a period of 365 days after purchase, Muddy will, at its discretion, repair or replace this product for any reason of any defect or malfunction. This warranty is only valid if the product is used for the purpose intended and has not been tampered with and/or physically damaged in any way. -
Page 21: Owner's Record
OWNER’S RECORD: Product Name Model Number Serial Number Purchased From Purchased Date... - Page 24 Premier Outdoor Equipment, LLC. PO Box 454 , Windom, MN 56101, Toll Free: 844-745-7723...
