Sinope SW2500ZB - Smart Light Switch Manual

YOUR DEVICE

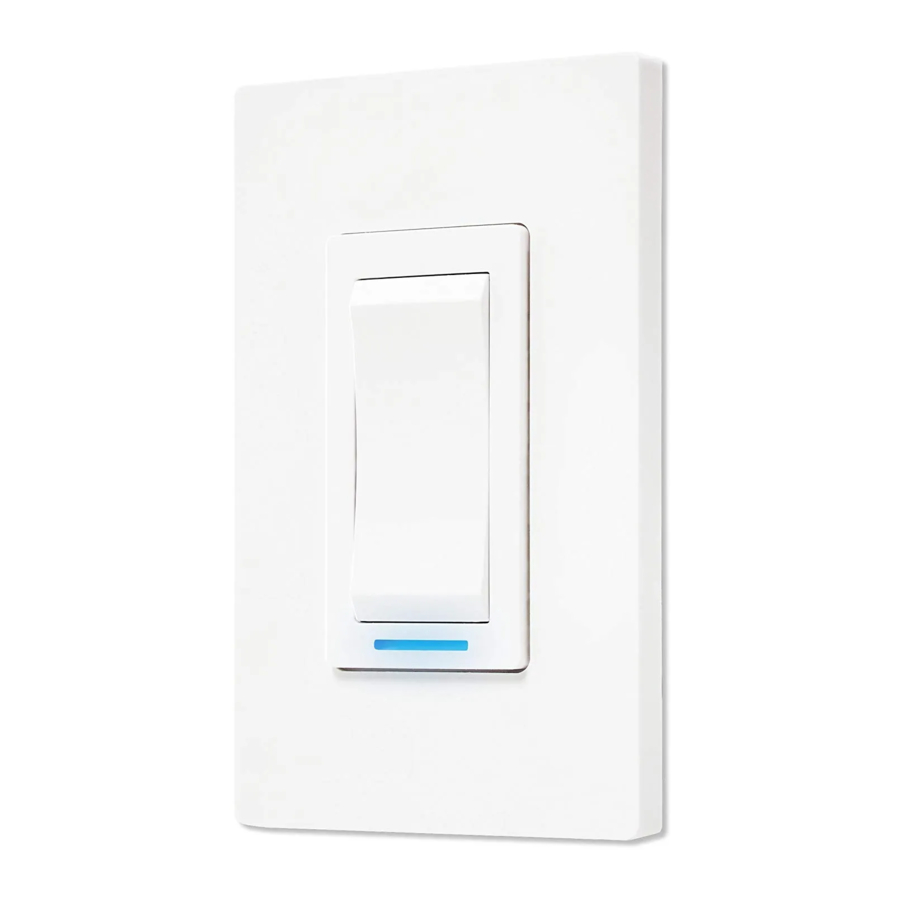

Device Overview

Light turned ON = Blue
Light turned OFF = Amber

The intensity of the indicator light can be changed from Neviweb and some compatible Zigbee gateways.

The installation of this light switch must be performed by a certified electrician and comply with the national and local electrical codes and regulations.

This light switch requires a neutral wire. If your electrical box does not have a neutral wire, you can either add one or install the light switch at a different location.

SINGLE POLE WIRING DIAGRAM

SINGLE POLE WIRING DIAGRAM

3-WAY WIRING DIAGRAM

3-WAY WIRING DIAGRAM

INSTALL YOUR DEVICE

  1. Make sure that the breaker for your switch is OFF at the main electrical panel, then remove the old switch.
    INSTALLING YOUR DEVICE
  2. Use the provided connectors to connect the wires as follows:

    *Note: For a single pole installation, do not remove the label on the blue wire. For a 3-way installation, consult the 3-way wiring diagram above.
  3. Use the provided screws to secure the light switch to the electrical box, then replace the wall plate.
  4. Power up the switch.


Make sure to firmly tighten the wire connectors for a secure connection. A loose connection can be a fire hazard. Special CO/ALR solderless connectors must be used when connecting with aluminum conductors.

ADD YOUR DEVICE TO THE GT130 AND NEVIWEB

  1. If you do not have an account yet, download the Neviweb app for iOS or Android to create an account and add your device.

www.apple.com

play.google.com

  1. Tap the , then select "Add Device".
    ADDING YOUR DEVICE TO THE GT130 AND NEVIWEB
  2. Follow the steps of the Installation Wizard.

CONNECT YOUR UNIT TO THE GT130 GATEWAY OR A COMPATIBLE ZIGBEE SYSTEM

  1. Initiate the connectivity session by pressing the RF signal button on the GT130 gateway. The indicator light will start flashing.
    Compatible Zigbee gateway: refer to the installation guide for the latter.
  2. Connect your dimmer to the network by simultaneously pressing the two buttons for 1 second.
    On the switch: The indicator flashes blue when the device is connecting.
    The indicator turns red = Failed
    Refer to the "support" section of our Website to troubleshoot the unit.
    The indicator turns green = Connected
    After a few seconds, the indicator changes color depending on the switch status.
    (Turned ON = blue, Turned OFF = amber)
  3. Connect all your compatible Zigbee devices the same way, by going to the next closest device.
  4. When all your devices are connected, close the connectivity session of your GT130 gateway or your compatible Zigbee gateway.

DISCONNECT YOUR UNIT FROM THE GT130 GATEWAY OR A COMPATIBLE ZIGBEE SYSTEM

DISCONNECTING YOUR UNIT FROM THE GT130 GATEWAY
To disconnect your light swtich from the GT130 gateway or a compatible Zigbee system, press the 2 buttons of the light switch simultaneously for 10 seconds.

TECHNICAL SPECIFICATIONS

Operating voltage: 120 Vac, 60 Hz
Operation temp.: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 50°C (-4°F to 122°F)
Standard UL: Conforms to ANSI/UL Std. 916
Standard CSA: Certified to CAN/CSA Std. C22.2 No205

PROVIDED CONNECTORS SPECIFICATIONS:
Stripping length: 16 mm
Wires: 22-10 AWG, Cu
Combinations: Max. 2 #12 & 2 #14, Min. 3 #20 Sol.
Connector Stripping length

MAXIMUM LOAD:
450 W: LED, CFL, Halogen
600 W: Incandescent
1800 W: Resistive
1/2 HP: Ceiling fan

Protocol: Zigbee 3.0
Frequency: 2.4 GHz
Transmission power: +20 dBm
Receiver sensitivity: -108 dBm

Neviweb is a registered trademark of Sinopé Technologies Inc. in Canada and the United States. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google Inc.

3-YEAR LIMITED WARRANTY

SINOPE TECHNOLOGIES INC. warrants the components of their products against defects in material and workmanship for a 3-year period from the date of purchase, under normal use and service, when proof of purchase of such is provided to the manufacturer. This warranty does not cover any transportation costs that may be incurred by the consumer. Nor does it cover a product that has been improperly installed, misused or accidentally damaged. The obligation of SINOPÉ TECHNOLOGIES INC., under the terms of this warranty, will be to supply a new unit and this releases the manufacturer from paying the installation costs or other secondary charges linked to replacing the unit or the components.

For more information, visit our Website:
www.sinopetech.com
