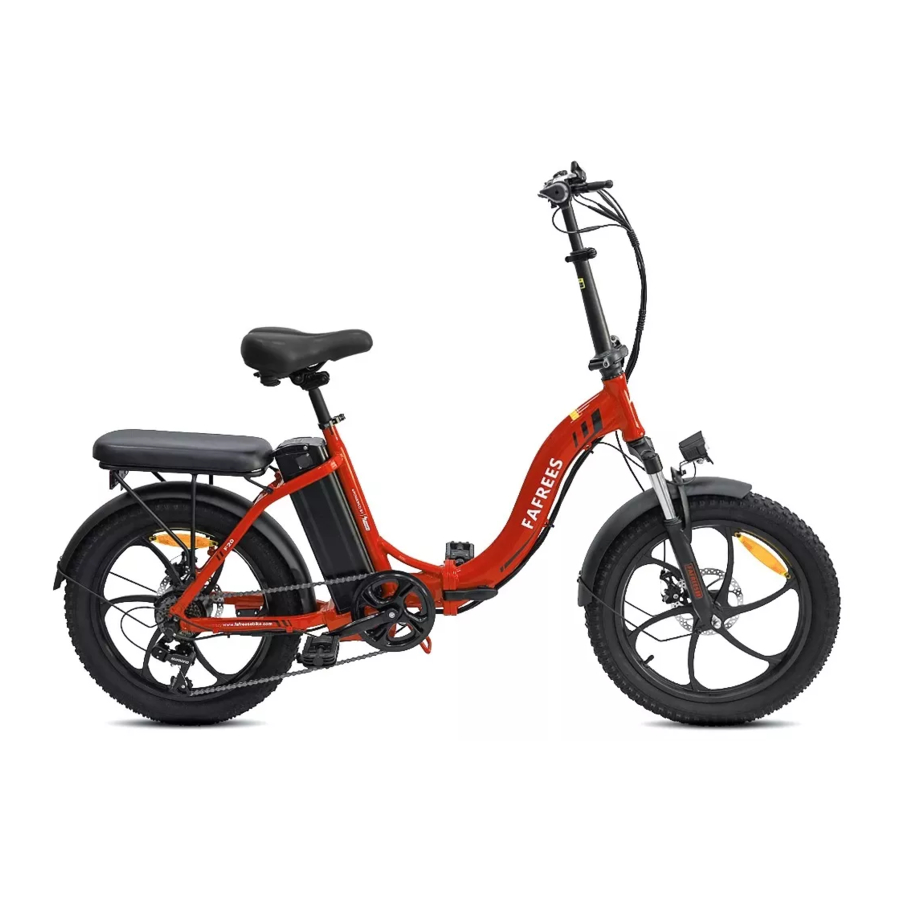

FAFREES F20 - ELECTRIC BIKE MANUAL

Product Safety Notice

Don't Ride Until You Read This:

Always wear a helmet when riding your electric bike.

Keep the two keys properly. If the unique keys are lost, you will not be able to turn on the bike or replace the battery. If necessary, you should get more spare keys We don't have a backup key

Make sure your electric bike has a full battery before taking it out to ride.

Always be aware of local road laws, and follow them.

Do not ride the bike under the influence of drugs or alcohol.

Always respect pedestrians.

Do not ride under wet conditions. The electric bike may slide from under your feet causing injury. Wet conditions may damage the electronics and void the warranty.

Warning Message

1. Avoid water - The electric bike is not waterproof. The electronics may be damaged due to water and water damage is not covered by our warranty. Riding in wet conditions is also very dangerous and may result in injury.
2. Avoid prolonged exposure to sun or rain and avoid storage in places with high temperatures or corrosive gas.
3. Abuse - We do not cover physical damage due to negligent care and extreme riding.
4. Whenever you ride the electric bike, you risk severe injury or even death from loss of control, collisions, and falls. Use caution and ride at your own risk.
5. Do not modify the product from the manufacturers original design.
6. Do not exceed the posted speed limit and obey all traffic laws.
7. Avoid touching the charging port directly and do not let it make contact with a metal object.
8. Keep hands and all body parts away from moving parts while operating the electric bike.
9. Before riding - be sure to check the electric bike over and make sure the electric bike is operating correctly before each use.
10. Before riding - be sure to check that the braking system is functioning properly; also be sure to check that all safety labels are in place and you understand the safety warnings.
11. Before riding - be sure that any and all axle guards, chain guards, or other covers or guards supplied by the manufacturer are in place and in serviceable condition.
12. Before riding - be sure to check that the tires are in good condition, inflated properly, and have sufficient tread remaining.
13. Never exceed the 330 lbs (150kg) maximum load rating.
14. The electric bike should never be used by children under the age of 18.
15. Maximum Speed - Your electric bike goes the maximum speed of 25 km/h.
16. Make note that additional insurance may be required to cover situations you encounter while riding an electric bike. It is recommended that you contact an insurance company or broker for advice and consultation.
17. To conserve electricity, use assist mode and avoid zero starting, frequent braking, driving against the wind, carrying heavy loads including other people and riding with insufficient air pressure.

Package Contents

Carefully check package contents, if anything is missing or damaged, please contact FAFREES customer service for support:fafreesservice@hotmail.com

Product Overview

Assembly

Visit www.fafreesebike.com for additional help with assembly, including a step-by-step video walk-through.

If you do not feel comfortable assmebling the bike yourself, we recommend talking your new bike to a bike shop for assembly and inspection. If you are willing to assemble the bike yourself, be sure to follow all instructions, properly adjust gears and brakes, and set tire pressure

1. Be careful not to position your fingers between the latch and the frame. Doing so may result in injury.

2. Unfold the rear wheel/ section and hold your e-bike upright with the kickstand. Push the latch closed so that it's parallel with the bike's frame then turn the latch lock down towards the latch to lock it in place.

3. Open the kick stand and place the entire bike.


1. Turn the handle up in the direction of the arrow.

2. Push the latch in the direction of the arrow to open the locking mechanism.

3. Fold the handlebar perpendicular to the ground

4. Tighten the screws to fix the handlebar in place

5. Erect the riser and press the handle in the direction of the arrow to lock it.

6. Adjust the height of the handlebar to an appropriate position.


For better pedaling, safety and overall riding comfort, positioning the seat at the right height is important. The rider's leg length is used to determine the seat's position. When you pedal, your hips should remain level and your legs should be almost fully extended at the bottom of the pedal stroke, but not over-extended.
To determine the right seat height, sit on the E-bike with one pedal at its lowest point and place the ball of your foot on the pedal. Your leg should be almost fully extended (not lockedout) with a slight bend at the knee.

1. Open the quick release lever by swinging the lever open and outward fully.

2. Move the seat up and down by sliding the seatpost in our or out of the seat tube.

3. Adjust the seat and the head of the seat is parallel with the top tube.

4. Close the quick release lever using your palm or finger.


1. Locate the right-side/left side pedal, which is marked "R," "L,"should have an "R""L," sticker attached.

2. Thread the right pedal onto the right crank gently by hand, turning clockwise. Then tighten pedal by allen wrench.

3. Thread the left pedal onto the left crank gently by hand, turning counter-clockwise. Then tighten pedal by allen wrench.

4. Check the chain alignment. Rotate the right pedal and crank toward the back of the bike as though pedaling backward. Watch the chain and ensure the chain runs through the drivetrain (the rear cog, chain tensioner, and around the front chainring) smoothly.


Battery Key Positions

Start-up procedure

Remove the battery

Charge Your Device

Before using the electric bike, you must fully charge the battery.

1. Ensure the battery is off, by rotating the key to align with the off icon.
   The battery can be charged off the bike. To remove the battery, turn the key to the UNLOCK position. (see the previous remove battery section for details), Then carefully pull the battery up until the battery detaches from the receptacle.

2. Remove the rubber cover on the charging port on the opposite side of the battery from the key switch. Connect the DC output plug from the charger to the charging port on the side of the battery.

3. Plug the charger into the battery's charging port. With the battery on or off the bike, place the charger in a flat, secure place, and connect the DC output plug from the charger to the charging port on the side of the battery.

4. Plug the charger into a power outlet, charging should initiate and will be indicated by the LED charge status lights on the charger turning red. Once fully charged, the charging indicator light turning green. Unplug the charger from the wall outlet first and then remove the charger output plug from the battery charging port.


Display and Setting

TRIP: This number shows distance data for a single trip. Data is automatically cleared when the bike is powered off.
ODO: This number shows odometer data(i.e., cumulative distance)
TIME: This number shows driving time for a single trip. Data is automatically cleared when the bike is powered off.
POWER ASSISTED Level: 0,1,2,3: Displays the current power assisted level.

Display Control

Personalized Setting

Setting Mode: When the bike is on, press and hold + and - buttons at the same time to enter the setting mode. Press M to confirm and enter the next setting, press + or - to change the parameters.

Set speed unit
Press the M button to enter the P1 setting interface, and press the + or - button to switch the values. If you select 0, it is KM/H, and if you select 1, it is MPH. After setting, press the M button several times to exit the setting interface.

Setting wheel diameter
Press the M button to enter the P2 setting interface, and press the + or - button to switch values. After setting, press the M button several times to exit the setting interface.

Daily Care and Maintenance

Cleaning and Storage

If you see stains on the bike body, wipe them off with a damp cloth. If the stains won't scrub off, put on some toothpaste, and brush them with a tooth brush, then wipe them off with a damp cloth.

Notes: do not clean the bike with alcohol, gasoline, kerosene or other corrosive and volatile chemical solvents to prevent dire damage. Do not wash the bike with a high-pressure water spray. During cleaning, make sure that the bike turned off, the charging cable is unplugged, and the rubber flap is closed as water leakage may result in electric shock or other major problems. When the bike not in use, keep it indoors where it is dry and cool between 14°F and 104°F. In extremely humid environments the interior of the bike may suffer condensation or even water accumulation, which may damage the battery rapidly.

Battery Maintenance

1. Use original battery packs, use of other models or brands may bring about safety issues;
2. Do not touch the contacts. Do not dismantle or puncture the casing. Keep the contacts away from metal objects to prevent short circuit which may result in battery damage or even injuries and deaths;
3. Use original power adapter to avoid potential damage or fire;
4. Mishandling of used batteries may do tremendous harm to the environment.
5. After every use, fully charge the battery to prolong its life span.
6. Try to avoid recharging the bike after completely exhausting the battery. If the Battery power is low, charge it as soon as possible.
7. Charge the battery every month if it is not in use.

Troubleshooting

Specifications

COPYRIGHT 2022 FAFREES. ALL RIGHTS RESERVED.
Visit www.fafreesebike.com or contact fafreesservice@hotmail.com for more information and after-sale service.

MANUFACTURER INFORMATION
Manufacturer: Guangzhou Gedesheng Electric Bike Co.,Ltd.
Address: No.105, Commercial Street, Guangtang Village,
Xinya Street, Huadu District, Guangzhou, Guangdong, China

Documents / Resources

References

• Fafrees Ebike

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download FAFREES F20 - ELECTRIC BIKE MANUAL
