BIGBIG WON Elitist-S - Three-Mode Wireless Gaming Controller Manual


the controller should be fully charged before using for the first time.

PACKAGE CONTENTS

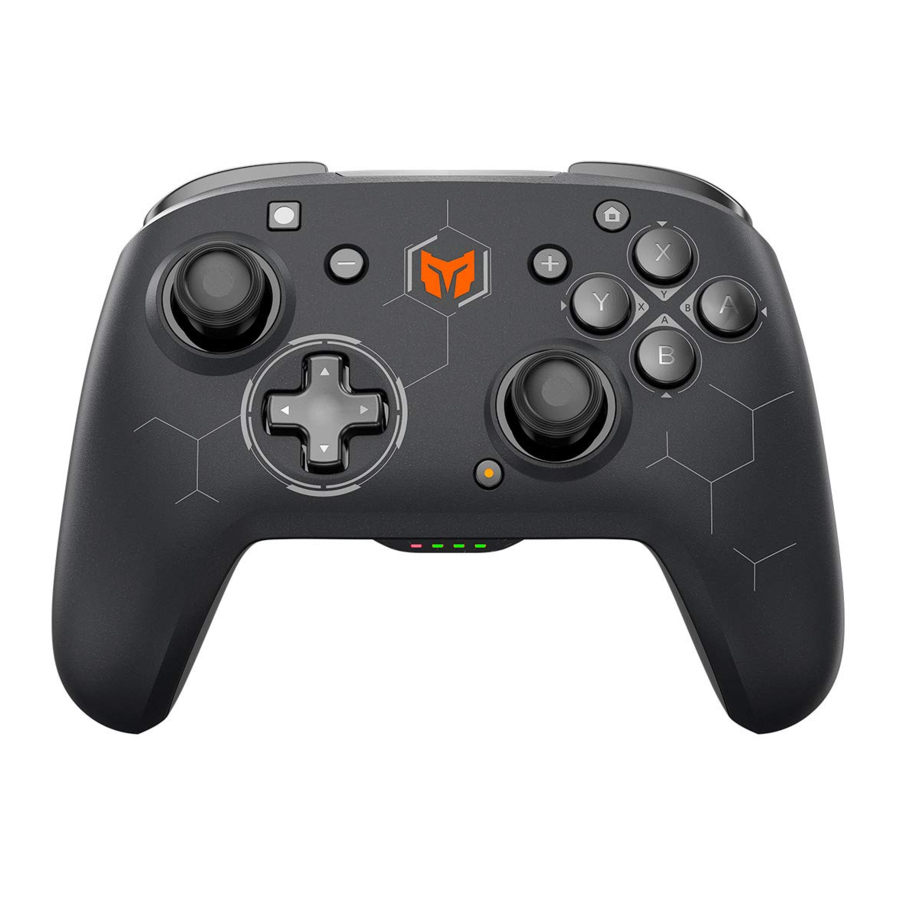

BIGBIG WON Elitist S Wireless Game Controller
2.4GHz Wireless Dongle
1.6 Meters Micro-USB Cable
User Manual

SYSTEM REQUIREMENTS

Switch/Switch lite
Windows 10 or above
Android 9.0 or above
iOS 13 or above
*Device with a free USB port

REGISTRATION

Register your BIGBIG WON ID online at www.bigbigwon.com to get real-time information on your product's warranty status and a series of exclusive benefits from BIGBIG WON.

YOUR BENEFITS

*12-month limited warranty from the date of purchase.
*Free online technical support at www.bigbigwon.com

YOUR BENEFITS

  1. HOME Button
  2. + Button
  3. Button
  4. Capture Button
  5. Left Joystick/L3
  6. Right Joystick/R3
  7. Directional Pad
  8. A/B/X/Y Action Button
  9. FN Button/FN Indicator
  10. Custom Back Button Module
  11. Custom Back Button Module Buckle
  12. ZL Button
  13. L Button
  14. ZR Button
  15. R Button
  16. PAIR Button
  17. USB Charging Port
  18. Mode Indicator
  19. Power Indicator
  20. 2.4GHz Wireless Dongle
  21. Micro-USB Cable

CONNECT TO SWITCH DEVICES

Connect to Switch via Bluetooth

  1. Long press PAIR button for 3 seconds to enter Bluetooth paring waiting state, and mode indicator flashes in green .
  2. Go to the controller pairing interface of Switch (Homepage>Controllers>Change Grip/Order) and continuously and quickly press L + R button to connect according to the prompts.
  3. When the corresponding controller icon shows on the Switch interface, Elitist S mode indicator stays red , and connected successfully.

Switch Wireless Wake-up

When Elitist S is connected with Bluetooth, press HOME button to wake up Switch.

Connect to Switch via a USB cable

  1. Turn on Pro Controller Wired Communication on Switch by selecting (System Settings> Controllers and Sensors>Pro Controller Wired Communication).
  2. Plug the USB cable from Elitist S to the USB port located on Switch base.
  3. When the corresponding controller icon shows on the Switch interface, Elitist S mode indicator stays red , and connected successfully.

CONNECT TO PC DEVICES

Connect to PC Device via Bluetooth

  1. Long press PAIR button for 3 seconds to enter Bluetooth paring waiting state, and mode indicator flashes in green .
  2. Go to the Bluetooth search interface of the PC device, and connect with Pro Controller.
  3. Elitist S mode indicator stays red , and connected successfully. Only for the PC devices with Bluetooth.

Connect to PC Device via 2.4GHz Wireless Dongle

  1. Plug 2.4GHz wireless dongle to the USB port of PC device.
  2. Long press PAIR button for 3 seconds to enter 2.4GHz connection waiting state, and mode indicator flashes in green .
  3. Elitist S mode indicator stays green , and connected successfully.

Connect to PC Device via a USB cable

  1. Plug the USB cable from Elitist S to the USB port of PC device.
  2. Elitist S mode indicator stays green , and connected successfully.

CONNECT TO ANDROID DEVICES

Connect to Android Device via Bluetooth

  1. Long press A + PAIR button simultaneously for 3 seconds to enter Bluetooth paring waiting state, and mode indicator flashes in green .
  2. Go to the Bluetooth search interface of the Android device to search and recognize Elitist S, and connect with Elitist S after successful recognition.
  3. Elitist S mode indicator stays blue , and connected successfully.

Connect to Android Device via 2.4GHz Wireless Dongle

  1. Plug 2.4GHz wireless dongle via an adapter(sold separately) to the USB port of Android device.
  2. Long press PAIR button for 3 seconds to enter 2.4GHz connection waiting state, and mode indicator flashes in green .
  3. Elitist S mode indicator stays green or blue , and connected successfully.

Connect to Android Device via a USB Cable

  1. Plug the USB cable from Elitist S to the USB port of Android device.
  2. Elitist S mode indicator stays green or blue , and connected successfully.

CONNECT TO iOS DEVICES

  1. Long press B + PAIR button simultaneously for 3 seconds to enter Bluetooth paring waiting state, and mode indicator flashes in green .
  2. Go to the Bluetooth search interface of the iOS device to search and recognize Xbox Wireless Controller, and connect with Xbox Wireless Controller after successful recognition.
  3. Elitist S mode indicator stays white , and connected successfully.

BUTTON FUNCTIONS

System Volume Control

Press FN + UP/DOWN button of the directional pad simultaneously to set the volume (only for Android platform).

GYROCON+ Global Gyro Function

  1. Long press FN button for 3 seconds to turn on global gyro, and FN indicator stays purple .
  2. Repeat above step to turn off global gyro, and FN indicator lights off.

Motor Vibration Intensity Adjustment

  1. There are three levels of motors intensity that can be switched circularly.
  2. Press FN + RIGHT button of the directional pad simultaneously to switch motor vibration intensity from strong, medium to weak.

TURBO Function

  1. Press FN + TARGET button simultaneously to set TURBO function successfully, and FN indicator flashes in blue twice .
  2. Press FN + LEFT button of the directional pad to switch combo frequency from fast, middle to slow.
  3. Press the TARGET button that completed the combo setting to trigger combo function of the button, and FN indicator flashes in blue .
    Press FN button twice to cancel all TURBO settings.

Back Button Macro Function

  1. Long press FN + TARGET back button simultaneously to enter the recording state, and FN indicator turns orange and breathing .
  2. Press TARGET back button once after recording the button sequence and interval to exit recording mode, and orange breathing FN indicator lights off.
  3. Press TARGET back button to respond to the Macro setting as just recorded.
  4. Go to Macro recording mode and press TARGET back button once to cancel Macro setting.

Custom Back Button Settings

  1. Long press FN + TARGET back button simultaneously to enter the setting mode, and FN indicator turns orange and breathing .
  2. In setting mode, press TARGET button once to complete the setting, and orange and breathing FN indicator lights off.
  3. Go to customizable button setting mode and press TARGET back button once to cancel customized function of back button.

Button Functions

Button Function Mode Indicator Button Operation
Volume Control Press FN+= Set the volume up/down.
Global Gyro Switch Stay on/Light off Long press FN = Turn on/off the global gyro.
Motor Vibration Intensity Adjustment Press FN + = Circularly adjust the vibration intensity of the motor.
TURBO Function Setting Flash twice Press FN + TARGET button = Start Combo.
TURBO Frequency Adjustment Flash once Press FN + = Adjust three levels of TURBO frequency.
TURBO Function Cancellation Flash once Press FN twice = Cancel all TURBO settings.
Macro Setting Breathing Long press FN + TARGET back button = Enter the Macro setting. Press TARGET back button once = Exit the Marco setting.
Respond to Macro Setting Flash After setting, press TARGET back button once = Respond to Macro setting
Macro Setting Cancellation Flash twice In setting mode, press TARGET back button once = Cancel the Marco setting
Back Button Function Breathing Long press FN + TARGET back button = Enter the custom button setting. Press TARGET back button once = Exit the custom button setting
Back Button Function Cancellation Flash twice In setting state, press TARGET back button = Cancel custom button function setting.

POWER INSTRUCTIONS

Charging Time: 2-2.5 hours.
Recommended Voltage: 5V/1A
When Elitist S is connected or fully charged, right three power indicators stay green .
When Elitist S is in low power condition (below 15%), power indicator flashes in green quickly .
When Elitist S is charging, power indicator flashes in green slowly or stays green according to current power level changes.
Elitist S is equipped with 850mAh battery, and charging current should not be less than 500mAh.

SLEEP MODE/WAKE UP

  1. Controller will automatically switch to sleep mode after Switch screen turned off.
  2. Controller will automatically switch to sleep mode under no operation after 300 seconds.
  3. In Bluetooth mode, press HOME button for 3 seconds to disconnect, and the controller will switch to sleep mode.
  4. When Elitist S wireless game controller is in sleep mode, press any button to wake it up.

RESET

Long press HOME button for 10 seconds to reset in any power-on state.

USE TUTORIAL

GET HELP WITH BIGBIG WON SUPPORT

We are here to assist you with your BIGBIG WON devices. If you have any questions, please feel free to contact us:
BIGBIG WON Official Web: www.bigbigwon.com
Customer Service: support@bigbigwon.com

© 2021 BIGBIG WON Inc. All rights reserved.

Product may vary slightly from pictures.
