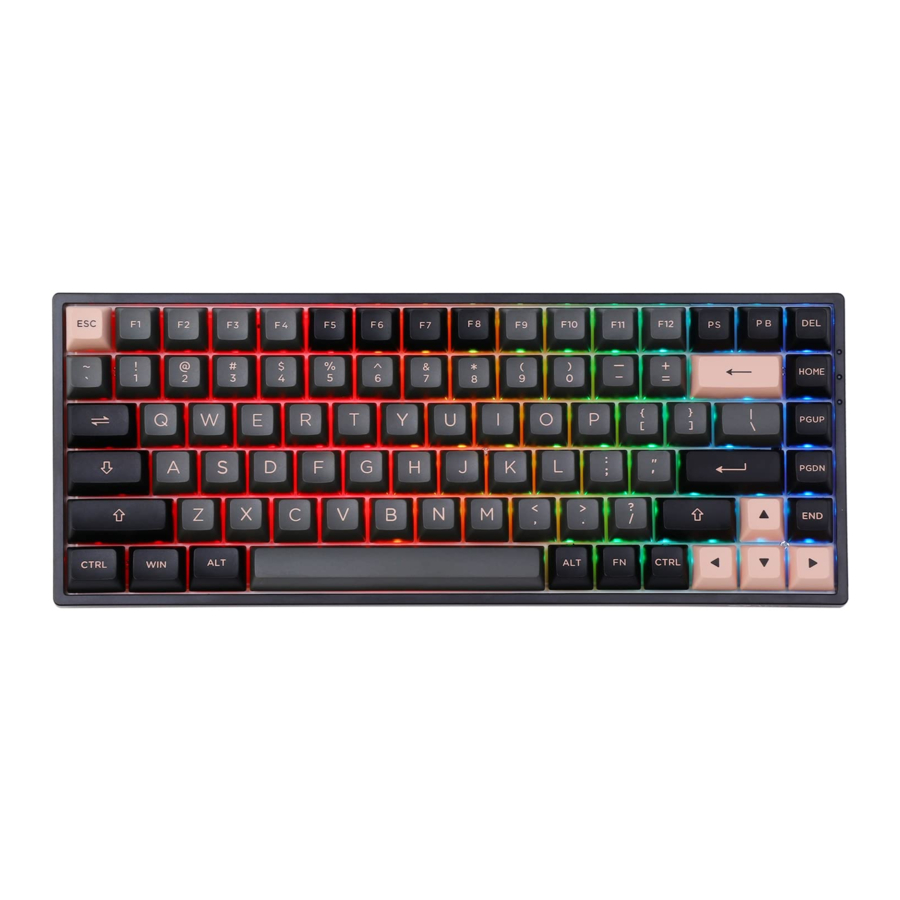

Akko 3084 BT 5.0 - Gaming Mechanical Keyboard Manual

Technical Specifications

HotKeys

Hold down FN and press right Ctrl
Revert Ctrl into Menu (APP) key

System Commands

Lock Windows Key: Press Fn and left Win key
Restore Factory Settings: Hold down Fn and press ~ key

Backlight Settings

Bluetooth Feature Overview

Bluetooth Setup Instruction

1. Switch to Bluetooth mode
   Long press FN+Tab and the Tab LED flashes. This means the Bluetooth mode is activated.
2. Set the Bluetooth profile
   The keyboard can memorize 4 switchable Bluetooth devices, which are saved in 4 Bluetooth profiles through short-cuts Fn+E/R/T/Y (corresponds to BT1/BT2/BT3/BT4); When you first use the keyboard, select a desired Bluetooth profile by pressing Fn+E/R/T/Y to initialize device searching; Once it's been setup and paired, whenever you use the keyboard again, it would memorize the last Bluetooth device it has been worked on, trying to send Bluetooth signal to communicate with the specific device.
3. Bluetooth Pairing
   When you use your PC/ PAD/iPhone to pair with the keyboard, and the Bluetooth mode of the keyboard and PC/PAD/iPhone have all been turned on, the keyboard would show up based on the Bluetooth profile you set in step 2 such as Akko 3084-BT1 / Akko 3084-BT2 / Akko 3084-BT3 / Akko 3084-BT4.

Bluetooth Setup Instruction 2

4. Switch the Bluetooth device
   After 4 Bluetooth devices have been paired with the keyboard, long press Fn+E / Fn+R / Fn+T / Fn+Y for at least 3 seconds to quickly switch between them.
5. Shut off the keyboard
   Turn the power off on the keyboard back panel while unused for power saving;
   If the keyboard remains unused for over 10 mins, it would go to sleep mode and you can activate it by pressing any key.
   Note: The battery saver mode for Windows system would affect/delay the sleep activation time of the keyboard.
6. Reset the keyboard
   If you forgot the specific paired front-end device or if there remains disorder in Bluetooth conneciton and communication, you can press Fn + ~ to reset the keyboard. This action erases all pairing information stored in your keyboard.

Akko Macro V1.0 Macro Setup Instruction 1

1. Akko Macro V1.0 is hardware-based and works without software-driven.
2. The following keys cannot be programmed: "Esc", "Fn" and "Left Win".
3. Akko Macro V1.0 does not support simultaneous trigger, that is, pressing "AB" at the same time will trigger the two keys in the order of A followed by B.
4. Akko Macro V1.0 does not support customized interval time, that is, the trigger interval between key A and key B cannot be defined and will follow the system's default trigger time.

Akko Macro V1.0 Macro Setup Instruction 2

Clear Macro: If a key has been defined, after entering the Macro editor, you can press" FN + the key" to clear its definition.
If you want to re-customize that key, press" FN + the key"again to start the new Macro recording after clearing its old definition.

Akko Macro V1.0 Macro Setup Instruction 3

Macro Recording Example: Define" A" as" AKKOGEAR"

Step 1: Press Fn + left Win for 3 seconds to enter the Macro mode.
Step 2: Press Fn + ESC to launch Macro editor.
Step 3: Press Fn + A. This means we choose key" A" to record.
Step 4: Press A, K, K, O, G, E, A, R in order as replacement definition of" A".
Step 5: Press Fn + A again to end the Macro recording of key" A".
At this point, pressing" A" in notepad will display" AKKOGEAR".
If you want to create a Macro for key" B", press Fn + B to start the Macro recording.
Step 6: Press Fn + Esc to exit Macro editor.
Under the Macro mode, you can configure the keys and Macros you set.
Step 7: Press and hold Fn + Left Win for 3 seconds to exit the Macro mode and return to the default key definition.

Akko Macro V1.0 Calling Macros

Method A:
Enter the Macro mode by long pressing Fn+left Win. Then all keys will turn to pre-configured definitions with locked Win key. Press Fn+Win to unlock Win key if necessary. In the Macro mode, you can use keys with customized definitions.
Note, everytime you reboot or re-plugged the cable of the keyboard, the Macro mode will be turned off by default and all keys will return to default definitions until you re-enter the Macro mode.

Method B:
Under the default key definition, you can also quickly call the customized content of specific keys through "Fn+right Alt+the key that has been defined through Macro". Note that you must first press Fn and then press Alt to call the Macro.

Akko Warranty and Service Statement

1. Akko provides 1-yr warranty for customers in mainland China. For other regions, please contact your seller (Akko distributor) for specific warranty policy.
2. If the warranty window expires, customers need to pay for repairs. Akko will also provide instructions if usersprefer to repair the keyboard by themselves. However, users shall take full responsibility for any loss happened during self-repair.
3. Dissembling the keyboard without manufacturer/seller's instruction will immediately void the warranty.
4. The return and warranty policy may vary in different platforms and are subject to the specific distributor at the time of purchase.

Precautions: Man-made damage is not limited to immersion, falling off, and pulling off the wires with excessive forces, etc.
